For accurate troubleshooting, focus on the fuse block connections first–specifically terminals A3 (headlight switch), B4 (ignition feed), and C7 (instrument cluster power). Corrosion in these junctions is the primary cause of intermittent dashboard failures. Use a multimeter set to 200-ohm scale to verify continuity; readings above 0.5 ohms indicate oxidation requiring immediate cleaning with deoxIT or replacement of the terminal splice.
Trace the charge circuit along the 10-gauge red wire from the generator to the voltage regulator–inspect the voltage stabilizer relay (mounted near the firewall) for burnt contacts. Replace the relay if voltage output fluctuates beyond ±0.2V during a 2,000 RPM test. Bypass aftermarket alternators: their output diodes often lack proper grounding, causing parasitic loads on the amperage sensing circuit.
Isolate turn signal issues by checking the flasher unit (behind the dashboard panel). A faulty thermal breaker inside will either click rapidly or not at all–test by bridging the P and L terminals with a jumper wire; if the signals operate normally, replace the flasher with a 12V 3-prong heavy-duty model (part #1940390).
For brake light faults, examine the stop lamp switch under the pedal arm. Adjust the plunger depth to 3–5mm; anything shorter risks incomplete engagement. If adjustment fails, the internal microswitch diaphragm may be compromised–replace with a gold-contact variant (part #3701124) to prevent voltage drop under load.
When rewiring the dimension lights, route the 18-gauge brown wire away from the exhaust manifold (minimum 10cm clearance) to avoid heat-induced insulation degradation. Secure connections with heat-shrink crimp terminals (not solder)–vibration loosens solder joints over time, especially on the driver-side kick panel grounds.
Restoring Classic Chevrolet Electrical Schematics
Start by sourcing the original factory manual from authorized GM restoration suppliers–avoid aftermarket reproductions unless verified against 1950s GM blueprints. The TSB (Technical Service Bulletin) #55-62 outlines critical revisions to the ignition switch circuit that aftermarket diagrams often omit. Cross-reference this with Fisher Body Service Manual Part 1A, page 24, which details fusible link placement in the engine bay harness.
- Trace the main loom from the firewall grommet to the fuse block–verify the white-with-black-stripe wire feeding the ignition coil remains intact. Common failure points include brittle insulation near the exhaust manifold and corrosion at the bulkhead connector.
- Inspect the red-with-green-stripe circuit for the fuel gauge. If readings fluctuate, probe the sender unit ground (typically a braided strap to the frame) before condemning the instrument cluster.
For turn signal circuits, the flasher relay (located behind the dash near the steering column) uses a bimetallic strip–modern electronic replacements cause rapid blinking. Match the original Type 85 relay specs (0.25A draw at 12V) to prevent bulb burnout. The hazard circuit branches off before the flasher; confirm continuity in the dark-blue-with-white-stripe wire from the switch to the front/rear lamp sockets.
- Test the generator output with a carbon-pile load tester set to 30A. Vintage Delco-Remy units should maintain 13.8–14.4V with the field winding energized. Replace the voltage regulator if output drops below 13V under load.
- Check the ammeter shunt wire (black-with-pink-stripe) for proper grounding–poor contact here skews dashboard readings. The shunt connects to the battery positive terminal via a 1/4″ copper stud; clean both surfaces with emery cloth before reattachment.
Headlight circuits often fail due to worn dual-filament sockets. Replace dimmed or flickering units with exact-fit GE #1034 bulbs–direct LED replacements melt the socket plastic. The high-beam relay wires (light-green-with-black-stripe) should measure 0.5 ohms to ground when activated; higher resistance indicates corroded connectors under the headlamp buckets.
Avoid splicing modern crimp connectors into the harness. Original circuits relied on soldered and wax-dipped joints–use 60/40 rosin-core solder and reproduce the wax seal for moisture resistance. The taillight harness uses cloth-covered wire; preserve this by encasing new sections in adhesive-lined heat-shrink tubing before soldering.
Document every modification with a high-resolution circuit map. Label each wire using the Chevrolet Division Color Code (e.g., “WHT/LBL” for white-with-light-blue-stripe) and store the map with the vehicle’s maintenance log. For troubleshooting, use a high-impedance multimeter (10MΩ) to avoid back-feeding circuits–modern meters with lower impedance can trigger relays unintentionally.
Selecting the Right Electrical Bundle for Your Classic Chevy Coupe
Verify the harness origin by matching fuse block terminals – original equipment from this era uses a distinctive 8-slot block with numbered terminals 1 through 7 plus a battery post. Aftermarket bundles often include 10 or 12 slots, requiring unnecessary modifications. Locate the block under the dash near the steering column; correct replacements align perfectly without drilling.
Inspect the loom diameter at three specific segments: headlamp feed, instrument cluster connector, and rear tail circuit. Genuine replacements maintain consistent 6mm diameter for main runs, tapering only at pigtails. Measure with digital calipers before purchase – variations exceeding 0.5mm indicate repro or incorrect fitment.
Decoding Color Coding and Terminal Types
Trace the primary power lead – it must originate from the bulkhead connector as a 10-gauge red wire with purple tracer. Any deviation to orange or yellow suggests a later model splice. Check ignition switch terminals: authentic harnesses use push-on spade connectors (male 0.187″), while modern reproductions often employ 0.250″ quick disconnects requiring adapters.
Confirm taillight harness construction: proper replacements use molded bulb sockets with tin-plated brass contacts, not stamped steel. Remove a single socket – the terminal base should display “AMP” or “GM” markings. Absence of these indicates low-quality components prone to corrosion.
Compare harness routing channels against factory assembly manual illustrations – correct bundles follow exact curvature around heater box and firewall passthrough. Misrouted wires interfere with pedal linkages or chafe against sharp edges. Note that proper installations use original-style loom tape (cotton fabric with asphalt impregnation), never PVC or nylon wraps.
Verification Procedures Before Installation
Test continuity using a 12V test light between chassis ground and each circuit with the bundle disconnected. A single disconnected terminal should illuminate at every point; multiple “hot” circuits indicate internal shorts. Validate fuse ratings – authentic configurations use 8A for lighting and 16A for high-draw accessories, while many reproductions standardize 10A across all circuits.

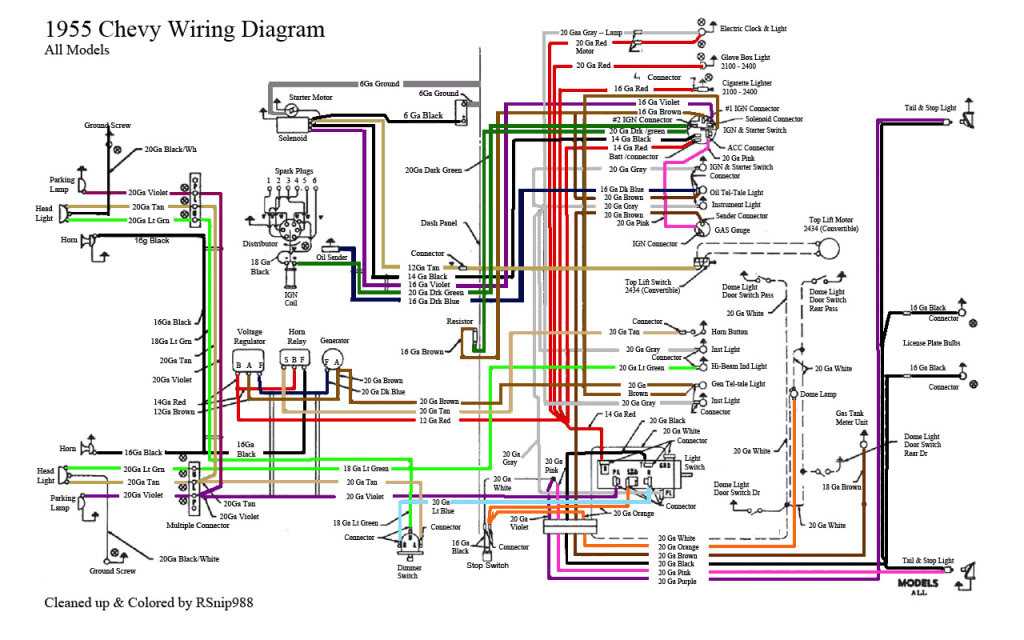

How to Interpret the Classic Chevrolet Electrical Blueprint
Locate the central power distribution block first–it’s marked as the “fusible link panel” beneath the driver-side dashboard. Trace the thick red cable from the battery terminal to this point, noting splice points labeled with alphanumeric codes (e.g., “A1,” “B3”). These correspond to the schematic’s edge markers, acting as cross-reference guides.
Identify each circuit group using the color-coded system:
- Primary ignition: black/yellow stripe
- Headlight feed: green with white tracer
- Instrument cluster: brown/pink stripe
- Accessory circuits: solid blue or red
Verify continuity with a multimeter at the firewall bulkhead connector, ensuring wire gauge matches the schematic’s notation (e.g., “10 AWG” for high-load paths).
Isolate components by following upstream paths to their source. For example, the voltage regulator (labeled “GEN REG”) connects via a purple wire to the alternator’s excitation terminal–use the schematic’s dotted lines to distinguish internal regulator connections from external wiring. Pay attention to ground symbols (⏚): this model uses chassis grounds at four key points (engine block, firewall, taillight bracket, and rear axle).
Cross-reference unusual symbols with the legend:
- ↪︎: Switch (momentary or toggled)
- ⊕: Junction (soldered or crimped)
- : Relay coil
- ▭: Resistor
The turn signal harness includes a thermal flasher unit (oval symbol) wired in series between the switch and bulbs–test for 3-4 ohms resistance when active. Discrepancies here often indicate corroded bulb sockets or oxidized contacts.
Systematically test each branch by disconnecting the battery negative terminal first. Work from the dashboard outward, probing circuits with a 12V test light while observing the schematic’s current flow arrows. For headlight circuits, note the dimmer switch splits the high/low beams via a double-throw configuration–inspect the bullet connectors at the steering column base for brittle insulation. Document any deviations from the expected 0.2-0.5 ohm resistance between the switch and bulbs.
Solving Frequent Electrical Problems in Classic Chevys
Check the voltage regulator first if the battery drains overnight or headlights dim at idle. The original Delco-Remy unit often fails due to corroding contacts or a stuck relay, causing overcharging (above 15V) or undercharging (below 12.5V). Replace it with a solid-state alternative–a drop-in kit like the Painless 15000 eliminates points corrosion and adjusts voltage precisely to 14.1V at 2,000 RPM. Ensure the ground strap between the engine block and firewall isn’t frayed; solder a new 4-gauge braided copper wire if resistance exceeds 0.1 ohms.
Faulty Circuits and Repairs
| Issue | Symptom | Fix | Tools Required |
|---|---|---|---|
| Dash gauges erratic | Fuel/temp gauges fluctuate or peg at max | Replace sending unit (3-90 ohm resistance for fuel), check gauge wiring for short to ground | Multimeter, ¼” socket |
| Turn signals cancel prematurely | Signals blink 2-3 times then stay on | Clean or replace the steering column cancelling cam; grease contact points with dielectric grease | Phillips screwdriver, contact cleaner |

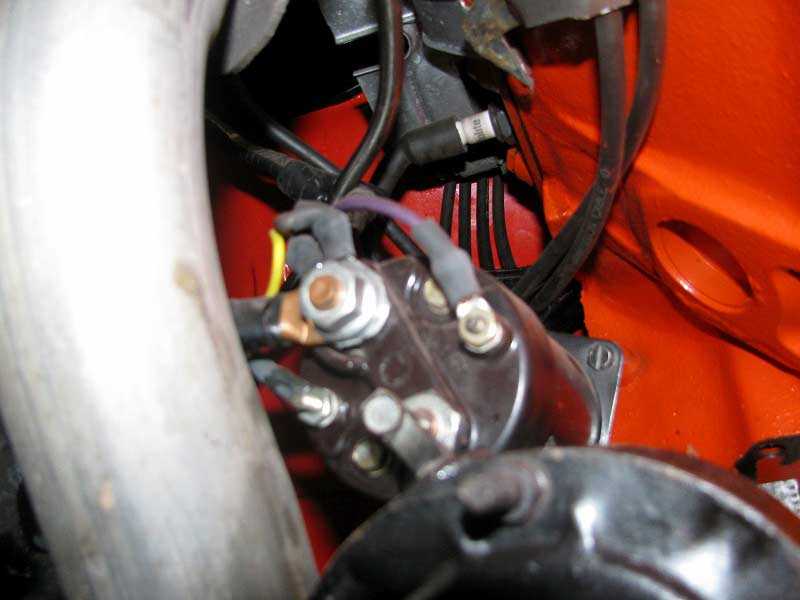

| Starter solenoid clicks, no engagement | Single click, no crank | Bypass solenoid with screwdriver (short terminal to housing), then replace solenoid or starter | Jumper wire, 10mm wrench |
| Brake lights stay on | Lights illuminate without pedal pressure | Adjust or replace stoplight switch (mounted on pedal bracket); check for pinched wires | Flathead screwdriver, wire strippers |
Use a 6-volt test light on the instrument voltage limiter if the oil pressure gauge reads high–clip one lead to ground and probe the “I” terminal; if the light doesn’t glow, the limiter has failed. Replace it with a Napa TP200, matching the original 5-ohm resistance. For intermittent power windows, lubricate the regulator tracks with white lithium grease and tighten the motor mounting bolts (10 lb-ft torque); loose bolts cause the motor to bind.
