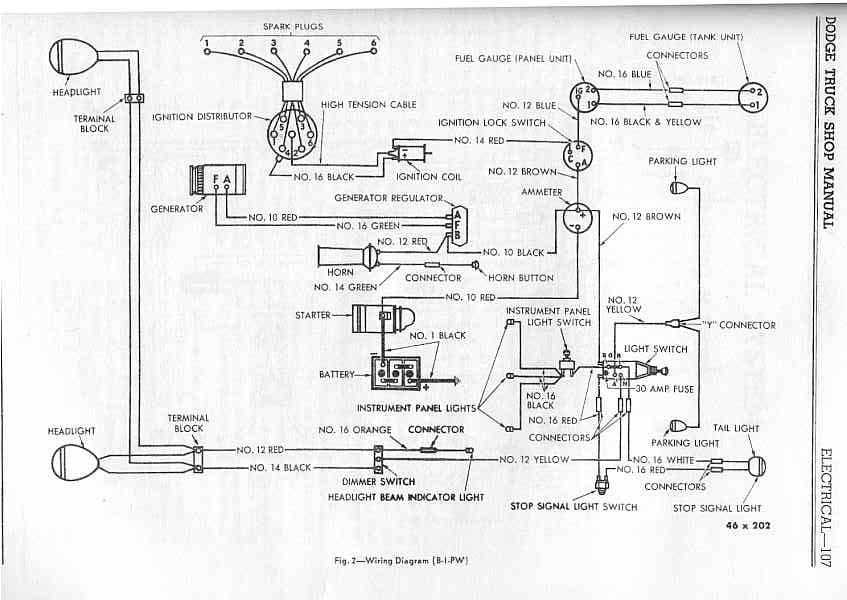

Start with a high-resolution scan of the original electrical blueprint–commonly found in factory service manuals from the early 1950s. Verify each wire’s gauge against the original specifications: 12-gauge for primary power circuits, 14-gauge for lighting and accessories, and 18-gauge for signaling systems. Replace any modern copper-clad aluminum replacements with tinned copper wire to prevent corrosion, especially in grounding points near the firewall and chassis.
Trace the main harness from the battery terminal to the fuse block, noting color codes that rarely matched later industry standards. The red wire with a white stripe typically carried ignition voltage; a black wire with a red stripe often served as the primary ground return for lighting circuits. Label every connection before disconnecting–factory splices were crimped, not soldered, and replication requires identical methods for reliability.
Inspect the voltage regulator’s mounting bracket; misalignment here introduces resistant connections, causing intermittent charging failures. The generator’s field winding (usually marked “F”) must connect through a 10-ohm resistor before reaching the regulator’s “F” terminal. Omit this resistor, and the charging system will overheat, risking meltpoints in the wiring loom.
Use heat-shrink tubing on every splice–fabric-wrapped leads degrade after seven decades, and exposed strands invite short circuits under hood vibrations. For switches, retain the original phenolic housings; modern plastics lack the heat tolerance needed near exhaust manifolds. Replace bulbs with reproductions matching the 6-volt filament profile–LED upgrades require dropping resistors to prevent hyperflash in signaling circuits.
Rewiring a Classic Advance-Design Pickup: Field-Tested Strategies
Begin by labeling every original harness connection with masking tape and a permanent marker before disassembly. Use a multimeter set to continuity mode to trace circuits back to their source–factory schematics often omit ground locations for the 3100 series cab corners where corrosion steals voltage. Replace the fusible link (14-gauge wire between starter solenoid and ammeter) with marine-grade tinned copper conductor rated for 40 amps; standard wire melts under modern accessory loads like LED taillights or a 12V cooler.
Route new circuits in split loom tubing cut to 3/8″ diameter, securing with nylon zip ties every 6 inches–avoid metal clamps that chafe insulation. For the instrument cluster, solder female 1/4″ spade terminals to replacement wires; crimp connectors invite resistance. Attach the voltage regulator using a dedicated ground strap to the firewall, not the painted inner fender; electrolysis destroys thin sheet metal in months.
Test each function systematically: headlights (high/low), brake lights, turn signals, and horn–verify operation before reinstalling door panels or dash components. Use dielectric grease on the six-way fuse block terminals to prevent voltage drop; corrosion here mimics gauge failures. For the tailgate harness, run dual conductors through the frame rail–original single wires fray at the pivot point.
Store removed original harness segments in vacuum-sealed bags with silica gel packets; brittle cloth insulation crumbles after 70 years. When routing through the firewall, enlarge the grommet hole by 1/8″ and insert a rubber bushing to prevent shorts–sharp steel edges slice through modern insulation. Keep a fire extinguisher nearby during initial power-up; misrouted wires arc violently under load.
Locating Genuine Electrical System Parts for Early 3100 Series Pickup Models
Trace the main harness route beneath the dashboard to isolate the original components. Factory-installed bundles split near the steering column into three distinct branches: ignition, lighting, and auxiliary circuits. Each branch terminates at an amphenol connector–evidence of authentic mid-century manufacturing practices.
| Component | Factory Color Code | Terminal Style | Common Failure Signs |
|---|---|---|---|
| Ignition switch feed | Red with black stripe | Single-blade push-on | Frayed insulation near firewall grommet |
| Headlamp relay wire | Green with yellow stripe | Round bullet connector | Corrosion at lamp socket junction |
| Battery positive cable | Heavy black | Lug-style clamp | Eroded strands near starter solenoid |
Examine the fuseblock mounting location–typically secured above the kick panel on the driver side. Original harnesses integrate a four-circuit block with round glass fuses, unlike later blade-style replacements. Locate the thermal limiter near the voltage regulator; genuine units feature embossed manufacturer markings (Delco-Remy or Auto-Lite) with date codes preceding 1953.
Verify ground connections at the engine block and frame rails. Period-correct braided straps–approximately 3/8” wide–connect the starter to the chassis, contrasting with contemporary braided cables that often exceed 1/2” width. Check for soldered eyes at terminals rather than crimped connections, a hallmark of original builds.
Inspect the taillight harness where it exits the rear crossmember. Factory assemblies wrap individual circuits in cloth-wrapped loom, whereas later reproductions employ vinyl sleeving or split conduit. Observe the distinctive zigzag stitching on loom coverings–a detail omitted in aftermarket copies.
Compare bulkhead connectors at the firewall with known specifications: genuine two-piece phenolic plugs contain cylindrical brass pins spaced 0.187” apart. Counterfeit versions frequently substitute stamped copper contacts or increase pin spacing by 0.015”–0.030”. Measure with calipers to confirm tolerances.
Retrieve OEM part numbers from service manuals: ignition switch 1119012, voltage regulator 1119220, generator 1102045. Cross-reference with salvage-yard components by checking for casting numbers on metal housings (e.g., “DR-52” or “AL-51”) and avoiding units with chrome-plated terminals–an indicator of non-original finishes.
Step-by-Step Color Code Decoding for Original Harness Layouts
Begin by isolating the main harness loom from the firewall to the instrument cluster. Trace the red stripe (R) wire–this is the constant power feed from the battery, typically 10-gauge. Verify its voltage with a multimeter at the ignition switch terminal “BAT” (marked “B” on most schematics). If readings drop below 12.6V, inspect the fusible link near the starter solenoid or corroded bulkhead connectors.
- Blue stripe (BLU): Headlight high beam control; runs from dimmer switch to the beam relay. Test continuity with the switch in “HI” position–resistance should not exceed 0.5 ohms.
- Yellow stripe (YEL): Left front parking light circuit. Follow to the junction block under the dash; splice neatly if repairing breaks near the fender grommet.
- Black stripe (BLK): Ground path. Confirm solid connection at the engine block (driver’s side bellhousing) or cab mount. Clean mating surfaces with a wire brush and apply dielectric grease.
- Green stripe (GRN): Brake light switch output. Backprobe the switch connector while depressing the pedal; expect instant 12V signal. Replace switch if latency exceeds 200ms.
For circuits with spliced modifications, use heat-shrink terminals and a crimper rated for 16-10 AWG. Avoid electrical tape for permanent repairs–it traps moisture. Cross-reference decoded colors with original build sheets if available; discrepancies often point to aftermarket alterations that require reverting for OEM reliability.
Troubleshooting Electrical Problems in Classic Pickup Models
Start by disconnecting the battery before inspecting connections–corrosion on terminals often mimics faulty circuits. Use a wire brush and baking soda solution to clean contacts, then apply dielectric grease to prevent future oxidation. Pay attention to the ground strap between the engine and firewall; a weak ground causes intermittent failures across the entire system.
Identifying Hidden Faults
- Flickering headlights? Check the voltage regulator output–it should read 13.8-14.5V at 2000 RPM. A failing unit delivers erratic current, damaging bulbs and relays.
- Turn signals blinking rapidly indicate a burned-out bulb or incorrect flasher unit. The original bimetallic flasher works only with proper load; modern replacements may not sync properly.
- Gauge needles fluctuating? Test the voltage stabilizer mounted on the back of the instrument cluster–replace if readings vary by more than 0.5V.
For splices, avoid electrical tape–it dries out and unwinds. Instead, solder joints and cover with heat-shrink tubing to seal against moisture. The fusible link near the starter solenoid is prone to melting; if blown, trace downstream circuits for short circuits before replacing. A multimeter set to continuity mode helps locate broken wires in harnesses–probe both ends while flexing the loom to reveal internal breaks.
When reassembling, route harnesses away from sharp edges and moving parts. Original cloth-covered wires fray over time; replace sections with cross-linked polyethylene (XLPE) wire of the same gauge. Label each connector before disassembly–restoring 20+ wire bundles without a reference leads to misconnections. Ammeter readings should show minimal drain (
Gear and Supplies for Overhauling Your Classic Vehicle’s Electrical Framework
Start with a multimeter capable of measuring at least 600V AC/DC, continuity, and resistance–Fluke’s 87V or Klein Tools’ MM600 are reliable choices. Avoid cheap models; inaccurate readings waste hours of troubleshooting and risk damaging components.
Crimping tools must include a ratcheting crimper for insulated and non-insulated terminals–Knipex 97 52 34 stands out for consistent pressure. Pair it with a wire stripper; IDEAL 45-121 removes insulation cleanly without nicking strands. For soldering, a temperature-controlled iron (Hakko FX-888D) prevents overheating vintage cloth-covered leads.
Gather terminal assortments: 10-12 AWG ring, spade, and butt connectors (T&B or 3M); heat-shrink tubing in 3/16″, 1/4″, and 3/8″ diameters (polyolefin, adhesive-lined for moisture resistance); and DEI’s dielectric grease to prevent corrosion at junctions. Avoid vinyl electrical tape–it dries out and leaves sticky residue.
For tracing circuits, a tone generator/probe set (Fluke Pro3000) locates hidden wires without damaging insulation. A non-contact voltage tester (Klein NCVT-3) identifies live circuits quickly. Labeling tools are critical: Brother P-Touch PTM95 or Dymo Rhino 5200 prints durable, oil-resistant labels for wires and fuse blocks.
Replace aged cloth-covered wire with cross-linked polyethylene (XLPE) or Teflon-insulated wire–GXL (primary) and SXL (heavy-duty) rated for 125°C handle engine bay heat. Use 12 AWG for lighting circuits, 10 AWG for high-draw components (starter, electric fans), and 14-16 AWG for signals and gauges. Tinned copper strands resist corrosion better than plain copper.
Fuse panels should be upgraded to modern blade-style holders (Blue Sea Systems 5026 or Littelfuse ATO/ATC)–include spare fuses (5A–30A) and relays (Bosch-style 40A, with sockets). For grounding, use 4 AWG braided copper straps (Del City 811044) to chassis points, sanded to bare metal and sealed with POR-15 or Rust-Oleum for conductivity.
For connectors, Metri-Pack 150, Weather-Pack, or Deutsch DT series (depending on environment) ensure waterproof, vibration-resistant contacts. Terminal pins and sockets must match the series–extract broken pins with a dedicated tool (TE Connectivity 1371765-1) to avoid bending. Lubricate connections with CRC 05113 to prevent fretting corrosion.
Documentation requires a notepad, colored markers (red/black/blue/yellow), and a smartphone for photos of original routing before disassembly. Use Ohm’s Law calculator apps (Electrodroid) to verify circuit loads. Finally, keep a fire extinguisher (ABC-rated, 5 lb) nearby–shorts in aged systems can ignite upholstery or insulation instantly.
