Begin by isolating the power supply to avoid accidental shorts. Verify the module’s rated voltage matches your system–typically 24V DC for industrial applications. Locate terminal blocks labeled 0 through 31 on the front panel; these correspond to individual channels. Each channel requires a dedicated return path (common) for proper operation.
For sinking outputs, connect the load’s positive side to the external power source and the negative to the module’s terminal. Confirm the power supply’s current capacity exceeds the combined load of all active channels–standard modules handle 0.5A per channel, with a 16A total limit. Use 18 AWG or thicker wire to prevent voltage drops over long runs.
Avoid daisy-chaining commons across channels; instead, pair each channel with its own return wire to the power supply’s negative terminal. Check the module’s LED indicators–steady green confirms power, while flashing red signals overload or wiring errors. For high-current loads, add external relays or solid-state switches; the module’s internal circuitry isn’t designed for inductive loads.
Ground the chassis via the designated terminal to reduce electrical noise. Test each channel with a multimeter before integrating it into the control logic. If using a PLC, ensure the ladder logic addresses the correct memory tags (O:0.x for CompactLogix systems). For safety, incorporate a fuse or circuit breaker rated at 125% of the maximum expected current.
Document the setup with clear labels on wires and terminals. Use ferrule connectors for stranded wire to prevent fraying. For troubleshooting, reference the module’s user manual for pinout specifics–terminal 32 often serves as the common for sinking configurations. Replace damaged wires immediately to prevent intermittent faults.

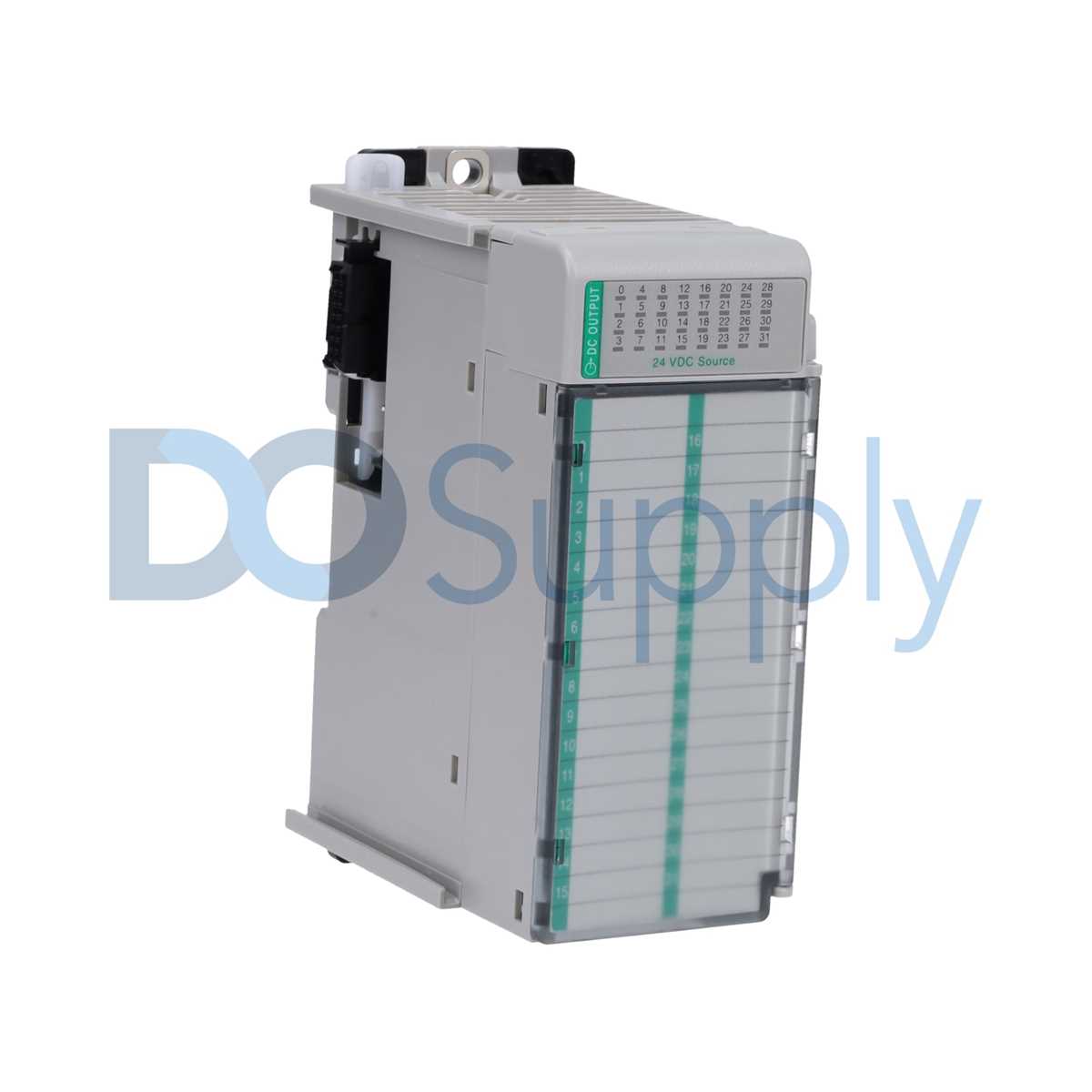

Connecting Allen-Bradley 32-Channel Digital Output Module: Key Configurations
Begin by verifying the module’s power requirements: 24V DC on terminals V+` and `COM`. Incorrect voltage risks damaging channels or causing erratic behavior. Use a dedicated power supply with stable output, avoiding shared circuits with inductive loads (motors, relays) to prevent voltage spikes.
For sinking output connections, wire each load between the module’s channel terminal and the positive side of the 24V DC supply. The module’s internal circuitry completes the circuit through `COM`. Below are critical pin assignments for channels 0–15 (repeat for 16–31 on adjacent terminals):
| Terminal | Function | Load Connection (Sink) |
|---|---|---|
| 0 | Channel 0 Output | Connect to load (+24V), loop back to load’s COM |
| 1 | Channel 1 Output | Same as above |
| … | … | … |
| 15 | Channel 15 Output | Same as above |
| 16 | Channel 16 Output | Mirror setup for upper half |
Isolate high-current loads (above 500mA per channel) using external relays or solid-state switches. The module’s maximum continuous current rating is 1A per channel, exceeding this triggers thermal shutdown. For transient protection, add flyback diodes across inductive loads and varistors across AC-driven components.
Ground shielding at both ends of cable runs longer than 10 meters to minimize noise. Use twisted pair wiring for signal integrity, separating output leads from high-voltage AC lines by at least 30cm. Test each connection with a multimeter in continuity mode before energizing; shorts between channels or ground can damage the module irreversibly.
In RSLogix 5000, map outputs to tags using slot-specific addressing. For slot 3, channel 5 corresponds to `Local:3:O.Data.5`. Verify LED indicators: green for active output, red for fault (overload, short, or communication error). Log error codes from the controller’s fault log to diagnose intermittent issues–common culprits include loose terminals, inadequate power supply capacity, or corrupted PLC ladder logic.

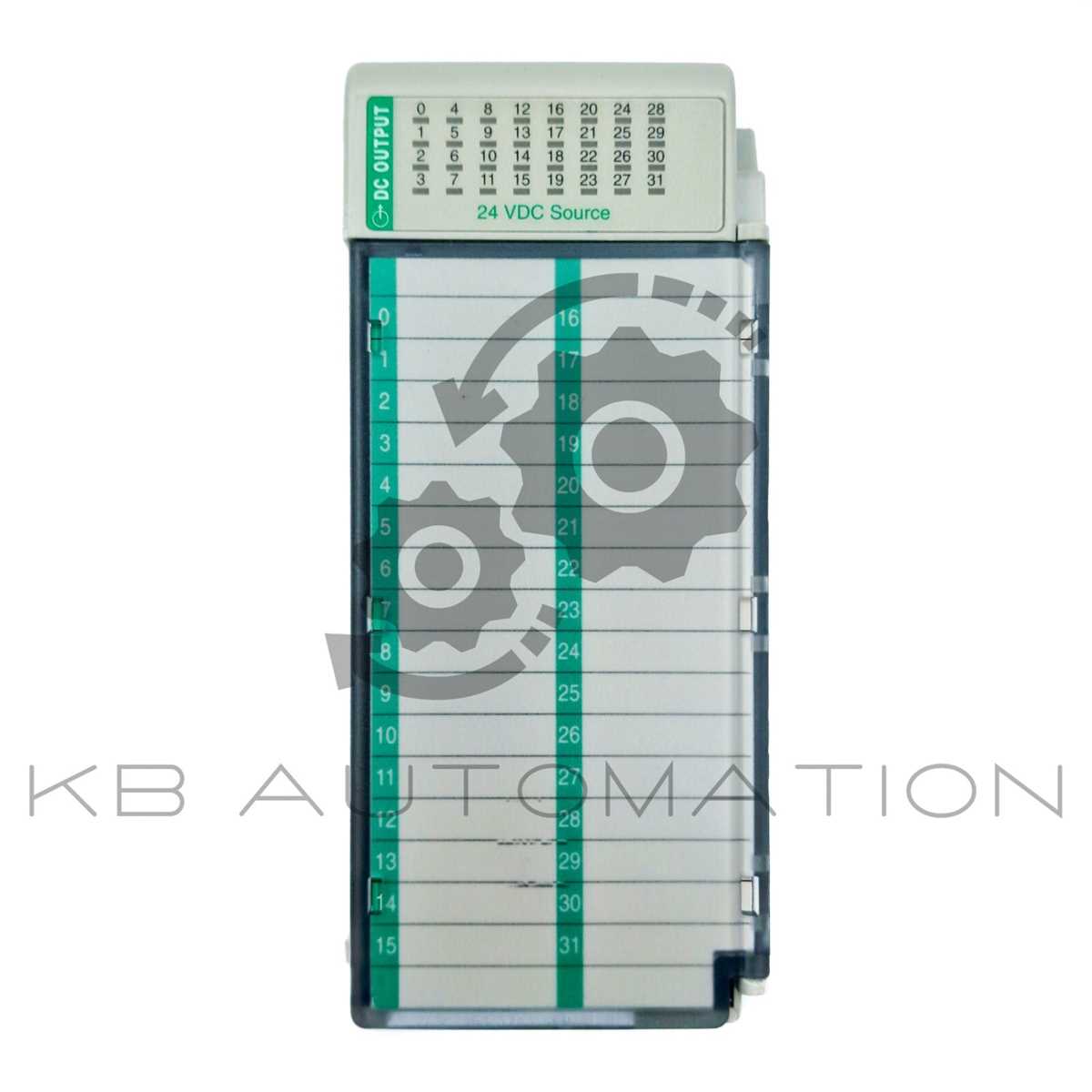

Locating and Verifying Terminal Points on the 32-Output Control Component
Begin by referencing the front panel label sequence for terminal numbering. The output module’s channels follow a 0-based index, with terminals marked from 0 to 31 in two vertical columns. Left-side terminals (0–15) align with odd-numbered outputs, while right-side terminals (16–31) correspond to even-numbered outputs. Confirm physical alignment by tracing the silkscreened numbers–tiny but legible–adjacent to each screw clamp. Mismatched connections often stem from overlooking this left-right split.
Use a multimeter in continuity mode to validate terminal-to-output mapping if documentation is unclear. Connect one probe to the module’s DC common (COM) terminal–typically the lowest point on both columns–and touch the other probe to each output terminal sequentially. A beep or voltage drop confirms the active channel. Record findings directly on masking tape adhered to the DIN rail to avoid reliance on memory during installation or troubleshooting.
Note the COM terminal’s dual role: it supplies return current for all sinking outputs when configured as NPN. For sourcing (PNP) setups, the module’s internal power bus provides voltage, eliminating the need for external sourcing at each terminal. Verify jumper settings on the rear connector if outputs behave inconsistently–misconfigured jumpers (factory-set for sinking) frequently cause unexpected silence on channels.
Terminal points A1 and A2 adjacent to the COM row serve as auxiliary power inputs. These accept 24VDC for backplane isolation when external devices require dedicated supply. Check polarity–reversed leads trip the onboard fuse (resettable) without damage but halt all outputs until correction. Avoid connecting field-side loads here; this pair exclusively powers module logic during high-current scenarios.
Inspect terminal blocks for oxidation or debris before securing wires. Corroded clamps introduce intermittent faults detectable by erratic LED flicker on the module’s status indicators. Clean contact surfaces with fine-grit sandpaper if resistance exceeds 0.5Ω between terminal and conductor core. Tighten screws to 0.5Nm (4.4 lb-in) torque–over-tightening deforms clamp springs, under-tightening risks loose connections under vibration.
For channels 8–15 and 24–31, recognize their electrical isolation from the primary bank. Each group shares a separate COM return path internally fused at 1A. Measure resistance between COM of group A (0–7) and group C (8–15) to confirm >1MΩ–any reading below signals shorted circuitry requiring replacement. Field wiring to these channels must never intersect; cross-wiring defeats isolation and risks ground loops in sensitive applications.
Document each terminal assignment using indelible marker on cable sleeves within 50mm of the connector. Avoid reliance on color coding alone–verify with labels. Include load type (solenoid, relay coil) and expected current draw (max 1A per channel, 8A per group**). Retain documentation in the control cabinet’s door sleeve for rapid reference during outages or modifications.
Step-by-Step Guide to Connecting Discrete Output Channels to External Equipment
Begin by verifying the control module’s sourcing or sinking configuration against the sensor or actuator specifications. If the module supplies voltage (sourcing), connect the field device’s positive terminal to the module’s output terminal and the return path to the module’s common or ground. For sinking modules, reverse the polarity: link the device’s positive to the external power source, then route the negative through the module’s output channel. Always cross-check the module’s manual for voltage compliance–most industrial discrete outputs support 24VDC, but exceeding this may damage the circuitry.
Use a multimeter to confirm the absence of voltage at the output terminals before attaching any cables. This prevents accidental shorts during installation. For high-current loads (above 500mA), consider relay isolation: wire the module’s output to a relay coil and connect the load across the relay contacts. This safeguards the module from inductive voltage spikes typical of motors or solenoids. Shielded twisted-pair cables are mandatory for distances over 10 meters to suppress electromagnetic interference.
Cable and Termination Best Practices
- Select AWG 18–20 gauge wire for most applications; thicker wires (AWG 16) are needed for loads exceeding 2A.
- Use crimp ferrules for stranded conductors to prevent fraying and improve terminal contact.
- Secure connections with torque-controlled screwdrivers (typically 0.5–0.7Nm).
- Daisy-chaining outputs is discouraged; each device should tap into a dedicated terminal to avoid voltage drops.
- Label both ends of every conductor–color-coding alone is insufficient in complex setups.
After physical connections, validate the setup by toggling outputs via the HMI or logic controller. Monitor the voltage at the field device terminals during activation; if the voltage drops below 20VDC, inspect for loose terminals or undersized wiring. For inductive loads, add a flyback diode (e.g., 1N4007) across the coil to clamp reverse voltage spikes. Document the entire configuration, including terminal numbers, wire colors, and device specifications, in a PLC comment or external schematic.
Troubleshooting Common Issues
- No Output Detected: Check module fault indicators (LED status) and verify power to the rack. Test the channel with a known-working load (e.g., 24VDC lamp).
- Intermittent Operation: Measure resistance between terminals–values below 1Ω indicate a short; above 1MΩ suggests an open circuit.
- Overheating Modules: Confirm derating curves: some modules require airflow if ambient temperatures exceed 50°C.
- Unintended Tripping: Review overload protection settings; adjust fuse or electronic trip thresholds if loads draw higher inrush currents.
For safety, always energize the system in a controlled sequence: first, supply power to the field devices, then enable the output channels. Reverse the sequence during shutdown to prevent uncontrolled device states. Store backup copies of control logic to restore configurations after module replacements.
