Start by locating the main fusebox–usually beneath the seat or adjacent to the battery compartment. Disconnect the battery’s negative terminal before handling any circuits to prevent shorting or accidental activation. Use a multimeter set to continuity mode to verify connections between components. Label each wire with masking tape and a marker to avoid confusion during reassembly. Pay special attention to color-coding: red typically denotes power, black is ground, and yellow or blue often signify signal wires for lights or sensors.

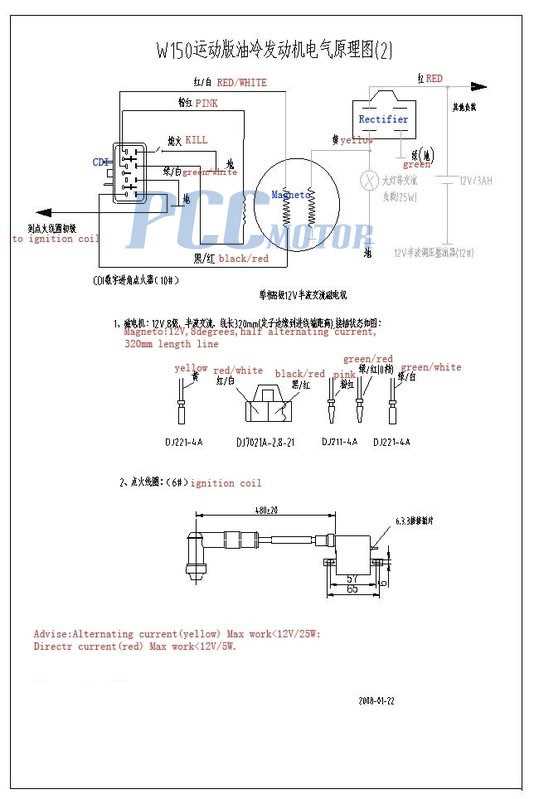

Identify the CDI unit, ignition coil, and regulator-rectifier–these three modules manage power distribution. Following the service manual for your model, trace each wire from these components back to their origin. The CDI unit usually connects to the stator via thick wires; check for voltage fluctuations with the engine running to diagnose charging issues. If the headlight flickers or the battery drains, the regulator-rectifier may be failing–test its output with the multimeter under load.
Inspect the stator for loose or burnt wires; this component generates AC power and converts it to DC for the system. Replace any corroded connectors or damaged insulation immediately–even a small gap can disrupt performance. For intermittent electrical faults, wiggle each connection while monitoring voltage; a drop indicates a poor contact. Keep a spare length of wire, soldering iron, and heat-shrink tubing on hand for quick repairs.
Document every step with photos or sketches to reverse the process correctly. Avoid relying solely on color codes, as aftermarket modifications or previous repairs may have altered them. If the electric start fails, check the starter relay and solenoid for proper operation–these small components often wear out faster than the battery or motor. Always secure connections with zip ties to prevent vibration-induced disconnections.
Practical Guide to Electrical Schematics for Light Two-Wheelers
Locate the ignition switch connector–it typically houses five wires: red (battery feed), black (ground), yellow (AC power from stator), white (main lighting circuit), and blue (signal for accessories). Confirm continuity between the red wire and the battery positive terminal with the key off; resistance should drop to zero when engaged. If readings stray beyond 0.5 ohms, inspect the fuse link and ignition barrel contacts for oxidation–clean with 600-grit sandpaper and dielectric grease. Trace the yellow wire back to the stator output: use a multimeter set to AC volts, start the engine at 2,000 RPM, and verify 35-45V AC. Lower voltages indicate a worn stator; replace if below 30V.
Verifying Lighting and Signal Circuits
Disconnect the white wire from the headlight socket–apply 12V directly to check filament integrity. For LED units, measure voltage drop across the diode: a steady 1.8-2.2V confirms functioning output. Attach a test light to the blue wire while toggling the turn signal switch; flashing at 80-100 cycles per minute confirms relay activation–replace if slower than 60 cycles. Ground the black wire from the taillight assembly and observe brightness: dim or flickering light indicates a poor chassis ground–sand the mounting point and secure with a star washer. Label all connectors with heat-shrink tubing before reassembly to prevent miswiring.
Finding Key Electrical Connections in Your Motorcycle’s System
Begin by removing the under-seat panel–typically secured with two bolts or quick-release clips. On most Asian-market lightweight bikes, the primary bundle of cables runs along the frame’s left side, concealed beneath a plastic or rubber gasket. Follow the thickest cluster of wires from the battery toward the rear; the first multi-pin plug you encounter is the main gateway to lighting, ignition, and sensor circuits.

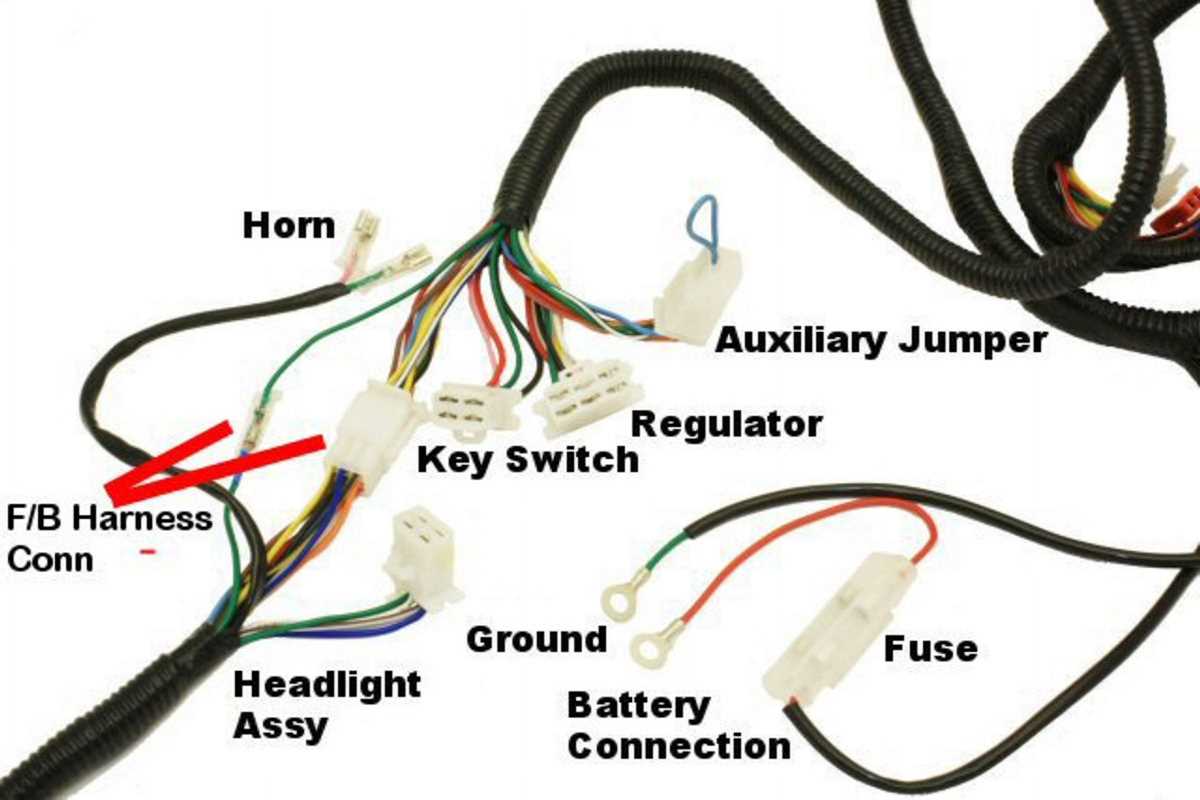

Check near the fuse box for a rectangular or trapezoidal connector–often white or black–containing 12 to 16 pins. This junction splits power to:
- Headlight and tail light assemblies
- Turn signal relays
- Horn and brake switches
- ECU input/output
Label each terminal before unplugging; color codes vary by manufacturer, but yellow-with-stripe usually denotes switched 12V, while green is ground.
Behind the dashboard, a smaller 6- to 8-pin connector links the speedometer, fuel gauge, and warning lights. Look for a thin, flat harness tucked beneath the instrument cluster; it often snaps into a dedicated bracket or mounts with a single screw. If the odometer stops working, this plug is the first point of inspection–corrosion here disrupts signal transmission.
Trace the cables from the handlebar switches downward; they converge into a single sleeve before branching again. The left switch assembly (turn signals, horn) attaches via a 4-pin plug, while the right side (brake lever, starter) uses a separate 3-pin connector. These junctions sit behind a rectangular cover near the headstock–remove it with a 5mm Allen key.
For fuel-injected models, locate the pump relay box near the fuel tank’s base. A 5- or 7-pin connector here controls the pump, injectors, and oxygen sensor. Water ingress here causes stalling; if the engine dies mid-ride, shake this connector–loose pins create intermittent faults. Dry it with compressed air before reseating.
Inspect the stator connections next to the crankcase. A bullet-style plug pairs the charging coil to the regulator; white wires typically carry AC voltage, red is DC output. If the battery drains overnight, this plug’s rubber boot is the likely culprit–apply dielectric grease before reassembly.
Step-by-Step Wire Color Coding for Ignition and Lighting Circuits
Identify the red cable as the primary power feed for the ignition coil–it typically carries 12V directly from the battery when the key switch is engaged. Connect this to the coil’s positive terminal, ensuring no intermediate resistance (e.g., fuses or relays) alters voltage unless specified for model-specific modifications. A white stripe or thin tracer line often denotes a secondary variant of this circuit, used for kill-switch integration; confirm with a multimeter at 0.5 ohms or less for continuity.
Lighting Circuit Decoding
Trace the yellow conductor to the headlamp–it supplies full system voltage during operation but may step down via a resistor for high-beam filaments. Pair it with the brown/white wire, which grounds the tail light assembly; verify this path by probing for 0V at the bulb socket with the switch activated. For turn signals, locate the green/white (front) and green/yellow (rear) leads–these toggle via the flasher relay, pulsing at 60-120 cycles per minute; irregular flashing indicates a chassis ground fault or relay failure.
Label black conductors as ground returns: solid black for the main frame connection, black/white for sensor grounds (CDI, ECU), and black/red for lighting-specific returns. Secure these to unpainted metal surfaces with star washers to prevent corrosion-induced voltage drops. Mistakes here–e.g., mixing tail-light ground with ignition ground–can cause intermittent dimming or stalling; use a continuity tester to isolate parallel circuits before soldering.
For auxiliary circuits, the blue wire usually feeds the horn (activate with a momentary switch), while purple handles brake lights–test by engaging the pedal to confirm 12V on activation. Disconnect the battery before splicing to avoid shorting; use heat-shrink tubing, not electrical tape, for splices exposed to vibration. Mismatched colors between factory schematics and aftermarket components require cross-referencing with a pinout chart specific to the engine control unit’s firmware revision.
Troubleshooting Common Electrical Issues Using a Multimeter
Set the multimeter to continuity mode (200Ω or the symbol with a sound wave) to test for broken circuits. Probe both ends of a suspected wire–if the meter beeps, the path is intact; silence indicates a break. Check connectors for corrosion or bent pins, which disrupt signal flow even when wires appear undamaged.
For voltage checks, switch to DC volts (20V range) and probe across components like the battery terminals. A fully charged 12V system should read 12.6–12.8V at rest. If voltage drops below 12.4V, inspect the charging system. Measure while cranking the engine: readings below 10V suggest a weak battery or faulty starter.
Test fuses by setting the multimeter to continuity. Place probes on each fuse terminal–if no beep occurs, replace the fuse. For relays, use the resistance mode (200Ω) to check coil continuity (typically 50–120Ω). If the resistance is infinite, the relay coil is open.
Examine alternator output by measuring voltage at the stator’s output wires (usually 3-phase AC). With the engine running, expect 13.5–14.5V DC at the battery. If readings are lower, test stator windings individually–each coil should show 0.1–1.0Ω resistance.
Identifying Parasitic Draw
To detect unwanted current drain, set the multimeter to 10A DC and connect it in series between the battery’s negative terminal and ground. Normal draw should not exceed 0.05A. If higher, isolate circuits one by one by pulling fuses until the reading drops.
Testing Switches and Sensors
Check switches by probing both terminals in continuity mode while toggling the switch. A functioning switch will alternate between open and closed circuits. For temperature sensors, measure resistance at different temperatures–most NTC thermistors should read 200–1000Ω at room temperature, dropping as heat increases.
