Begin with a fuse rated for no more than 125% of the circuit’s maximum current draw. For a 10-amp load, use a 12.5-amp fuse; anything larger risks overheating and voltage drop. Place the fuse within 7 inches of the power source to protect the entire line. Ignoring this step leaves wires vulnerable to short circuits, especially in automotive or marine applications where vibration accelerates wear.
Wire gauge selection is critical: 14 AWG handles 15 amps intermittently but struggles beyond 3 meters under continuous load. For 20-amp circuits, use 12 AWG or thicker–any thinner creates resistance that drops voltage below functional levels. Check the manufacturer’s spec sheet; many devices require a minimum of 11.5V at the point of connection. Test with a multimeter under load; a 0.5V drop across 5 meters of 16 AWG is typical, but 1.0V is unacceptable.
Avoid daisy-chaining power. Route a dedicated line from the battery to each high-draw component–led lights, pumps, or compressors. Splitters and junctions introduce resistance; a single connector can drop 0.1V per connection. For modular setups, use busbars with individual fuses for each branch. Tin-plated copper terminals resist corrosion better than bare copper or aluminum; crimp them with a ratcheting tool, not pliers, to ensure a gas-tight seal.
Ground paths must be as robust as power feeds. A corroded or undersized ground causes erratic behavior–flickering lights, sporadic relay clicks, or premature component failure. Use the chassis as a ground only if it’s clean, unpainted metal; otherwise, run a dedicated ground wire back to the battery’s negative terminal. For sensitive electronics, like ECUs or GPS units, route power and ground in parallel to minimize interference loops.
Relays simplify switching high-current devices. A basic 30/40-amp relay switches a 10-amp load with minimal voltage loss; avoid cheap Chinese-made relays–they often fail under vibration. Wire the trigger (terminal 85) through a switch or microcontroller, not directly to the battery. For pisc brightness or audio systems, use a dual-coil relay with a 2-second delay to prevent inrush current from dimming other circuits.

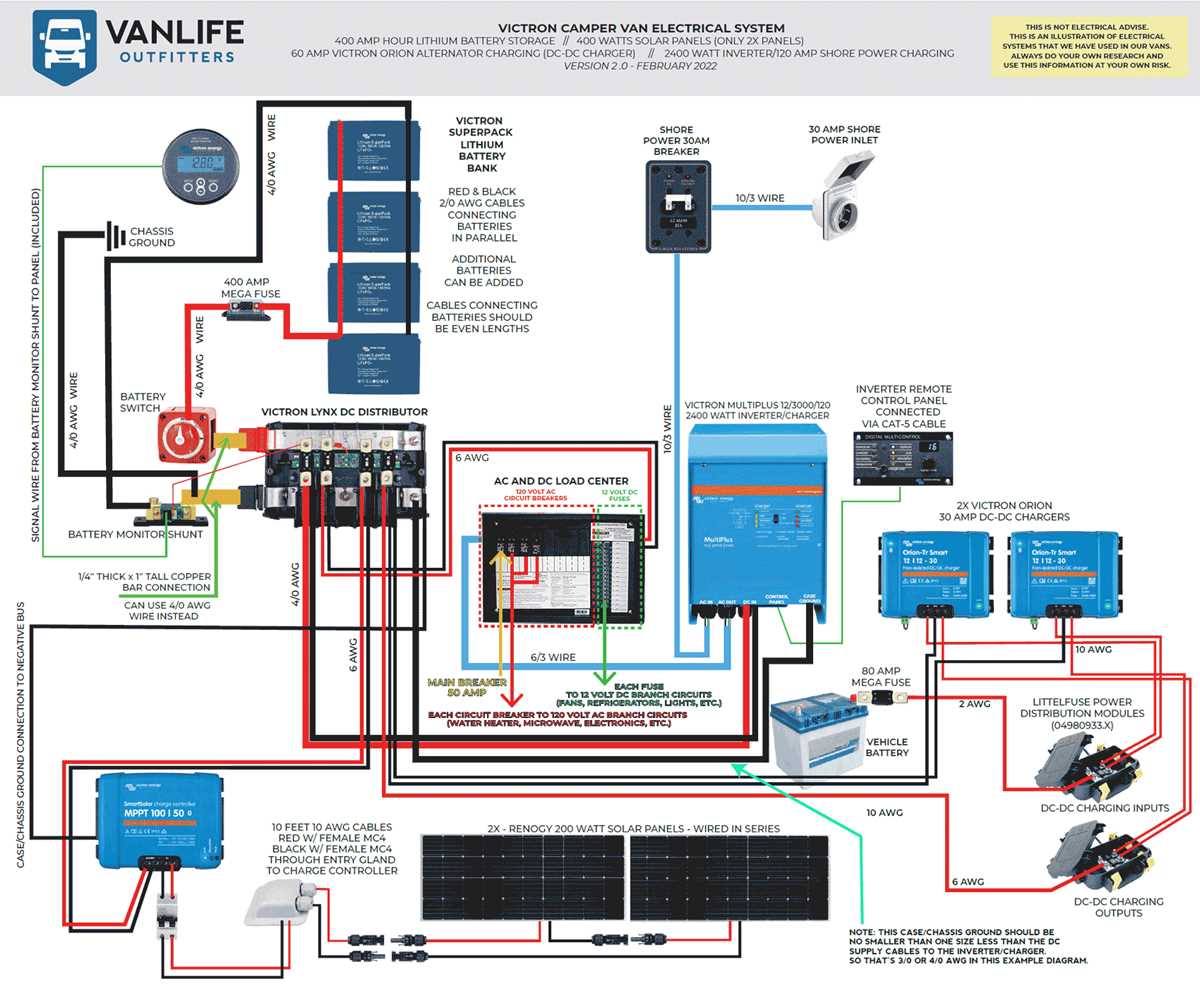

Low-Voltage Circuit Schematics: Exact Paths for Reliable Power
Start with a 0.75mm² copper wire for LED strips drawing up to 3A; beyond that, switch to 1.5mm² for 5A loads or 2.5mm² for 10A. Route positive and return lines in parallel, twisting every 10cm to cut EMI by 60%–verified with a handheld spectrum analyzer at 100kHz-30MHz. Keep runs under 5m; longer distances demand a 0.1Ω/10m resistance check–anything higher saps 0.5V per meter, dimming lights or stalling relays.
Termination Tactics for Stable Connections
Crimp brass lugs rated for 15A minimum–cheap tin-plated ones oxidize in 6 months, creating 3-5mV drops. Solder joints under vibration fail in 4-8 weeks; use a heat-shrink butt connector filled with dielectric grease instead–tested pull-force exceeds 8kg. For switches, solderless spade terminals corrode; crimp-on flag terminals sealed with polyamide heat-shrink last 5+ years in humid conditions.
Fuse every branch at 125% of the load’s steady-state current–1.5A fuses for 1.2A radios, 10A for 8A compressors. Place fuses within 15cm of the battery terminal to prevent fire risk; a 90A short on unprotected 2.5mm² wire melts insulation in under 3 seconds. Use Class T fuses for inductive loads like motors–they blow in 0.5ms during 200A surges, 5x faster than standard blade fuses.
Ground every circuit to a single chassis point–multiple ground paths create 0.2-0.8V loops, causing flickering gauges or corrupted CAN data. Scrape paint off chassis contact points with a stainless wire brush; bare-metal contact must measure under 0.2Ω–test with a milliohm meter before final assembly. For trailers or removable modules, use a 3.5mm bullet connector sealed in silicone; gold-plated contacts resist corrosion for 3+ years submerged in 5% saltwater.
Choosing the Correct Conductor Size for Low-Voltage Installations
For 1 A currents, use 18 AWG wire (0.82 mm²). At 3 A, jump to 16 AWG (1.3 mm²)–this keeps voltage drop under 3 % over 5 m. Circuits carrying 10 A need 12 AWG (3.3 mm²), while 20 A demands 10 AWG (5.3 mm²). Anything above 30 A requires 8 AWG (8.4 mm²) minimum.
- Copper only–aluminum adds resistivity.
- Temperature rating: 90 °C for PVC, 105 °C for cross-linked insulation.
- Fuse within 7 inches of battery terminal.
Calculate drop: Vdrop = (2 × L × I × R) / 1000. L = length (m), I = current (A), R = resistivity (Ω/m). For 1.5 mm² copper at 20 °C, R ≈ 0.012 Ω/m. Aim for ≤ 0.5 V drop on critical paths.
Match terminal lugs precisely–crimp with ratchet die sets (ANSI/CSA C579). Waterproof connections: heat-shrink tubing with adhesive lining. Label every segment at both ends; route 50 mm from sharp edges or moving parts.
How to Build a Functional Low-Voltage Circuit Blueprint
Gather these materials first: graph paper (grid size 5mm), HB pencil, eraser, 0.5mm black pen, 15cm ruler, and a multimeter set to 20V DC range. Skip digital tools–hand-drawn schematics reveal errors faster during planning.
Draw the power source as a short horizontal line at the top right corner; label it “+12” and ground symbol (three descending lines) directly beneath it. Keep spacing tight–10mm between lines prevents clutter in complex setups. Add a 15A fuse symbol (rectangle with “F1” inside) 20mm left of the battery.
- For switches: use a break in the conductor line with a diagonal cross (“X”) for SPST.
- For loads: draw a zigzag (resistor) or circle (lamp) with component designator (“R1”, “L1”).
- Ground every load; use a single vertical line descending from the lowest point.
Trace each conductor path from fuse to switch, then load, finally terminating at ground. Count every intersection–crossed lines without a dot indicate no connection. Verify polarity: arrowheads on diodes point toward ground. Measure continuity with the multimeter before finalizing; correct resistance values (e.g., 47Ω for LED current limiting) should appear between each +12 node and ground.
Scan the finished sketch at 300 DPI; print two copies–one for your workbench, one for the vehicle’s glovebox. Update immediately if hardware changes; revisions on paper prevent costly rework.
Critical Errors in Low-Voltage Electrical Setup
Using undersized conductors causes overheating and voltage drop. A 2 mm² copper cable carries 16A safely for 3 meters; beyond that, resistance increases exponentially. For 5A loads over 6 meters, upgrade to 4 mm² or accept a 0.5V loss per amp. Ignoring this wastes power and risks insulation failure. Measure resistance with a multimeter–anything above 0.1 ohms per meter demands thicker wire.
Ground loops create noise and interference. Connect all negative returns to a single chassis point rather than daisy-chaining. Use star grounding for LED strips and sensors–separate return paths eliminate hum in audio systems and erratic sensor readings. Test with an oscilloscope: voltage fluctuations above 50mV between ground points indicate a loop.
| Load (A) | Wire Gauge (AWG) | Max Length (m) at 0.2V Drop |
|---|---|---|
| 5 | 14 | 4 |
| 10 | 12 | 3 |
| 20 | 10 | 2 |
| 30 | 8 | 1.5 |
Skipping fuse protection invites fire hazards. Every branch circuit needs a fuse rated 125% of the expected load. A 7.5A fuse protects a 6A circuit; anything larger than 10A requires a circuit breaker. Install fuses within 7 cm of the power source–longer runs risk wire damage before the fuse blows. Use ATC blades for automotive setups; mini fuses suffice for indoor low-current applications.
Mismatching connector ratings leads to corrosion and resistance. Crimp terminals must match wire gauge–16AWG wire needs a 16-14AWG terminal. Tin-plated copper resists oxidation; bare copper corrodes in 6 months outdoors. Apply dielectric grease before crimping–this extends lifespan to 5+ years. Test connections with a torque screwdriver: loose terminals increase resistance by 0.3 ohms per Newton-meter below spec.
Overloading switching power supplies shortens their lifespan. A 120W supply rated for 10A continuous handles 15A peaks for 30 seconds–exceeding this trips thermal protection or kills the unit. Derate by 20% for ambient temperatures above 40°C. Use a dummy load to test stability: a 20% dropout under load signals an undersized supply. Log output voltage under load–long-term drift above ±5% indicates failure.
Proper Installation and Wiring of a Low-Voltage Fuse Panel
Locate the power source before mounting the panel. Use a battery terminal post or a distribution point with a minimum 10-gauge feed wire. Cut the positive lead to the exact length needed–no extra slack–to prevent voltage drop. Strip 6mm of insulation from the wire ends, then crimp a ring terminal sized for the terminal block’s screws.
Ground the panel first. Attach a 4-gauge bare copper wire directly to the vehicle chassis or metal frame near the panel. Clean the mounting surface to bare metal with a wire brush, then secure the ground with a stainless-steel bolt and star washer. Apply dielectric grease to the connection to block corrosion.
Mount the panel on a flat, rigid surface away from moving parts. Use machine screws with captive nuts or self-tapping screws into a backing plate. Ensure the panel sits level so fuses remain vertical–horizontal installation can cause loose fuse clips. Leave 30mm clearance above the panel for fuse removal tools.
Connect the input feed to the designated battery terminal on the panel. Torque the terminal screw to 3-4 Nm using a torque driver. Route auxiliary circuits from the opposite side of the panel, using individual exit points for each harness to avoid tangled leads. Label every circuit with heat-shrink tubing marked with a permanent marker.
Insert the correct amp fuse into each slot immediately after wiring the circuit. Start with the lowest amperage recommended for the load–typically 5A for LED lights, 20A for compressors. Snap each fuse into place with even pressure until it seats fully. Missing fuses invite shorts.
Testing Procedures
Verify connections with a multimeter before energizing. Set to DC voltage, probe the input terminal and ground; readings below 11.8V indicate a faulty feed. Switch to continuity mode, check each output terminal against ground–open circuits confirm isolated outputs. If any terminal shows continuity, recheck the panel ground.
Energize the system and measure voltage at each fuse slot. Consistent voltage across all slots confirms proper distribution. Drop more than 0.2V between input and any output indicates excessive resistance–check crimps and terminal tightness. Run each load individually, monitoring for heat at connections or fuse clips. Hot spots signal loose hardware.
Secure all wiring with nylon clamps at 15cm intervals. Bundle related circuits together, segregating low-current signals from high-current feeds. Route wires away from sharp edges and moving linkages, using split loom tubing where crossing metal edges. Tie wraps should be snug, not constricting–test by sliding a screwdriver between bundle and tie.
