Start by identifying the power feed terminal–this is typically marked with a bold “+” symbol on the device’s casing. Attach the battery’s positive lead directly to this point using 6-gauge copper wire to prevent voltage drop under load. Ensure the connection is secured with a crimped ring terminal, then insulated with heat-shrink tubing rated for 105°C minimum.
Locate the two motor contact posts; these are often differentiated by larger diameter threads than the remaining terminals. Route the outgoing cables from the reducer’s drum motor to these posts, matching polarity as indicated by color-coding (red for positive, black or green for ground). Tighten with a torque wrench set to 12 Nm to avoid thread stripping.
The remote switch setup involves three key connections: a ground wire to the chassis, a hot wire from the accessory fuse block (15A fuse), and the control wire to the designated post on the relay labeled “S” or “Switch.” Use 14-gauge wire for these paths, as current draw rarely exceeds 2A. Verify functionality by engaging the switch–audible clicking confirms proper relay activation.
For trouble-shooting, check voltage at the relay’s coil terminals with a multimeter: 11.5V minimum under load indicates adequate power delivery. If voltage is present but the mechanism remains inert, inspect the internal contacts for pitting or corrosion. Clean with electrical contact cleaner spray and 600-grit sandpaper if necessary.
Incorporate a 30A circuit breaker or ANL fuse within 18 inches of the power source to comply with ABYC standards for marine-grade installations. Avoid using automotive-style blade fuses, as they lack sufficient surge protection for inductive loads.
Connecting Your Off-Road Recovery Device: A Clear Guide
Start by identifying the main power terminals on your control relay–the large posts handle high-current load, while the smaller ones manage the signal circuit. Use 2/0 AWG cables for the primary connections to prevent voltage drop under heavy load; anything thinner risks overheating during extended pulls. Label each wire before disconnecting anything to avoid confusion during reassembly–red for positive, black for ground, and a distinct color like blue for the trigger circuit.
Step-by-Step Hookup Procedure
Attach the battery’s live terminal directly to the relay’s input post using a crimped lug and heat-shrink tubing for insulation–no solder here, as vibrations can weaken the joint. Run a second 2/0 AWG line from the output post to the motor’s positive lug, securing it with a stainless-steel bolt and anti-seize compound to prevent corrosion. Ground the motor housing to the vehicle’s chassis with an identical gauge cable, ensuring a clean, unpainted connection point at least 3/8″ in diameter.
For the trigger side, wire the control box’s remote switch to the relay’s smaller terminals. A 16 AWG wire is sufficient here, but route it away from sharp edges or exhaust components. Add a 40-amp blade fuse within 7 inches of the battery to protect the system–omit this, and a short circuit could melt wiring harnesses in seconds. Test the setup with a multimeter before first use: expect 11.8V across the motor terminals when engaged, and near 0V when idle.
Polarity errors will fry internal components instantly–double-check every connection against a printed schematic or a trusted reference photo. Avoid T-taps; they corrode under moisture and introduce resistance. If recalibrating an older unit, clean all terminals with a wire brush and apply dielectric grease to prevent oxidation. For remote-mounted relays, use waterproof connectors rated IP67–standard butt splices fail in muddy or submerged conditions.
Verify the relay clicks audibly when the switch is toggled; no sound indicates a faulty coil or broken trigger circuit. Keep spare fuses and a spare relay in your recovery kit–field repairs are impossible without them. Never engage the device for more than 30 seconds without allowing a 2-minute cooldown, as the motor’s brushes degrade rapidly under continuous load. Store cables coiled loosely to prevent kinks, which create weak points prone to failure under tension.
Matching Terminals for Proper Electrical Relay Setup

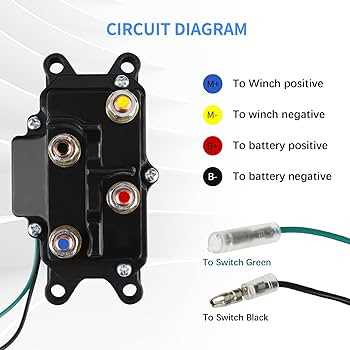

Locate the labeled posts on the control device–typically marked B+ (battery), GND (ground), M (motor), and S (switch). Connect the power source’s positive lead to the B+ terminal using 6-gauge copper cable; attach the negative lead to GND with the same gauge. The motor’s thick leads must link to the M posts (note polarity if reversing direction), while the remote trigger wire runs directly to the S post. Confirm tightness with a torque wrench set to 8 Nm to prevent high-resistance failures.Test connections with a multimeter before energizing: probe B+ to GND for 12.6–13.2 volts, M to M for continuity, and S to GND with the trigger engaged for 12V pull-in voltage. If readings deviate, check for corroded posts (clean with 400-grit sandpaper) or loose crimps–replace any heat-shrunk terminals showing discoloration. Avoid splicing small-gauge wires into large terminals; instead, use adhesive-lined butt connectors for secure mechanical bonds.
Step-by-Step Guide to Connecting an Electric Towing Switch with Handheld Controller
Disconnect the vehicle’s battery before handling any electrical components. Locate the main power relay housing, typically mounted near the front bumper or on the frame rail, and remove its protective cover to expose the terminal posts.
Identify the four primary contacts: two large studs for input/output and two smaller screws for control signals. Attach 6 AWG cables to the battery’s positive terminal using a crimped lug and a tightened nut–ensure resistance is below 0.1 ohms. Route the cables through a 150-amp fuse holder positioned within 7 inches of the power source.
| Terminal | Wire Gauge | Connection | Torque (lb-ft) |
|---|---|---|---|
| Battery (+) | 6 AWG | Input stud | 12-15 |
| Motor feed | 6 AWG | Output stud | 12-15 |
| Remote trigger | 16 AWG | Small screw | 3-5 |
Connect the ground strap–a minimum 8 AWG–to the chassis or engine block within 18 inches of the relay. Use star washers to penetrate any paint or corrosion; verify continuity with a multimeter before proceeding. Route the control leads from the handheld unit to the relay’s trigger terminals, securing them with insulated fork connectors to prevent shorting.
Activate the handheld device briefly to test relay engagement–listen for a distinct click indicating proper function. If no sound is heard, check the fuse, connections, and voltage at the trigger terminals (should read 10-14 volts). Reconnect the battery, then cycle the device three times under no load to confirm consistent operation.
Seal all exposed terminals with dielectric grease and replace the relay cover. Tape or sheath any loose wires using split loom tubing, avoiding sharp edges or moving parts. Label each wire with heat-shrink markers for future reference, and secure the handheld controller in a dry, dust-free storage compartment.
Common Mistakes to Avoid When Connecting Auxiliary Switching Units
Failing to match cable gauge to load demands ranks as the most critical error. Undersized wires overheat under draw, melting insulation or triggering fires. For a typical 4,500-pound pull capacity at 12 meters per minute, use at least 6 AWG copper conductors between the control module and power source. Aluminum cores require one size thicker–never substitute. Check resistance with a multimeter after installation; anything above 0.1 ohms per meter indicates corrosion or loose terminals needing immediate attention.
Reverse polarity connections destroy control modules instantly. Verify terminal markings–most units label input as “B+” and ground near the battery clamp. Install a 200-amp inline fuse within 18 centimeters of the power source for transient protection. Skip diodes on motor terminals to prevent flyback voltage spikes, which degrade electronic relays within hours. Use dielectric grease on all connections to block moisture ingress; even slight oxidation causes intermittent failures during peak loads.
Overlooking ground path integrity invites sporadic operation. Dedicate a single, uninterrupted earth line directly to the negative battery post–never rely on chassis ground. Test continuity with a load; a reading above 0.5 ohms demands cleaning corrosion or replacing the circuit. Avoid mounting control boxes near heat sources; sustained ambient temperatures above 60°C degrade internal contacts, shortening operational life by 40%.
Tools and Materials Required for Installing a Pulling Device Relay
Begin with a multimeter rated for at least 20V DC to test continuity and voltage drops across terminals before connecting any components. Crimp connectors must be insulated, ideally marine-grade, with heat shrink tubing pre-applied; avoid solder-only joints as they fail under vibration. Use 4 AWG or thicker copper wire with tinned strands to prevent corrosion–aluminum wire is unsuitable due to oxidation risks in harsh conditions.
Essential Equipment Checklist
- Wire strippers with cutting blades (10-14 AWG capacity)
- Hydraulic crimper with 4 AWG die set
- 10mm and 13mm combination wrenches for relay terminal nuts
- Non-conductive grease (e.g., dielectric silicone) for terminal protection
- Relay mounting bracket or insulating pad to prevent grounding
- Fuse holder with 80A-100A ANL fuse for primary circuit protection
- Cable ties (UV-resistant, minimum 75kg tensile strength)
- Heat gun (for shrinking tubing on connections)
- Thread-locking compound (medium-strength, e.g., Loctite 242) for terminal bolts
Route all power cables through a grommet or conduit where they pass metal surfaces–bare wire against edges will chafe within hours under load. Ground the relay’s metal housing separately from the control circuit ground to reduce electrical noise. For remote switches, use a minimum 18 AWG stranded wire with waterproof connectors (e.g., Deutsch DT series) and secure the wiring harness to the vehicle’s frame every 12 inches to prevent sagging. Test the setup under simulated load with a 300A clamp meter to verify less than 0.2V drop across any connection.
