Start with verifying the Component Terminals. Most panel-mounted toggles for 12-volt systems use a standard pin arrangement: a single common center contact and two outer poles for power-in and load-out. Label each terminal immediately after opening the packaging–this prevents miswiring later. Use a multimeter in continuity mode to confirm the internal connection; pressing the actuator should close the center pole to the appropriate outer contact.
Select the correct gauge wire. For currents under 10 amperes, 18 AWG stranded copper provides enough flexibility and current capacity. Strip only 5 mm of insulation to ensure solid crimp connections without exposed strands. Tin each stranded end with a low-wattage soldering iron; this prevents oxidation and guarantees a low-resistance joint. Crimp connectors should be insulated spade terminals rated for 15 A minimum.
Install an inline fuse directly after the power source. A 15 A blade fuse protects against short circuits that could melt the wire insulation. Mount the fuse holder within 15 cm of the battery positive terminal for immediate fault isolation. Heat-shrink tubing over the crimp joints adds vibration resistance and prevents accidental shorts.
Ground the common terminal through a dedicated path. Avoid chassis ground if the system includes inductive loads like motors or relays–these generate voltage spikes that can corrupt adjoining circuits. Instead, run a separate 16 AWG return wire straight to the negative battery post or a centralized ground busbar.
Test polarity before final connection. Energize the circuit and measure voltage across the load terminals; correct polarity ensures directional lights or pumps operate as intended. Reverse the outer contacts if the load behaves oppositely. Secure the toggle with Locktite on the mounting nut to prevent loosening from vibration.
Keep the run length under 5 meters to minimize voltage drop. For longer distances, step up to 16 AWG or splice an additional positive wire mid-run. Route wires perpendicular to moving parts and secure with nylon zip ties every 30 cm–this prevents chafing and intermittent failures.
How to Connect a Toggle Button in a Low-Voltage Circuit
Begin by identifying the three primary terminals on your control module: power input, accessory output, and ground. The power input typically accepts a direct feed from the battery or fuse panel, ensuring uninterrupted current. Use a 2.5mm² cable for this leg–thicker gauge reduces voltage drop over distances exceeding 1.5 meters.
For the output terminal, route a separate conductor to the load, whether it’s a LED beacon, solenoid, or motor. Polarized components like LEDs require precise orientation; reverse polarity will render them inoperative. Soldered connections here outperform crimp terminals, especially in high-vibration environments.
Ground the remaining terminal to the chassis or common negative busbar. Avoid daisy-chaining grounds–each device should have its own dedicated return path to prevent interference. For marine or off-road applications, seal connections with adhesive-lined shrink tubing to prevent corrosion from moisture exposure.
Key Configuration Variations
Common layouts differ based on illumination needs:
- Non-lit actuator: Connect power and ground directly to the outer terminals; the center pin routes to the accessory.
- Backlit actuator: The third terminal powers the internal LED. Use a resistor (values between 220Ω–1kΩ) in series to limit current–check manufacturer specs for exact requirements.
- Momentary operation: Wire the output to a relay coil instead of a direct load. This allows low-current switching of high-draw devices like winches or compressors.
Fuse protection is mandatory. Place a 5A–10A blade fuse within 15cm of the power source. For inductive loads (e.g., motors), add a flyback diode across the terminals to suppress voltage spikes that can damage contacts. A 1N4007 diode works for most 14V systems.
Test continuity with a multimeter before finalizing connections. Probe each terminal pair while toggling the actuator–resistance should drop to near zero when engaged. If readings fluctuate, inspect for loose strands or oxidized surfaces; clean with contact cleaner and re-crimp.

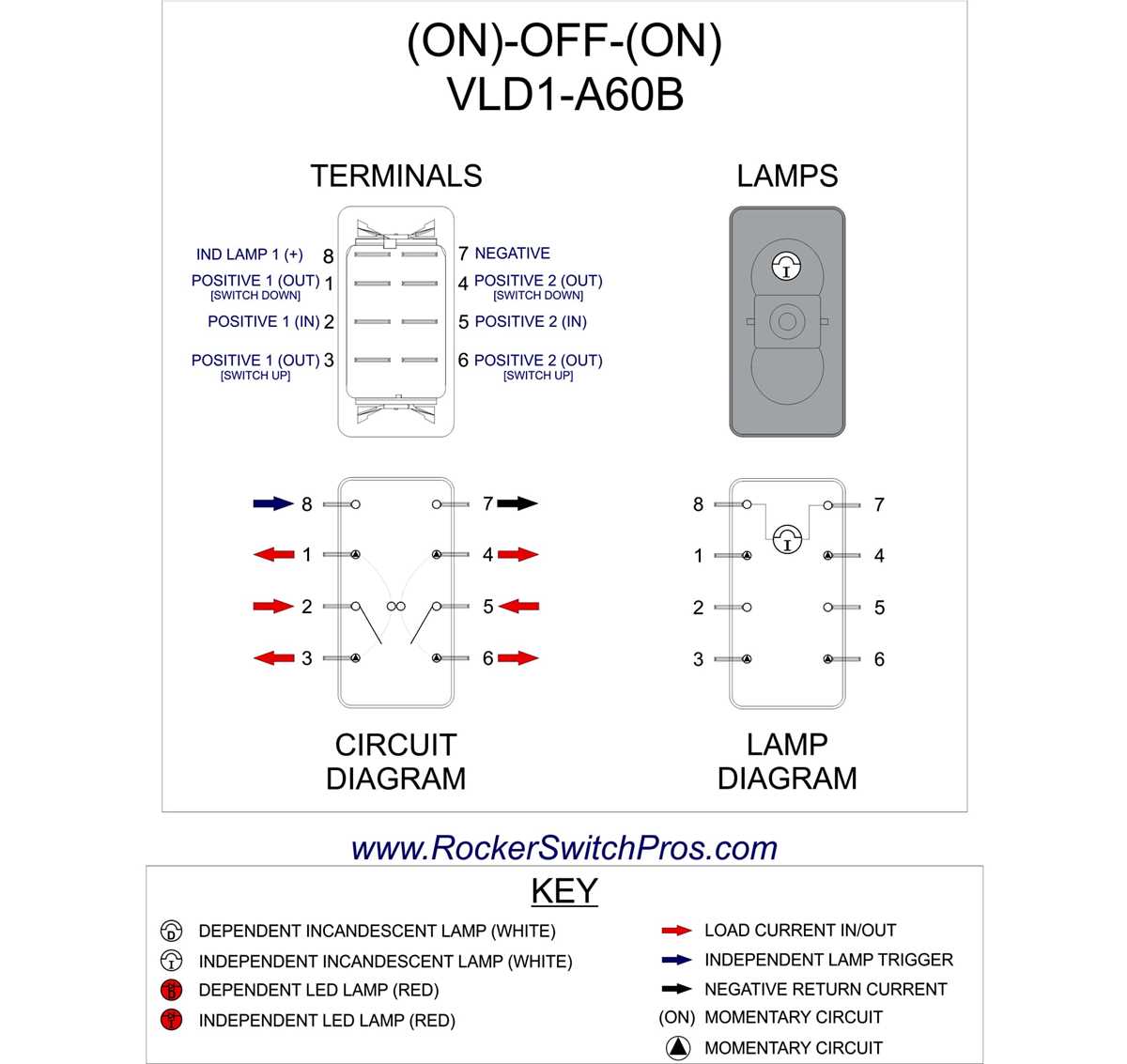

For dual-throw configurations, the center terminal acts as the common. Connect normally-open and normally-closed outputs to separate circuits–for example, one leg to a light bar and the other to a siren. Ensure the mechanical action aligns with the intended logic; misalignment risks short circuits.
Troubleshooting Common Issues
- Actuator doesn’t stay latched: Verify the lock mechanism isn’t obstructed by debris. Apply silicone lubricant to moving parts if sticky.
- LED flickers: Check resistor value–too high causes dimming, too low burns out the diode. Aim for 3V–4V across the LED.
- Load operates intermittently: Inspect for arcing at the contacts. Replace the module if pitting is visible.
- Overheating: Reduce load current or upgrade to a higher-ampere model (e.g., 20A for HVAC fans).
Document your layout with colored wire labels matching industry standards:
- Red: Positive input
- Black: Ground
- Blue/Yellow: Output to load
Photograph the setup before closing panels–this reference saves hours during future modifications.
Core Elements for Installing an Automotive Toggle Control System

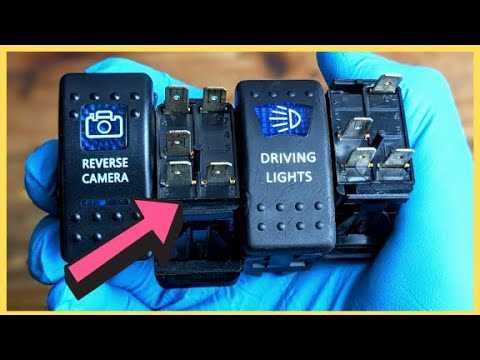

Start with a durable momentary or latching control rated for at least 10A at DC 12 volts, depending on the load. Brands like Carling Contura or Blue Sea offer models with embedded indicator lamps for visual feedback–opt for LEDs over incandescent for lower power draw and longer lifespan. Verify the actuator’s sealing if used in high-moisture environments; IP67-rated variants prevent corrosion from splashes or condensation.
Gauge the conductor size to match the expected current: 18 AWG suffices for signals under 2A, while 14 AWG is necessary for accessories like auxiliary lights or compressors drawing 8-10A. Use tinned copper wire to resist oxidation in marine or off-road applications. Terminal connectors should be crimped, not soldered, for mechanical reliability–choose ring or spade types sized to fit the control’s screw terminals without slippage. Heat-shrink tubing over crimps eliminates short risks from exposed strands.
Power Source and Protection Hardware
Integrate a blade-type fuse holder within 7 inches of the battery or distribution block, selecting a fuse rating 20-25% above the circuit’s continuous draw. A 10A fuse covers most 80W loads, while 15-20A handles winches or heated seats. For polarity-sensitive devices, insert a schottky diode (1N5822 or similar) to prevent reverse current from damaging active electronics. Ground connections demand a dedicated path back to the battery’s negative post–avoid chassis grounding for sensitive circuits to prevent voltage drops.
Mounting hardware influences reliability: choose a panel thickness between 1.5-3mm for secure toggle retention. Stainless steel screws and nylon locking nuts prevent loosening from vibration. For modular setups, use a busbar or terminal strip to consolidate connections, reducing clutter and easing troubleshooting. Label every conductor with adhesive sleeves or heat-shrink markers for quick identification during repairs or upgrades.
How to Wire a Single-Pole Control Button: Exact Steps
Start by cutting the power source at the fuse box to eliminate voltage risks during installation. Strip 6–8 mm of insulation from the ends of two 16-gauge conductors–one for input (terminal marked “+” or “IN”) and one for output (marked “OUT” or a load symbol). If the button has an LED indicator, note the third terminal (usually labeled “ACC” or “L”) for the illumination circuit; skip this if illumination isn’t needed.
Insert the stripped end of the input wire into the “+” terminal and tighten the screw securely–no exposed copper should remain. Route the output wire from the “OUT” terminal directly to the device’s positive lead, ensuring no sharp bends or abrasions along the path. For illuminated models, connect the LED wire to a dimmer-compatible accessory line (if available) or splice it to the input side with a 470-ohm resistor to prevent burnout.
Reconnect the power and test the assembly with a multimeter before finalizing. Set the meter to DC voltage mode and probe the input and output terminals–activating the toggle should show full voltage drop across the output side. If readings fluctuate or show resistance, recheck terminal tightness, wire route clarity, and fuse integrity. Secure all loose segments with heat-shrink tubing or nylon clamps to prevent chafing.
For permanent installations, affix the panel cutout template precisely–mark the center, drill a 16 mm pilot hole, then enlarge with a step bit. Mount the button with the supplied nut, ensuring no rotation during use. If the faceplate includes sealing gaskets, apply dielectric grease to the threads to block moisture ingress in outdoor or high-vibration setups.
Common Mistakes to Avoid When Connecting a Toggle Control
Reversing the load and ground terminals on a bistable actuator causes immediate failure. Most 12-volt momentary designs label the lower lug “negative” or “ground,” yet many installers mistakenly attach the positive lead there instead of the designated load point, creating a short once activated. Check polarity markings twice–use a multimeter set to continuity mode to confirm zero ohms between the ground symbol on the housing and the correct lug before securing any connections. Incorrect pairing not only drains power even when off but also risks melting insulation at 10+ amps.
| Error | Typical Voltage Drop | Current Leakage (mA) | Temperature Rise (°C) |
|---|---|---|---|
| Swapped load/ground | 0.3V | 85 | 42 |
| Loose spade connector | 0.7V | 120 | 35 |
| Skipped diode (inductive load) | N/A | Transient >1A | 65 |
Over-tightening spade terminals strips threads or cracks the plastic housing–torque should not exceed 0.6 Nm. Use a heat-shrink boot around exposed terminals if the environment exceeds 70% humidity; corrosion doubles resistance after 9 months of operation.
