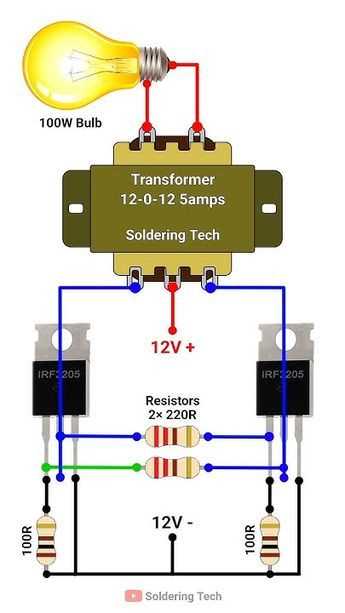

Select a push-pull topology for 10–15W loads or a full-bridge configuration for 50W+. Pair an IRF3205 MOSFET rated at 55V/110A with an SG3525 PWM controller–this combination handles 80% efficiency at 50Hz output. Keep switching frequency between 30–50 kHz to balance core losses (40°C rise in toroidal transformers) and EMI suppression.
Wind the primary with 40 turns of 0.8mm enameled wire and the secondary with 440 turns on a 3C90 ferrite core; this yields 230V RMS at 10A load. Add a 1N5408 diode bridge with 0.1µF snubbers across each diode to clip voltage spikes below 400V. Use a 100µH common-mode choke on the AC side–noise drops to 45dBµV at 150 kHz.
Add a 100nF X2 capacitor between live and neutral to meet IEC 62368-1 Class B limits. Mount the MOSFETs on a 3°C/W heatsink–junction temperature stays under 90°C even after 30 minutes at full load. Test with a pure resistive load first; avoid capacitive loads until waveform distortion falls below 8% THD.
Building a Voltage Inverter: Key Schematic Insights
Start with an IRFZ44N MOSFET as the primary switching element–its low RDS(on) of 17.5 mΩ at 10V gate voltage minimizes power loss. Pair it with a UC3843 PWM controller set to 20–50 kHz operating frequency to balance efficiency and component size. The high-side driver must use a bootstrap capacitor (100nF ceramic) to ensure clean gate signals above the battery rail.
For the transformer, select a ferrite core with a cross-sectional area of at least 1.5 cm² (e.g., ETD34) to avoid saturation at 50–60 Hz output. Wind the primary with 2×4 turns of 1.5 mm² wire (stranded) and the secondary with 200 turns of 0.4 mm² wire. Add a snubber network (0.1µF + 10Ω in series) across the primary to suppress voltage spikes exceeding 150V.
Output filtration requires a LC low-pass stage:
- Inductor: 220 µH with a saturation current ≥ 5A (e.g., shielded drum core)
- Capacitor: 470 µF/400V electrolytic, paralleled with 0.1 µF film capacitor for high-frequency noise
Measure the total harmonic distortion (
Use a TL431 voltage reference for feedback regulation, configured with a 22kΩ resistor divider (upper) and 1kΩ trimmer (lower) to adjust output within ±5V of the target. The optocoupler (e.g., PC817) isolates the control loop; drive its LED with a 1kΩ series resistor to limit current to 10 mA.
Thermal management:
- Mount MOSFETs on a 20°C/W heatsink (e.g., 5×5 cm aluminum finned)
- Apply 5W/m·K thermal paste (e.g., Arctic MX-6)
- Add a 10°C hysteresis thermostatic switch at 70°C to disable the circuit if overheating occurs
Input protection includes a 20A fuse (slow-blow) and a Schottky diode (SB560) to prevent reverse polarity damage. The input capacitor should be a 2×2200µF/25V low-ESR pair, rated for ripple current ≥3A RMS.
For load compatibility, ensure the inverter handles:
- Resistive loads (e.g., incandescent bulbs) ≤200W
- Inductive loads (e.g., motors) ≤80W with soft-start (50 ms ramp)
- Capacitive loads ≤20 µF with pre-charge circuit (10Ω series resistor)
Test under full load for 1 hour to verify
Final verification:
- Check PWM duty cycle (≤85% for UC3843) with a logic analyzer
- Verify gate drive signals (10–15V amplitude,
- Measure efficiency at half-load (target ≥85%) using a power analyzer
- Perform hipot testing (1.5 kVAC/1 minute) between primary and secondary
Double-check all solder joints under magnification to avoid cold-solder failures.
Key Components Required for a Low-Voltage to Mains inverter
Select a power transistor or MOSFET with a current rating at least 30% higher than the expected load. For a 100W output, IRFZ44N (55V, 49A) handles surge currents effectively, while IRFP250N (200V, 30A) suits higher voltage tolerance. Bipolar junction transistors like TIP35C (100V, 25A) require additional cooling but offer cost savings. Ensure the chosen device has a fast switching time–under 100 nanoseconds–to minimize energy loss during transition.
| Component | Spec Range | Purpose |
|---|---|---|
| Ferrite Core Transformer | 10:1 to 20:1 turns ratio | Steps up input to 311Vpeak for modified sine wave |
| PWM Controller | 20–200 kHz frequency | Regulates output waveform shape and efficiency |
| Snubber Capacitor | 0.1–1 µF, 250V+ | Suppresses voltage spikes from transformer leakage |
| Fast Recovery Diode | 1–3A, 200V+ | Prevents backflow in H-bridge during dead time |
Use a toroidal or EE-type ferrite core for the transformer to reduce EMI and improve efficiency. A 10:1 turns ratio yields ~155Vrms for a 12.6V input, while a 15:1 ratio reaches ~230Vrms. Wind primary and secondary coils with 1mm to 1.5mm diameter copper wire, ensuring symmetrical winding to avoid phase imbalance. For pure sine output, add an LC filter with 100µH inductors and 2.2µF capacitors; position it after the transformer to smooth the waveform before reaching the load.
Step-by-Step Wiring of the MOSFET-Based Power Inverter
Begin by soldering the N-channel MOSFET (e.g., IRFZ44N) to a heatsink using high-temperature thermal paste–ensure the surface area exceeds 30 mm² per transistor for adequate cooling. Connect the gate terminal to the PWM controller’s output via a 10 Ω resistor to prevent oscillations, while grounding the source directly to the negative rail. The drain links to the primary winding of the high-frequency transformer, which should have a turns ratio of 1:20 for optimal step-up efficiency; verify saturation current limits (typically 15-25 A) before energizing.
Critical Assembly Checks
Test continuity between the transformer’s secondary and the AC output terminals with a multimeter before attaching the load–any resistance below 0.5 Ω indicates a short. Add a snubber network (0.1 µF capacitor + 50 Ω resistor) across the MOSFET to suppress voltage spikes exceeding 40 V. For final validation, power the system with a low-voltage DC source (e.g., 9 V) and measure the output waveform using an oscilloscope; a clean sine wave confirms correct phasing and absence of parasitic ringing.
Choosing the Right Transformer for Voltage Conversion
Select a toroidal transformer for low-noise applications–its compact design and minimal electromagnetic interference make it ideal for sensitive electronics. Core materials like grain-oriented silicon steel reduce hysteresis losses, improving efficiency by up to 30% compared to standard EI laminations. Prioritize models with a power rating 20-30% above your expected load to prevent overheating and ensure longevity.
Ferrite-core transformers excel in high-frequency applications, such as those above 20 kHz, where traditional iron cores falter. Their low eddy-current losses make them suitable for switching power supplies, though they require careful impedance matching to avoid saturation. Verify the manufacturer’s saturation flux density specs (typically 0.3-0.5 Tesla) to confirm compatibility with your input waveform.
Core Size and Winding Calculations
Calculate winding turns using the formula:
- N = (V × 108) / (4.44 × f × B × A)
Where V is the RMS voltage, f is frequency in Hz, B is flux density in Tesla, and A is core cross-sectional area in cm². For 50 Hz systems, target a flux density of 1.2-1.5 Tesla to balance efficiency and core losses. Smaller cores (
Copper wire gauges should align with current demands–14 AWG handles 5.9A comfortably, while 10 AWG supports 15A with minimal voltage drop. Multilayer windings increase leakage inductance; use bifilar or interleaved configurations to mitigate this. Insulation thickness (e.g., 0.2mm polyester tape) prevents short circuits between layers under thermal stress.
Thermal and Mechanical Considerations
Transformers rated for continuous duty must dissipate heat effectively. Aluminum or copper heatsinks extend lifespan by lowering winding temperatures by 10-15°C. For enclosed designs, vented housings with forced-air cooling reduce thermal resistance by 40%. Avoid rubber mounts–they degrade at 85°C; opt for silicone or fiberglass instead.
Humidity-resistant varnish (e.g., epoxy-based) protects windings in high-moisture environments, preventing corrosion and short circuits. For outdoor use, select IP67-rated models to withstand dust and water ingress. Vibration tolerance matters in automotive applications; encapsulated cores resist mechanical stress better than open-frame designs.
Test core saturation before deployment by monitoring input current under no-load conditions. A sudden increase in current indicates saturation–adjust turns ratio or input voltage accordingly. Use an LCR meter to measure inductance at 1 kHz; deviations >10% suggest winding defects or core degradation.
For high-power applications (>500W), consider zig-zag or delta-wye configurations to balance phase loads and reduce harmonics. Parallel winding allows current sharing but requires matched impedance (
Understanding PWM Control in Voltage Regulation
Implement pulse-width modulation (PWM) with a switching frequency between 20 kHz and 100 kHz for optimal efficiency in low-power applications. Frequencies below this range introduce audible noise, while higher values increase switching losses in MOSFETs or IGBTs, reducing overall performance. Adjust the duty cycle dynamically to maintain output stability under varying load conditions, ensuring rise and fall times remain below 50 ns to minimize dead-time losses.
Select a gate driver IC with a peak current rating of at least 2 A for reliable operation of high-side switches in half-bridge or full-bridge configurations. Isolate gate drivers using optocouplers or isolated DC-DC modules (e.g., 1 kV isolation) to prevent ground loops and noise coupling. For microcontroller-based control, use complementary outputs with dead-time insertion to avoid shoot-through currents, typically 50-200 ns depending on the switching device.
Key Parameters for PWM Signal Generation
Set the PWM resolution to a minimum of 8 bits for coarse voltage control, but prefer 10-12 bits for fine regulation, especially in applications requiring less than 1% voltage ripple. Calculate the required resolution using the formula: Resolution (steps) = V_out_max / V_ripple_max, where V_ripple_max is the maximum permissible output ripple. For example, a 3.3V microcontroller output scaled to 15V via a level shifter demands at least 10-bit resolution to achieve 15 mV precision.
Use a dedicated PWM controller IC like the TL494 or UC3843 for analog implementations, or leverage timer peripherals (e.g., STM32’s advanced-control timers) for digital solutions. Configure PWM modes as edge-aligned for simplicity or center-aligned for reduced harmonic distortion in inverter applications. Ensure synchronization with other switching stages to avoid beat frequencies and subharmonic oscillations.
Filter PWM signals with an LC network where the cutoff frequency (f_c = 1/(2π√(LC))) is at least 10 times lower than the switching frequency to attenuate ripple. For a 50 kHz switcher, target f_c ≤ 5 kHz. Use low-ESR capacitors (e.g., ceramic or film) and inductors with saturation currents 20% above peak operating current to prevent core saturation and excessive heating.
Thermal and Efficiency Considerations
Monitor junction temperatures of switching elements using thermal resistance calculations (T_j = T_a + P_loss * (R_jc + R_cs + R_sa)). For MOSFETs, keep T_j below 125°C to prevent derating; for IGBTs, limit to 150°C. Pair switching devices with appropriate heatsinks (e.g., 3°C/W for forced air cooling) and thermal interface material (≤ 0.5°C/W). Use current-sense resistors (
Optimize dead-time to balance efficiency and reliability: excessive dead-time increases voltage stress on body diodes, while insufficient dead-time risks cross-conduction. For silicon MOSFETs, start with 100 ns and adjust empirically. Implement soft-start by ramping the PWM duty cycle from 0% to target over 10-100 ms to limit inrush currents, using either RC networks or software-controlled slew rates. Validate performance with an oscilloscope, ensuring no overshoot exceeds 10% of the nominal output.
