Start with a single-pole 12-volt coil rated for 30–50 mA pull-in current–this ensures reliable operation without overheating the control source. Place a flyback diode (1N4007) directly across the coil terminals, cathode to positive, to suppress voltage spikes exceeding 100 V when the field collapses. Omit this component and risk irreversible damage to sensitive microcontrollers or transistors within milliseconds.
For switching loads up to 10 A, use a power MOSFET (IRF540N) or a bipolar Darlington pair (TIP120) directly before the contact set. Wire the control signal–3.3 V or 5 V logic–through a 1 kΩ base resistor to limit current to 5 mA; this prevents false triggering while keeping response times under 10 ms. Avoid cheap automotive-grade units lacking epoxy encapsulation; they fail at temperatures above 85 °C due to internal oxidation.
Layout traces on 1 oz copper with 2 mm width for every 2 A; narrower paths melt at sustained loads. Ground the common terminal to the chassis only at one point to prevent ground loops. Test continuity with a multimeter set to diode mode before applying live voltage–shorts here mimic successful activation but weld contacts shut on first use.
Mount the assembly in a ventilated enclosure; even a properly rated module dissipates 1.2 W at full load. Add a 250 mA slow-blow fuse in series with the positive feed–standard glass fuses open too late, allowing transient currents to fuse relay blades permanently. Replace spade connectors every 2 years; corrosion under 0.5 Ω raises coil voltage drop by 1.5 V, causing intermittent failures precisely when stability matters most.
Building a Low-Voltage Electromagnetic Switch Setup
Start with a flyback diode across the coil terminals to suppress voltage spikes. A 1N4007 diode works for most setups handling up to one ampere, but for inductive loads exceeding 500 milliamps, upgrade to a 1N5822 Schottky diode for faster recovery.
Select a compatible mechanical actuator based on load requirements. For resistive loads like LEDs or small heaters, a 7–10 ampere SPDT switch suffices. Inductive loads–motors, solenoids–demand 15–30 ampere DPDT switches with gold-plated contacts to prevent arcing. Consult the table below for exact coil resistance and pull-in voltage specs:
| Switch Model | Coil Resistance (Ohms) | Min. Pull-In Voltage (Volts) | Max. Load Current (Amps) |
|---|---|---|---|
| SRD-05VDC-SL-C | 70 | 3.75 | 10 |
| HJR-3FF-S-Z | 125 | 7.5 | 15 |
| RY-3W-K | 400 | 9 | 30 |
Mount the switch on a PCB or DIN rail using nylon standoffs to isolate the coil from adjacent traces. Keep trace widths at least 2.5 mm for 10 ampere loads, increasing to 4 mm for higher currents. Apply solder mask over exposed copper near switch contacts to prevent corrosion.

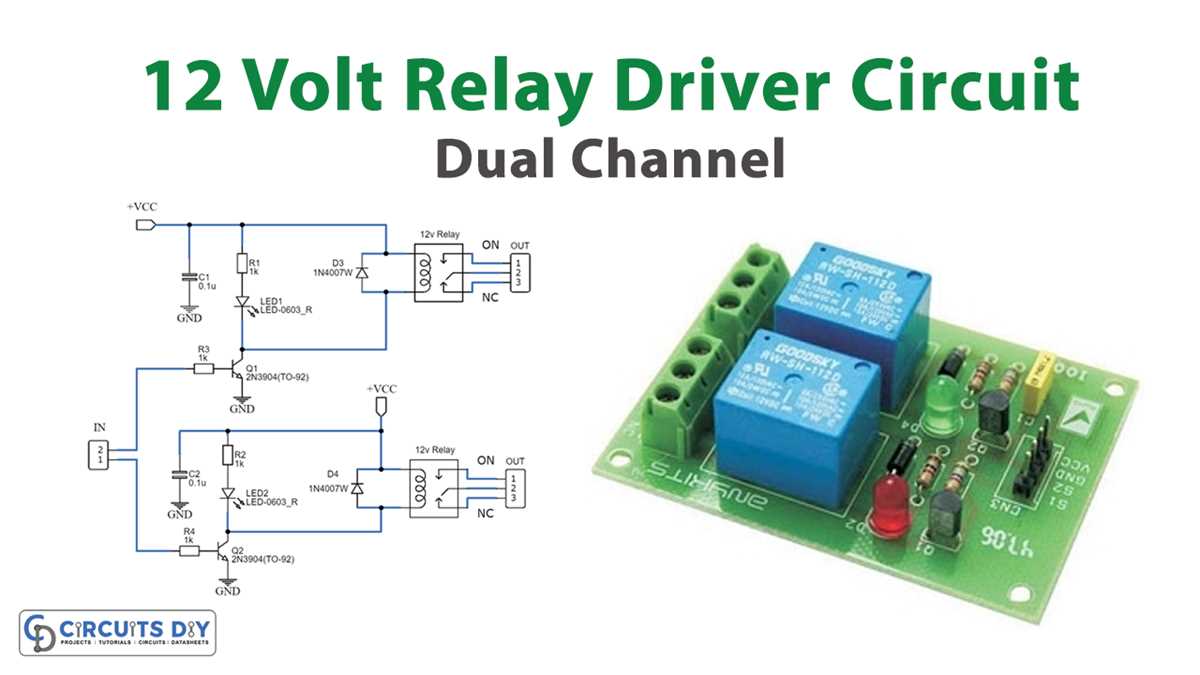

Use a bipolar junction transistor or MOSFET to drive the coil from microcontroller logic. A 2N2222 transistor handles 800 milliamperes, while a IRLZ44N MOSFET supports 47 amperes with gate voltages as low as 5 volts. Always pair the transistor with a base resistor–470 ohms for 2N2222, 10 ohms for IRLZ44N–to limit current draw from logic pins.
Wire the load through the switch contacts using appropriately sized cable. 18 AWG suffices for 10 amperes, but drop to 12 AWG for 25 amperes. Crimp terminals with a ratchet crimper and heat-shrink tubing to prevent shorts. For high-power loads, use ferrules to terminate stranded wire before inserting into terminal blocks.
Add a snubber network if switching inductive loads. A 0.1 µF capacitor in series with a 120 ohm resistor across switch contacts reduces voltage transients. Adjust resistor value based on load inductance–start at 47 ohms for motors under 5 henries, increasing to 220 ohms for larger inductors.
Test the assembled setup with a bench power supply before connecting real loads. Set current limit to 50% above expected coil current to prevent damage. Use an oscilloscope to check for coil voltage spikes, ensuring they stay below 100 volts. Measure contact bounce duration–ideal values are under 10 milliseconds.
Enclose the assembly in a ventilated case with adequate clearance around switch contacts. For outdoor use, select a NEMA 4X enclosure with gasketed seals. Label all input/output terminals and include a wiring diagram inside the enclosure for future reference.
Core Elements for a Low-Voltage Electromagnetic Switch Setup
Select a coil-driven mechanical switch rated for 1 ampere minimum contact current to handle inductive loads without arcing. For base configurations, opt for a single-pole double-throw (SPDT) or double-pole double-throw (DPDT) variant–SPDT suffices for most on/off tasks, while DPDT enables simultaneous switching of two isolated paths. Coil resistance typically ranges between 70Ω to 200Ω; verify specifications against your power source’s continuous output (e.g., a 150mA coil draws ~93mW at nominal voltage). Always pair with a flyback diode–1N4007–connected cathode-to-positive to clamp inductive voltage spikes exceeding 50V, preventing transistor or IC damage.
Critical Ancillary Parts
- Transistor driver: Use a 2N2222 or S8050 NPN transistor for low-power triggers; beta ≥100 ensures reliable saturation at 5–10mA base current. Calculate resistor value: RB = (Vin – 0.7V) / IB, where Vin is control signal level (3.3V–5V) and IB is 10–20× coil current.
- Snubber network: For AC-coupled loads, add a 0.1µF ceramic capacitor in series with a 100Ω resistor across contacts to suppress RFI bursts >30MHz.
- Fuse protection: Install a slow-blow fuse (rating = 1.5× steady-state load current) in series with the power feed; a 300mA fuse trips before contact weld occurs on 0.5A overloads.
- LED indicator: A 2mA red LED with 1kΩ series resistor visualizes activation status; reverse polarity protection requires a 1N4148 diode anti-parallel to the LED.
Secure all connections with 18–22 AWG stranded wire; solid core can fatigue under vibration. For PCB-mounted variants, space traces ≥2mm apart to prevent dielectric breakdown at 10mmHg pressure (high-altitude applications).
Building a Low-Voltage Switching Setup: Hands-On Construction
Select a compact SPDT electromechanical switch rated for 10–15A resistive load. Verify its coil resistance falls between 70–150 ohms to ensure proper activation with minimal current draw. A lower resistance risks excessive heat; higher may prevent reliable closure under marginal input.
Mount the switching device to a perforated board using M3 nylon standoffs to isolate metal contact from unintended short paths. Secure connections with 18 AWG tinned copper wire, stripping only 5mm of insulation per joint to minimize stray capacitance and voltage drop across contact points.
Connect the control path first: solder the positive lead from a regulated power source directly to the coil terminal marked “+” or “COM”. Ground the opposing coil terminal to the common return path of your supply. Test activation by applying the nominal input–listen for crisp mechanical engagement and confirm with a multimeter set to continuity mode.
- Avoid connecting the switched path until the control side operates flawlessly.
- Shield adjacent traces on the board with insulating tape if prototyping in high-vibration environments.
- Opt for gold-plated contact surfaces if switching below 50mA to prevent oxide buildup.
Integrate a flyback diode across the coil–cathode toward the positive terminal–using a 1N4007 for inductive load suppression. Position it within 10mm of the coil terminals; longer leads increase transient voltage spikes during switching. Verify polarity by checking diode orientation against coil markings before soldering.
Route the switched current through the normally open contact, attaching the external device’s positive terminal here. Keep high-current traces shortest possible; a 3A load over 10cm of 18 AWG wire introduces ~0.12V drop at peak. For inductive loads (motors, solenoids), add a snubber capacitor (0.1μF polyester) in parallel to absorb arcing energy.
Encase the assembly in a vented enclosure with a 25mm clearance around the contact points. Label input/output terminals with heat-shrink tubing to prevent accidental misconnection. Final validation: apply the operating voltage while monitoring coil current (should settle between 80–120mA) and contact closure time (≤10ms under nominal load).
Frequent Wiring Errors in Low-Voltage Switching Assemblies
Avoid connecting the coil directly to the power source without a current-limiting component. Even at 12 volts, an unprotected coil draws excessive amperage, risking overheating within seconds. Use a resistor or transistor rated for the coil’s nominal draw–typically 40-100 mA for miniature solenoids–to prevent burnout.
Misidentifying polarity on polarized components causes immediate failure. Diode orientations across coils must follow the stripe–cathode to positive. Reverse biasing destroys the diode, leaving the switch unprotected from inductive spikes. Label terminals before wiring to eliminate guesswork.
Routing thin-gauge wires (below 22 AWG) to handle load currents above 3A invites voltage drop and thermal damage. Calculate wire resistance: 0.32 ohms per meter for 20 AWG translates to 0.64V loss over 2m at 2A. Upsize to 18 AWG or bundle multiple strands for high-current paths.
Omitting a snubber circuit across inductive loads (motors, solenoids) generates destructive voltage transients. A flyback diode absorbs these spikes, but for AC loads, use a bidirectional TVS diode or RC network (0.1μF cap + 47Ω resistor) to clamp voltages below 25V.
Ground loops form when multiple paths return to the negative terminal. A single point of ground–the chassis or a dedicated bus bar–eliminates noise coupling. Measure continuity between expected common points; anything below 0.1Ω is acceptable; above 0.5Ω indicates corrosion or loose crimps.
Overlooking thermal derating on control switches shortens lifespan. A pushbutton rated for 10A at 25°C safely handles only 6A at 60°C ambient. Check datasheets for derating curves–most electromechanical interfaces lose 10% capacity per 10°C rise above nominal ambient.
