Connecting a vehicle’s accessory socket correctly prevents voltage drop and overheating. Use wiring rated for at least 16 AWG for low-power devices (up to 10A) and 12 AWG for high-draw accessories like inverters or compressors. Verify fuse sizing–install a 10A fuse for basic circuits and 15–20A for heavy loads, positioned as close to the battery as possible to protect the entire circuit.
Ground the circuit to a clean, unpainted metal surface near the socket to avoid corrosion-induced resistance. Avoid daisy-chaining grounds through multiple components–direct connection to the chassis or negative battery terminal ensures stability, especially under dynamic loads like high-wattage LED light bars or refrigerators.
The central pin of the socket carries positive voltage, while the outer sleeve serves as ground. Test polarity with a multimeter before finalizing connections–reversed polarity risks damaging sensitive electronics. For installations involving relays or solid-state switches, use 40A relay contacts for appliances exceeding 150W to prevent socket degradation.
For fused accessory circuits, route wires away from sharp edges, moving parts, and heat sources like exhaust manifolds. Secure cables every 12–18 inches with nylon tie-wraps or loom tubing to prevent vibration-related wear. When tapping into existing harnesses, avoid splicing into factory wiring unless it’s oversized–opt for Add-A-Fuse adapters instead for cleaner, reversible modifications.
For dual-outlet setups, run a dedicated fused line from the battery to each socket to distribute load evenly. Parallel connections directly from a single wire increase resistance and reduce efficiency. Always terminate wire ends with ring terminals or quick-disconnects to maintain reliable contact under vibration.
Automotive Auxiliary Power Outlet Connection Guide
Use a 18-20 AWG wire for standard installations to handle up to 10-15 amps without overheating. Connect the positive lead (red) directly to the vehicle’s fuse box via an add-a-circuit fuse holder, selecting a fuse rated 5-10A above the device’s maximum draw. Avoid tapping into the main battery cable–this risks voltage drop and potential fire hazards under high loads.
Ground the negative terminal (black/brown) to the chassis near the outlet using a 12-14 gauge ring terminal secured with a M6 bolt. Scrape paint off the mounting point to ensure a clean, conductive surface. Never connect ground to plastic trim, wiring harness clips, or painted screws–corrosion or loose contact can cause intermittent power loss or arcing.
Key components to verify before installation:
- Voltage regulator stability: Measure output at the outlet under load (e.g., 120W inverter)–a drop below 11.5V indicates insufficient gauge or poor ground.
- Polarity protection: Modern ports include a reverse-polarity diode; older models may lack this. Add an inline fuse (15A) and a rectifier diode (1N5408) rated for 3A minimum if retrofitting.
- Heat dissipation: Ensure the socket’s metal housing touches the dash panel–this acts as a heat sink for high-draw devices (e.g., 30W chargers).

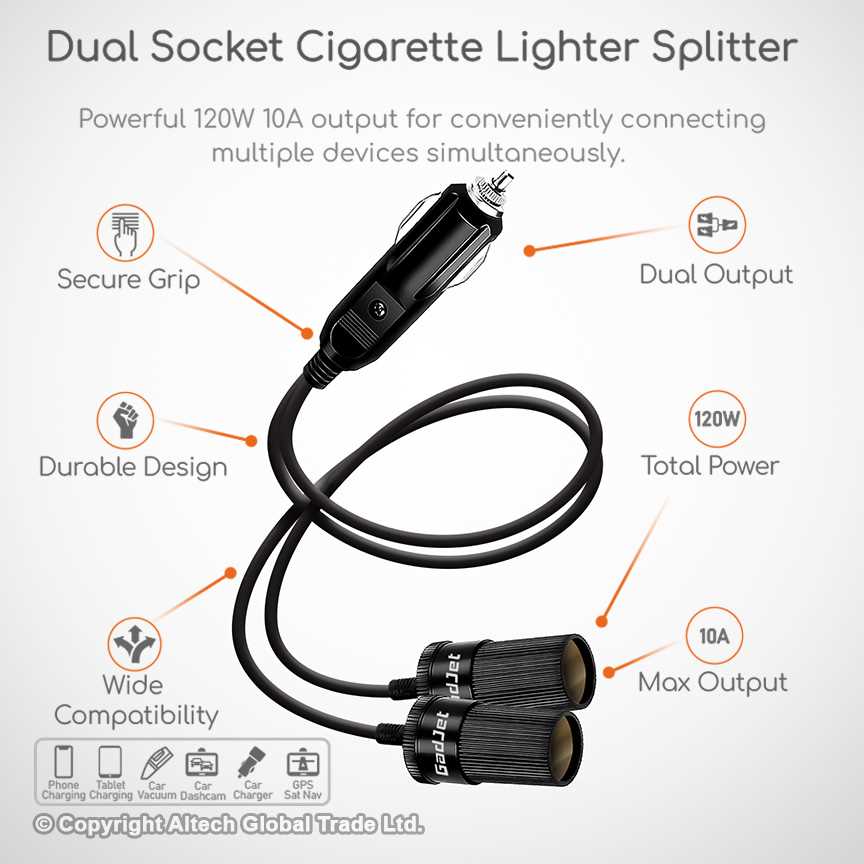

For dual-port setups, split the feed with a Y-splitter harness using 16 AWG wire and bullet connectors. Isolate each port with a separate 10A fuse to prevent overload; a single port failure shouldn’t disable both. Route wires away from sharp edges, moving parts, and exhaust manifolds–use split loom tubing or braided sleeving for protection.
Test the circuit with a multimeter in DC voltage mode before connecting devices. Probe the inner pin (center contact) and outer sleeve while the ignition is on–readings should match the battery voltage (13.8-14.4V for alternator-powered systems). If readings fluctuate, check for loose terminals, oxidized connections, or a failing alternator. For off-road or marine use, upgrade to marine-grade tinned copper wire and waterproof connectors.
Determining Connections Inside an Automotive Power Port
First, locate the center pin of the socket–this is the primary live contact delivering current from the battery. Use a multimeter set to DC voltage (20V range) to test for 12.6–14.2V between this pin and the outer shell when the ignition is on. Expect lower readings (under 1V) when the circuit is inactive.
The outer shell serves as the ground reference, completing the circuit. Verify its continuity with the vehicle’s chassis or negative battery terminal using a continuity tester. Resistance should read near 0 ohms; values above 0.5 ohms indicate corrosion or loose connections requiring cleaning or crimping.

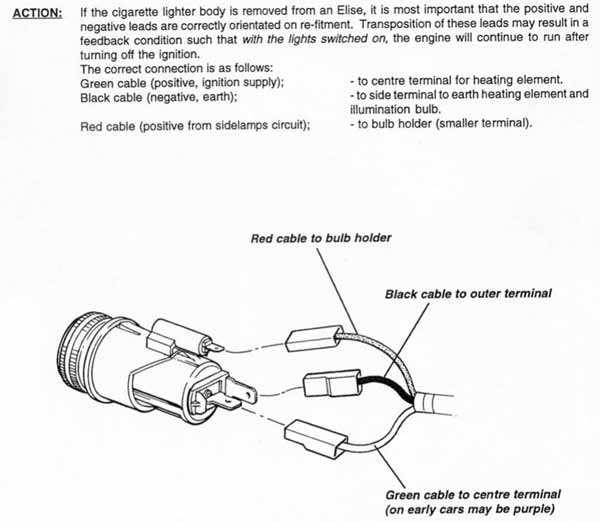

Modern auxiliary outlets often include a third wire–typically a thin, insulated lead running alongside the main bundle. This may be a fused ignition-switched line, illumination wire (for dashboard glow), or a sensor signal. Trace it to the fuse box or switch panel to confirm its function before splicing.
Avoid assuming wire colors follow universal standards. While red usually denotes hot leads and black/brown grounds, manufacturers like Ford use yellow for power and green for ground. Consult the vehicle’s service manual or an online wiring schematic specific to the make, model, and year. Cross-reference with a physical inspection if documentation is unavailable.
If the socket integrates a USB adapter or dual-port hub, probe the small printed circuit board (PCB) inside. Look for labeled pads (+5V, GND, D+, D-) or use a logic analyzer to detect data lines (commonly 2.7–3.3V pulses). Incorrect identification risks damaging the adapter or triggering fault codes in onboard systems.
For outlets with built-in LED indicators, the third wire often connects to a 1k–10k resistor limiting current to the diode. Clipping this resistor (instead of cutting the wire) preserves the original circuit while disabling the light, if not needed. Always re-wrap exposed connections with adhesive-lined heat shrink tubing to prevent short circuits.
When retrofitting a socket into a stock harness, splice directly into the ignition-feed wire (usually fused at 10–20A) rather than the constant battery line. This prevents parasitic drain and aligns with factory switch logic. Secure all connections with solder and flux, then wrap with automotive-grade vinyl tape or loom for vibration resistance.
Step-by-Step Guide to Connecting a Standard Automotive Auxiliary Outlet
Cut the power cable to the required length, leaving 10–15 cm extra for adjustments. Strip 8 mm of insulation from the positive (red or yellow) and negative (black or brown) wires–verify polarity with a multimeter if markings are unclear. Crimp a 4–6 mm ring terminal onto the positive wire, ensuring it matches the receptacle’s screw size; the negative wire typically connects to a grounding point using a spade or bullet connector, but check the chassis bolt thread (M4–M6) for compatibility. Secure the positive terminal first, tightening the screw to 3–4 Nm to prevent overheating, then attach the ground wire–avoid paint or corrosion at the connection point to maintain conductivity.
Testing and Final Checks
Before restoring power, probe the circuit with a continuity tester: confirm the receptacle’s center post reads 11.5–14.5V relative to ground under load (e.g., a 5W LED bulb). If voltage drops below 11V, inspect for loose terminals or undersized wire gauge (minimum 18 AWG for 5A, 16 AWG for 10A). Seal exposed connections with adhesive-lined heat shrink tubing or liquid electrical tape, extending coverage 1 cm beyond stripped sections. Reconnect the fuse at 80% of the device’s current rating–for a 10A accessory, use an 8A fuse to prevent false blows.
Tools and Materials Needed for Modifying an Automotive Auxiliary Socket
Begin by selecting a multimeter with a minimum 20A DC current rating and accuracy within ±1.5% for voltage checks. Avoid budget models below $30–they lack precision for low-resistance circuits. Confirm the unit has a temperature-compensated mode if working in ambient conditions below 10°C or above 35°C.
- Wire strippers with 10-20 AWG capacities and a built-in crimper. Ensure the cutting edges are hardened steel to handle tinned copper strands without fraying.
- Heat-shrink tubing assortment (Ø 2.5–6mm) with polyolefin material and a 3:1 shrink ratio. Pre-cut lengths to 20mm for splices and 40mm for terminal protection.
- Soldering iron rated 40–60W with a chisel tip (2.4–3.2mm) for rapid heat transfer. Use 60/40 rosin-core solder (0.7–1.0mm diameter) for clean joints.
- Crimping tool with ratcheted jaws for insulated and non-insulated terminals. Verify compatibility with SAE 20-22 AWG butt connectors.
- Needle-nose pliers (120mm length) with anti-slip coating on the handles for secure grip on confined-space components.
Source components with the following specifications: fuse holders rated for 15A continuous load, with a 20kA interrupt capacity; GXL or TXL wire (minimum 16 AWG) for chassis-side connections; and terminals with tin-plated copper contacts (99.9% purity) to resist oxidation. Pre-treat connections with dielectric grease (silicone-based, 1kV/mil breakdown voltage) if installing in high-moisture environments.
Store tools in a conductive foam-lined case to prevent ESD damage to digital multimeter circuits. Label each wire segment with heat-resistant polyester tape (10mm width) within 20mm of the termination point–include gauge, polarity, and circuit designation. For splices buried behind dash panels, use liquid electrical tape (Class B insulation) as an additional moisture barrier over heat-shrink tubing.
