Start with a dual solenoid configuration if handling loads above 100A. Use a continuous-duty model rated for at least 125% of the maximum current draw, such as the Blue Sea Systems ML-RBS or Victron Energy BatteryProtect. Position the solenoids as close as possible to the primary and secondary power sources to minimize voltage drop–ideally within 18 inches of each power terminal. This reduces resistive losses and ensures consistent engagement under high demand.
Wire gauge selection depends on the cable run length and expected current. For a 3-foot run at 80A, use 4 AWG copper wire; for 15 feet, upgrade to 2 AWG. Tin-plated copper offers better corrosion resistance in marine or off-road environments. Avoid crimp connectors for high-current paths–solder and heat-shrink or hydraulic crimping (e.g., FTZ or Ancor) provide lower resistance and longer service life. Include a 100A ANL fuse within 7 inches of each power source to meet ABYC and ISO 10133 standards.
Prioritize isolation thresholds based on application. For lead-acid systems, set a cutoff at 11.8V to prevent sulfation; lithium iron phosphate tolerates deeper discharge down to 10.5V but benefits from a 11.5V cutoff to extend cycle life. Use a voltmeter with low-power standby draw (under 1mA) to monitor state of charge without draining reserves. Add a manual override switch rated for 20% above the solenoid’s continuous current to bypass isolation during maintenance or emergencies.
Ground both solenoids to a common busbar connected to the vehicle’s chassis with a minimum 2 AWG conductor. Ensure all ground points are free of paint, rust, or oxidation–scraping and applying dielectric grease prevents resistance buildup. For systems with sensitive electronics, introduce a 10,000µF capacitor between the auxiliary circuit’s positive terminal and ground to suppress transient spikes during solenoid engagement. Test the setup with a multimeter under load: measure no more than 0.25V drop across solenoids and less than 0.1V across connections at full rated current.
Guide to Electrical Cutoff System Connections
Begin by identifying the primary power source terminals on your dual-energy setup. The main positive post should connect directly to the master cutoff device via a 4-gauge or thicker cable, depending on current demands. Smaller gauge wire risks voltage drop and overheating under load.
Install a fusible link between the power source and cutoff mechanism–place it within 18 inches of the positive post. This protects against short circuits while allowing full system voltage to pass when engaged. Skip this step, and a single fault could drain both reservoirs.
For auxiliary circuits, run a secondary line from the alternate energy reserve through the cutoff’s secondary contact. Label each cable at both ends to prevent miswiring during future maintenance. Use heat-shrink tubing or colored tape for permanent identification.
Ground the system at a single clean contact point–preferably the chassis–to avoid stray current paths. Multiple grounds create hidden resistance loops that degrade performance. Scrape paint or corrosion from grounding surfaces before securing connections with stainless steel hardware.
Test the cutoff’s operation by measuring voltage at each terminal with a multimeter. With the device off, alternate circuits should read zero while the main remains live. If readings deviate, recheck cable continuity and terminal tightness–loose connections cause intermittent failures.

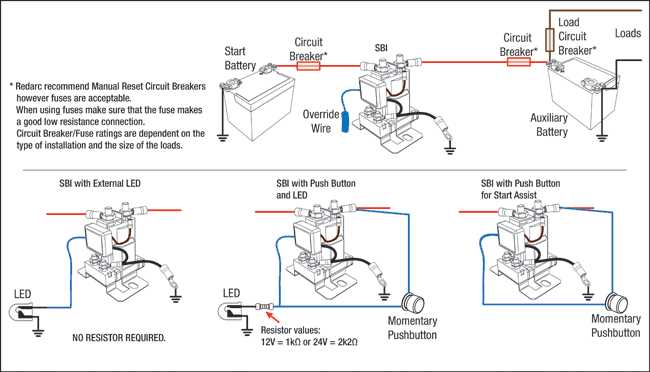

Consider adding a remote activation option for hard-to-reach installations. Mount a solenoid or relay near the cutoff and wire a momentary push-button to its trigger. This preserves manual control accessibility while allowing remote emergency disengagement.
Seal all exposed terminals with dielectric grease after final verification to prevent oxidation. Saltwater, humidity, and vibration accelerate corrosion in untreated metal interfaces, shortening component lifespan. Reapply annually for high-exposure environments.
Critical note: When splitting current between multiple reservoirs, ensure the cutoff’s contact rating exceeds the combined draw of all downstream circuits. Undersized contacts weld shut under sustained loads, defeating isolation protection. Always verify specifications before purchase.

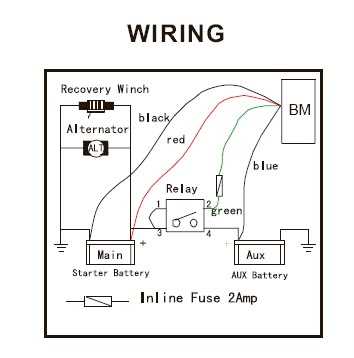

How to Identify the Correct Leads for an Auxiliary Power Cutoff Relay
Locate the primary power source terminals first–these are typically the thickest cables connected to the main storage cell. Mark the positive lead (often red or with a “+” symbol) and the negative (black or bare, sometimes labeled “-“). Trace both to the relay’s input side, ensuring you match polarity without relying solely on color codes, as aftermarket harnesses may vary.
Check the secondary circuit output by testing continuity with a multimeter. Set the meter to ohms (Ω) and probe the relay’s output terminals–one should show continuity to the primary positive when the relay is engaged. If no continuity appears, the relay may be faulty or miswired. Verify the vehicle’s auxiliary circuit diagram, as some systems split power to multiple loads (e.g., winches, fridges) with different gauge requirements.
Common Wire Gauges and Their Purposes
| Cable Thickness (AWG) | Typical Use | Max Current (Amps) |
|---|---|---|
| 2 | Main power distribution | 100–120 |
| 6 | High-draw accessories (winches) | 60–80 |
| 10 | Moderate loads (lights, radios) | 30–40 |
| 14–16 | Signal or low-power devices | 15–20 |
For ground connections, scrape paint or corrosion from the chassis contact point. Use a star washer to ensure a solid connection, as poor grounding causes voltage drops and erratic relay behavior. If the relay triggers a remote starter solenoid or inverter, cross-reference the ignition wire (usually thinner and color-coded purple or yellow) to avoid accidental discharge. Label all leads with heat-shrink tubes or flags for future reference.
Troubleshooting Misidentified Leads
If the relay clicks but fails to pass current, test for voltage drop across its terminals. A drop above 0.2V suggests undersized cables or loose connections. Swap suspect leads with known-good spares–the simplest method for isolating faults. Avoid daisy-chaining multiple devices into a single output, as this overloads the circuit. Instead, branch auxiliary loads through a distribution block rated for the total current draw.

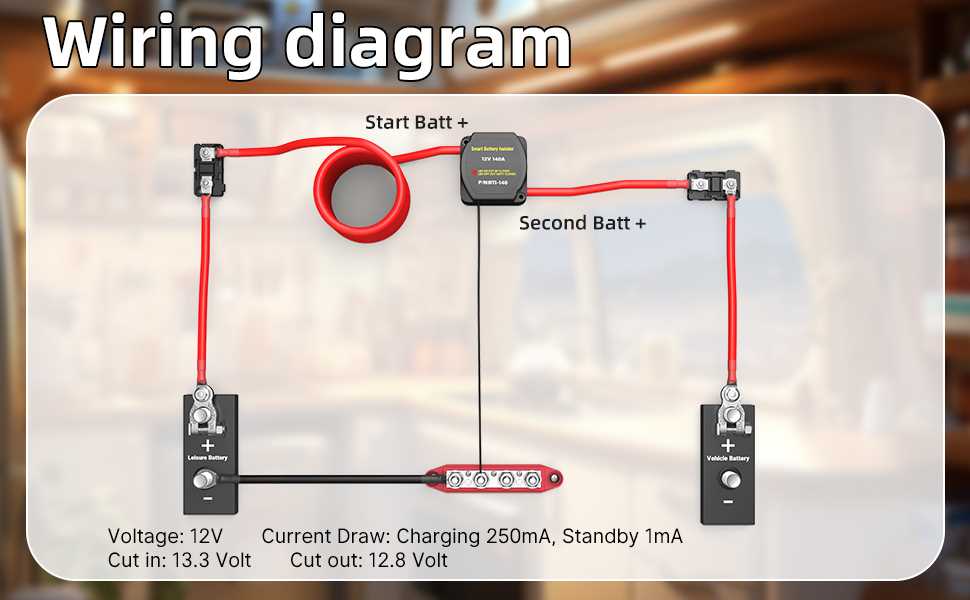

Step-by-Step Guide to Connecting a Dual-Bank Separator in Parallel
Start by positioning the power separator near both energy sources, ensuring cables reach without excessive slack. Use 4 AWG marine-grade copper wire for primary connections to handle sustained current loads. Cut cables precisely to length, stripping 1/2 inch of insulation from each end and crimping terminal lugs rated for 200+ amps.
Attach the primary input lug to the main energy cell’s positive post using a stainless steel M8 bolt, applying dielectric grease to prevent corrosion. Route the lead to the separator’s common terminal, securing it with a locking nut. For the secondary cell, connect a matching cable from its positive post directly to the auxiliary terminal marked with a plus symbol.
Install an inline 250-amp fuse within 7 inches of each energy source to comply with ABYC standards. Use a heat-shrink sleeve over connections to seal out moisture. Ground the separator’s chassis to the vessel’s common earth point with a 2 AWG bare cable, ensuring resistance below 0.1 ohms.
Test continuity with a multimeter before energizing. Set it to DC volts and verify the voltage reading across both cells matches within 0.1V. Activate the separator and confirm the auxiliary bank charges at 13.8–14.4V with no parasitic draw from the main bank.
Secure all leads with UV-resistant zip ties every 6 inches along their path. Label each cable near termination points using adhesive sleeves: “MAIN +,” “AUX +,” and “GROUND.” Avoid routing wires parallel to signal cables to prevent interference with electronics.
Perform a final load test by powering a 150W halogen light from each bank individually. Monitor for voltage drops exceeding 0.3V under load–recheck connections if inconsistencies appear. Repeat the test after 24 hours to ensure long-term stability under operational conditions.
Common Pitfalls in Connecting an Auxiliary Power Cutoff Device
Select conductors with insufficient ampacity relative to the fuse rating upstream. Many installations fail when undersized cables overheat under load, especially near terminals. A 20A fuse demands at least 10 AWG copper wire for safe operation–ignoring this leads to voltage drop or fire risks even in low-current circuits. Verify resistance per foot and apply a 20% safety margin to accommodate ambient temperature and bundling effects. Use a multimeter to confirm voltage at both ends of the cable under full load before final securing.
Misaligned Terminal Polarity and Loose Connections
Reversing positive and negative leads on a cutoff relay instantly damages sensitive onboard electronics. Test continuity with a probe–red to positive, black to negative–before energizing. Tighten terminal nuts to 8-12 inch-pounds torque; overtightening cracks housings while undertightening invites corrosion. Apply dielectric grease to terminals exposed to moisture. Inspect crimped joints under a magnifier–visible copper strands indicate a faulty crimp needing replacement.
Essential Equipment and Supplies for Fitting an Auxiliary Power Cutoff Device
Select a heavy-duty cutoff relay rated for at least 100 amperes–common automotive models often fall short under sustained loads. Industrial-grade units with silver-plated contacts resist oxidation and ensure minimal voltage drop, critical for high-draw applications like winches or refrigeration units. Verify the relay’s continuous-duty rating exceeds your system’s peak current by 20% to prevent overheating.
Gather marine-grade cables with tinned copper conductors–standard PVC-insulated wires degrade under vibration and moisture. For 8-gauge circuits, opt for 4/0 welding cable if the run exceeds 10 feet to limit resistance losses. Pre-stripped terminals save time, but only use crimped connections soldered afterward for maximum durability. Heat-shrink tubing with adhesive lining seals splices against corrosion, a frequent failure point in less robust setups.
Required tools include:
- A hydraulic crimper for 4/0 to 6-gauge terminals (pliers-style crimpers insufficiently compress large wires).
- Bevel-edge wire strippers–cheap versions nick conductors, reducing current capacity.
- A digital multimeter with a 400-amp inductive clamp for accurate load testing (avoid analog models with wide accuracy variances).
- Heat gun with adjustable airflow (open flame torches risk damaging insulation).
- Stainless steel mounting screws–standard hardware corrodes rapidly in high-vibration environments.
For auxiliary circuits, fuse holders must support Class T or ANL fuses–blade-style fuses melt under sustained 60+ amp loads. Position holders within 7 inches of the power source to comply with ABYC electrical standards. Include a 180-amp main fuse inline with the primary feed to protect against catastrophic shorts, even if your panelboard has separate breakers.
Consumables for Reliable Termination
- Anti-oxidant paste (e.g., Noalox) applied to all copper-to-copper connections to prevent galvanic corrosion.
- Dielectric grease for switch contacts–prevents arcing and extends mechanical life under frequent toggling.
- Non-conductive Nylon wire loom for runs through metal chassis holes to prevent chafing.
- Self-vulcanizing rubber tape for temporary waterproofing during repairs (do not substitute electrical tape–it fails under UV exposure).
Use a busbar kit with redundant ground paths if retrofitting an older system. Copper bars should have a current rating exceeding combined circuit amperage by 30%. For dual-voltage installations (e.g., 24V starter circuits), isolate the auxiliary relay coil circuit with a dedicated 5-amp fuse to prevent backfeeding. Avoid relay sockets with pigtails–bolt-down terminals handle higher currents without melting.
Test the installation under load before finalizing mounts. Activate all high-draw devices simultaneously (e.g., lights, compressor) and verify:
- Voltage at the relay output remains above 12.4V.
- No buzzing or overheating at terminal blocks.
- Switch enclosure stays below 85°C (use an infrared thermometer).
For offshore applications, seal the switch housing with a waterproof membrane and add desiccant packets to absorb condensation. Replace contacts every 3-5 years in high-cycle environments–carbon buildup causes intermittent failures that meters often miss. Keep a spare relay pre-wired in your toolkit; onboard diagnostics can’t fix a mechanically failed unit.
