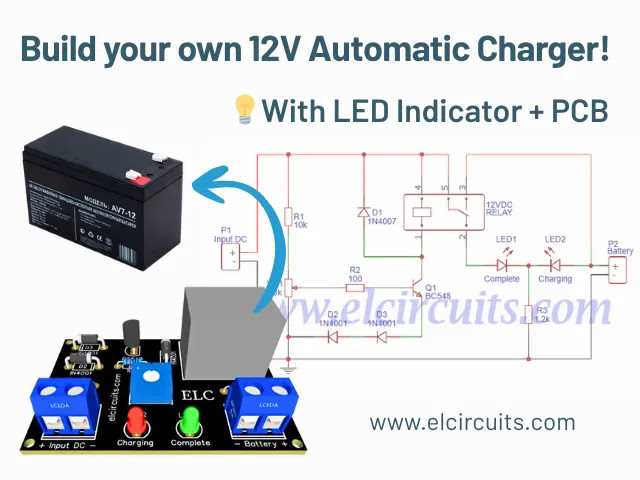

For a reliable 6-cell lead-acid accumulator (nominal output: 84 watt-hours), use a 20W–30W photovoltaic panel paired with a pulse-width modulated (PWM) charge controller. This combination ensures 92–95% efficiency in energy transfer while preventing overcharge at 14.4V–14.8V cutoff thresholds. Avoid linear regulators–heat dissipation losses exceed 40% in direct sunlight scenarios. Instead, implement a synchronous buck converter (e.g., MPPT-based ICs like LT8490 or TPS62130) to maximize photon-to-electron conversion under partial shade or low-irradiance conditions.
Critical component selection: a low-resistance MOSFET (e.g., IRF540N, RDS(on) < 44mΩ) minimizes conduction losses during bulk charging (10A–12A peak). For deep-cycle durability, incorporate a thermistor (NTC 10kΩ) near the cell bank–temperature compensation adjusts termination voltage by −5mV/°C per cell, extending lifespan by 30–40%. A Schottky diode (e.g., SB560, Vf < 0.5V) on the input prevents nocturnal reverse current, which can drain stored energy at 5–15mA–enough to deplete capacity within 2–3 months if unchecked.
Circuit topology matters: for fixed installations (e.g., 12-hour daily charge cycles), a dual-stage design–bulk (CC) followed by float (CV)–outperforms single-stage variants by 25% in state-of-charge retention. Use polycrystalline panels (≥18% efficiency) for cost-effective deployments; monocrystalline alternatives (≤22% efficiency) justify their premium only in space-constrained setups. Ground all exposed conductive surfaces–inductive coupling from lightning or static can induce ±1kV transients sufficient to destroy unprotected ICs. Opt for TVS diodes (e.g., P6KE200A) rated at double the operating voltage on both input and output paths.
Calibration pitfall: most off-the-shelf controllers misinterpret voltage drops across internal resistance (0.02Ω–0.05Ω typical). Measure open-circuit voltage after a 2-hour rest period; discrepancies above 0.3V indicate sulfation, requiring desulfation pulses (2.4V/cell for 100ms) before initiating normal charge. For remote monitoring, integrate an I2C ADC (e.g., ADS1115)–sample current at ≥1kHz to detect micro-short circuits (common in aged cells) that manifest as 1–3mA leakage currents, often invisible to crude analog meters.
Autonomous Energy Storage Unit Photovoltaic Power System Blueprint
Begin with a 30W monocrystalline panel rated at 18V open-circuit voltage to ensure consistent charge even under partial shading. Pair it with a PWM controller (e.g., Epever AN1056) set to a 14.4V float threshold–this prevents electrolyte loss in sealed lead-acid accumulators while optimizing cycle life. Use a Schottky diode (SB560) with a forward voltage drop of 0.5V to block reverse current during low-light conditions, reducing nighttime drain to less than 0.5mA. For wiring, employ 4mm² tinned copper cable between the panel and controller, and 6mm² from the controller to the storage unit to limit voltage drop to under 2% over 3 meters.
Critical Component Specifications
| Component | Model/Value | Key Parameter |
|---|---|---|
| Photovoltaic module | Renogy 30W | 18V Voc, 8.33A Isc |
| Pulse-width modulator | Epever AN1056 | 10A max input, temp-compensated |
| Blocking diode | SB560 (Schottky) | 0.5V Vf at 5A, 60V reverse |
| Overcurrent fuse | 15A ATO blade | Fast-acting, 250V AC |
Mount the PWM on an aluminum heatsink (0.5°C/W) if ambient temperatures exceed 35°C–thermal throttling starts at 60°C, degrading efficiency by 0.3% per °C. Add a 2200µF 25V low-ESR capacitor across the storage terminals to suppress voltage spikes from inductive loads. For load output, integrate a solid-state relay (Crydom D2425) triggered by the controller’s low-voltage disconnect, ensuring abrupt cutoff at 11.8V to prevent deep discharge. Test charge cycles with a precision multimeter (Fluke 87V), verifying a 0.5A trickle current post-14.4V float to balance plate sulfation in stand-by applications.

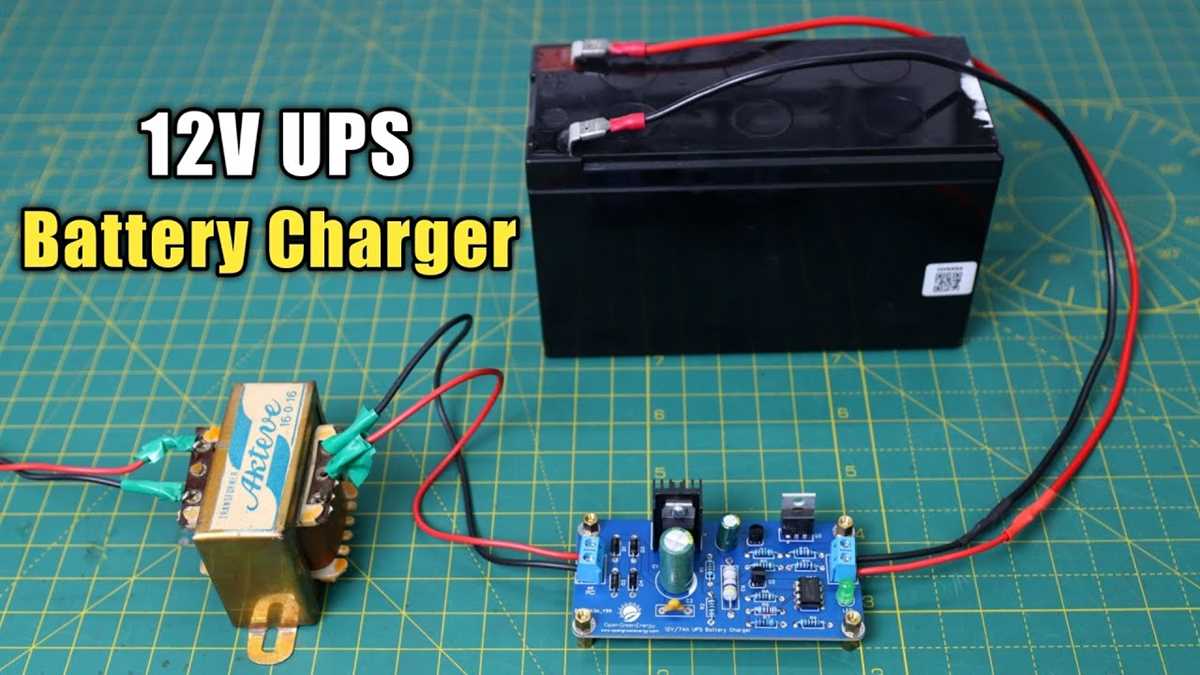

Key Components Required for a Lead-Acid Energy Storage Charging Setup
Select a monocrystalline photovoltaic panel rated at 20-30 watts peak output. Panels in this range deliver sufficient current to replenish a 7 amp-hour storage unit under optimal sunlight while avoiding overcharging. Verify the open-circuit voltage exceeds 18 volts; this headroom compensates for voltage drops across blocking diodes and ensures consistent energy transfer even under partial shading or suboptimal angles. Polycrystalline panels, while cheaper, exhibit lower efficiency–stick with monocrystalline for predictable performance in compact installations.
Voltage Regulation and Blocking Elements
Incorporate a 15-ampere Schottky diode with a forward voltage drop below 0.3 volts. Position it directly between the panel and storage unit to prevent reverse current at night, safeguarding the cell against discharge. Pair this with a 14.4-volt PWM charge controller–MPPT controllers offer marginal gains in small setups but introduce unnecessary complexity. Ensure the controller’s input range matches your panel’s peak power point voltage; undersized controllers risk thermal shutdown during high-irradiance periods.
Use 12-gauge stranded copper wiring for interconnections to minimize resistive losses. Route positive and negative leads through separate conduits where possible, reducing induction noise in sensitive electronics. Connect the load via the controller’s output terminals to leverage built-in over-discharge protection; bypassing this can lead to sulfation of lead-acid plates, permanently degrading capacity.
Add a 250V/2A slow-blow fuse inline between the panel and controller to interrupt fault currents without nuisance tripping. Test the fuse’s ampacity with a multimeter under simulated short-circuit conditions–substandard fuses may fail unpredictably under transient spikes. For environmental resilience, seal all junction boxes with silicone gaskets and use UV-resistant cable ties to anchor exposed runs. Avoid corroded contacts by applying anti-oxidation paste to terminal connections, particularly in humid or saline-rich climates.
Integrate a 20-bar LED bar graph voltmeter to monitor state-of-charge in real time. Analog meters, while durable, lack precision; opt for a digital unit sampling at least twice per second. Calibrate it against a known reference voltage–most commercial meters drift by ±0.2 volts without periodic recalibration. For remote deployments, consider a low-power GSM module transmitting voltage data to a cloud dashboard, enabling preemptive maintenance before deep discharge occurs.
Step-by-Step Wiring Connections for the Photovoltaic Module to Storage Cell
Connect the positive terminal of the photovoltaic panel directly to the input of a 10A blocking diode, ensuring the striped end faces the accumulator’s positive pole. Use 4mm² copper wire for runs under 3 meters; upsize to 6mm² for longer distances to minimize voltage drop. For a 6-watt module, expect a 500mA current at peak irradiance–verify with a multimeter before finalizing connections. Secure the negative lead from the panel to the accumulator’s negative terminal with a crimped ring lug and M5 stainless steel bolt; avoid twist-on connectors as thermal cycling degrades contact resistance over time.
Install a 15A fuse between the diode and the storage cell’s positive terminal, housed in a waterproof fuse holder mounted within 150mm of the accumulator. For systems exceeding 20 watts of panel output, integrate a 20A PWM controller; set the low-voltage disconnect to 11.1V to prevent deep discharge. Route all wiring through UV-resistant conduit, fastening every 400mm with zip ties to the mounting frame–avoid sharp edges that could abrade insulation. Test continuity with a megohmmeter after installation; resistance should not exceed 0.5 ohms for the entire loop.
Choosing an Optimal Regulation Device for a Small-Capacity Lead-Acid Storage Cell
For a 6.5-7.5 amp-hour sealed lead-acid unit, a PWM controller rated at 5A delivers sufficient efficiency without excess cost. Models like the Renogy Wanderer 10A or EPEVER LS0512R provide reliable charge termination at 14.4V absorption voltage and float cut-off at 13.7V, preventing both undercharge and overcharge in cyclic applications. Avoid controllers exceeding 15A–unnecessary for small systems–and those lacking temperature compensation, which risks premature sulfation in colder climates.
Critical Features to Priorify
- Load Disconnect: Automatically shuts off DC outputs when voltage drops below 11.5V, protecting deep discharge in standalone setups.
- Dual Voltage Thresholds: Ensure the device supports 14.1V absorption for flooded units or 14.7V for AGM variants; mismatch reduces lifecycle by up to 30%.
- Low-Noise Operation: Controllers with Victron BlueSolar MPPT 75/15) preserve sensitive electronics like LED drivers or telemetry modules.
MPPT regulators (e.g., Morningstar SunSaver MPPT) justify their 2-3× higher cost only if the panel’s VOC exceeds 22V–otherwise, PWM units maintain >90% efficiency at a fraction of the price. Verify manufacturer datasheets for self-consumption current (ideally 105°C junction temperature to resist corrosion from condensation.
Determining Optimal Photovoltaic Output for Reliable Energy Storage Replenishment
For a storage unit rated at 7 amp-hours, a minimum photovoltaic array should deliver 15–20 watts under full sunlight to ensure consistent replenishment. This baseline accounts for losses from charge controllers, voltage drops, and atmospheric interference, typically adding 20–30% overhead.
Daily energy consumption dictates panel sizing. A fully depleted 7Ah reserve requires ~84 watt-hours to reach full capacity. In regions with 4–5 peak sun hours, a 20W panel generates 80–100 watt-hours daily, sufficient for one full recharge cycle. Adjust for seasonal variations–winter sun hours may drop by 50%, necessitating a 30W panel to compensate.
- Peak Output: Panel wattage must exceed daily draw by 1.2–1.5x to offset inefficiencies.
- Voltage Matching: Ensure open-circuit voltage (Voc) stays within charge regulator limits (e.g., 18–22V for 14.4V nominal systems).
- Current Capacity: Short-circuit current (Isc) should surpass storage unit max charge rate (usually 0.5–1.5A).
Overcast conditions reduce panel efficiency by 60–80%. A 25W panel may only yield 5–10W under heavy cloud cover. For off-grid reliability, size panels to handle worst-case scenarios–35–50W for temperate climates, 60W+ for frequently overcast regions.
Load-Specific Adjustments
Pulsed or intermittent loads (e.g., pumps, sensors) demand higher instantaneous current. A 20W baseline panel may struggle to sustain >2A surges. Use these multipliers for load types:
- Constant Draw (e.g., lights, routers): 1.0–1.2x baseline wattage.
- Cyclic Loads (e.g., motors, compressors): 1.8–2.5x to account for startup current.
- Standby Mode (e.g., alarms, IoT devices): 1.3–1.5x for minimal maintenance needs.
Temperature derating reduces panel efficiency by 0.3–0.5% per °C above 25°C. In desert environments (50°C panel temp), a nominal 40W module delivers ~28W. Counteract this by oversizing panels by 25–40% in high-heat areas.
Charge controller type impacts energy harvest. PWM controllers waste 20–40% of potential input, while MPPT units capture 90–98%, allowing smaller panels. For a 15W setup, PWM requires 22W input; MPPT needs only 15W to achieve equivalent output.
Empirical Validation
Monitor actual performance with a multimeter and logging device:
- Measure panel output at noon under clear skies–should reach 70–90% of rated wattage.
- Track storage unit voltage recovery time. A 7Ah reserve should recharge from 50% to 100% in 8–12 hours with adequate panel sizing.
- If voltage plateaus below 13.8V during peak sun, panel wattage is insufficient for full replenishment.

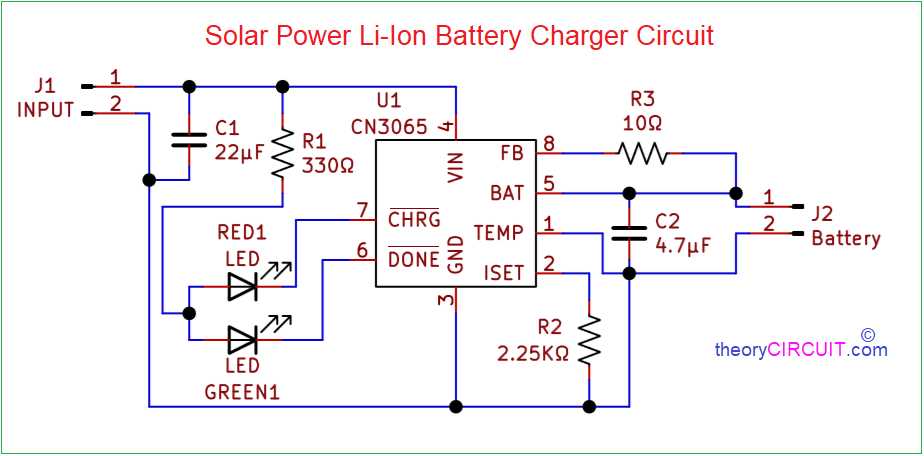

For lithium iron phosphate storage, reduce panel wattage by 10–15% due to higher charge efficiency (>95% vs. 80–85% for lead-acid). A 15W panel suffices where a 17W unit would be required for equivalent lead-acid capacity.
