Connect the power input directly to the 85-ohm coil terminal to ensure stable triggering. Use a 0.75 mm² cross-section wire for control circuits–this prevents voltage drops during high-current activation. Ground the opposite coil terminal (86) to a clean, corrosion-free chassis point near the module to avoid false triggers from electrical interference.
For the load circuit, route the heavy-gauge output (terminal 30) through a dedicated 6 mm² cable to handle inrush currents up to 40 amps. Fuse this line within 18 cm of the battery’s positive terminal using a 30-amp blade fuse–this protects the circuit from short-to-ground failures without relying on delayed breaker response.
Link the normally open contact (30-87) to your load device with minimal splices. Avoid daisy-chaining connections; each joint introduces resistance that compounds under sustained current. Test continuity across all paths with a multimeter before powering the system–hidden breaks in 18-gauge jumpers can cause intermittent failures under load.
Label each wire at both ends with heat-shrink tubing markings. During troubleshooting, verify coil resistance (approximately 70-90 ohms) and contact voltage drop (less than 0.1V at full load). If voltage exceeds 0.3V, disassemble and clean contact surfaces with 1200-grit abrasive–oxidized terminals erode performance before visible damage appears.
Mount the switching assembly away from heat sources and moving parts. Secure the unit with vibration-resistant hardware; repeated thermal cycling loosens solder joints, leading to silent failures after 5-7 years of operation. For environments with high dust or moisture, apply dielectric grease to exposed terminals before final assembly.
Connecting a High-Current Switching Module: Step-by-Step Guide
Start by identifying the control circuit terminals–these accept low-power signals from a switch or microcontroller. Typically marked 85 and 86, these contacts require a direct connection to the triggering source, ensuring polarity aligns with the coil’s specifications. Use 18-gauge wire for these inputs; thinner strands risk voltage drop under activation. For inductive loads, add a flyback diode across the coil to suppress voltage spikes, preventing damage to sensitive components.
Load Terminal Configuration
Attach the heavier gauge wires (10-12 AWG) to terminals 30 and 87, designated for the primary circuit. Terminal 30 serves as the common feed, while 87 connects to the load–ensure tight crimps or soldered joints to handle 35-amp surges without overheating. For inductive devices like motors, integrate a snubber circuit or varistor to absorb transient voltages. Always route wires away from moving parts or heat sources, securing them with strain-relief clamps.
Test the setup using a multimeter in continuity mode before applying full current. Verify the module clicks audibly during activation and that the load (e.g., a compressor or lighting array) responds without flicker or lag. If interfacing with a programmable controller, set debounce delays to prevent rapid cycling, which shortens contact life. Consider upgrading to gold-plated contacts for low-voltage applications to minimize resistance and improve longevity under repeated use.

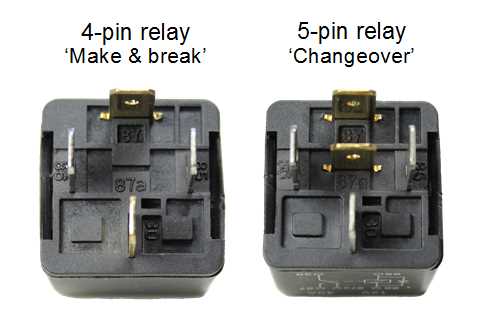

How to Determine Terminals on a Four-Terminal Control Module
Locate the markings on the component’s plastic housing–typically embossed or printed near each connector. Most manufacturers label them as 85, 86, 87, and 30. If labels are missing or worn, check for a schematic engraved on the underside or refer to the datasheet from the supplier.
To confirm which terminal serves as the coil driver, use a multimeter in continuity mode. Probe pairs 85 and 86; a closed loop indicates the electromagnetic coil terminals. These must never be energized with high-current circuits–doing so risks permanent damage to the internal winding.
Key Behavior During Testing
- 85/86: Low-resistance reading (~50–150 ohms); interchangeable polarity.
- 30: Common contact–rests connected to 87a (if present) when coil is off.
- 87: Normally open; connects to 30 only when coil is powered.
Absent or faint markings sometimes appear as slight indentions–test with a bright light at an angle. Terminal 30 is usually larger or positioned centrally for structural support. Misidentifying it risks shorting the load circuit if connected to the coil side.
For reverse-engineering unknown units, observe the contact plating: 30 and 87 often have silver cadmium oxide coatings for high-current compatibility, whereas 85/86 use copper alloy for better magnetic flux efficiency.

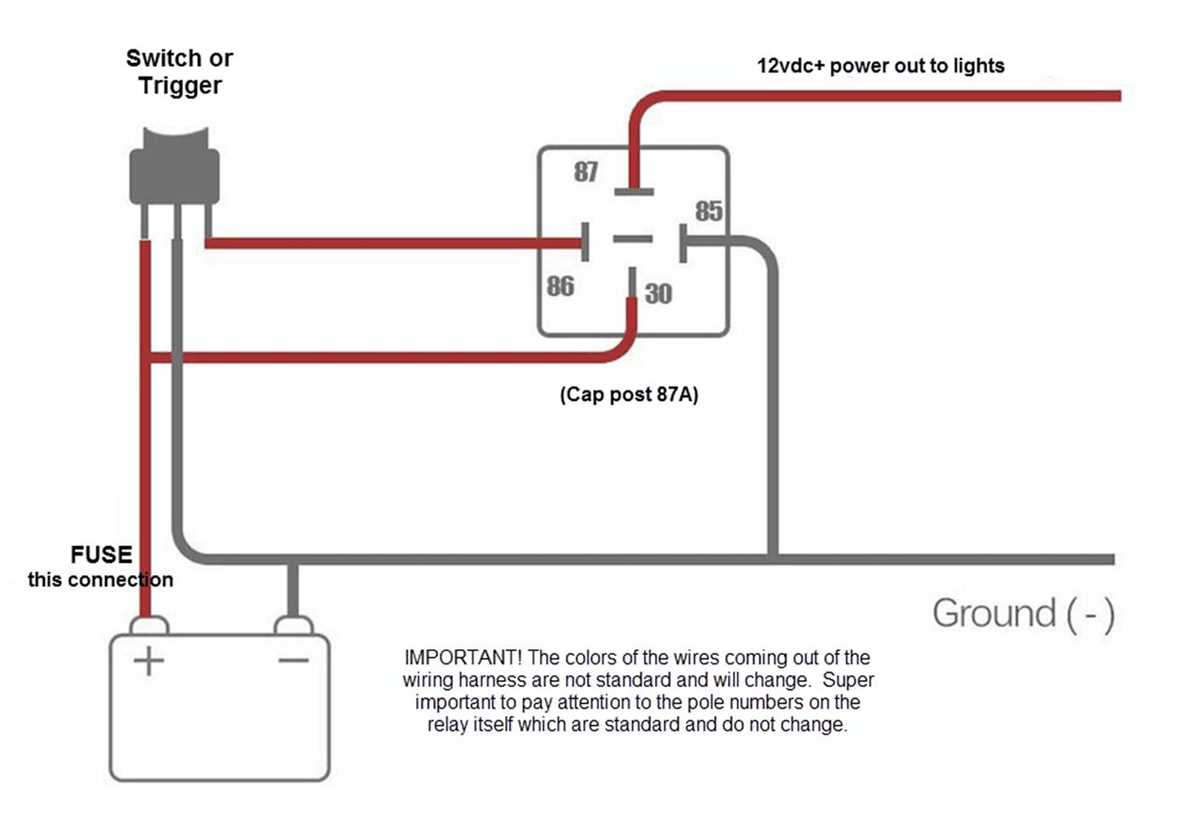

Step-by-Step Connection Guide for a Heavy-Duty 4-Terminal Switching Module
Begin by identifying the power source, ensuring it matches the 12-watt, high-current requirements of your circuit. Cut two lengths of 4 AWG wire–one red for the positive feed, one black for the ground–to handle the 30-ampere load without overheating. Strip 10mm of insulation from each end, then crimp ring terminals for secure attachment to the battery posts or fuse block. Route the red wire directly to the module’s input terminal (typically labeled “30” or “common”), while the black wire connects to the system’s chassis ground or a designated negative busbar.
Locate the control circuit, which may originate from a switch, sensor, or ECU. Use 18 AWG stranded wire–green for the trigger signal–to join the control output (switch or sensor) to the module’s coil terminal marked “85” or “control in.” The opposing coil terminal (“86” or “control out”) must link to a stable ground, preferably the same point as the main negative lead. Verify polarity: if the internal diode is polarized, reversing connections will prevent activation. For inductive loads (motors, solenoids), add a flyback diode across the coil terminals, cathode to positive, to suppress voltage spikes.
Attach the load–headlights, compressor, or winch–to the module’s output terminal (“87” or “load”) using the same 4 AWG cable, securing all connections with a torque wrench set to 7 Nm to prevent loosening under vibration. Insert a 40-ampere fuse within 150mm of the battery’s positive terminal, and test the setup with a multimeter: probe the output terminal while toggling the control switch. Expect 0 ohms across the load path when engaged, open circuit when off. If using a momentary switch, incorporate a latch circuit or solid-state timer to hold the state after release.
Common Mistakes When Connecting a 4-Terminal Switching Module and How to Prevent Them

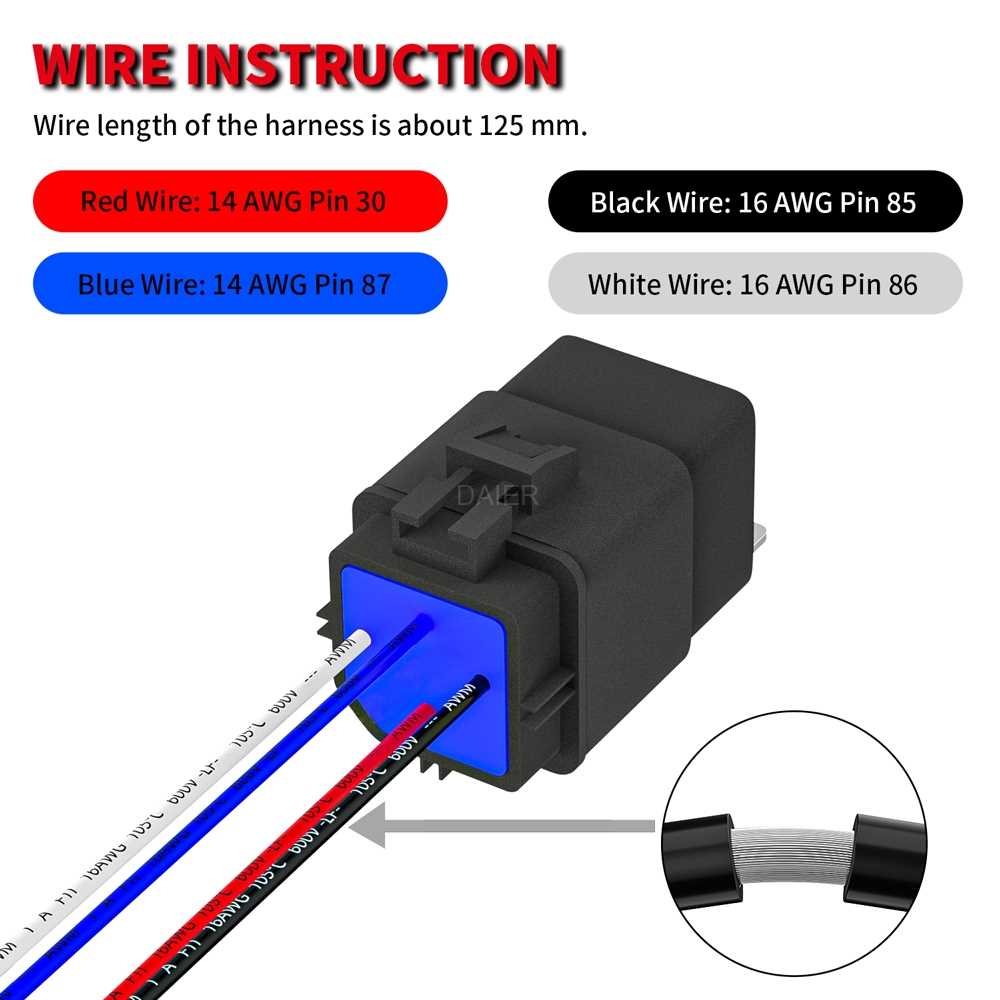

Confusing the coil terminals (85 and 86) with power contacts (30 and 87) leads to immediate circuit failure. Label each connector before installation using heat-shrink tubing or colored tape–red for positive, black for ground, and blue for trigger lines. Verify continuity with a multimeter set to ohms; coil resistance should read between 60–120 ohms, while open contacts show infinite resistance. Skipping this step risks shorting the control circuit or damaging the vehicle’s fuse box.
Overloading the switching device by exceeding its rated current causes premature failure. Check the load’s amperage draw–motors, pumps, or lights often surge 20–50% above their nominal rating at startup. Use a 50% safety margin: a 20-amp module tolerates 13 amps continuously, while a 40-amp unit handles 26 amps. For inductive loads like solenoids, add a flyback diode across the coil terminals to absorb voltage spikes that can weld contacts shut.
| Module Rating (Amps) | Safe Continuous Load (Amps) | Typical Applications |
|---|---|---|
| 20 | 13 | LED bars, small fans |
| 30 | 20 | Fuel pumps, halogen lights |
| 40 | 26 | Winches, compressors |
Improper grounding creates intermittent operation or total failure. Attach the ground terminal (85) directly to the chassis using a ring terminal crimped to 10-awg wire, not self-tapping screws. Sand off paint or corrosion from the mounting surface to ensure less than 0.1 ohms resistance. Avoid daisy-chaining grounds through multiple components–current return paths should parallel the unistrut, not meander through relay racks or sensor looms.
Ignored Voltage Drop Across Long Runs
Twelve meters of 14-awg wire adds 0.5 volts drop at 15 amps–enough to weaken a solenoid’s pull or dim lights noticeably. Calculate voltage drop using V = I × R, where R is wire resistance per meter (0.0085 ohms for 14-awg copper). For runs over 5 meters, upsize to 12-awg wire or split the load across dual switching modules. Test with a voltmeter at the load end while operating; readings below 11.8 volts mandate thicker conductors.
Neglecting polarity on the trigger leads (85/86) burns out the electromagnetic coil instantly. Mark the positive trigger terminal with a bright dot using enamel paint–this terminal must connect to +12 volts when actuating the module. If using a momentary switch, wire it in series with a flyback diode cathode facing the positive rail. Reverse polarity is irreversible and often voids warranties, so confirm connections with a test light before energizing.
Skipping the protective cover exposes contacts to dust, moisture, and arcing. Mount the module inside a sealed enclosure rated IP67 if used outdoors or under-hood. For engine bays, apply dielectric grease to contacts before insertion to repel water and prevent oxidation. Replace any cover with cracked tabs or worn hinges–cheap plastic acts as a fuse under thermal stress, melting at 85°C and shorting adjacent circuits.
