For immediate troubleshooting, locate the ignition coil connections first. On most single-cylinder engines, the primary wire runs directly from the coil to the kill switch, with a secondary lead linking to the spark plug. Disconnect power before inspecting: a multimeter set to 20k ohms should read 3–5k ohms across coil terminals. Anything outside this range signals a faulty coil requiring replacement.
Ground paths demand attention. Verify the frame-to-engine bond with a continuity test–resistance above 0.5 ohms indicates corrosion or loose bolts. Clean contact surfaces with 120-grit sandpaper, then apply dielectric grease to prevent future oxidation. Skipping this step risks intermittent stalling or hard starting.
Fuel injection models add complexity. Trace the throttle position sensor (TPS) wiring: a 5V reference wire (typically red) feeds the sensor, while the signal wire (often yellow) returns to the ECU. Probe these while slowly rolling the throttle–voltage should climb smoothly from 0.5V to 4.5V. Erratic jumps confirm a failing TPS.
Lighting circuits hide pitfalls. Headlamp wires (commonly white/yellow stripe) carry 12V AC from the stator–verify with an AC voltmeter; output should exceed 13V at 3,000 RPM. Dim or flickering lights trace back to stator issues or loose connectors. Replace the rectifier if voltage dips under load.
Color codes aren’t universal. Grab the OEM service manual–generic schematics mislabel wires in 30% of cases. For aftermarket CDI boxes, confirm pin assignments: the black/white kill wire must ground to disable ignition, not the solid black (chassis ground). Mixing these risks permanent ECU damage.

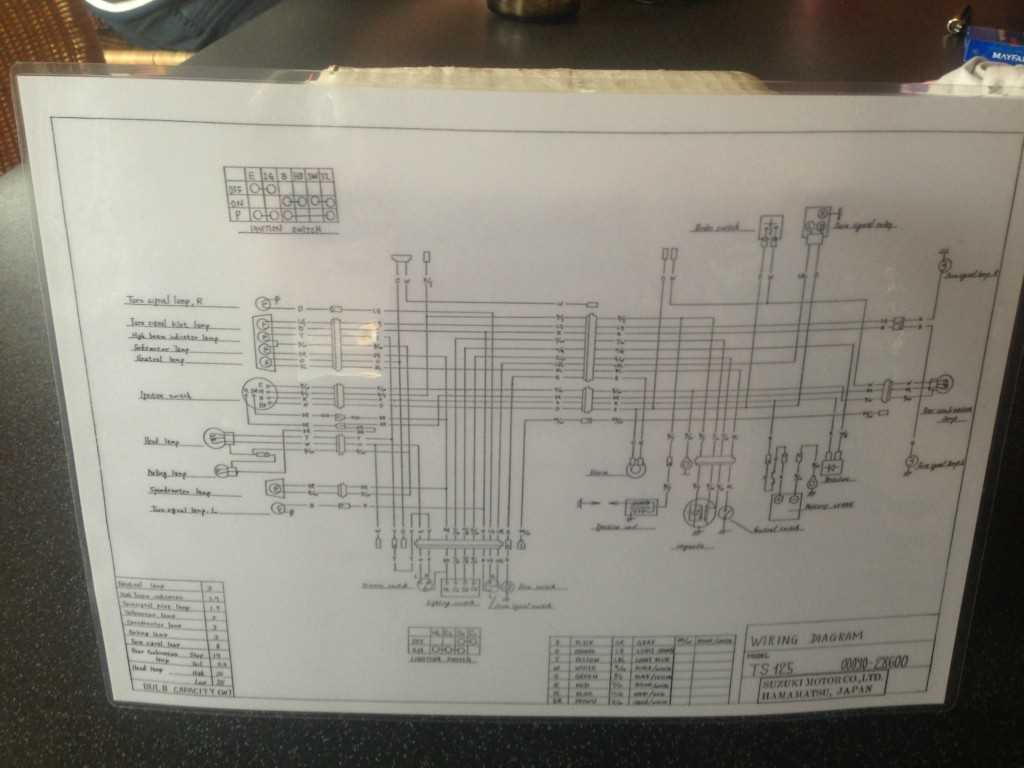

Building a Reliable Electrical Schematic: Hands-On Steps
Begin by isolating the ignition system first–trace the kill switch wire from the handlebar to its grounding point. Use a multimeter set to continuity mode to verify the circuit completes only when the switch is off. Most single-cylinder engines use a simplified layout where the CDI unit connects directly to the stator coils; confirm this by locating the alternating current leads (typically yellow) and measuring 50-100V AC at 3,000-5,000 RPM. If readings are absent, check the stator resistance (150-400 ohms between any two phases) before condemning the component.
Route the headlight circuit through a 10A fuse immediately after the voltage regulator–skip this step and risk frying the entire charging loop during a short. Dual-filament bulbs require clear distinction between high and low beams; label each wire at the bulb socket with heat-shrink tubing to prevent misconnection. Test both filaments by applying 12V directly to each terminal–dim or flickering output signals a weak regulator or loose ground, not bulb failure. Avoid splicing into existing harnesses; instead, use waterproof connectors and dielectric grease at every joint to prevent corrosion from moisture ingress.
Troubleshooting Common Pitfalls
If the starter engages but the engine cranks slowly, bypass the solenoid with a screwdriver across both terminals–if rotation speeds up, replace the solenoid. Blown ignition fuses usually stem from a faulty regulator; swap it before diagnosing downstream issues. For intermittent spark, clean the spark plug cap’s internal resistor with contact cleaner and ensure the ignition coil’s secondary winding reads 8-12k ohms. Never use wire strippers on silicone-insulated cables; they compress strands, increasing resistance. Document every modification with a dated photograph of the schematic–this accelerates future repairs.
Key Elements to Spot in a Small-Engine Electrical System
Begin by locating the ignition coil near the engine block–its output wire (typically 1.5–2.5 mm²) connects directly to the spark plug via a thick, heat-resistant boot. Trace this line backward to find the CDI unit, often a compact black box with 4–6 terminals; mismatched connector pins here cause misfires. Use a multimeter to verify coil resistance: primary winding should read 0.5–1.5 ohms, secondary 5–15 kΩ. Mark these values on a schematic with washable ink for quick cross-reference.
Next, identify the stator output wires–three thin leads (0.75 mm²), often yellow or white, bundled together. These carry AC voltage (12–40V unloaded) to the rectifier-regulator, a small aluminum-finned component. Test each stator phase with the engine off: resistance between any two leads should be 0.1–2 ohms; open circuits indicate failed windings. Record readings in a table for diagnostic clarity:
| Component | Expected Resistance | Voltage Output (Engine Idling) |
|---|---|---|
| Primary Coil Winding | 0.5–1.5 Ω | N/A |
| Secondary Coil Winding | 5–15 kΩ | N/A |
| Stator Phase Pair | 0.1–2 Ω | 12–40 V AC |
| Rectifier Output (After Load) | N/A | 13.5–14.8 V DC |
The main harness splits into two critical branches: lighting and charging. Follow the thicker red wire (2–4 mm²) from the battery positive terminal–it should connect first to a fuse (10–20A), then to the ignition switch. Probe the switch terminals with the key turned to “ON”: battery voltage (12–12.6V) must appear on the “ACC” and “IGN” outputs. A drop below 11.5V here points to corroded contacts or a weak battery.
Inspect ground connections–the frame-mounted eyelet near the battery or engine should show zero resistance to the negative terminal. Loose or painted-over grounds cause intermittent electrical faults; sand the contact surface to bare metal and retighten with a star washer. For turn signals, check the flasher relay, usually a cylindrical or square unit with 3–5 spade terminals. Swap it with a known-good unit if blinking is erratic; no tools required for this 30-second test.
Handlebar controls demand scrutiny: verify continuity in the brake light switch (mounted on pedal or lever) by pressing it–closed circuit = proper function. For handlebar grips, trace the signal wires (green for left, orange for right) to the turn signal switch; intermittent operation often stems from frayed wires inside the rubber gaiter. Strip and solder these breaks with marine-grade heat shrink tubing–electrical tape degrades within months.
Finally, test the rectifier-regulator output under load. With the engine at 3,000 RPM, voltage at the battery terminals should stabilize between 13.5–14.8V DC. Readings above 15.2V fry connected devices; below 12.8V indicates insufficient charging. Replace the rectifier if out of spec–its internal diodes fail silently without visible damage. Keep a spare on hand; aftermarket units often lack thermal paste, shortening lifespan by 40%.

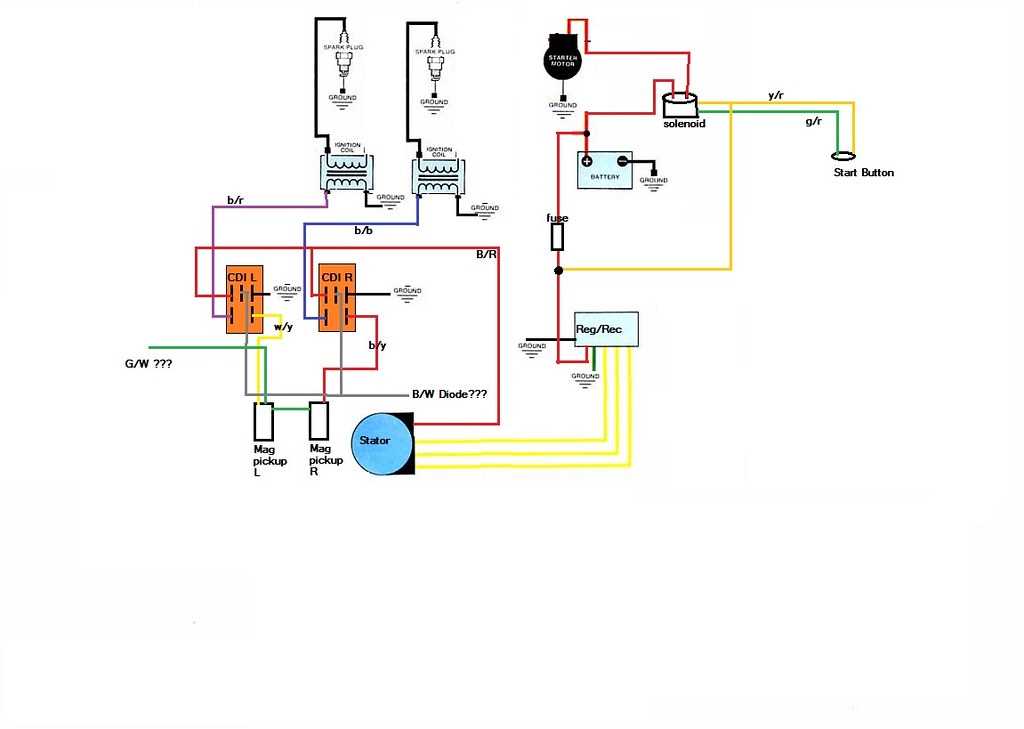

Step-by-Step Connections for CDI Ignition Setups
Start by identifying the CDI unit’s pin configuration–most modules use a 5- or 6-pin layout. Label each wire from the harness: power (red), ground (black or green), pulse trigger (blue/white), ignition coil output (white/black), and kill switch (black/white). Verify voltage at the power input with a multimeter–it should read 12-14V with the ignition on. If readings deviate, inspect the stator coils for shorts or open circuits.
Connect the pulse trigger to the engine’s pickup coil, ensuring polarity matches the CDI specifications. A reversed signal will prevent spark production. Use heat-shrink tubing over splices to prevent corrosion–moisture ingress is a common failure point. For air-cooled engines, route wires away from exhaust manifolds or cylinder fins to avoid insulation damage from heat. Secure leads with zip ties every 10cm, leaving slight slack to accommodate engine vibration.
Coil and Ground Integrity
Attach the CDI’s ignition output to the coil’s primary terminal–never the secondary. High-voltage arcing from incorrect connections can destroy the CDI’s internal circuitry. Ground the coil’s secondary terminal directly to the engine block using an 8AWG wire; shared chassis grounds cause inconsistent spark. Test coil resistance: primary should read 0.5-1.5Ω, secondary 5-15kΩ. Deviations indicate internal breakdown.
Route the kill switch wire through a normally-open pushbutton or key switch. A momentary short to ground interrupts the CDI’s firing sequence. For dual-spark systems, split the pulse signal with a resistor network (470Ω) to prevent signal degradation. Avoid daisy-chaining grounds–each component needs a dedicated return path to the battery’s negative terminal.
Final Checks Before Startup
Reconnect the spark plug and crank the engine while observing spark quality. A crisp, bright blue spark confirms correct timing advance; weak orange sparks indicate faulty connections or stator issues. If misfires persist, swap the CDI module with a known-good unit–internal failures (e.g., capacitor leakage) are undetectable without bench testing. Document all modifications with photographs for future diagnostics.

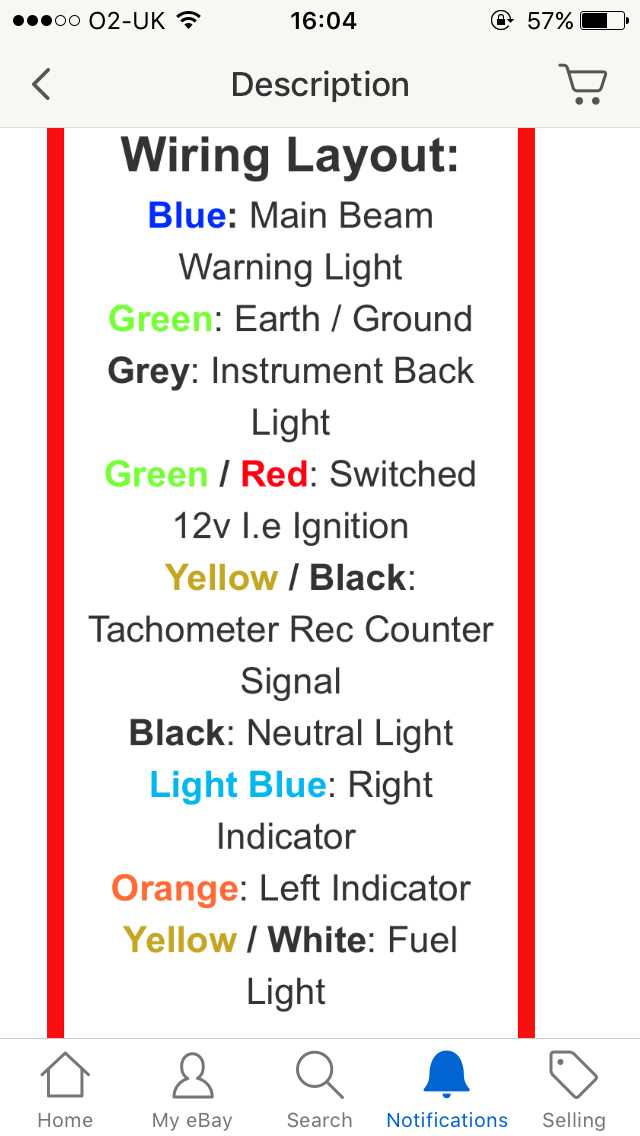

Color-Coded Conductor Roles and Isolating Electrical Faults
Start by verifying ground connections (typically green or bare) before proceeding–corrosion at these points mimics short circuits. Use a multimeter in continuity mode: probe between the ground bus and each terminal; resistance above 0.5 ohms signals oxidation or loose fastening. Replace any suspect ring terminals with crimped, heat-shrunk variants rated for at least 20% above nominal amperage.
Yellow conductors (often 20–30 amp circuits) demand special scrutiny. Attach a non-contact voltage tester to both ends while the circuit is live–persistent readings along the sheath suggest chafed insulation contacting vehicle chassis or adjacent bundles. Inspect grommet entry points where wires penetrate bulkheads; reroute through oversized nylon sleeves if abrasion marks appear.
For red (10–15 amp) or blue (often accessory) lines, employ a thermal camera if available. Shorts frequently elevate localized temperatures by 20–40 °C above ambient within seconds of activation. Mark hot spots with paint, then de-power and dissect: strip back sheathing incrementally until bare copper shows; expect melted strands or a bright arc crater at the failure point.
Identify phantom loads by disconnecting fused circuits one at a time while monitoring battery voltage drop. A 0.5 V sag in less than 30 seconds signals an unintended path–common culprits include pinched lamp sockets or corroded switch contacts. Swap suspect switches with known-good units rather than attempting internal repairs.
Orange (high-current) leads rarely short to ground but frequently fuse together mid-bundle. Measure voltage between each orange terminal and the nearest ground reference; readings below 0.3 V indicate a dead short, readings between 0.3 V and 0.7 V suggest partial shorting through resistance. Split the harness with a nylon divider to prevent adjacent strands from contacting, then reinsulate with adhesive-lined tubing.
Common False Positives
Water intrusion mimics shorts–capillary action draws moisture into cloth-covered bundles, creating conductive bridges between fine braided filaments. Dry with compressed air at 120 psi and apply dielectric grease before reinstalling connectors. Replace paper-backed insulators with polyethylene variants that resist wicking.
Twisted pairs (purple/white or gray striped) used for low-voltage sensor feeds require noise-rejection testing under load. Apply a 1 kHz square wave from a signal generator between the twisted pair and chassis; clean 5 V rails show less than 100 mV noise peak-to-peak. If spikes exceed 200 mV, reroute away from alternator output cables and switch-mode modules.
