For universal input modules supporting 100–280VAC, connect the live (L) and neutral (N) wires directly to the screw terminals marked on the driver’s input side. Ensure the live wire is secured under the terminal labeled “L” or “V+”, and neutral under “N” or “V-“–reverse polarity may trigger built-in protection but will prevent operation. Ground the unit by attaching the PE conductor to the chassis ground screw or designated earth terminal.
Always verify polarity with a multimeter before applying power. Most failures in high-voltage applications stem from loose connections or improper terminal tightening. Use a torque screwdriver set to 0.5 Nm (or manufacturer-specified value) to avoid stripped threads or contact oxidation. For outdoor installations, seal terminal blocks with silicone grease and heat-shrink tubing rated for 600VAC to prevent moisture ingress.

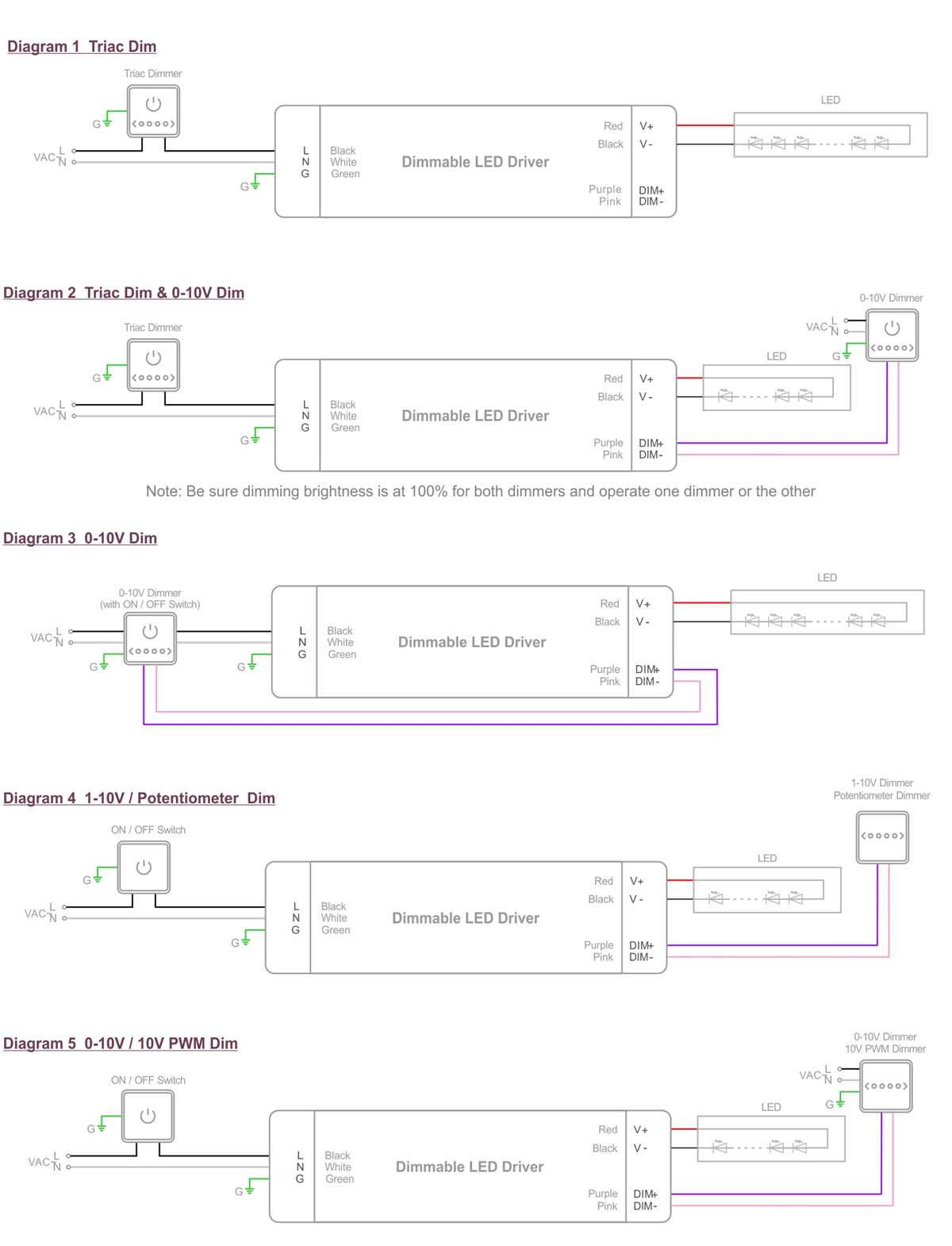

When integrating with dimmable fixtures, separate the control wires from high-voltage lines using twisted shielded pairs (22–18 AWG) to minimize electromagnetic interference. Route these cables at least 100mm from AC lines or use a metal conduit if space is constrained. For constant-current units, confirm the output current matches the luminaire’s requirements–mismatches above ±10% risk overheating or premature failure.
Test the circuit in three phases: first with a dim setting of 10%, then 50%, and finally 100% to ensure smooth regulation. If flickering occurs, check for incompatible dimming protocols or insufficient wire gauge (minimum 1.0mm² for runs exceeding 15 meters). Always terminate unused outputs with a 1W 10kΩ resistor to prevent transient voltages from damaging sensitive electronics.
Connecting High-Voltage Solid-State Power Supplies: Circuit Layout
Begin by isolating the live, neutral, and ground conductors at the input terminals marked L, N, and ⏚. Verify compatibility with AC ranges between 100–300V by checking the supply’s specification label–some units tolerate 50/60Hz, others demand strict 60Hz for stable operation. If the voltage selector switch is present, set it to the correct position before applying power; bypassing this step risks irreversible damage to the internal switching regulator.

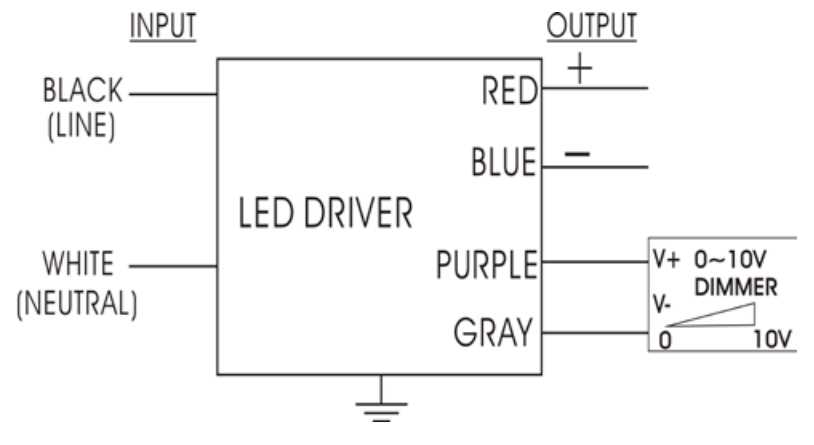

Route the output leads directly to the luminaire load without intermediate splices. The positive (+) and negative (-) terminals must match the fixture’s polarity–reversing them causes flicker or shutdown. For dimming applications, wire the control line (typically 0–10V or PWM) to the designated port, ensuring the dimmer’s grounding is separate to prevent noise coupling. Use 18–22 AWG stranded copper wire for signals and 14–16 AWG for power feeds to handle inrush currents.
Critical Safety Protocols
- Cap exposed terminals with heat-shrink tubing rated UL 224 for 300V insulation.
- Torque all terminal screws to 0.5–0.7 Nm using a calibrated driver–overtightening strips threads.
- Mount the supply away from heat sources; maintain 25mm clearance for convection cooling.
- Bond metal enclosures to the system ground with a dedicated 4 AWG conductor.
After energizing, measure output voltage with a true-RMS meter set to DC mode. A deviation exceeding ±5% indicates a faulty unit or incorrect input selection. If implementing multiple supplies in parallel, add blocking diodes (Schottky 5A/40V) at each output to prevent backflow. For remote installations, insert a 0.1µF X2-class capacitor across L/N lines to suppress transients induced by inductive loads.
Troubleshooting Common Issues
- No output: Confirm AC presence at input; test with a non-contact voltage detector. Replace if the supply fails to deliver nominal DC after 1ms startup delay.
- Intermittent flicker: Check for loose connections at the dimming interface; clean contacts with isopropyl alcohol.
- Overtemperature shutdown: Inspect airflow; clean dust filters if present. Replace if internal thermistor trips repeatedly.
- Humming noise: Tighten housing screws to spec; vibration from loose components radiates audible interference.
Understanding Input Voltage Flexibility for Solid-State Lighting Controllers
Select a power supply unit rated for 100–305VAC to ensure seamless operation across global electrical grids. Devices with this range automatically adapt to nominal voltages of 120V, 230V, and 277V without manual switching, eliminating compatibility risks during installation in mixed-voltage facilities or portable setups. Verify the unit’s technical sheet for power factor correction (PFC) capability–systems with active PFC maintain efficiency above 90% and reduce harmonic distortion, critical for stable performance in industrial or commercial applications where voltage fluctuations exceed ±10%.
Check the wattage range and derating curves before connecting luminaires; most universal controllers handle 70–150W loads, but exceeding this triggers thermal protection, causing intermittent shutdowns. For harsh environments, prioritize units with reinforced surge immunity–look for compliance with IEEE C62.41 or ANSI/IEEE standards, which confirm resilience against transient spikes up to 6kV. Avoid oversimplified designs lacking galvanic isolation; these introduce noise into dimming circuits or intelligent lighting systems, corrupting DMX or wireless control signals. Test the unit’s response to under-voltage conditions (down to 90VAC)–stability here prevents flickering or premature failure in grids with unstable power delivery.
Match the output current precisely to the lighting module’s specifications; a 350mA controller cannot safely power 700mA fixtures–doing so will degrade lifespan by 40% within 2,000 hours. For installations with inconsistent power, integrate a line voltage monitor to log fluctuations; sustained deviations below 10% of the nominal threshold indicate potential transformer faults or undersized conduits, necessitating replacement or upsizing. Use copper conductors rated for 90°C insulation and ensure terminal torque follows manufacturer torque specifications–typically 10–12 lb-in–to prevent connection failures that mimic voltage instability symptoms.
For 24/7 applications, insist on controllers with encapsulated components; silicone potting withstands temperature swings from -40°C to +85°C, preventing condensation ingress that corrodes PCB traces. Confirm CE and UL listings for safety in wet or corrosive atmospheres–absence of these certifications voids warranty coverage under NEC Article 410. When extending wiring runs beyond 50 meters, calculate voltage drop using the formula: Vdrop = I × R × L, where R is the conductor resistivity (0.017 Ω/mm²/m for copper). Compensate by upsizing conductors or splitting loads between parallel controllers to avoid dimming inconsistency or unlatching in downstream sensors.
Step-by-Step Connection Guide for Single and Multi-Voltage Power Converters
Disconnect all power sources before handling any terminals. Identify the input voltage range marked on the converter’s casing–typically 100-305V AC–to confirm compatibility with your supply. For single-voltage units, locate the live (L), neutral (N), and ground (PE) terminals. Strip 6-8mm of insulation from the wires, ensuring no stray strands touch adjacent connections. Insert the live wire into the L terminal, neutral into N, and ground into PE, tightening screws to 0.5Nm torque to prevent loosening under vibration.
Multi-voltage transformers require additional configuration. Check for selector switches or jumper positions on the unit–common voltage taps include 100-120V, 200-240V, and universal ranges. Set the switch or reposition jumpers to match your local mains supply, referencing the manufacturer’s labeling. Incorrect settings risk premature failure or insufficient output. For example, a 220V setting on a 110V line may cause overheating, while a 110V setting on 220V could deliver half the required current.
Grounding and Safety Verification
Ground the converter’s metal chassis to the building’s grounding system using a 2.5mm² or larger copper wire. Omitting this step increases shock hazards and may void warranties. Test continuity between the ground terminal and chassis with a multimeter–readings above 0.1Ω indicate a faulty connection. For multi-tap units, verify polarity across L and N terminals at 20% of the nominal voltage before full energization. Any deviation suggests reversed polarity or faulty internal components, requiring immediate rectification.
Connect the output terminals to the load, observing polarity for DC outputs. For constant-current models, confirm the load’s forward voltage falls within the converter’s max output rating–exceeding this by even 10% can trigger overvoltage protection or permanent damage. Use wire gauges appropriate for the current draw: 0.75mm² for up to 3A, 1.5mm² for 3-10A, and 2.5mm² for higher loads. Secure connections with insulated ferrules for stranded wire to prevent shorts under thermal cycling.
Final Checks and Energization
Reinspect all connections for tightness, insulation integrity, and proper terminal engagement. Cover exposed terminals with electrical tape or heat-shrink tubing to prevent accidental contact. Energize the circuit in stages: first, apply input power and measure voltage at the output terminals. If stable, connect the load and monitor for 5 minutes–temperature rises above 50°C or flickering indicate improper sizing or wiring errors. Always keep a non-contact voltage tester nearby to confirm de-energization before servicing.
