Select an LM7812 linear converter for compact setups demanding under 1.5A output with minimal ripple–typically 2mV (peak-to-peak) at full load. Pair it with a 1000µF 25V input capacitor to suppress transients; bypass output noise with a 10µF ceramic directly across the IC’s legs. For heat dissipation, mount the device on an aluminum plate (5°C/W thermal resistance)–no derating needed below 60°C ambient.
Switching topologies outperform linear variants in efficiency–opt for an MP2307-based buck module if currents exceed 3A. Configure input filtering with a 220µF low-ESR electrolytic and a 0.1µF X7R ceramic in parallel to prevent frequency interference. Output compensation requires a 22µH inductor and a 470µF polymer capacitor (≤5mΩ ESR) to stabilize at 12V ±2% across 0–100% load swings. Mind layout–keep trace inductance below 20nH to avoid oscillations.
Overcurrent protection integrates seamlessly: fuse the input at 1.5× nominal current or deploy a TL431-based crowbar circuit (15% overvoltage threshold) to clamp outputs during fault conditions. For adjustable setups, replace fixed regulators with an LM317 and a 5kΩ potentiometer–ensure the feedback network’s impedance stays under 1kΩ to preserve transient response.
Verify stability margins before deployment: inject a 100mA step load and monitor settling time–acceptable ranges lie between 50–200µs with ≤10% overshoot. Use an oscilloscope probe directly on output terminals to avoid ground loop distortions. Testing at -40°C and +85°C ensures reliability; liquid coolant may be necessary if surface temperatures exceed 90°C during extended operation.
Designing a Stable 12-Ampere DC Circuit Layout

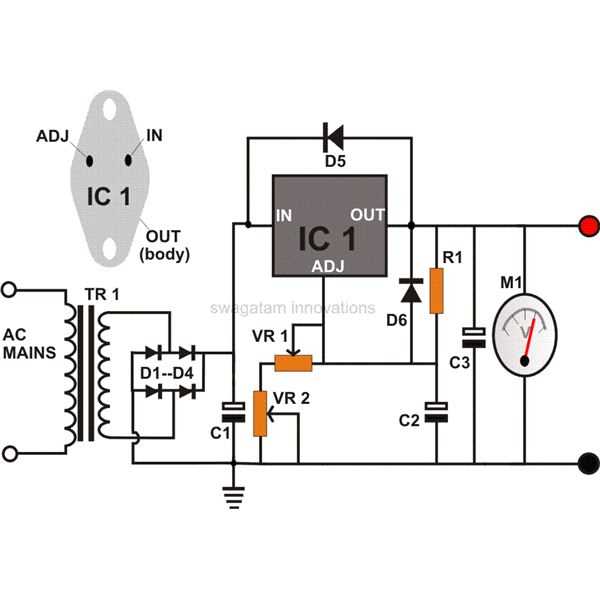

Begin with a robust transformer capable of stepping down AC mains to 15-18 AC. Choose a center-tapped model with a current rating at least 1.5 times your load requirement to prevent overheating. For a 1-ampere load, a 1.5-ampere transformer ensures reliability under transient conditions.
Select an appropriate rectifier configuration based on efficiency needs. A bridge rectifier (4 diodes) minimizes voltage drop but requires careful heatsinking for currents above 500 mA. For lower demands, a full-wave center-tap (2 diodes) reduces component count while maintaining adequate performance.
- Diodes: Use 1N4007 for general applications up to 1 A. For higher currents (2-5 A), opt for Schotky diodes like 1N5822 (3 A) to reduce forward voltage loss by ~0.5.
- Capacitors: Place a 2200 µF electrolytic at the rectifier output to smooth ripple. Follow with a 0.1 µF ceramic in parallel to filter high-frequency noise. Ensure both are rated at least 25 VDC to handle transient spikes.
- Regulator: LM7812 is the simplest choice for fixed output, but pair it with a TO-220 heatsink for loads >500 mA. For adjustable output, LM317 offers flexibility but demands precise resistor calculation (R1/R2 ratio).
Wire the input and output with at least 1.5 mm² (16 AWG) copper conductor for currents over 2 A to prevent voltage sag. Twist AC input wires to reduce EMI, and keep tracks on a PCB short to minimize inductance. Ground the regulator’s tab directly to the chassis if possible.
Add a 1N4007 diode across the regulator’s input/output to protect against reverse polarity. For reverse voltage spikes (e.g., from inductive loads), insert a 10 µF tantalum capacitor at the output. If using a switch-mode IC like LM2596, include a 100 µH inductor and a freewheeling diode (UF4007) to handle switching currents.
- Verify the circuit with a multimeter: measure ~18-20 unloaded DC after rectification, dropping to 12.5-13.5 with the regulator engaged. Ripple should not exceed 100 mV peak-to-peak.
- Test under full load for 30 minutes–temperature rise on the regulator should not exceed 60°C. If it does, upsize the heatsink or add a small fan.
- Isolate the circuit with a 1A fuse on the AC input to prevent overloads. For sensitive electronics, add a MOV (varistor) rated 25-30 to suppress surges.

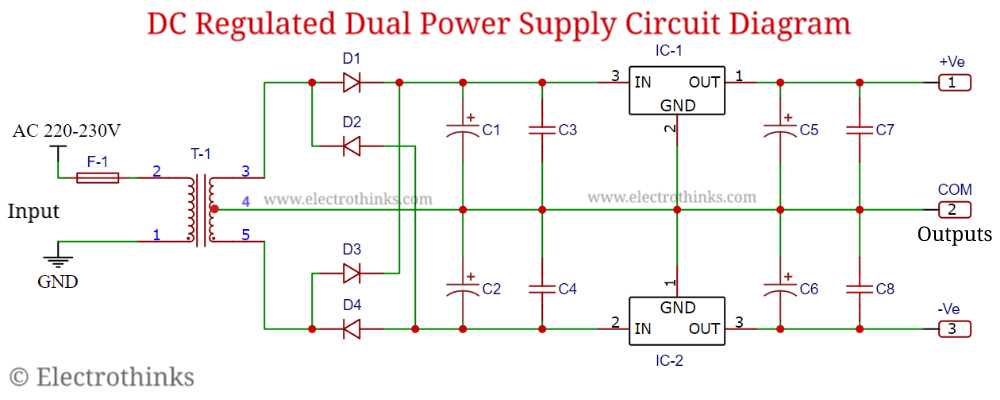

For dual-rail designs, use a center-tapped transformer with two LM7812/LM7912 pairs. Ensure equal grounding and capacitance on both rails to prevent asymmetry. If noise is critical (e.g., audio applications), add a pi-filter (100 Ω resistor + 100 µF capacitor) post-regulation.

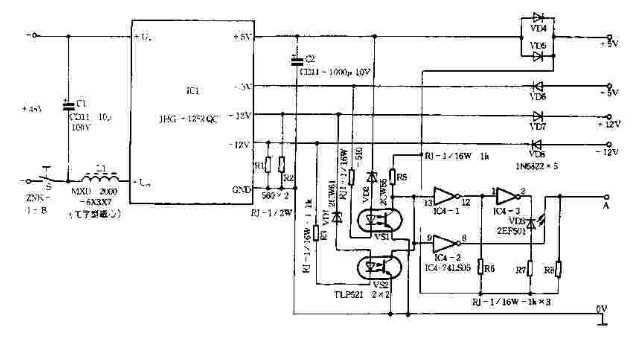

Document component values and test points on the PCB silkscreen. Label the DC output with polarity symbols and include a series resistor (1 kΩ) for an LED status indicator. For prototypes, use breadboard-compatible modules like a pre-assembled 12-A DC-DC converter to validate the design before custom PCB fabrication.
Selecting Parts for a 12V Linear Regulator Design
For a 12V linear pass element, prefer low-dropout (LDO) variants like the LM2940 or LT1086 when input-output differential must stay below 1 V. These ICs handle up to 1 A continuous current with dropout figures of 0.5-0.7 V at full load–critical if the raw feed is a 14 V automotive rail or a 13.8 V battery float. Calculate worst-case dissipation: with 1 A and 1.5 V headroom, dissipation reaches 1.5 W; use a TO-220 package mounted on a 15 K/W heatsink or a 10 cm² copper pad on the PCB. Bypass capacitors are non-negotiable: place a 22 µF tantalum capacitor at the input pin and a 47 µF low-ESR ceramic at the output, both within 5 mm of the regulator; omit these and expect sub-50 kHz ripple rejection to plummet below 30 dB.
| Component | Part Number | Key Parameter | Value |
|---|---|---|---|
| Linear pass IC | LT1086CT-12 | Dropout at 1 A | 0.6 V |
| Input capacitor | Kemet T491C226K016AT | Voltage rating | 25 V |
| Output capacitor | Murata GRM32ER61C476ME20L | ESR | <20 mΩ |
| Rectifier diode | ON Semi MBR745 | Reverse recovery | 35 ns |
| Heatsink | Aavid 530002B02500G | Thermal resistance | 12 K/W |
Bridge the raw feed with a Schottky barrier diode like the MBR745 to clamp reverse transients–silicon PN diodes introduce 0.7 V forward drop, wasting precious headroom. The transformer should deliver at least 15 VAC RMS after rectification; a 12 VAC winding yields ≈17 VDC peak that sags to 13 V under load, calling for LDO headroom. On the PCB, allocate a solid ground plane beneath the regulator, stitching input and output grounds with a 100 nF ceramic capacitor to quench high-frequency noise, especially if the load includes microcontrollers or RF stages.
Step-by-Step Assembly of a 7812-Based DC Source
Begin by mounting the 7812 linear stabilizer on a heatsink rated for at least 15W dissipation–overexposure to thermal stress degrades performance within minutes. Secure the TO-220 package with a non-conductive thermal pad and M3 screw, ensuring no metal debris bridges the tab to the chassis. A 0.1μF ceramic capacitor must sit within 10mm of the stabilizer’s input pin to suppress transients; omit this, and ripple surpasses 250mV peak-to-peak under 1A load.
Wire the unregulated input–15-18V AC from a center-tapped transformer or 24V DC from a bridge rectifier–to the stabilizer’s input via a 2A slow-blow fuse. After rectification, smooth the rail with a 2200μF low-ESR electrolytic capacitor; ESR above 0.5Ω introduces 120Hz ripple exceeding 3%. Connect the output pin to a 1μF tantalum capacitor directly against the PCB traces to eliminate high-frequency noise, critical for microcontroller-based loads.
Avoid chassis-ground loops by routing the negative rail through a single star point near the rectifier. Test each stage with a multimeter: expect 16.8V DC after rectification, dropping to 12.00±0.2V at the stabilizer output under full load. If voltage sags below 11.8V, verify heatsink attachment–thermal shutdown engages at 125°C junction temperature, cutting current abruptly.
Enclose the assembly in a vented polypropylene case, positioning the stabilizer near the airflow exit. Label the output terminals with polarity and maximum 1.5A continuous rating; exceeding this trips the internal protection or deforms the TO-220 package within seconds. For extended reliability, paracord the AC leads through a ferrite bead to suppress EMI above 1MHz.
Common Mistakes in Soldering Low-Voltage Controller Boards
Use a temperature-controlled iron set to 300–350°C for lead-free solder and 280–320°C for lead-based alloys. Exceeding these ranges oxidizes flux before it activates, leaving cold joints. A tip with a 1–2 mm chisel shape improves heat transfer to component leads and pads–avoid conical tips for through-hole work. Apply solder to the joint, not the iron, to prevent solder beads and incomplete wetting.
- Ignoring pre-tinning: Bare copper pads and leads oxidize within hours. Tin them immediately after stripping or cutting.
- Overheating semiconductors: MAX667, LM317, and MOSFETs degrade above 260°C for >10 seconds. Use a clip-on heatsink or a thermal shunt during soldering.
- Incorrect flux application: Rosin-core solder is sufficient for most joints, but add liquid flux for fine-pitch SMD resistors (0603 or smaller).
- Insufficient pad clearance: Maintain ≥0.5 mm between adjacent pads on TO-220 packages to prevent short circuits from solder bridges.
- Rushing cooling: Allow joints to cool naturally for 20–30 seconds before moving the board to avoid fractures in solder fillets.
After soldering, inspect joints under 5x magnification for the following defects: incomplete fillets, excess solder bridging pads, or dull gray surfaces (indicating cold joints). Remove bridges with desoldering braid pre-coated with flux–never use excessive heat. For stubborn shorts, apply a small drop of isopropyl alcohol while reheating to reduce surface tension. Clean residues with a soft-bristle brush and 90%+ IPA; avoid ultrasonic cleaners on ceramic capacitors (they crack under vibration). Label input and output traces before assembly to prevent polarity reversal, which fries ICs instantly.
