Begin by verifying the transformer’s capacity matches the fixture’s load–most 12-watt units require at least a 60-watt power supply, while higher-output models demand 100 watts or more. Failure to match these specifications risks overheating and premature failure. Check the manufacturer’s label before proceeding.
Route the cable through a rigid conduit if burying it underground–use Schedule 40 PVC for permanent installations, ensuring a minimum burial depth of 18 inches to prevent damage from landscaping tools. For above-ground wiring, secure cables with UV-resistant clips every 18 inches to avoid sagging or exposure to sharp edges.
Strip the insulation from the wire ends no more than 3/8 inch to prevent short circuits. Twist stranded copper tightly and crimp with a waterproof terminal connector before sealing with heat-shrink tubing rated for wet locations. Do not rely on electrical tape alone; moisture penetration will corrode connections within weeks.
Test continuity with a multimeter before submerging–resistance should read near zero ohms across the circuit. If readings fluctuate, recheck splices for loose strands or incomplete crimps. After confirmation, seal the junction box with silicone dielectric grease and a rubber gasket to maintain IP68 rating.
Mount the fixture base to the sidewall using stainless steel screws, aligning the lamp’s focus angle with the target area–typically 45 degrees for optimal spread. Avoid overtightening; thread damage can compromise the waterproof seal. If replacing an existing unit, disconnect power at the breaker and discharge stored energy by shorting terminals with insulated pliers.
How to Install Low-Voltage Illumination for Water Features
Begin by selecting a transformer rated for 150 watts or higher if the fixture consumes 35 watts or more. Connect the transformer’s primary side to a dedicated 20-amp circuit breaker using 12-gauge copper wire. The secondary terminals should feed a pair of 14-gauge stranded conductors, preferably with a waterproof jacket, to the junction box mounted near the basin. Ensure the transformer’s output matches the lamp’s requirements–most underwater LED units operate at 12–14 volts AC, while halogen alternatives may demand 11.5 volts for optimal lifespan.
Route the cables through schedule-40 PVC conduit, burying it at least 18 inches deep if crossing a patio or 12 inches under grass. Use watertight compression connectors at each joint to prevent moisture ingress. At the junction box, strip back ½ inch of insulation and secure the conductors with UL-listed wire nuts, wrapping each connection with self-fusing silicone tape before sealing the box with a gasketed lid. Avoid splicing near moving water–position the junction at least 12 inches above the highest anticipated waterline.
Common Mistakes to Avoid
Never daisy-chain multiple fixtures unless the transformer’s wattage exceeds the combined load by at least 20%. Overloading reduces brightness and accelerates LED degradation. Skipping a ground wire–or bonding it to a non-conductive component like plastic–creates a shock hazard; always attach the green conductor to a metal grounding rod buried in moist soil. Verify polarity before energizing: reverse connections in AC systems can trigger flickering or premature failure in some LED drivers.
In coastal areas, upgrade to tinned copper wire to resist corrosion from salt spray. For freshwater installations, standard THWN-2 suffices but grease-filled connectors add long-term protection. Test continuity with a multimeter before submerging the assembly–readings should show near-zero ohms across the circuit. If resistance exceeds 0.5 ohms, inspect for loose terminals or oxidized contacts.
After final assembly, apply dielectric grease to all metal surfaces, including mounting brackets and conduit openings. Seal the fixture’s lens gasket with a thin bead of marine-grade silicone to prevent leaks. Energize the system and confirm uniform glow; dim or discolored sections indicate voltage drop or faulty seals. Document the configuration–note transformer settings, cable lengths, and fixture placement–for future troubleshooting.
Selecting an Appropriate 12V Power Supply for Underwater Illumination
Opt for a transformer with a wattage rating exceeding total fixture consumption by at least 20%. For example, three 25W underwater fixtures (75W combined) require a minimum 90W unit to prevent overheating and ensure reliable operation. Low-voltage systems benefit from overcapacity, allowing for voltage drop compensation over extended cable runs–calculate 0.5V loss per 10 feet of 14 AWG cable. Verify the unit includes built-in thermal protection and short-circuit safeguards; units lacking these features risk premature failure.
Key Specifications to Compare
- Output rating: Match transformer capacity to total fixture load plus 15-25% buffer
- Input compatibility: Confirm compatibility with local mains (120V/60Hz or 230V/50Hz) without requiring additional adapters
- Environmental rating: Choose IP67 or better for outdoor installations to resist moisture and dust ingress
- Torroidal vs. EI core: Torroidal designs offer 10-15% higher efficiency and quieter operation
- Voltage adjustability: Models with 11V-13V tap adjustments compensate for cable resistance on runs exceeding 50 feet
Prioritize transformers with integrated timers or photocell controls to automate operation, reducing energy waste during daylight hours. For installations with multiple zones, select a multi-tap unit–these provide dedicated outputs for each fixture cluster, eliminating cross-interference. Avoid units with exposed terminals; designs with recessed connections or shrouded housings reduce accidental short risks. Test output voltage at the furthest fixture before permanent installation; aim for 11.5V-12.5V to ensure consistent brightness without premature LED degradation.
How to Install a Low-Voltage Illumination Fixture for Water Features
Begin by disconnecting all power sources at the breaker panel to eliminate any electrical hazards. Use a non-contact tester to confirm the circuit is dead before proceeding. Select a 12-awg stranded copper cable for the run between the transformer and the fixture–this gauge handles the current draw of most underwater luminaires without voltage drop issues over distances up to 50 feet.
Mount the step-down converter at least 12 inches above the highest water level, secured to a non-combustible surface like masonry or treated plywood. Ensure the enclosure is rated IP67 or higher to withstand splashes and humidity. Connect the primary leads to a dedicated 120V GFCI-protected circuit, matching the wire colors: black to hot, white to neutral, green to ground. Torque all terminal screws to 12 inch-pounds to prevent loosening from vibration.

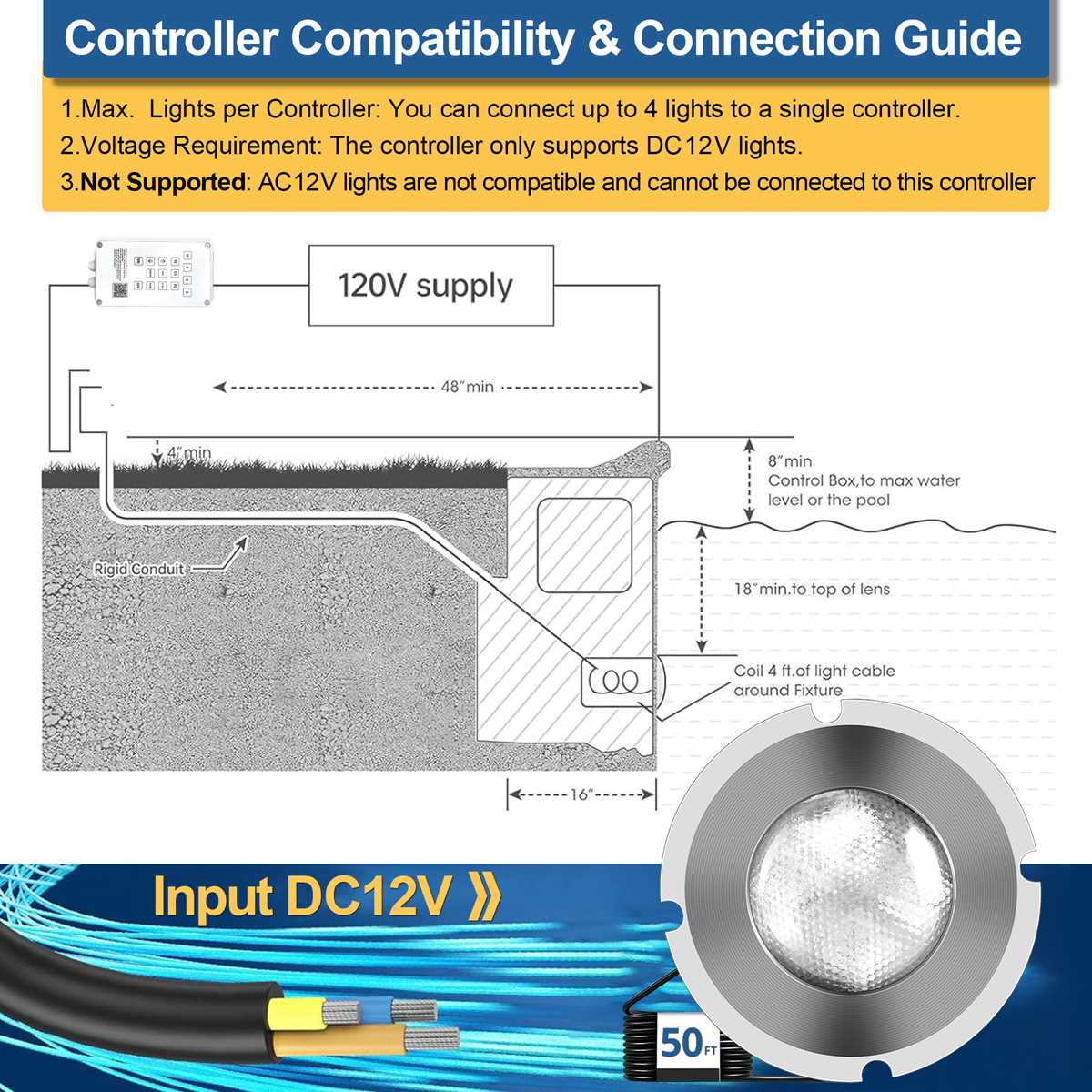

Route the secondary cable from the converter to the niche using schedule 40 PVC conduit, burying it at least 6 inches below grade. Avoid sharp bends–maintain a minimum radius of 8 times the conduit diameter to prevent cable damage. At the niche, strip 3/8 inch of insulation from the leads and insert them into the fixture’s weatherproof connector, tightening the compression nut until snug. Apply dielectric grease to the contacts to inhibit corrosion.
| Component | Specification | Notes |
|---|---|---|
| Cable Gauge | 12-awg | Use tinned copper for saltwater environments |
| Conduit Depth | 6 inches | 12 inches in cold climates to avoid frost heave |
| Transformer Rating | 60W–300W | Match wattage to fixture load; oversizing causes flickering |
Before sealing the niche, test the circuit by temporarily energizing the converter. Observe the luminaire for steady illumination–flickering indicates a loose connection or insufficient transformer capacity. If the test passes, apply silicone sealant around the niche opening to prevent moisture ingress, then install the faceplate with stainless steel screws. Torque them to 8 inch-pounds to avoid stripping the threads.
For multi-luminaire setups, wire the fixtures in parallel, not series, to ensure consistent brightness. Each branch should have its own cable run back to the converter to minimize voltage drop. Use waterproof wire nuts or lever connectors rated for direct burial, and wrap them in self-fusing silicone tape for added protection. Label each branch with its corresponding breaker for future troubleshooting.
After completing the installation, conduct a final inspection: verify all connections are secure, conduit bends are smooth, and the transformer is properly grounded. Restore power and confirm the GFCI trips and resets correctly. Document the setup–note the breaker location, cable routes, and transformer specs–for maintenance reference. Replace the fixture gasket every 24 months to maintain watertight integrity.
Frequent Errors in Low-Voltage Illumination Connections for Water Features
Using incorrect gauge cables for submerged installations guarantees premature failure. Strands thinner than 14 AWG overheat under continuous 12-amp loads, especially in 30-foot runs or longer. Verify manufacturer specifications for cable diameter before cutting – buried connectors corrode faster when undersized wires concentrate current.
Ignoring waterproof junction ratings invites short circuits within days. Standard electrical boxes tolerate indoor humidity, but submerged splits demand IP68-certified splices. Twist-and-tape methods might hold in dry tests but fail under hydrostatic pressure. Always use heat-shrink tubing filled with marine-grade sealant for splices.
Reversing polarity disrupts LED sequences and burns out phosphors prematurely. Most underwater fixtures expect positive to the center pin, but halogens and some LEDs tolerate either orientation. Check fixture documentation first – mixing incompatible wiring orientations in a single installation creates unpredictable color shifts and flickering.
Overloading transformers shortens lifespan by 40% or more. A 300-watt model running 250 watts continuously operates at dangerous temperatures, degrading insulation. Distribute loads evenly across secondary windings and never exceed 80% capacity. Separate transformers for each circuit zone prevent cascading failures.
Underestimating nylon conduit stiffness causes cracked connections during thermal cycles. Rigid PVC expands differently than flexible cables, stressing internal seals at entry points. Pre-drill conduit ends with a chamfer tool to prevent wire sheathing cuts during installation.
Skipping pilot hole checks for underground conduits traps moisture inside sleeves. Condensation accumulates overnight, freezing and expanding in cold climates. Drill inspection holes at low points and verify drainage before covering trenches.
Improper ground bonding creates stray currents that corrode metal fixtures within months. Every underwater component must connect via 8 AWG bare copper wire to a common bonding grid. Neglecting this accelerates dezincification in brass fittings and pitting in stainless steel components.
Mounting fixtures too close to skimmers restricts water circulation, causing uneven chlorine distribution and premature lens fouling. Maintain minimum 18-inch clearance from intake vents, and position lights within direct flow paths to maximize self-cleaning effects from normal circulation patterns.
