For a 12-amp DC setup, use 18 AWG wire if the run is under 10 feet. Longer distances demand thicker gauge–16 AWG handles up to 20 feet, while 14 AWG is necessary beyond that to prevent voltage drop. Strip the insulation back 6–8 mm, twist the strands tightly, and secure them with a crimp connector rated for at least 15 amps. Soldering isn’t required but adds durability; apply heat-shrink tubing to seal the joint.
Polarity matters. The center pin is positive–connect it to the red lead. The outer sleeve, often marked with a ridge or indentation, is negative and must attach to the black or bare wire. Reverse these, and sensitive devices will fail immediately. Use a multimeter to verify connections before powering up: 12.6 DC should read steady with no fluctuations.

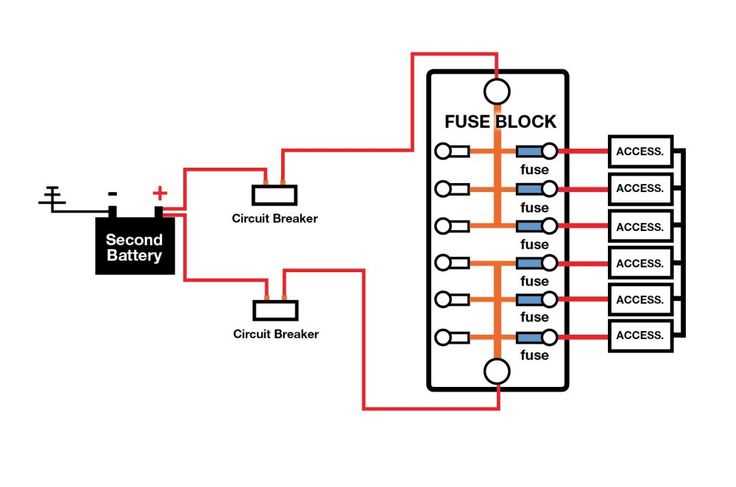

Fuse the circuit close to the power source–20 amps for general use, 10 amps if the load is lightweight like LED strips. Skip this, and a short will melt wires before protection kicks in. Terminal blocks simplify installations; choose ones with screw-down clamps for wires up to 14 AWG. Avoid twist-on caps–they loosen under vibration and cause intermittent faults.
Test under load. A 10-amp draw shouldn’t cause more than 0.5 DC drop across a 15-foot run of 16 AWG wire. If readings exceed this, recheck crimps, connections, and gauge. Corroded terminals introduce resistance–clean them with sandpaper or replace if pitted. Store extra wire in a dry location; moisture wicks through insulation over time, creating hidden shorts.
For mobile setups, strain-relieve wires where they enter housings. Use grommets or adhesive-backed cable mounts to prevent chafing. Zip ties keep bundles neat but don’t overtighten–they can damage insulation. Label both ends of every wire; future troubleshooting becomes a 2-minute task instead of a 2-hour puzzle.
12V Connector Assembly: Step-by-Step Instructions

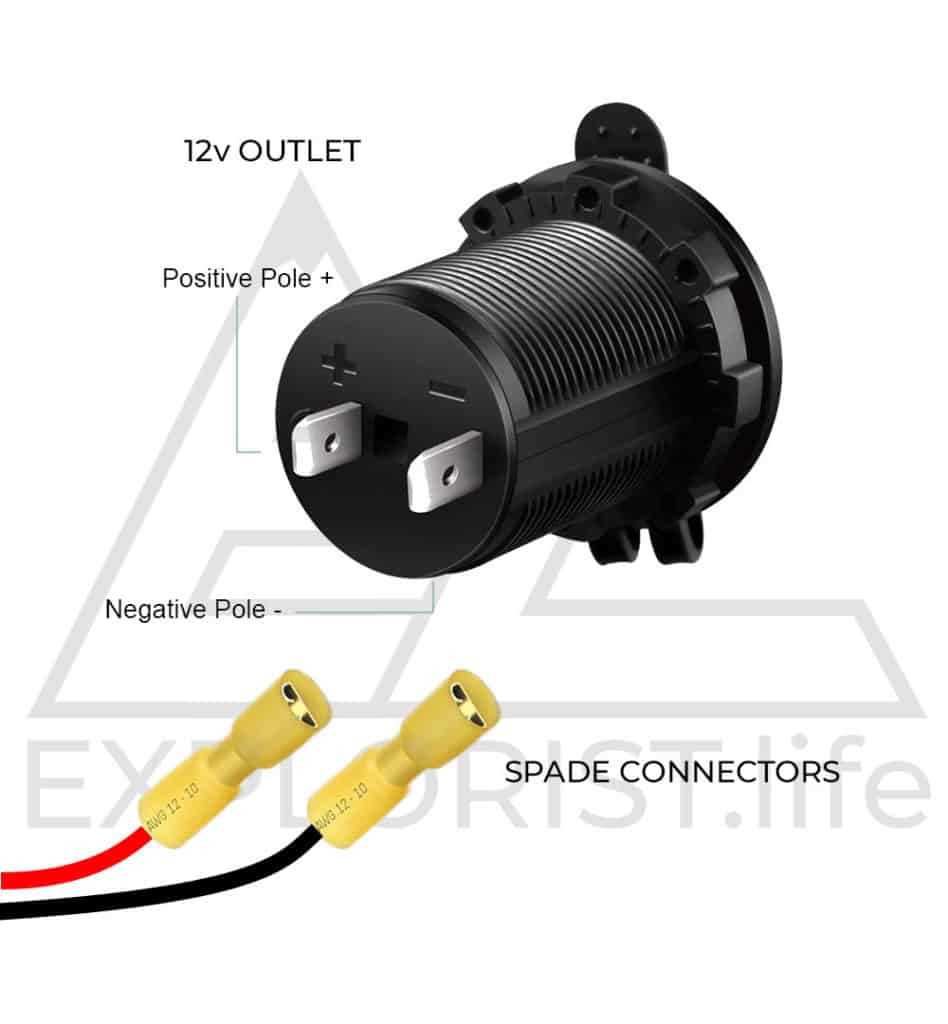

Identify the power source’s positive and negative terminals before connecting. Use a multimeter to confirm polarity: red probe touches the central pin (typically +12), black probe contacts the outer sleeve (ground). Reverse polarity will damage attached devices.
Choose cables with at least 18 AWG gauge for currents up to 10 amps. For higher loads, upgrade to 14 AWG or thicker. Solid core wires resist corrosion better than stranded but are less flexible. Tin-plated copper resists oxidation in marine environments.
- Cut insulation back 6mm using wire strippers
- Avoid nicking conductor strands
- Twist exposed strands clockwise before inserting
- Apply solder or crimp connectors for secure joints
Solderless connectors simplify assembly but require proper crimping tools. Ratcheting crimpers ensure consistent pressure without over-compressing. Heat-shrink tubing provides strain relief and moisture protection–use a heat gun at 120°C until tubing shrinks tightly.
Common configurations include:
- Standard two-pin: center (+), outer (–)
- USB variants: additional data pins
- Multi-terminal: for integrated circuits
Test connections with a load resistor before attaching sensitive electronics. A 10-watt, 1-ohm resistor simulates typical draw. Measure voltage drop under load–more than 0.5 dropped indicates insufficient gauge or poor crimps.
Troubleshooting Faulty Connections
Intermittent failures often trace to loose crimps or oxidized terminals. Polish contact surfaces with 400-grit sandpaper, then apply dielectric grease. For overheating, verify current draw matches cable capacity–derate by 20% for continuous use.
Label cables at both ends with color-coded shrink wrap or numbered tags. Maintain a reference sheet with ampacity ratings and pin assignments. Store spare connectors in anti-static bags to prevent corrosion during storage.
Decoding the Standard 12-Auxiliary Connector Pin Layout
Always verify the connector’s polarity before connecting accessories–center pins in most automotive and marine adapters carry positive charge, while outer sleeves serve as ground. Mismatches risk damaging devices or triggering short circuits, especially in aftermarket installations where wiring colors deviate from factory standards.
Standardized layouts typically follow ISO 4165 or SAE J563 norms, though variations exist. For instance, European cigarette lighter sockets may feature a 2.1mm center pin, while North American designs often use 2.5mm. Measure pin diameter with calipers if repurposing sockets for non-standard equipment like GPS units or inverters.
Common Pinout Variations Across Systems
Heavy-duty applications, such as trucking or RV setups, sometimes integrate additional contacts for accessory detection or switched power. Check manufacturer documentation–some sockets include a third, smaller pin for signaling when the ignition is active, preventing parasitic battery drain.
Reverse polarity protection is non-existent in basic adapters. Install an inline fuse rated for 80-90% of the device’s maximum draw (e.g., 15A for a 10A load) within six inches of the power source. Neglecting this step invites fire hazards or melted connectors under sustained loads.
Adapters with USB ports often bundle power and ground into shared contacts, but data lines for fast charging (e.g., QC 3.0 or PD) require dedicated pins. Confusing these can throttle charging speeds or disable quick-charge protocols entirely. Test with a multimeter set to DC continuity mode to confirm correct mapping.
Troubleshooting Inconsistent Power Delivery
Intermittent power often stems from corroded terminals or loose crimps. Sand oxide buildup with 400-grit emery cloth, then apply dielectric grease before reassembly. For modular systems, use gold-plated connectors to resist oxidation over time–especially in humid environments.
If voltage drops below 11.8V under load, inspect the harness for undersized conductors. Replace 18AWG wiring with 14AWG for distances exceeding three meters, or use a relay to isolate high-current paths. Thermal cameras can identify hotspots indicating resistive joints before failures occur.
Always cross-reference the pin assignment with the load’s specifications. A DC-DC converter, for example, may need isolated grounds, whereas LED lighting strips tolerate shared returns. Document modifications with labels or photos to streamline future diagnostics.
Step-by-Step Color Coding for 12V Harness Assembly
Begin by assigning red to the primary power feed–this conductor must handle continuous current without overheating. Use a minimum 16 AWG gauge for standard accessories like audio systems or LED strips, but upgrade to 12 AWG for high-draw components such as winches or compressors. Solder or crimp connections with heat-shrink tubing to prevent corrosion, ensuring terminal ends are sealed against moisture. Label each red lead with a small flag or sleeve marked “B+” to avoid confusion during installation or troubleshooting.
Grounding and Secondary Circuits
Black serves as the universal earth path–never substitute another hue for this critical return line. Strip insulation back exactly 1 cm at connection points, and attach directly to a clean, unpainted metal chassis surface using star washers to guarantee low resistance. For auxiliary circuits, yellow (switched power) and green (illumination controls) simplify diagnostics. Yellow must fuse within 15 cm of the source to protect switching relays, while green can bypass fuses only if limited to low-current applications under 2 amps.
Reserve orange for accessory feeds requiring delayed engagement, such as interior lighting or memory retainers. Route orange conductors through a relay triggered by the ignition circuit, preventing parasitic drain. For aftermarket components, purple (remote turn-on) and brown (backlight dimming) reduce conflicts with OEM systems. Measure each purple lead with a multimeter–voltage should drop to zero within 30 seconds of key-off to confirm proper relay timing.
Blue acts as a dedicated high-current trigger for amplifiers or cooling fans. Use 10 AWG or thicker, and pair with an inline fuse holder rated 20% above the device’s peak draw. Avoid daisy-chaining blue leads; instead, run separate conductors back to the battery or distribution block. For trailer connectors, adopt the SAE J560 standard–white/green for left signal, white/red for right–ensuring compatibility with towing modules without interfering with primary harness integrity.
Common Mistakes When Connecting 12V Car Accessories
Overloading a single fuse circuit is the most frequent error–most automotive circuits support only 10–15 amps. Connecting multiple high-draw devices like heated seats, dash cams, or mini-fridges to one line risks tripping fuses or melting insulation. Check the fuse rating on the vehicle’s manual and use a multimeter to measure current draw before adding anything. Distribute devices across separate circuits if their combined load exceeds 80% of the fuse capacity.
| Device Type | Typical Current Draw (amps) | Max Safe Fuse Rating (amps) |
|---|---|---|
| USB charger | 1–2 | 5 |
| Dash cam | 1.5–3 | 10 |
| Mini-fridge | 4–6 | 15 |
| Inverter (300W) | 20–25 | 30 |

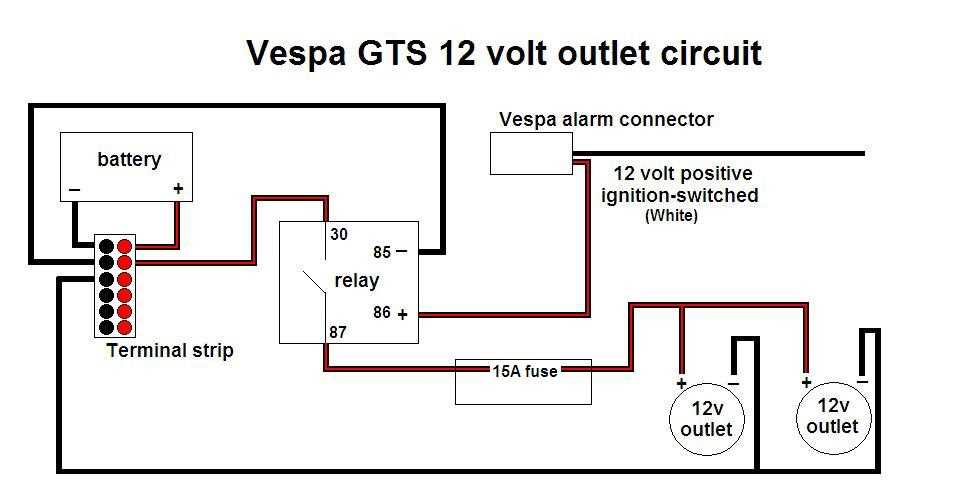

Skipping relay installation for heavy-draw accessories forces the switch to carry the full current, leading to premature failure. A 30-amp relay costs under $10 and handles the load while the switch controls only the relay coil. Always wire relays with proper gauge cables–14 AWG for under 15 amps, 12 AWG for 15–20 amps, and 10 AWG for 20+ amps. Tape or heat-shrink all splices to prevent corrosion, especially in humid or salty environments.
