For reliable 12-volt illumination setups, start with a current-limiting resistor sized to match your light emitter’s forward drop–typically 2V for cool-white variants, 1.8V for warm-white. Calculate the resistance value using Ohm’s law: (Source potential – Emitter drop) ÷ Target current = Required ohms. For example, a 20mA target at 12V input yields (12V – 2V) ÷ 0.02A = 500Ω. Round to the nearest standard value–470Ω or 510Ω–to ensure steady operation while preventing thermal runaway.
Short-circuit protection is non-negotiable. Integrate a polyfuse rated at 1.5× your expected continuous draw (e.g., 30mA fuse for a 20mA string). Position it on the positive rail, upstream of the resistor. For transient suppression, add a 100nF ceramic capacitor across the emitter’s terminals, soldered as close to the die as possible. This mitigates voltage spikes from inductive loads like relays or PWM drivers.
Thermal management defines longevity. Use an aluminum-core PCB or 1mm×1mm copper pads directly under high-flux emitters (1W or above). Secure with thermal adhesive rated for 2W/m·K. For through-hole designs, opt for 1-ounce copper traces–no narrower than 2mm per 100mA of current. Tinning these traces with solder boosts heat dissipation by ~30%.
Dimming requires precision. Avoid linear potentiometers; instead, employ a PWM signal at 1kHz–5kHz with a 10–90% duty cycle. Pair this with a MOSFET (e.g., IRFZ44N) handling 3× peak current–gate driven by a 555 timer or microcontroller. Add a 1kΩ pull-down resistor on the gate to prevent floating-input erratic behavior. For analog dimming, substitute with a 10kΩ NTC thermistor in series for temperature-compensated brightness.
Polarity-sensitive emitters demand verification before power application. Test with a multimeter in diode mode: positive probe to the anode (+), negative to cathode (−). A correct reading returns ~0.6–2.1V; reversed or open-circuit readings indicate miswiring. For parallel strings, insert a 1N4007 diode per branch to prevent reverse current from faulty emitters shorting the entire array.
Long wire runs introduce resistance losses. Use 18AWG stranded copper for runs under 3m; switch to 16AWG for distances exceeding 5m. Voltage drop can be estimated as Drop (V) = (Current × Length × 0.02) ÷ AWG multiplier. Compensate by upsizing the resistor or incorporating a buck converter (e.g., LM2596) set to 12.5V input, 12V output.
Building a Low-Voltage Lighting System: Key Wiring Schemes
Begin by connecting a 12 AWG stranded copper wire to the power source’s positive terminal, ensuring a minimum 2A fuse is inline within 15 cm of the battery to prevent overheating. Use a buck converter set to 3.2V for white illumination clusters rated at 20 mA per chip–calculate resistor values via Ohm’s law: (source potential – diode forward drop) / amperage; for a 5-chip array, this yields a 330Ω component. Ground the negative rail directly to the chassis if metal, or to a dedicated return line for plastic enclosures, maintaining
Route wiring through 6mm corrugated tubing to shield against abrasion, securing bends every 20 cm with UV-resistant zip ties–excess slack increases voltage drop by ~0.1V per meter in 18V systems. Test each branch with a multimeter in continuity mode before applying full load; a 0.3V deviation at any junction indicates corrosion or poor contact. Overcurrent protection should match the combined wattage of all connected loads plus 20% margin–for 1.5W spotlights, a 3A blade fuse is optimal. Install surge suppressors across the power inlet if the setup operates near inductive devices, limiting transients to
Selecting Optimal Resistor Ratings for Low-Voltage Solid-State Lighting on a 12-Stage Power Source
Begin with the forward drop specifications of your chosen emitters. Most standard indicator types require 1.8–3.3 stages of potential, while high-brightness variants can demand 3.0–3.6 stages. Subtract this drop directly from the 12-stage supply to determine the remaining potential that must be dissipated by the resistive element.
Use the formula R = (Vsupply – Vf) / I, where Vf is the emitter’s forward drop and I the target current in thousandths of an ampere. For example, a common 20 mA emitter with a 3.2-stage drop leaves 8.8 stages; dividing 8.8 by 0.020 yields 440 ohms. Round to the nearest standard value–430 or 470 ohms–to ensure consistency with mass-produced components.
Temperature derating must be factored into any fixed installation exceeding 50 °C ambient. Increase the calculated resistance by 2–5 % for every 10 °C rise above nominal. A 470-ohm component thus becomes 480–500 ohms inside an enclosed luminaire operating at 65 °C.
- Typical emitter currents:
- 3–5 mA: indicator/status lights
- 10–15 mA: low-power arrays
- 20–30 mA: general-purpose illumination
- 50–100 mA: high-output spot modules
For multi-emitter strings wired in series, sum the forward drops before subtraction. Four emitters each dropping 3.2 stages total 12.8 stages; connecting them directly to the 12-stage line overloads the string, so omit the series resistor entirely or add a minimal 10-ohm safety margin to limit inrush current.

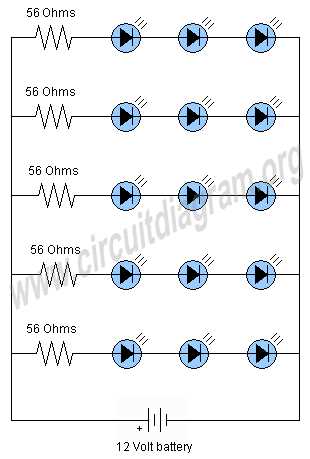

Parallel branches demand individual resistive elements to prevent current hogging. Each branch must match both the emitter type and resistor rating within 5 %, otherwise brightness variance becomes visible under continuous operation.
- Record emitter drop from datasheet.
- Subtract from 12-stage source.
- Divide by desired milliampere value.
- Select nearest E-series value (E12 or E24).
- Verify wattage: multiply calculated resistance by current squared; ensure resistor handles at least twice this dissipation.
- Check thermal conditions; adjust rating if ambient exceeds 50 °C.
Power Dissipation Safety Margins
Resistors must survive prolonged load without derating. Standard quarter-watt axial components suffice for currents ≤20 mA. For 30–50 mA, move to half-watt packages; beyond 50 mA, one-watt or surface-mount variants are mandatory. Always double the calculated dissipation to account for transient spikes during switching.
Testing and Validation Sequence
Apply the 12-stage source through the chosen resistive element. Measure emitter current with a milliampere meter; confirm ±5 % deviation from target. If variance exceeds this, swap the resistor incrementally until precision is achieved. Document the final value for future builds to maintain uniformity across identical rigs.
Step-by-Step Wiring of Parallel vs Series Light Configurations
Begin by calculating the required current for each bulb type; low-power SMD 5050 draws roughly 20mA per segment, while high-brightness emitters demand up to 350mA. Ensure your 12-volt source delivers at least 20% excess capacity to prevent voltage sag under load–measure with a multimeter before finalizing connections.
For linear setups, space resistive elements evenly: a single 470-ohm resistor suffices for three 3mm indicators in chain, but distribute three separate 150-ohm resistors if wiring high-flux clusters side by side. Verify polarity–anode (+) aligns with the smooth lead; reverse bias risks thermal runaway in under 30 seconds.
When bridging emitters alongside, twist stranded copper wire (0.5mm²) tightly around each cathode (−) before soldering–loose joints introduce intermittent flicker. Test continuity with a probe; dissonant buzzing indicates poor contact requiring reflow.
Chain topology conserves resistors but demands precise voltage drop math. Three white diodes (3.2V forward) leave 2.4V across the resistor–use Ohm’s law: 2.4V ÷ 0.02A = 120Ω minimum. Exceeding this risks dimming; undershooting shortens lifespan.
Parallel topology simplifies scaling–add branches without recalculating series drops, but monitor total amperage: ten 60mA strips draw 600mA total. Exceeding the supply’s rated output triggers foldback protection.
Label each branch with heat-shrink sleeves (red anode, black cathode) to prevent miswiring during maintenance. Secure connections with adhesive-lined tubing for marine or automotive rigs–vibration loosens bare joints quickly.
Always attach a protective diode (1N4007) backward across the power input to absorb voltage spikes from inductive loads–this prevents catastrophic failure in PWM-driven setups.
Key Pitfalls in Low-Voltage Illumination Setups
Connecting crystalline emitters directly to a 12-volt source without a current-limiting resistor guarantees burnout within seconds. A typical T1¾ emitter rated for 20 mA and 3.2 forward drop requires a 470-ohm resistor for stable operation. Skipping this step or miscalculating the value leads to thermal runaway, visible as a rapid dimming followed by permanent failure. Use Ohm’s law (R = (Vsource – Vforward) / Icurrent) to determine the exact resistor, rounding up to the nearest standard value to prevent marginal overload.
Improper Polarity and Series-Parallel Errors
Reversing anode and cathode connections on a single-element illumination component renders it inoperable, while mixing elements with mismatched forward voltages in series strings causes uneven brightness or cascade failure. A chain of three 3.2-drop elements against a 12-volt rail leaves only 2.4 volts residual–insufficient to overcome the cumulative forward drop. Group components by identical specifications, and verify calculated resistor values against the table below for different string lengths:
| String Length | Forward Drop (V) | Residual (V) | Resistor (Ω) |
|---|---|---|---|
| 1 | 3.2 | 8.8 | 470 |
| 2 | 6.4 | 5.6 | 330 |
| 3 | 9.6 | 2.4 | 120 |
Using undersized wiring or ignoring voltage sag in long runs introduces resistive losses that distort performance. A 0.5 mm² copper conductor spanning 10 meters under 200 mA load loses nearly 0.2 volts, dropping the rail below the minimum forward threshold. Switch to 1.0 mm² wire for distances exceeding 5 meters, and place the current-limiting resistor nearest the load to minimize sag-induced flicker.
