To reduce a 12-volt direct current supply to a stable 6-volt output, use a linear regulator or switching buck module. A LM7806 IC with input/output capacitors (e.g., 0.33µF at input, 0.1µF at output) delivers a clean 6-volt signal with up to 1A load capacity. For higher efficiency, opt for a LM2596 switch-mode regulator–set the feedback resistor network (10kΩ and 3.3kΩ) to achieve precise 6V output.
For low-power applications under 500mA, a zener diode circuit (5.1V zener with a 470Ω series resistor) suffices, though heat dissipation limits scalability. Avoid resistive dividers–they waste energy and drift under load. Always include a 1N4007 flyback diode if powering inductive loads (e.g., relays), and add a 100µF electrolytic capacitor at the output to smooth voltage fluctuations.
When prototyping, verify output with a multimeter under full load. Excessive ripple (>50mV) signals inadequate capacitance–add a 10µF ceramic cap in parallel. For battery-powered systems, prioritize low-dropout regulators like the LT1086 to maximize runtime. Ensure the input source exceeds 8V under load to prevent regulator dropout.
Miniature SMD buck modules (e.g., MP1584) simplify implementation with adjustable potentiometers. For fixed outputs, solder a 1% tolerance resistor to the feedback pin. Test thermal performance–switching regulators may require heatsinks if dissipating >1W. Always isolate input/output grounds in high-current designs to prevent noise coupling.
Step-Down Power Supply: 12 to 6 Units Adapter Design
For a reliable reduction from 12 to 6 energy units, use an LM2596-based switching regulator. This IC handles up to 3A with 75%+ efficiency, requiring only four external components: a 33µH inductor, a 100µF input capacitor, a 220µF output capacitor, and a 1N5822 Schottky diode. Adjust the onboard potentiometer to fine-tune the output to 6 units (±0.2 units). Avoid linear regulators like the 7806; they waste excess energy as heat and need bulky heatsinks for currents above 500mA.
Key build notes:
- Inductor selection: Use a toroidal core rated for 4A minimum. Cheaper axial inductors saturate at lower currents.
- Thermal management: Mount the LM2596 on a 2×2cm copper pad if ambient temps exceed 40°C. Add a 10°C/W heatsink for continuous 2A+ loads.
- PCB layout: Keep the diode’s cathode trace short and wide (≥3mm) to minimize voltage drop. Route ground returns directly to the input capacitor.
- Load testing: Validate stability with a 10% to 100% load sweep. Output ripple should stay below 50mV peak-to-peak.
Alternative: Discrete Buck Topology
For higher currents (5A+), replace the LM2596 with a MOSFET (IRF4905), a gate driver (TC4427), and a PWM controller (TL494). Set the switching frequency between 150-250 kHz to balance efficiency and component size. Example values: 47µH inductor (saturation >7A), 470µF low-ESR capacitors, and a 10Ω gate resistor to reduce ringing. This setup achieves 85%+ efficiency but requires precise timing adjustments via the TL494’s feedback network (10kΩ trimpot + 1.24V reference).
Choosing Components for a 12V to 6V Linear Regulator Design

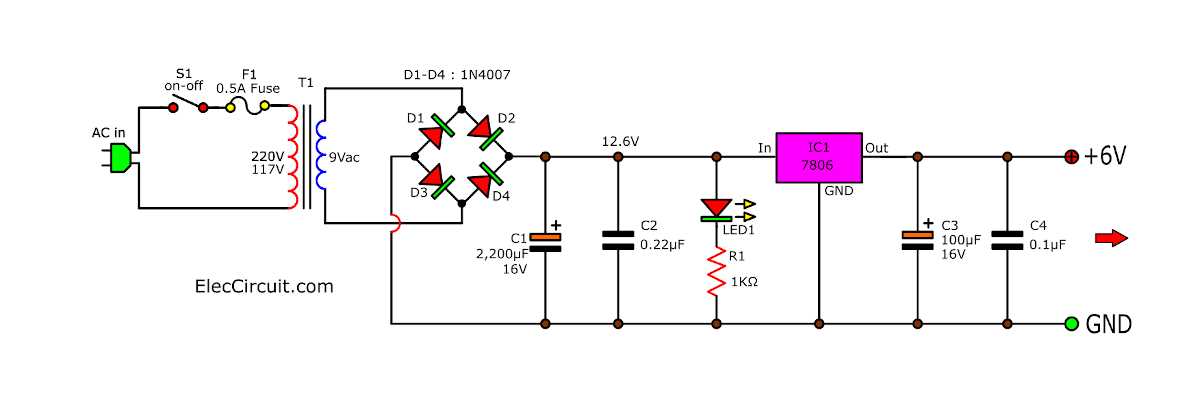

Select a LM7806 or LM317 for stable output. The LM7806 offers fixed 6.0 from a 12 input with minimal external parts–only a 0.33µF input capacitor and a 0.1µF output capacitor are required. For adjustable regulation, the LM317 needs a 240Ω resistor between OUT and ADJ, plus a 1kΩ potentiometer for fine-tuning. Ensure the pass element’s current rating exceeds the load by at least 30%–a 1A regulator suffices for most 500mA applications.
Capacitors must handle ripple and transient responses. Use low-ESR ceramic (X7R dielectric) for frequencies above 10kHz. A 10µF tantalum on the input side smooths spikes, while a 22µF electrolytic on the output prevents oscillations under dynamic loads. If noise is critical, pair the output cap with a 0.1µF ceramic to bypass high-frequency interference. Avoid aluminum electrolytics below -20°C–they leak current and degrade performance.
Heat dissipation dictates PCB layout. Calculate power loss as (12–6) × load current. For 500mA, dissipation is 3W–mount the regulator on a 10°C/W heatsink or a 15×15mm copper pour. TO-220 packages need thermal vias under the tab; space them at least 1.2mm apart. Keep input/output traces wide–≥2mm for 1A–to minimize voltage drop. Ground the regulator’s metal tab separately to avoid noise coupling into sensitive analog sections.
Protection diodes prevent reverse voltage damage. A 1N4001 across the input/output clamps inductive flyback from motors or relays. For the LM317, add a 1N4148 from ADJ to ground to protect against cap discharge. Test stability with a 10Hz–1MHz frequency sweep–phase margin should stay above 45° to avoid ringing. If load capacitance exceeds 1000µF, increase the output cap’s ESR with a 0.5Ω resistor in series.
Step-by-Step Assembly Guide for a Simple Step-Down Power Regulator
Select a switching element rated for at least 2A continuous current and 30V breakdown–an N-channel MOSFET like IRFZ44N or a dedicated buck IC such as LM2596 suits most low-power applications. Solder the chosen component to the board first, ensuring the heat dissipation pad or tab faces away from other traces to prevent shorts. Use a 470μF input capacitor (low ESR, rated 25V) positioned within 1 cm of the regulator’s input terminal; this minimizes ripple and protects downstream components from transient spikes during switching.
- Cut PCB traces to 2 mm width for currents up to 1.5A; wider tracks reduce resistive losses.
- Place a 100 μH inductor (saturation current >1.5A) directly between the MOSFET’s drain and the output node; core material should be ferrite or iron powder to avoid saturation.
- Install a 1N5822 Schottky diode across the inductor, cathode oriented toward the output cap–a fast recovery diode prevents reverse current flow during down-time.
- Add a feedback network: two resistors form a voltage divider targeting 6.00V–use a 10 kΩ (upper) and 4.7 kΩ (lower) pair, adjusting the lower value via a 1 kΩ trimpot for fine calibration.
- Include a 100nF ceramic capacitor on the feedback pin if the regulator is IC-based; this stabilizes control loops and dampens oscillations.
Test the board with an adjustable load: start at 100 mA, verify output remains stable at 6.0 V ±20 mV under load changes up to 1A. If voltage drifts, recheck solder joints on feedback resistors; cold joints here introduce resistance errors. For extended operation, add a small heat sink to the MOSFET or IC–derive temperature rise via thermal imaging or a fingertip test; anything above 60°C risks derating. Secure all components with minimal lead length to avoid parasitic inductance, which degrades efficiency below 85%. Lastly, encase the board in a non-conductive enclosure if deploying near metallic surfaces; stray capacitance alters switching behavior.
Calculating Resistor Values for Voltage Divider-Based Regulation
For a 12-unit input reduced to 6 units at the output, select resistors with a 1:1 ratio. Use the formula R₂ = R₁ × (Vout / (Vin - Vout)) where R₁ is the upper resistor and R₂ the lower. Example: with R₁ = 1 kΩ, R₂ calculates to 1 kΩ. Verify current through the divider must exceed the load current by at least 10× to maintain stability–minimum 1 mA for 100 µA loads. Power dissipation in each resistor follows P = (Vin - Vout)² / R; ensure components handle at least 2× calculated wattage.
| Input (units) | Output (units) | R₁ (kΩ) | R₂ (kΩ) | Min Load Current (µA) |
|---|---|---|---|---|
| 12 | 3 | 1 | 0.33 | 30 |
| 12 | 5 | 1 | 0.71 | 50 |
| 12 | 6 | 1 | 1 | 60 |
| 12 | 9 | 1 | 3 | 90 |
Adjust R₁ and R₂ proportionally for lower input currents–for 500 Ω loads, scale both resistors down by 50% to preserve ratios.
Tolerance critically impacts precision; 1% resistors yield ±60 m-unit deviation for a 6-unit target with 12-unit input. For dynamic loads, parallel a capacitor (10–100 µF) across R₂ to suppress noise–value inversely proportional to load impedance. Avoid carbon-film resistors in high-ripple environments; metal-film or wirewound types exhibit superior temperature coefficients (±50 ppm/°C vs ±200 ppm/°C). Measure output under load; a 10% voltage drop indicates insufficient divider current headroom.
Troubleshooting Common Issues in DIY DC-DC Step-Down Modules
Check inductor saturation first if output drops under load–replace it with one rated at least 1.5× your expected current draw. Ferrite cores degrade faster than iron-powder types above 80 kHz; measure inductance with an LCR meter before assuming switching IC failure. A solder joint with 300 °C reflow for 3 seconds eliminates cold joints that mimic open-circuit faults.
Heat-induced drift often causes erratic behavior. Thermal imaging reveals hotspots; verify MOSFET junction temperatures stay below 125 °C with a type-K probe. Swap electrolytic capacitors for tantalum or ceramic if ripple exceeds 5%–ESR rises exponentially above 85 °C. Mount a 10 mm×10 mm PCB heatsink on the regulator IC if thermal vias prove insufficient.
Diagnosing Unexpected Noise
Snap a 10× probe at the switch node; ringing above 10 MHz indicates insufficient gate resistance–add a 10 Ω series resistor to the MOSFET gate. Replace Schottky diodes with low Vf versions if reverse-recovery noise persists; 3 A devices typically need ESR below 50 mΩ for clean commutation. Shield inductor windings with copper tape grounded to the star point to reduce radiated EMI coupling.
Verify input ripple with a DC-blocked scope; 200 mVpp or higher signals a weak bulk capacitor–use 1000 µF low-ESR polymer caps at 16 V rating minimum. Align switching edges below 50 ns rise/fall times; slower slew rates halve efficiency and increase radiated emissions. Route grounds in a star topology, avoiding shared return paths under high-current traces.
If standby current exceeds 1 mA, check for floating pins on PWM controllers; pull unused feedback pins to ground through 10 kΩ resistors. Replace suspect resistors with 1% tolerance, 0207 size for stability–carbon-film types drift at high humidity. Re-flash microcontroller firmware if hysteresis circuits oscillate; factory calibration often errs by ±10% at room temperature extremes.
