Build a compact step-down module using an LM7805 linear regulator for reliable 5-unit output from a 12-unit source. This setup requires just three core components: the regulator, a 100 µF input capacitor, and a 10 µF output capacitor. Wire the input capacitor between the 12-unit supply and ground, and the output capacitor between the 5-unit output and ground. Ensure the regulator’s metal tab is grounded or heatsinked if current exceeds 200 mA to prevent thermal shutdown.
For higher efficiency, swap the linear regulator for a MP1584 buck switcher. Configure the feedback resistors R1=100 kΩ and R2=33 kΩ to lock a stable 5-unit output. Add a 22 µH inductor and a 470 µF low-ESR capacitor to minimize ripple. Keep traces short and wide, especially the ground path, to avoid voltage sag under load. Test with a 1 A dummy load before finalizing the layout.
Need galvanic isolation? Deploy a TPS5430 full-bridge SMPS with a 1:1 flyback transformer. Set the primary-side feedback using a TL431 shunt regulator and optocoupler for secondary-side regulation. Adjust the compensation network R=10 kΩ, C=1 nF to dampen oscillations. This topology supports up to 3 W while isolating fault conditions. Always add a 1N4007 flyback diode across inductive loads to clamp voltage spikes.
Avoid cheap electrolytic capacitors in high-ripple applications; use solid polymer types rated for at least 25°C above ambient. For microcontroller-powered setups, add a 220 µF bulk capacitor near the load to buffer transients. If noise is critical, shield the adapter with a grounded copper pour around switching nodes. Measure output with a 10x probe to avoid loading effects–expect if components are properly sized.
Step-Down Power Supply: 12 Input to 5 Output Guide

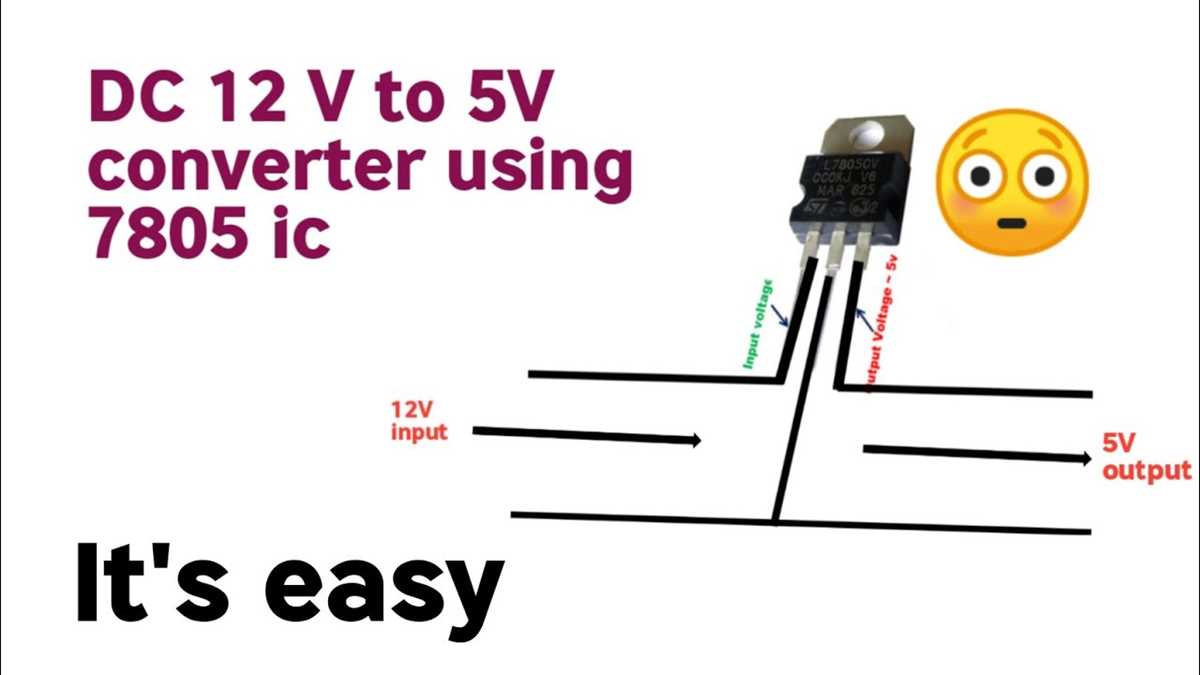

Choose a LM7805 linear regulator for simplicity if current demand stays below 1 A. Connect the input pin to the 12 source through a 1 A fuse and a 220 µF electrolytic capacitor to smooth incoming spikes. Ground the center pin, and link the output to a 100 µF capacitor to filter noise. Keep the regulator cool with a small heatsink if ambient surpasses 40 °C.
Avoid linear regulators when efficiency matters. Switch-mode solutions like the LM2596 cut waste. Wire the 12 feed to the IN+ pin via a 2 A fuse and a 100 µF capacitor. Attach a 33 µH inductor between the OUT+ and output capacitor, followed by a 1N5822 Schottky diode. Feedback resistors set the output: use 3.3 kΩ to ground and 1.5 kΩ to the OUT- pin for a stable 5 feed.
Trim ripple with tight component placement. Keep the path between the inductor, diode, and capacitor under 2 cm. Add a 0.1 µF ceramic capacitor across the output capacitor to catch high-frequency noise. Test transient response by toggling a 500 mA load; voltage droop should not exceed 100 mV.
Measure input quiescent draw with a multimeter. Linear regulators waste (12 – 5) × load current as heat. A 500 mA load draws 3.5 W; a switch-mode unit typically burns less than 0.3 W. Pick the switch-mode route if thermal constraints or battery life are critical.
Check maximum input tolerance before assembly. The LM2596 accepts up to 40 input, while the MP2307 tolerates only 21. Exceeding these values destroys the device instantly. Add a transient suppressor diode or a zener shunt if input surges are likely.
Verify output accuracy under full load. Use a 4-terminal measurement to exclude lead resistance. Adjust feedback resistors in 1 % steps until the reading matches 5.00 ± 20 mV. Store calibration values on a label affixed to the board.
Ensure ground integrity. A single-point star ground prevents return currents from corrupting the reference. Tie all grounds–input, output, and feedback–directly to the star node. Avoid polymer electrolytic capacitors on the output if the application operates below –20 °C; use tantalum or ceramic alternatives.
Document every build variant. Record component batches, input range, temperature curves, and failure modes for debugging. Keep schematics in KiCad with net labels matching physical board silkscreen. Rework becomes predictable if the archive is current.
Key Components for a 12V to 5V Step-Down Power Supply
Select a switching regulator IC with a current rating at least 30% above your load requirements. The LM2596 handles 3A continuous output, while the MP2307DN supports 2A with minimal external components. For higher efficiency, prioritize ICs with synchronous rectification like the TPS563201, which reduces power loss by eliminating the need for an external diode.
- Inductor: Choose a shielded coil with low DCR (0.1Ω or less) to minimize resistive losses. A 22µH to 47µH value works well for most 1.5A–3A designs; verify saturation current (>4A) exceeds the peak switching current by 20%. The SRN6045-220M series offers compact size and low EMI.
- Input/Output Capacitors: Use low-ESR ceramic capacitors (X5R or X7R) for input (10µF–22µF) and output (22µF–47µF). Tantalum or aluminum electrolytic caps degrade efficiency; avoid them unless bulk capacitance is critical. For noise-sensitive applications, add a 0.1µF ceramic cap close to the IC’s input pin.
- Feedback Resistors: Calculate values using the formula R2 = R1 × (Vout/VFB – 1), where VFB is the IC’s reference (typically 0.8V–1.2V). For 5V output, a 10kΩ R1 and 43kΩ R2 yield ±2% accuracy. Use 1% tolerance resistors to prevent drift.
Add a Schottky diode (e.g., 1N5822) only if the IC lacks synchronous rectification–its low forward drop (0.3V–0.5V) reduces waste heat. For thermal management, mount the IC on a PCB with at least 1oz copper pour under the pad; larger vias improve heat dissipation. Test the design under full load for 10 minutes to confirm stability–output ripple should stay below 50mV peak-to-peak. Adjust the inductor value if ringing exceeds 1MHz.
Step-by-Step Assembly of a Linear Regulator Power Stage
Select a fixed low-dropout component like the LM7805 or AMS1117-5.0 for input ranges up to 18 units. Verify pin assignments–most three-terminal devices arrange pins as input, ground, output from left to right when viewed front-on.
Solder a 22 µF electrolytic capacitor between the positive feed point and chassis return, ensuring correct polarity. This capacitor absorbs high-frequency noise and prevents oscillations during load transients. Place it within 2 cm of the regulator’s input terminal.
Attach a 10 µF tantalum or ceramic capacitor between the downstream node and chassis return. This stabilizes the regulated supply and filters residual ripple, especially under pulsed current draws. Keep this component within 1 cm of the output pad.
Insert a 1N4007 flyback diode across the input terminals, cathode to the incoming line. The diode conducts reverse current when the input collapses, safeguarding the semiconductor junction against back-emf spikes exceeding 25 units.
Mount the regulator on a perforated prototype board with a copper footprint doubling the recommended land pattern. Apply thermal compound beneath the tab if the expected power dissipation surpasses 1 W; secure with a 4-40 screw to an aluminium heat spreader carved to 40 × 40 mm.
Wire the positive feed through a 1 A fuse rated for 32 VDC. The fuse trips before the semiconductor’s internal thermal limit is reached, allowing marginal overloads of 1.3× nominal without permanent damage.
Verify load regulation by connecting a potentiometer-adjusted resistive sink from 5 Ω to 270 Ω. Monitor the downstream node with a 3½-digit panel meter; deviation should not exceed ±50 mV across the full 0–1 A operating envelope.
Seal the completed assembly in a grounded metal enclosure, vented at the top. Route the chassis return separately from signal returns to prevent common-impedance coupling, ensuring noise floor remains below –70 dB across 1 kHz–1 MHz bandwidth.
Switching vs. Linear Regulator: Practical Circuit Comparisons
For low-power applications under 50 mA, choose a linear regulator like the LM7805–it’s simpler, cheaper, and eliminates switching noise. Efficiency drops linearly with input-to-output differential (e.g., 60% at 12 to 5 span), but heat dissipation is manageable in small loads. Add a 100 nF input capacitor and 10 μF output capacitor to stabilize performance. Avoid linear solutions if the dropout exceeds 1.5 V or thermal constraints prohibit sufficient heatsinking.
Switching regulators dominate when efficiency above 80% is required or input spans exceed twice the output level. A buck topology (e.g., MP2307) reduces 12 to 5 with ~90% efficiency at 500 mA, slashing heat waste. Size the inductor (10–22 μH) and capacitors (22 μF input, 47 μF output) per datasheet; undersized components invite ripple exceeding 50 mVpp. Enable frequency varies; 500 kHz balances compact magnetics against switching losses.
Noise-sensitive analog front ends demand linear regulation. A typical 7805 emits 60 dB PSRR and add post-regulation if necessary. Switching supplies suit digital logic where noise margins tolerate tolerances under ±100 mV. Verify load step response; linear regulators recover in microseconds, switchers may exhibit millisecond overshoot.
Thermal Design Considerations
An LM2940 linear regulator consuming 700 mW in a TO-220 package needs a 15 °C/W heatsink to maintain junction temperature below 100 °C (ambient 50 °C). Calculate pad size: 6 cm² per watt on 1 oz copper. Switching units dissipate under 50 mW; calculate via datasheet loss curves: I²R (conduction) plus V×I×(t_on + t_off)/T (switching). Place high-current traces on outer layers; thermal vias transfer heat to ground planes.
Quiescent current distinguishes low-power options. Linear LDOs (e.g., TLV7005) draw 30 μA, while micro-power buck regulators (e.g., TPS62743) sink 360 nA in shutdown. For battery-operated devices, weigh standby consumption against transient response: LDOs wake instantly, buck regulators may need 200 μs to settle. Verify dropout; a TPS7A85 LDO tolerates 4.7 input at 5 output, a buck regulator falters below ≈2.3 level.
Layout dictates stability. Linear regulators tolerate short input-output traces; keep ground return 5 mm clearance from feedback traces. Shield feedback (R-C network) from switching node with a guard ring; use differential routing for remote sensing. Thermal camera scans reveal hotspots; small adjustments (0.1 Ω trace) slash temperature rise by 10 °C.
Cost and Component Footprint
Linear regulators need three external parts: input, output, and ground capacitors. A 7805 costs
Efficiency curves reveal crossover points. Linear units drop 50% efficiency at 2× span; buck regulators maintain >85% from 2:1 down to 1.2:1. Measure real-world load: 10 mA standby favors linear, 1 A dynamic load suits switching. Undervoltage lockout and soft-start (2 ms) prevent inrush spikes; linear regulators lack these features, risking latch-up under brownouts. Field-test both solutions: linear excels in polar environments (down to -40 °C), switchers face thermal derating above 70 °C junction.
