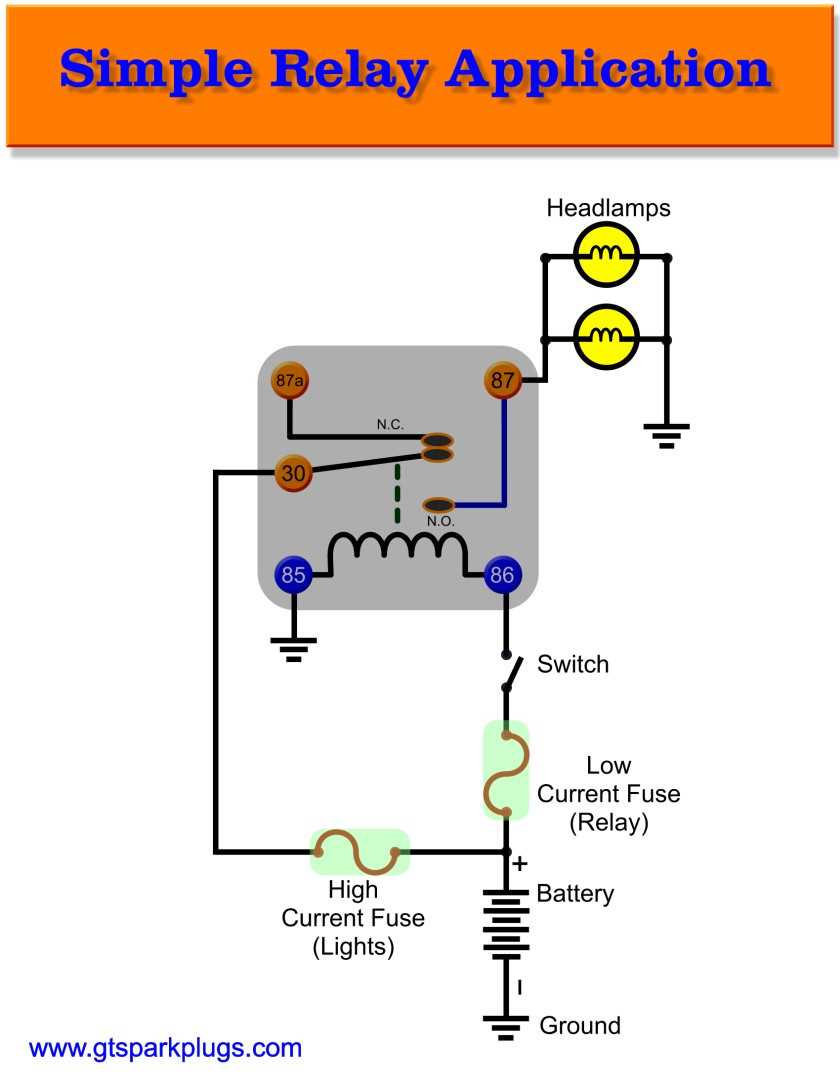

Start by identifying the pin layout on your control module–most standard configurations use a 85-86 coil pair and a 30-87 contact set. Pin 85 should connect to the trigger source (ignition, sensor, or manual switch), while pin 86 grounds the circuit. Failure to observe polarity on the coil leads (85/86) can cause premature failure or inconsistent operation. Use a multimeter to verify coil resistance–typically 50-120 ohms–before finalizing connections.
Route the load wire (pin 30) through a fuse of appropriate rating–usually 10-30 amps, depending on the device (headlights, motors, compressors). Connect pin 87 to the output load; ensure the cable gauge matches the expected current draw–14-10 AWG for most auxiliary circuits. Avoid daisy-chaining multiple high-current devices through a single switching unit–each should have dedicated contacts to prevent overheating.
Test the setup with a momentary switch before permanent installation. Listen for a distinct click–absence indicates a faulty module or incorrect coil wiring. For inductive loads (electric fans, solenoids), add a flyback diode across the coil terminals (cathode to positive) to suppress voltage spikes. Secure all connections with crimp connectors or solder, then insulate with heat-shrink tubing; exposed wires degrade quickly under vibration and moisture.
For low-signal applications (LED strips, sensors), consider an isolated circuit using pins 87a/87 (normally closed/open contacts). This prevents parasitic draw when the system is off. Document your wiring path with color-coded labels–red for power, black for ground, blue or yellow for control signals–to simplify future diagnostics.
Connecting a 12-Unit Electromagnetic Switch: Key Steps

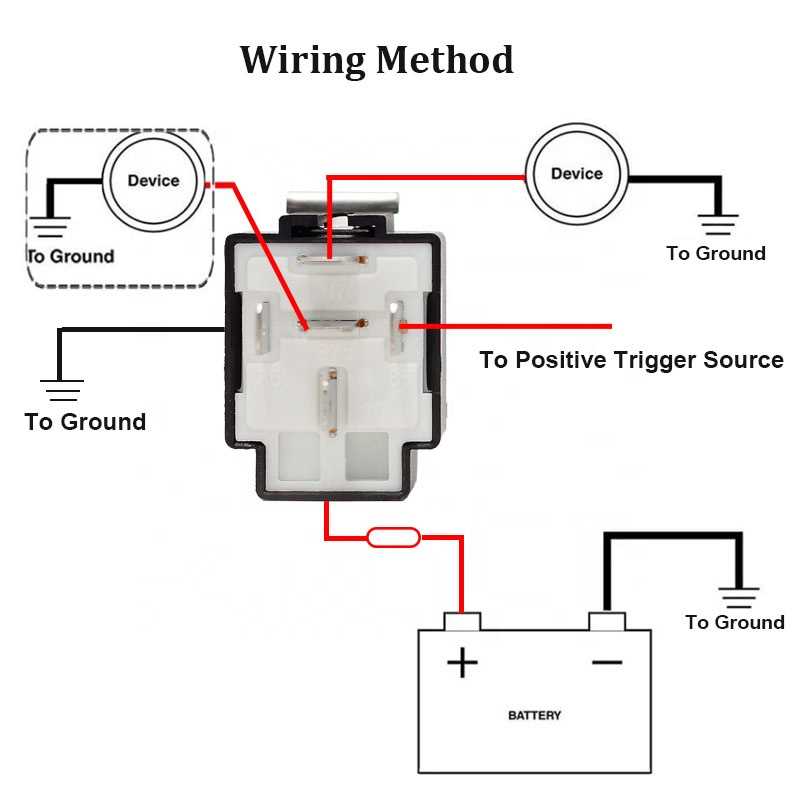

Begin by linking the control circuit’s positive input to pin 85–ensure the trigger source (e.g., dashboard switch or ECU output) provides a stable 12-unit signal. Ground pin 86 directly to the chassis, avoiding paint or corroded surfaces; a clean connection prevents voltage drops that disrupt coil activation. For power handling, attach the load’s positive terminal to pin 30, securing it with a fuse no larger than 150% of the device’s rated current (e.g., 20A for a 10A load). Route the switched output from pin 87 to the accessory (e.g., auxiliary lights, cooling fan) using 14-gauge wire or thicker, accounting for voltage drop over distances exceeding 3 meters.
Test functionality by toggling the trigger source while monitoring coil resistance (typically 50–120Ω) with a multimeter–values outside this range indicate a faulty switch. If the connected device fails to energize, probe pin 30 for uninterrupted power and verify continuity between pins 87 and 30 when the coil is active. For inductive loads (e.g., motors), add a flyback diode (1N4007) across pins 85 and 86 to suppress voltage spikes, orienting the cathode toward the positive input. Document wire colors and pin assignments in a labeled sketch to simplify troubleshooting.
How to Identify the 85, 86, 87, and 30 Terminals on a Switching Unit
Locate the numbering embossed on the component’s plastic housing–small but legible digits mark each contact. If labels are absent, refer to the device’s footprint: pin 85 pairs with 86 on one side, forming the trigger circuit, while 87 and 30 appear opposite, reserved for the load path.
Use a multimeter set to continuity mode. Probe terminal pairs until a beep confirms the closed loop. Pins 85 and 86 will always conduct when energized, whereas 87 remains isolated until activation. Pin 30 stays permanently connected to the movable contact, bridging to 87 only during engagement.
Check the datasheet silhouette if visual inspection fails. Most cubes follow a standardized layout: two vertical contacts on the coil side (85 at the top, 86 below) and two horizontal contacts on the switch side (30 to the left, 87 to the right). Miniature versions may rotate the orientation, yet maintain the same relative positions.
| Terminal | Function | Connection Behavior |
|---|---|---|
| 85 | Coil input (positive) | Requires + signal to energize |
| 86 | Coil return (ground) | Completes circuit when connected to negative |
| 30 | Normally closed/common | Always live unless switched |
| 87 | Normally open | Only energized after activation |
Observe the contact spacing. Terminals 85 and 86 sit closer together, measuring roughly 6.3 mm center-to-center on standard models. Contacts 30 and 87 typically span 10 mm, a deliberate gap reducing accidental shorts. Measure if uncertain–dimensions rarely deviate from these tolerances.
Common Mistakes to Avoid
Misidentifying 87 as 30 will route power through the wrong path, bypassing the switch entirely. Conversely, swapping 85 and 86 will prevent coil activation, leaving the contact untripped. Double-check polarity if the component fails to respond; reverse coil connections merely disable operation without damage.
Test under load before permanent installation. Connect a small lamp across 30 and 87–illumination should occur only when applying voltage across 85 and 86. Flickering or partial brightness indicates a weak coil or faulty button, warranting replacement. Sidestep guesswork by cross-referencing the manufacturer’s terminal legend printed on the enclosure edge.
Step-by-Step Guide to Connecting a 12-Series Switching Module
Select the correct terminals first. Identify the coil inputs (typically 85 and 86) and the switch contacts (30, 87, and 87a if present). Label each wire with their intended function–control signal, power input, or load output–to prevent misconnections. Use a multimeter set to continuity mode to verify terminal assignments before proceeding; this eliminates guesswork and reduces error risks.
Connect the control circuit by attaching a 12-series trigger source to the coil’s positive terminal (86) and ground the negative terminal (85). Ensure the trigger source can deliver at least 150 mA to activate the coil reliably. For inductive loads like motors, add a flyback diode across the coil terminals to suppress voltage spikes–place it cathode-to-positive to protect the circuit.
Route the main power feed to terminal 30. Use a fuse inline with this connection, sized 10-20% above the load’s maximum current draw–for example, 15A for a 10A load. Terminate the load to terminal 87, selecting 87a if the module includes a normally closed contact. Secure all connections with crimp connectors or soldered joints, then insulate them with heat-shrink tubing or electrical tape.
Test the setup incrementally: Energize the trigger source and confirm the coil clicks. Measure voltage at terminal 87 to verify it matches the power feed when active. If using a double-throw module, check terminal 87a for absence of voltage when the coil is engaged. Repeat tests under load to ensure stability–intermittent failures often surface only under current draw.
Mount the switching module in a dry, accessible location. Avoid areas prone to vibration or heat above 85°C, as this degrades internal components. Secure the module with zip ties or a mounting bracket, ensuring no strain on wire terminations. Document the configuration, including wire colors, terminal assignments, and fuse ratings, for future reference or troubleshooting.
Common Mistakes When Connecting Fuses and Switches to an Electromagnetic Switch
Sizing fuses incorrectly causes most failures. A 10-amp fuse protecting a 30-amp circuit melts under normal load, while a 50-amp fuse in a 20-amp circuit allows wires to overheat before blowing. Measure the actual current draw with a clamp meter, then select a fuse rated 125-150% of that value. Anything lower risks nuisance blows; anything higher sacrifices protection. Keep a table of wire gauges and their max amperage handy–14 AWG handles 15 amps, 12 AWG handles 20 amps, 10 AWG handles 30 amps.
Avoid placing fuses too far from the power source. Heat and voltage drop accumulate over distance; a 5-amp load on 10 feet of 18 AWG wire loses 0.2 volts, while the same load on 20 feet loses 0.4 volts–doubling the loss without doubling the fuse capacity. Mount fuses within 7 inches of the battery terminal or distribution block. Use crimp connectors with heat-shrink tubing; solder alone fractures under vibration, and tape adhesive fails above 180°F.
Switches rated below the circuit’s continuous current degrade faster. A 10-amp rocker switch controlling a 15-amp load arcs internally, carbonizing contacts within weeks. Verify switch ratings in the datasheet, not just the label–some list peak amperage but continuous amperage is 30% lower. Toggle switches often handle 20 amps, push buttons 15 amps, and micro switches 5 amps. Install a diode across inductive loads: a standard 1N4007 protects switches by clamping the 90-volt spike generated when collapsing magnetic fields.
Ground paths through vehicle chassis instead of dedicated wires invite corrosion. A single rusted bolt increases resistance, turning a 0.1-ohm ground into 2 ohms–enough to make a 4-amp load drop 8 volts. Run ground wires directly to the negative battery terminal, no exceptions for splices or chassis taps. Confirm continuity with a multimeter: voltage between the ground terminal and battery negative should read 0.1 volts or less under full load. Anything above 0.3 volts indicates a faulty connection, even if the circuit works intermittently.
Optimal Conductor Sizing for Various Electrical Switching Loads
For 10A loads, 18 AWG copper wire suffices, but never exceed 80% of its 14A ampacity. This gauge handles standard lighting circuits, fuel injectors, and small solenoids without voltage drop issues over distances under 3 meters. When routing through engine bays or high-temperature zones, upsize to 16 AWG to compensate for heat-induced resistance increases.
Power Handling Requirements by Wire Gauge
- 20-30A: 16 AWG (max 3m), 14 AWG (3-6m), 12 AWG (6m+)
- 30-50A: 14 AWG (max 2m), 12 AWG (2-5m), 10 AWG (5m+)
- 50-80A: 12 AWG (max 1.5m), 10 AWG (1.5-4m), 8 AWG (4m+)
80-120A: 10 AWG (max 1m), 8 AWG (1-3m), 6 AWG (3m+)
Aluminum conductors require one gauge size larger than copper for equivalent current capacity.
High-current devices like cooling fans, electric water pumps, and winches demand special attention. A 10 AWG copper conductor supports 55A at 30°C ambient, but derate by 20% for 60°C environments. For 40A sustained loads, bare minimum is 8 AWG–anything thinner risks overheating, especially in bundled harnesses. Starter motor circuits (200A+) mandate 4 AWG or thicker, with fused protection within 150mm of the battery terminal.
- Measure total circuit length (battery to load and return)
- Calculate voltage drop: (0.0172Ω·mm²/m × length × current) ÷ CSA
- Ensure drop ≤3% for critical systems (computer modules), ≤10% for motors/heaters
- Factor in 0.5mm² CSA reduction per 10°C ambient temperature rise above 30°C
- Verify against manufacturer specifications–some components impose stricter limits
For intermittent loads (under 10s operation), you can size conductors 20% smaller than continuous-duty ratings. Horn circuits (20A, 2s bursts) work with 18 AWG up to 5m if fused at 25A. HID lighting systems (15A continuous) need 14 AWG regardless of length due to cold-start current spikes. Always use tinned copper in marine or corrosive environments; plain copper oxidizes rapidly under voltage stress.
