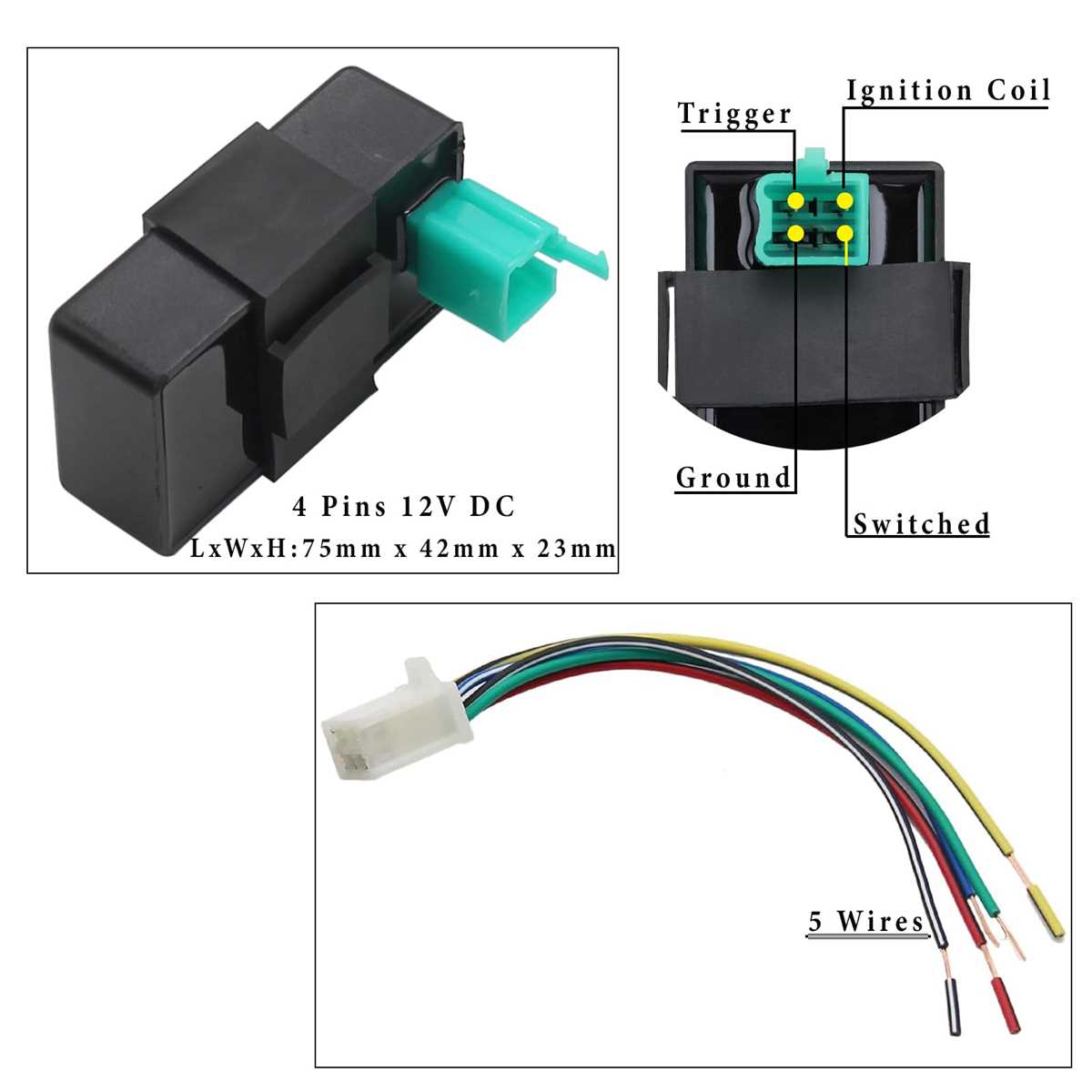

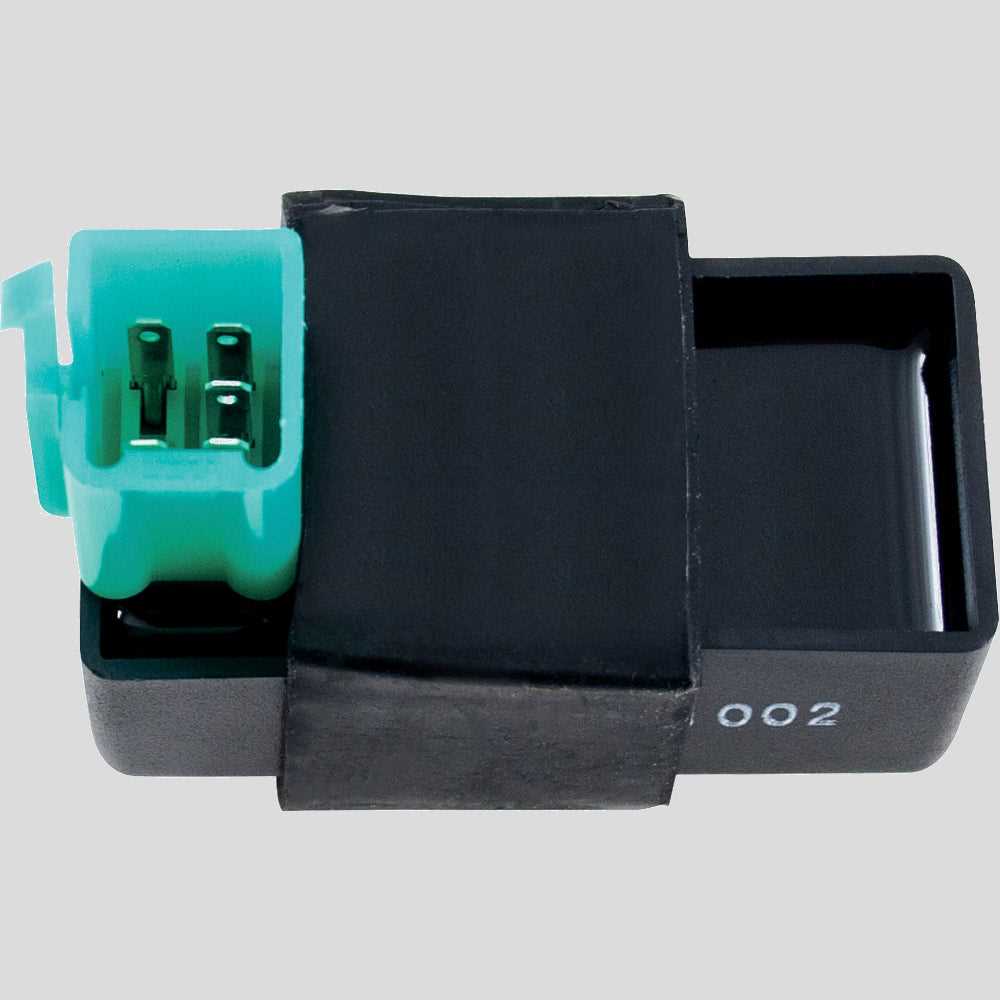

Start by identifying the four-terminal engine control module connector. The standard color-coding for this setup includes:
Black/white (ground),
Blue/white (trigger signal from stator),
Red (power input from battery or regulator), and
Green/white (output to ignition coil).
Connect these in this exact sequence to avoid misfires or damage. A multimeter set to DC voltage (20V range) should register 0.5V–2V on the trigger line when cranking; lower readings indicate a faulty pickup coil.
For aftermarket installations, verify the module’s firing sequence matches your engine’s timing specifications–typically 8°–12° BTDC for most single-cylinder models. Splice the red wire directly to a 12V source with a 10A fuse; omit this step only if the system includes an integrated voltage regulator (confirm via manufacturer specs). Ground the black/white wire to the engine block, ensuring a
When routing wires, avoid tight bends (100°C zones). Use heat-resistant sleeves (silicone or fiberglass) for the coil output and stator trigger lines if they pass near hot components. Test each connection under load: idle at 1,500–2,000 RPM for 5 minutes; voltage drops above 0.3V on any line warrant re-soldering or terminal replacement. For dual-coil variants, the second coil’s green/white wire attaches identically, but timing must be recalibrated using a strobe light.
Troubleshooting? Start with the coil resistance test: primary winding should read 0.5–1.5Ω, secondary winding 5–15kΩ (exact values vary by model–consult your spec sheet). If resistance is out of range, replace the coil immediately. Next, inspect the stator’s resistance: 50–200Ω across the trigger wires; higher readings suggest a broken rotor or misaligned pickup coil, while lower readings (
Understanding the Ignition System Layout for Small Engines
Begin by locating the stock ignition coil harness on your engine–typically a compact bundle of four colored wires exiting near the stator. The black wire with a white stripe grounds the system, while the solid black lead connects to the kill switch. Trace the remaining two: one supplies pulsed power from the stator (often blue), and the other delivers voltage to the coil (red or yellow). Validate each wire’s function with a multimeter before modifying connections to avoid misfires or short circuits.
Common Wire Color Codes and Their Purposes
Manufacturers frequently adhere to these conventions: blue wires carry AC pulse signals from the stator, red or yellow wires feed 12V+ to the coil, black-white grounds the circuit, and black manages the engine cutoff. Verify against your engine’s service manual, as deviations occur–especially in aftermarket components. A misrouted blue wire, for instance, disrupts ignition timing, causing erratic performance or failure to start.
Test each connection under load–backprobe the harness while cranking the engine. Pulse signals should read 15-20V AC on the blue lead, while DC voltage to the coil peaks at battery level (11-14V). Replace any faded or brittle wires immediately; compromised insulation leads to voltage leaks that melt connectors or trigger false timing advances.
Troubleshooting Complex Issues
If the engine cranks but won’t fire, measure resistance across the stator’s pulse coil–expect 100-400 ohms. A reading outside this range indicates a faulty stator requiring replacement. For intermittent spark, inspect the pickup coil’s gap (0.2-0.4mm) using a non-magnetic feeler gauge; incorrect clearance disrupts signal accuracy, resulting in poor combustion. Always secure connections with dielectric grease to prevent corrosion.
When splicing into the harness for accessories, use waterproof butt connectors and heat-shrink tubing rated for at least 600V. Route wires away from moving parts and heat sources–exposed leads near exhaust manifolds risk melting. Document every modification with labeled diagrams to simplify future diagnostics.
How to Match the Right Leads for a Small-Displacement Engine’s Ignition Module
Check the stator output first. Most single-cylinder motors in this class rely on an alternator producing 50–120 V AC at idle and 150–220 V AC under load. Probe each of the four connector legs with a multimeter set to AC voltage while the engine cranks; the pair that reads highest voltage are the charging wires. Label them immediately–typically black and red–to prevent mix-ups during final hookup.
Locate the kill lead next. It’s almost always a solid color (blue, yellow, or white) and connects directly to the momentary switch on the handlebar. Disconnect the battery before testing continuity: touch one probe to the suspected kill wire and the other to ground–momentary closure should register
Trace the ignition pulse conductor third. This cable delivers the crank position signal and usually sports a thinner gauge than the charging pair. Colors to watch for: black with a thin stripe, green with a stripe, or brown. At the connector, it normally shows 1–3 V DC when the flywheel spins but zero volts when stationary; any voltage at rest indicates a short to another circuit.
| Terminal Position | Expected Color Code | Nominal Voltage Range |
|---|---|---|
| Charging Coil (+) | Red or Red/White | 50–220 V AC |
| Charging Coil (–) | Black or Black/Red | Reference ground |
| Kill Switch | Blue, White, or Yellow | 0 V or battery voltage |
| Trigger Signal | Green/White, Brown, Black/Stripe | 1–4 V DC |
The remaining leg is ground. Many units tie it internally to the mounting bracket, yet some aftermarket modules require a dedicated path back to the battery negative terminal. Drag a wire brush over the engine case where the bracket bolts, then secure a 14-gauge braided lead with a star washer; corrosion here can mimic ignition failure.
Verify polarity before plugging in. Swap the charging wires and the engine will refuse to fire, yet the module itself may appear functional–only a spark tester reveals the absence of combustion spark. Once polarity matches the table, start the motor briefly and confirm both charging and trigger voltages rise neatly with RPM; a flat or erratic trace on an oscilloscope pinpoints a failing alternator coil or loose flywheel magnet.
Seal connections with dielectric grease and heat-shrink tubing rated to 125 °C minimum. Submerged engines benefit from double-wall adhesive-lined sleeves over every crimp; saltwater exposure accelerates galvanic corrosion, particularly between dissimilar metals like copper and aluminum.
Keep a 10 A fuse in-line near the battery on the positive lead. A short circuit from a chafed wire can destroy resistor bridges inside the module within seconds, and burnt epoxy markings on a charred circuit board will leave you without clues for troubleshooting.
Step-by-Step Guide to Connecting Ignition Control Unit Leads to the Generator and Spark Coil
Begin by locating the four output terminals on the ignition module–these are typically color-coded: black/white (ground), blue (pulse), green/yellow (charge), and red (power). Verify the generator’s terminal layout matches; most 4-stroke motors use two charging coils (AC) and one trigger coil (DC pulse). Misalignment here causes erratic spark timing or complete failure.
Initial Preparation
- Disconnect the battery negative terminal to prevent accidental shorts.
- Clean all terminal connections with 600-grit sandpaper to remove oxidation.
- Inspect the spark coil’s primary and secondary wires; frayed insulation near the boot indicates heat damage–replace if compromised.
Attach the black/white wire from the module directly to the engine’s metal chassis near the mounting point. This ground must be near zero resistance; test with a multimeter (
Charge and Power Circuit Setup
- Connect the green/yellow charging wire to the generator’s AC output coil. This pair often has a higher gauge (16-18 AWG) and produces ~50-100VAC at idle. Polarity doesn’t matter, but mismatching to the DC side will fry the module.
- Link the red power wire to the 12V DC input–either battery positive or a regulated source. Some systems use a single diode (1N4007) in series to prevent reverse current. Omit if the module has built-in protection.
- Recheck all connections for stray strands or loose terminals; even a single stray strand can create a parasitic draw that kills performance.
Mount the ignition module away from heat sources (exhaust, cylinder head) using nylon standoffs. Silicone dielectric grease on connectors prevents corrosion. Reconnect the battery, then test spark quality: insert a grounded test plug into the coil boot. Kick the motor; a healthy blue spark should jump >5mm consistently. If weak or intermittent, measure stator output at idle (target: 20-30VAC on the charging pair, 1-3VDC on the trigger coil).
For final validation, use a timing light on the spark plug wire while accelerating. The timing mark should advance smoothly with RPM without fluctuations. If erratic, swap the trigger coil wires–some motors require reversed polarity for correct ignition advance curve. Secure all wires with zip ties spaced every 8-10cm to prevent vibration-induced breaks.
Verifying Ignition Module Connector Voltage Prior to Assembly
Measure each terminal on the 4-socket harness with a multimeter set to DC voltage before securing the system. Probe the firing coil trigger socket first–expect 80–120V DC during cranking; readings below 60V indicate a weakened stator or loose flywheel magnet. Switch to the 5V reference socket: voltages outside 4.8–5.3V signify regulator-rectifier drift or corroded ground straps. Record pulses on the timing pickup socket; irregular spikes above 1.8V or flatlines below 0.3V reveal damaged pickup coils or misaligned rotor teeth.
- Set multimeter to 200V DC for coil trigger checks–clip negative lead to chassis ground.
- Enable 20V DC for low-voltage circuits–touch positive probe directly to socket contacts, not wire strands.
- Activate continuity mode if voltage is absent–trace circuit paths to identify broken wires or melted connectors.
- Avoid back-probing sealed connectors; use male spade terminals inserted alongside socket blades.
- Confirm reference voltage stays stable under load–crank engine while monitoring live multimeter readings.
