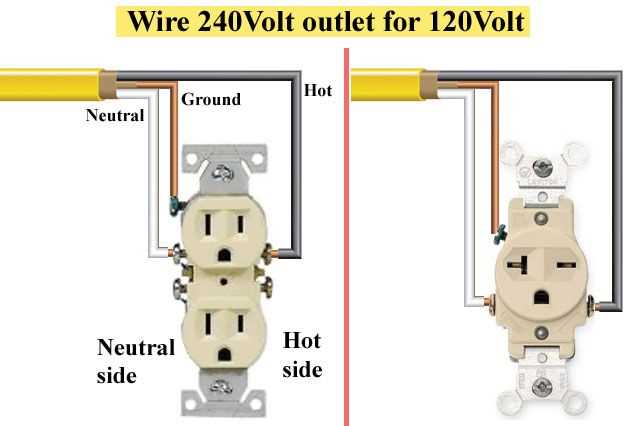

Directly connect neutral (white), hot (black), and ground (bare/green) wires to their respective terminals–neutral to the silver screw, hot to the brass screw, and ground to the green screw. Use 14-gauge copper wire for 15-amp circuits; 12-gauge is required for 20-amp installations. Ensure all connections are tightened to 12–14 inch-pounds of torque to prevent loosening under load.
Verify circuit protection matches wire gauge: a 15-amp breaker for 14-gauge wire, 20-amp for 12-gauge. Split receptacles for dedicated appliance use should have the tab between hot terminals removed to isolate circuits. Wrap exposed conductors clockwise around terminal screws in a half-moon bend for secure contact. Avoid back-stab connections in commercial or high-load applications–they fail under sustained current.
Test polarity with a multimeter before energizing: neutral-to-ground should read 0V, hot-to-neutral 115–125V, hot-to-ground 115–125V. If readings deviate, recheck wiring at both the panel and junction boxes. Install tamper-resistant receptacles in residential spaces to comply with NEC Article 406.12. For GFCI protection, connect line-side terminals to the supply, load-side to downstream outlets–miswiring leaves circuits unprotected.
Extend ground continuity beyond the receptacle: bond metallic junction boxes to the ground wire with a pigtail or ground screw. Use insulated wire nuts (red or tan) for wire splices to maintain safety under fault conditions. Label circuits at the breaker panel with location and load details to simplify future troubleshooting.
Standard Single-Phase Electrical Socket Configuration
Always verify polarity before energizing a circuit. Hot wires connect to brass-colored screws, neutral to silver screws, and ground to green screws. Reversing hot and neutral creates a severe shock hazard, even if the device appears functional.
For a basic 15-amp household receptacle installation:
- Strip 5/8″ of insulation from each conductor.
- Loop wires clockwise around terminal screws using needle-nose pliers.
- Tighten screws to 12-15 in-lbs torque to prevent loosening from vibration.
- Secure receptacle to outlet box with mounting screws, ensuring faceplate sits flush.
Twist conductors clockwise when joining with wire nuts. Minimum six twists required for secure connection. For 20-amp circuits, use 12 AWG copper wire; 15-amp allows 14 AWG. Never substitute aluminum wire without approved connectors rated for aluminum-to-copper connections.
Check continuity between receptacle terminals and breaker with a multimeter before powering up. Properly terminated connections show less than 1 ohm resistance. Any reading above 3 ohms indicates corrosion or loose connection requiring immediate rework.

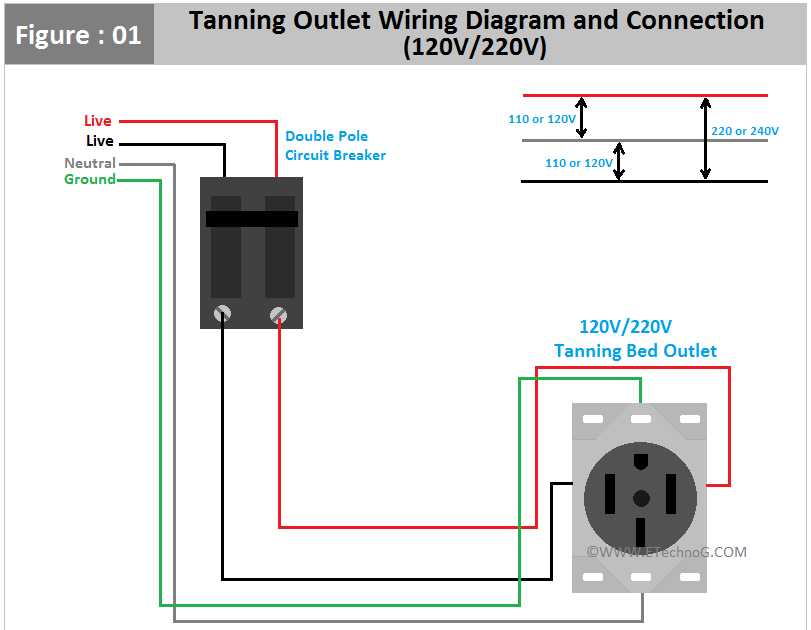

For split-circuit configurations supplying power to two separate feeds from a single dual-pole breaker:
- Remove the black tab connecting brass terminals.
- Attach separate hot wires to each brass screw.
- Neutral conductors remain joined via intact silver tab.
- Confirm each half supplies 120VAC to ground.
Anchor cables within 12 inches of outlet boxes using Romex staples or conduit strapping. Leave 6-8 inches of slack inside boxes for future servicing. Proper strain relief prevents conductors from being pulled out under tension during equipment installation or removal.
Key Elements of a Standard Household Electrical Receptacle
Always verify the voltage rating on the device’s label before connecting it–most North American residential circuits operate at 120V, not the 240V used in larger appliances. A miscalculation here risks overheating or immediate failure.
The three primary conductors in a typical setup include a live (hot) wire–usually coated in black or red insulation–carrying current from the breaker, a neutral (white) return path, and a ground (bare or green) safety conductor. Connecting these incorrectly can trip the breaker or create a fire hazard. Use a multimeter to confirm which conductor is live before making any adjustments.
Receptacles often feature two slots: the narrower slot connects to the live wire, while the wider slot attaches to the neutral. Some newer models include a third, round hole for grounding. Here’s how to identify each slot’s function:
| Slot Type | Wire Connection | Purpose |
|---|---|---|
| Narrower slot | Live (black/red) | Delivers power from the panel |
| Wider slot | Neutral (white) | Completes the circuit |
| Round hole | Ground (bare/green) | Diverts stray current |
When replacing an old receptacle, shut off the circuit at the breaker and test with a non-contact voltage detector to confirm no current remains. Loosen the terminal screws just enough to remove the wires–excessive force can strip the threads or damage the device. For back-wired models, insert stripped conductors fully into the push-in connectors, ensuring no bare wire extends beyond the clamp.
Tamper-resistant receptacles, now required in many jurisdictions, incorporate internal shutters to block foreign objects. If a plug doesn’t insert smoothly, check for debris or misalignment–never force it. Polarity-testing the installation guarantees the live and neutral wires align with the correct slots, preventing reversed polarity that can damage sensitive electronics.
Grounding is non-negotiable. If the existing box lacks a ground wire, either retrofit a ground path using an approved method (like a ground pigtail to a metal conduit system) or install a GFCI device to provide shock protection. Never omit this step in wet areas like kitchens or bathrooms, where GFCIs are mandatory within six feet of water sources.
How to Connect a Basic Electrical Socket Safely
Turn off the circuit breaker controlling the power line before touching any wires. Use a non-contact voltage tester to confirm the absence of current–hold it near the terminal screws. If the tester lights up or beeps, recheck the breaker panel. Working on a live circuit risks severe shock; never skip this step.
Prep the Cable and Terminals
Strip ¾ inch of insulation from the end of a 14/2 or 12/2 NM cable using wire strippers. Separate the bare ground, neutral (white), and hot (black) conductors. Loop each wire clockwise around its corresponding brass (hot), silver (neutral), or green (ground) screw. Secure the loops tightly–loose connections generate heat and can melt insulation.
Push the assembled socket into the junction box, aligning the mounting tabs with the screw holes. Drive the provided screws until snug, ensuring the faceplate sits flush against the wall. Restore power at the breaker and test the connection with a plug-in receptacle tester–it should display correct polarity: two amber LEDs for hot and neutral, a single red LED for ground. Miswiring requires immediate correction; reverse polarity creates fire hazards even if appliances appear to work.
Determining Live, Return, and Safety Conductors in Household Electrical Pathways
Use a non-contact voltage detector to confirm the live conductor before handling any connection. This wire typically carries 120-volt potential and will trigger the detector when positioned near an energized segment. Hold the device 1–2 cm from the wire insulation–avoid direct contact to prevent false readings from adjacent conductors. Live wires are often sheathed in black, red, or another dark color, but never rely solely on color coding, as exceptions exist in older installations.
Verify the return conductor by measuring voltage between the suspected live and neutral terminals. The multimeter should display approximately 120 volts AC. Return wires are usually white or gray in modern setups, though aluminum wiring from 1960s–70s installations may appear silver or tarnished. Examine the wire gauge: return conductors must match or exceed the amperage rating of the circuit (e.g., 14 AWG for 15-amp paths, 12 AWG for 20-amp).
- Check for stripped or exposed sections on return conductors–damaged insulation violates NEC 300.3(B) and creates short-circuit risks.
- Tighten terminal screws to 12–15 in-lbs torque; loose connections cause overheating.
- Test continuity from the return wire to the grounded service panel bus bar using a multimeter in ohmmeter mode (expected reading: <1 ohm).
Identify safety conductors by their bare copper or green/yellow-striped insulation. These paths terminate to the grounding screw in devices or directly to the grounding bus bar in the service panel. Probe the safety wire with a multimeter–it should register 0 volts relative to earth ground during normal operation. Abnormal readings (>5 volts) signal neutral-bonding violations or ground-fault conditions.
Examine wire terminations at devices and junction points:
- Wrap conductors clockwise around terminal screws (NEC 110.14).
- Bend hooks with lineman’s pliers for a secure fit–avoid over-tightening, which can fracture copper strands.
- Inspect push-in connections on tamper-resistant receptacles: springs must fully engage wire strands; tug gently to confirm retention.
For older knob-and-tube or armored cable setups, prioritize visual inspection. Live conductors in these systems often lack distinct coloring, while return paths may use cloth-insulated white wires. Use a clamp meter to measure current flow–safe conductors carry negligible amperage under no-load conditions. Replace deteriorated insulation with heat-shrink tubing rated for 600 volts (UL 224) and verify wire integrity with time-domain reflectometry if corrosion is suspected.
