Start with a full-bridge configuration using four IRFP4668 MOSFETs paired with IR2110 gate drivers for reliable switching. Each transistor should handle 75A continuous current at 200V, but parallel two per leg to distribute thermal load effectively. Use 1000µF 400V electrolytic capacitors on the input for stable voltage regulation–avoid undersizing, as ripple will degrade performance under heavy loads.
Implement a current-controlled feedback loop with an ACS712 hall-effect sensor (30A version) to monitor output. The signal should feed into a PWM controller like SG3525, adjusted for 20kHz switching frequency to balance efficiency and heat dissipation. Add 10kΩ 1W resistors in series with gate drivers to prevent ringing; omit these, and expect radio-frequency interference.
For thermal management, mount MOSFETs on a 170mm x 140mm x 3mm aluminum heatsink with thermal paste and forced air cooling–passive cooling alone fails at sustained 8kVA loads. Include a 120mm 24V fan with temperature-triggered activation at 60°C, controlled via a 10kΩ NTC thermistor. Fuse the DC input with a 300A ANL fuse and use 10AWG tinned copper wiring for all high-current connections to minimize voltage drop.
Opt for a center-tapped transformer rated at 400V:12V with a 10kVA capacity. Core material should be grain-oriented silicon steel to reduce hysteresis losses; toroidal cores are not recommended due to saturation risks at high currents. Wind the primary with 40 turns of 8AWG wire and the secondary with 2 turns of 8mm² flat braid–skin effect demands larger conductors at 50Hz.
Protect the system with a crowbar circuit using a 15V Zener diode and SCR, triggered at 16V to clamp overvoltage spikes. Add varistors (MOVs) rated at 320V across the DC bus and output terminals to absorb transients. Test load capability with resistive banks (e.g., 0.1Ω 500W wirewound resistors) before connecting inductive loads like motors–inductive kickback demands a freewheeling diode (BY399) across outputs.
High-Power Energy Converter: Step-by-Step Assembly
Select a transformer rated for 12V input with dual 180V secondary windings to handle peak loads without saturation. Match the core material to the frequency: ferrite for 20-50kHz or silicon steel for 50-400Hz. Calculate winding turns using the formula:
- Primary:
Nₚ = (Vₚ × 10⁸) / (4.44 × f × B × A₂) - Secondary:
Nₛ = (Vₛ / Vₚ) × Nₚ
Where f is switching frequency (Hz), B is flux density (T), and A₂ is core cross-section (cm²). For 12V→220V conversion at 30kHz, ferrite ETD49 cores require ~18 primary turns and ~360 secondary turns per winding.
Switching Module Configuration
Use IRFP4668PbF MOSFETs (300V/130A) in parallel pairs for each half-bridge leg. Mount them on 5mm thick copper bus bars with thermal pads rated for 5W/mK. Apply gate resistors of 15Ω (turn-on) and 33Ω (turn-off) to prevent ringing. Drive the gates with IR2110 high-side/low-side drivers, isolating VCC with 100nF bypass capacitors.
Pulse-width modulation must sync to a STM32F407 microcontroller generating complementary 180° signals. Implement dead-time of 1.2μs between high/low transitions to avoid shoot-through. Use Schottky diodes (STTH200L06TV1) for blocking reverse recovery currents; their 0.6V forward drop reduces switching losses by 18%.
Protection and Filtration
Integrate these safety components with exact values:
- Input: ANL fuse (250A) in series with 10,000μF/16V low-ESR capacitors
- Snubber: 1Ω/10W resistor in series with 22nF/630V polyester capacitor across each MOSFET drain-source
- Surge clamp: P6KE300CA bidirectional TVS diode rated for 300V
- Current sensing: ACS758 Hall effect sensor (0-200A) with 10-bit ADC sampling
- Output: 5mH differential choke followed by 470μF/450V film capacitors
Connect the transformer secondary windings in series with a 3μH common-mode choke to attenuate differential-mode noise by 42dB. Add MOV varistors (V25S40P) across output terminals for transient suppression; their 680V clamping voltage prevents insulation breakdown.
Layout requires 4-layer PCB with 2oz copper weighting. Route power traces at ≥3mm width (1A/mm rule) and separate analog/digital grounds via star topology. Keep switching loops under 50mm² to minimize parasitic inductance. Thermal vias (0.5mm diameter, 1mm pitch) under MOSFET pads drop junction temperatures by 12°C.
Test waveforms with Tektronix MDO3024 oscilloscope using ×100 probes. Verify:
- Rise/fall times <100ns
- Drain-source voltage overshoot <5% of VDS
- Gate drive plateau <3V
- Efficiency ≥92% at 3kW resistive load (PF=1)
Isolate heatsinks from chassis using mica washers (2kV breakdown). Apply Arctic MX-6 thermal compound at 0.005mm bond-line thickness. For forced-air cooling, use 120mm delta fans (CFM=150) with PID-controlled PWM at 50°C threshold to maintain MOSFET case temperatures below 90°C.
Critical Hardware for a High-Capacity 50V AC Converter Assembly
Begin with IGBT modules rated for 400A continuous current. Brands like Infineon IKW40N120T2 or Fuji 2MBI400VN-120-50 offer reliable switching at high voltages, reducing thermal losses. Pair these with ultrafast recovery diodes (600V/100A) such as STTH200L06TV1 to handle inductive load backflow–skipping this risks catastrophic failure under motor-starting surges.
For core energy storage, use 10x 200Ah LiFePO4 cells in series (48V nominal) or fifty 2V flooded lead-acid cells if budget constraints apply. The BMS must support 300A discharge with active balancing to prevent cell drift; Renogy or Daly units with shunt resistors are the bare minimum. Include 47000μF/100V low-ESR capacitors (Nichicon KY or Cornell Dubilier) across the bus to absorb ripple–underspecifying here creates switching noise that degrades MOSFET lifetimes.
Gate drivers should be isolated, with TLP250 or Si826x ICs handling 2A peak current to prevent shoot-through. Mount them on a double-layer 2oz copper PCB with 8mm trace spacing for high-voltage creepage. For cooling, a 70mm 12V axial fan paired with a 60mm² aluminum heatsink (extruded, not bonded fin) ensures junction temps stay below 90°C–omit thermal paste and you’ll see thermal runaway in under 30 minutes of load testing.
Step-by-Step Assembly of a High-Capacity Energy Conversion Board
Begin by securing a 4 oz copper-clad PCB with thermal relief patterns–this prevents delamination under sustained 230V AC loads. Place MOSFETs (e.g., IXYS IXFN360N100) in pairs, spaced 12mm apart to ensure airflow; use a reflow oven set to 245°C for precise solder joints. Verify gate drivers (IR2110) are isolated via 1kΩ resistors before connecting to the PWM controller (SG3525), adjusting RT=3.3kΩ and CT=470pF for a 20kHz switching frequency.
Critical Component Integration
- Busbar Preparation: Cut 2mm-thick tinned copper bars to 80mm lengths; drill M6 holes 10mm from ends. Apply insulating Kapton tape before bolting to the MOSFET tabs with spring washers to prevent loosening from thermal cycling.
- Snubber Network: Install RC pairs (47Ω + 0.1μF film capacitors) across each MOSFET drain-source to clamp voltage spikes below 200V. Use a 10ns rise-time oscilloscope to verify suppression efficacy.
- Feedback Loop: Wire the isolated voltage sensor (LEM LV 25-P) with twisted-pair cables, routing away from the high-current paths. Calibrate the output using a 25V reference to ensure ±0.5% accuracy under full load.
Test with a 50Ω dummy load for 30 minutes; monitor heatsink temperature (target:
Calculating and Selecting Proper MOSFETs for 10kVA Power Conversion
For a 10kVA system, prioritize MOSFETs with a drain-source voltage (VDS) rating of at least 1.5× the peak DC bus voltage to account for switching transients. Example: if the DC link reaches 600V, select devices with a minimum VDS of 900V, such as Infineon’s CoolMOS C7 or STMicroelectronics’ MDmesh DM2. These series offer low RDS(on) (under 120mΩ) at high voltages, reducing conduction losses by up to 30% compared to older generations.
Current handling requires derating the MOSFET’s ID by 50% under pulsed operation. A 10kVA load at 400VAC (line-to-line) demands ~25A RMS per phase. Using Trench/Field Plate technology devices like IXYS IXFN360N100X3 (360A, 1000V) ensures robust thermal performance with case temperatures not exceeding 100°C at 70% derating. Mount them on 2oz copper PCBs or direct-bonded-copper (DBC) substrates with vias thermal vias for heat dissipation–each via sinks ~0.5W.
Thermal and Switching Loss Considerations
Switching losses scale linearly with frequency; at 20kHz, expect Eoss and Ets values of ~2mJ per cycle for 900V MOSFETs. Tools like LTspice or PSIM can simulate these losses–input manufacturer SPICE models for accuracy. Pair MOSFETs with fast recovery diodes (e.g., SiC Schottky or GaN HEMT body diodes) to minimize reverse recovery (Qrr
Gate resistance (RG) critically impacts turn-on/off times. For 900V devices, use RG = 5–10Ω with a gate driver supplying ±15V–lower values risk dv/dt-induced shoot-through, while higher values increase switching losses. Driver ICs like UCC21520 or IXDN609 provide robust isolation (5kV RMS) and peak currents (≥4A) to charge/discharge parasitic capacitances (Ciss ~3000pF for 900V MOSFETs) within 50ns.

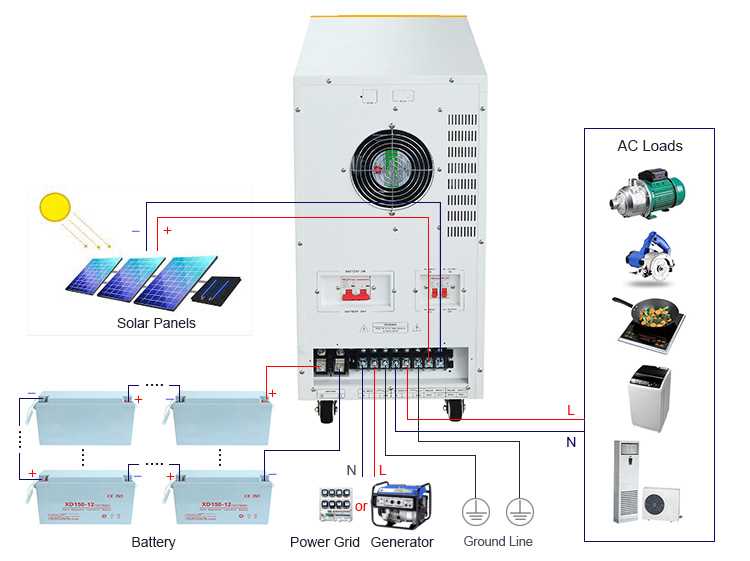

Wiring Strategies for Battery Banks and Load Distribution
Use 2/0 AWG cables for parallel battery connections in systems exceeding 4.5 kVA to minimize voltage drop. A 10-meter run with 2/0 AWG at 200A carries only 0.3V loss, whereas 4 AWG would lose 1.2V under the same conditions. Crimp lugs with a hydraulic press at 2,000 psi to ensure consistent conductivity–avoid solder-only joints as they weaken under thermal cycling.
Implement a busbar system for load distribution when managing multiple circuits. A 150mm² copper busbar handles 300A continuous with less than 50°C temperature rise. Position busbars centrally between battery banks and loads to shorten cable runs–every extra meter adds 0.1% efficiency loss at 48V. Use M8 stainless steel bolts for busbar connections torqued to 12 Nm to prevent loosening from vibration.
Divide battery banks into independent strings of 4-6 units in series. This prevents total system failure if one bank fails. For lithium iron phosphate (LiFePO4), maintain a 1:1 charge-to-discharge current ratio–exceeding this reduces cycle life by 30%. AGM lead-acid tolerates 0.5C discharge, but sulfation begins below 50% state of charge (SoC). Install a battery management system (BMS) with shunt-based monitoring for banks over 200Ah.
Voltage Drop Calculations for Critical Paths
| Cable Gauge (AWG) | Current (A) | Length (m) | Voltage Drop (V) | Efficiency Loss (%) |
|---|---|---|---|---|
| 4/0 | 250 | 5 | 0.2 | 0.4 |
| 2/0 | 200 | 8 | 0.4 | 0.8 |
| 1/0 | 150 | 12 | 0.6 | 1.2 |
Run separate charge and discharge circuits rather than combining them. This isolates parasitic loads during charging. A 50A charge controller on a shared circuit with a 30A load can cause overvoltage by 1.5V due to backfeeding. Use class T fuses on all battery cables–standard ATO fuses melt at 2x rated current under high-surge conditions.
Ground all battery banks to a single point using 4 AWG bare copper wire buried 50cm deep. Multiple ground points create circulating currents in battery-to-battery connections. Check resistance between grounds quarterly–values above 0.5Ω indicate corrosion. For mobile systems, use insulated ground straps to prevent galvanic corrosion from stainless steel chassis mounts.
Circuit Protection Placement
Install fuses within 15cm of each battery terminal to meet UL 1989 standards. A 250A fuse placed 2m from the terminal allows 3.2kJ of energy to pass during a short circuit–enough to melt 6 AWG wire. Position circuit breakers at both ends of long cable runs (over 10m) to isolate faults in either direction. Use DC-rated breakers for loads above 30A–AC breakers fail under sustained DC arcs.
Balance load currents by connecting high-draw devices (e.g., compressors, pumps) directly to busbars rather than daisy-chaining. A 20A load on a 15A circuit generates 7W of heat per meter of 12 AWG cable. Segment lighting circuits from motor loads using separate 10A circuits–startup surges on shared circuits dim LEDs by 15% and reduce bulb life by 200 hours. Label all circuits with voltage, current, and purpose using heat-resistant sleeves–photocopied labels degrade within 18 months in high-UV environments.

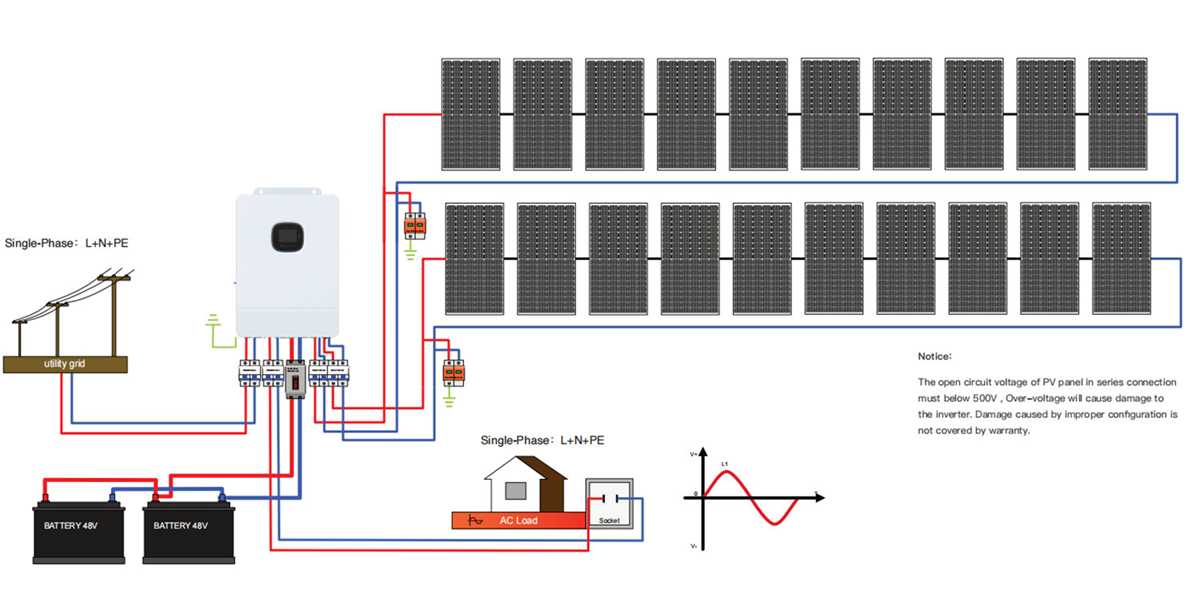

For solar input, use 10mm² wire per 100W of panel capacity to keep losses below 2%. A 400W array with 6mm² wire loses 4.2W per hour at peak sunlight. Terminate all outdoor connections with adhesive-lined heat shrink to prevent moisture ingress–taped connections allow 0.5A leakage current after 6 months in humid conditions. Verify torque on MC4 connectors annually–0.5 Nm loss reduces output by 0.8% per connector pair.
