For a dual-channel output stage delivering 50V RMS per side into 4-ohm loads, select a complementary Darlington pair (e.g., MJ11032/MJ11033) as the final transistors. These devices handle 30A peak currents and 250W dissipation, ensuring headroom for clipping-free operation at thermal limits. Bias each pair with a temperature-compensated VBE multiplier–use a 2N5401 transistor mounted on the heatsink with a 47kΩ resistor in series to stabilize idle current at 50-70mA per channel. Avoid fixed resistors alone; drift at elevated temperatures will degrade crossover performance.
Input buffering must isolate the source from the high-current stages. A discrete differential pair (BC546/BC556) with a current mirror load (matched 1N4148 diodes) reduces distortion below 0.05% THD at 1kHz. Couple this to a voltage gain stage with a 10kΩ feedback resistor and 1kΩ input resistor for a fixed gain of 11 (20.8dB). Use a 22µF polypropylene capacitor at the input to block DC while preserving low-frequency response down to 10Hz.
Power supply decoupling demands separate rails for preamp and output stages. Employ dual 35V transformers (500VA each) with full-wave bridge rectifiers (6A ultrafast diodes) and 10,000µF smoothing capacitors per rail. Regulate the preamp rail to ±15V using TO-220 regulators (e.g., LM317/LM337) with 1µF tantalum bypass caps at the regulator outputs. For the output rails, add RC snubbers (0.1Ω resistors + 0.1µF film capacitors) across each rectifier diode to suppress high-frequency transients.
Thermal management requires an extruded aluminum heatsink with a thermal resistance of ≤0.5°C/W. Mount the output transistors using insulating mica washers and thermal grease, securing them with torque-controlled screws (0.5Nm). Incorporate a dual-pole thermal cutoff switch (90°C) to disconnect the input signal if thermal runaway begins. Forced-air cooling (120mm fan at 12V) reduces heatsink size by 40% but introduces acoustic noise–balance airflow against desired listening conditions.
Grounding follows a star topology, with a single central point connecting input ground, output ground, and power ground. Use 16AWG twisted-pair wiring for all ground returns to minimize loop area. Separate the signal and power grounds until they meet at the star point; failure to comply risks hum and low-frequency instability. Include a MOSFET soft-start circuit (IRF540 + 100kΩ resistor + 100µF capacitor) to limit inrush current during power-on, protecting the transformer and diodes.

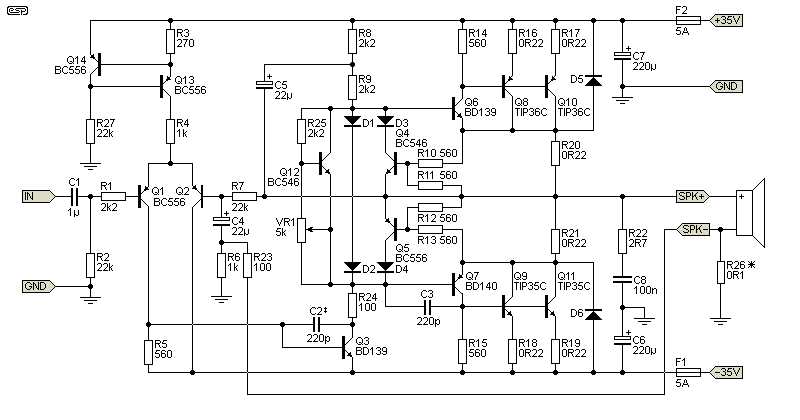

High-Power Dual-Channel Audio Circuit: Key Design Principles
Select a complementary pair of output transistors like MJL3281A (NPN) and MJL1302A (PNP) for the final stage–these handle 20A peak currents with 260V breakdown voltage. Bias them in class AB using matched diodes (e.g., 1N4007 stack) or a VBE multiplier for thermal stability, adjusting the trimmer to 50mV across emitter resistors (0.22Ω, 5W). The input differential pair should run on ±45V rails, drawing 5mA tail current from a constant-current source (LM334Z or discrete JFET).
Critical PCB Layout Considerations
- Route the ground plane as a star topology, separating signal, power, and speaker returns at a single point near the reservoir capacitors (4x 10,000µF, 63V).
- Keep high-current traces (≥3mm wide) short and direct; use 2oz copper for rails carrying >5A.
- Position the Zobel network (10Ω + 100nF) within 10mm of each output terminal to prevent HF oscillations.
- Mount output devices on a 10°C/W heatsink (e.g., Fischer SK129) with silicone pads and thermal compound; isolate screws with nylon washers.
For supply decoupling, place 0.1µF ceramic caps directly on IC pins (TL072 for preamp, NE5532 for driver stage) and 100µF electrolytic caps near each rail. Use a 5A slow-blow fuse in series with the primary AC line; secondary fuses (2.5A) protect individual channels. Test idle current by measuring voltage across emitter resistors–target 50mA per transistor–then verify clipping symmetry with a 1kHz sine wave at 30Vpp before connecting loads.
- Choose feedback ratio: a 20kΩ input resistor and 2kΩ feedback resistor set gain to 22dB (avoid exceeding +26dB to prevent instability).
- Include RC snubbers (10Ω + 4.7nF) on relay contacts if switching speaker outputs.
- Regulate the preamp supply to ±15V using LM7815/LM7915 to reject ripple; bypass with 1µF tantalum caps.
- Connect input grounds via 1MΩ resistors to prevent ground loops in multi-source setups.
Key Components Required for a High-Power Audio Output Stage
Select a complementary pair of power transistors like the 2SC5200/2SA1943 or MJL21193/MJL21194 for the output stage–these offer thermal stability up to 230W dissipation and current handling beyond 15A. Pair them with fast recovery diodes (UF4007) at the emitter-base junctions to clamp inductive flyback, preventing thermal runaway. For bias compensation, use a Vbe multiplier circuit with a 2N5551 transistor and adjustable trimpot (5kΩ linear) to fine-tune quiescent current to 50-100mA per device at idle; this minimizes crossover distortion in class AB operation.
| Component | Specifications | Purpose |
|---|---|---|
| Power supply | ±45V toroidal transformer (300VA); 10,000µF per rail capacitors | Delivers clean DC rails with low ESR for transient response |
| Differential input | NE5532 or OPA2134 op-amp | Reduces offset voltage to |
| Voltage amplifier stage | BC546/BC556 or MJE15030/MJE15031 | Drives output devices with |
| Protection | THERM-100 thermal sensor + TLP621 optocouplers | Shuts down at 85°C case temp; prevents speaker DC offset above 200mV |
Use metal film resistors (1% tolerance) in critical paths–0.22Ω 5W for emitter degeneration and 2.2kΩ for feedback networks–to maintain THD below 0.05% at full drive. Decouple each rail with 0.1µF polypropylene capacitors placed star topology with separate analog/digital returns to eliminate ground loops, using 10AWG wire for the power ground and 18AWG for signal returns.
Step-by-Step Wiring for Bridged Power Stage Layout
Begin by identifying the dual-channel output terminals on your device–these will serve as the foundation for bridging. Connect the positive (+) terminal of the left channel to the positive input of the load (speaker). The negative (–) terminal of the right channel must link directly to the same load’s negative terminal. This arrangement doubles the voltage swing across the load while maintaining stable grounding.
Ensure the ground references of both channels remain isolated from any common return path. Use thick-gauge wire (minimum 16 AWG) for the bridged connections to minimize impedance losses. If the device includes a bridging switch or jumper, engage it before proceeding–some models require this to disable internal protection circuits that prevent bridged operation.
Test the configuration with a low-power signal first, verifying no DC offset or asymmetrical output occurs. If distortion appears, recheck connections for reversed polarity or loose terminals. A bridged setup demands precise pairing of the channels; even minor mismatches in gain or phase response will degrade performance.
For high-current applications, add a separate power supply rail dedicated to the bridged output stage. Most standard linear supplies won’t sustain the peak demands of a full-power bridged circuit–upgrading to a toroidal transformer with dual secondaries (or a single high-current secondary) ensures consistent performance without voltage sag.
Capacitor and Resistor Values for Optimal Sound Output
For the power supply decoupling stage, use 1000µF to 4700µF electrolytic capacitors rated at 35V or higher. Pair them with 0.1µF ceramic capacitors in parallel to suppress high-frequency noise. Values outside this range risk power starvation during transients or excessive ripple。
Input coupling capacitors should be 1µF to 4.7µF polypropylene or polyester film types. Lower values (e.g., 0.47µF) roll off bass, while higher ones introduce phase shifts. For feedback networks, 47kΩ resistors with 0.022µF film capacitors provide stable frequency response–deviations alter tonal balance or introduce instability。
Emitter stabilization in transistor stages demands 100Ω to 1kΩ resistors; values below 220Ω reduce distortion but increase power dissipation. Bypass capacitors (e.g., 22µF tantalum) across emitter resistors prevent high-frequency attenuation while maintaining linearity。
Speaker protection circuits require 47Ω to 100Ω resistors in series with 10µF to 47µF non-polarized capacitors. Resistors below 22Ω risk excessive current during turn-on, while capacitors above 100µF delay relay engagement, stressing outputs。
NFB (negative feedback) resistors typically range from 10kΩ to 47kΩ. Lower values increase feedback but reduce open-loop gain, requiring precise matching (≤1% tolerance) to avoid harmonic distortion. For tonal shaping, substitute 10kΩ NFB resistors with 5.6kΩ for warmer midrange or 22kΩ for brighter treble。

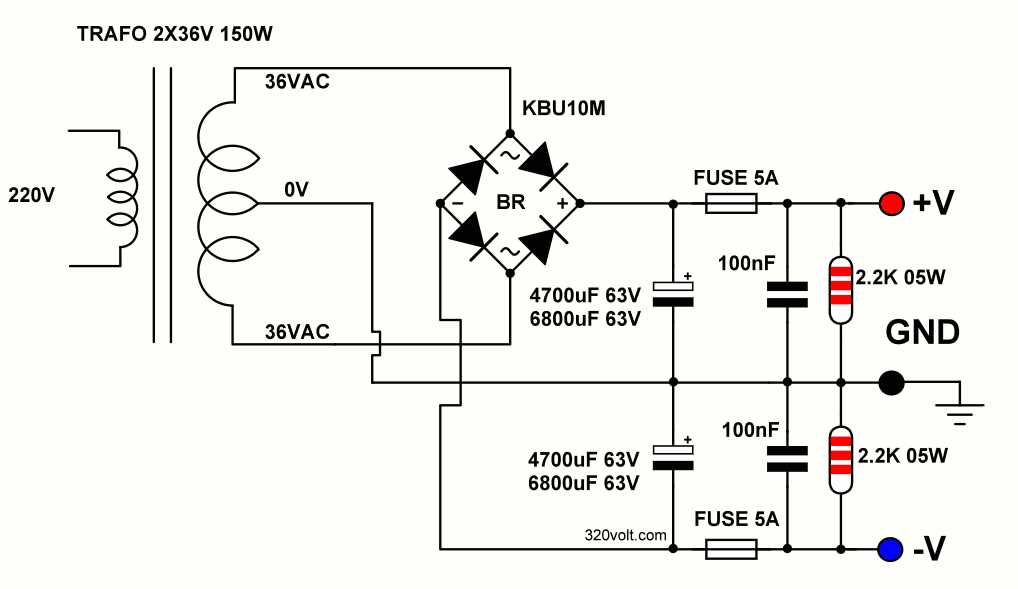

Power Supply Selection and Voltage Regulation for High-Power Audio Circuits
Use a dual-rail, center-tapped transformer with a secondary voltage rating of ±35V AC (RMS) for optimal performance. This configuration delivers approximately ±49V DC after rectification and smoothing, sufficient to drive complementary output stages without excessive heat dissipation. Avoid transformers with lower ratings, as they introduce voltage sag under load, degrading transient response and bass clarity. Verify the transformer’s VA rating matches the load: a 300VA unit ensures stable operation at peak demand, with a 20% safety margin for thermal overhead.
Implement a bridge rectifier using four 1N5408 diodes or a single KBPC3510 module to handle the current surge during capacitor charging. The 1N5408 supports 3A continuous current and a reverse voltage of 1000V, while the KBPC3510 handles 35A and 1000V–both exceed the circuit’s 2A average current requirement. Add 0.1µF ceramic capacitors across each diode to suppress high-frequency noise generated during switching. For larger setups, replace discrete diodes with a Schottky bridge (e.g., MBR20100CT) to reduce forward-voltage drop and improve efficiency.
Capacitor Bank Configuration
Combine 10,000µF 63V electrolytic capacitors in parallel for each rail to achieve a total capacitance of 40,000µF, minimizing ripple to under 20mV peak-to-peak at full load. Use low-ESR types (e.g., Nichicon PW or Panasonic FC) to preserve audio quality; standard capacitors introduce audible distortion at high frequencies. Install 1µF polypropylene film capacitors in parallel with electrolytics to counteract inductive effects and maintain stability during dynamic transients. Mount capacitors as close as possible to the output stage to reduce trace inductance.
Regulate auxiliary voltages (e.g., preamp sections) with LM317/LM337 adjustable regulators configured for ±15V outputs. Set the output voltage via a precise voltage divider: use 240Ω and 2.2kΩ resistors for 15V, ensuring a minimum load current of 10mA to prevent regulation dropout. Add 1µF tantalum and 0.1µF ceramic bypass capacitors at both input and output terminals to eliminate high-frequency instability. For lower noise, substitute LM317 with LT1085 or LT1963, which feature improved ripple rejection (75dB vs. 60dB) and thermal performance.
Protection and Thermal Considerations
Integrate a soft-start circuit using an NTC thermistor (e.g., Ametherm SL32 5R) in series with the transformer primary to limit inrush current during power-up. Follow this with a 4A slow-blow fuse–never rely on electronic protection alone, as it may fail under sustained short-circuit conditions. For rail protection, add 15A resettable PPTC fuses (e.g., Littelfuse 1160) or crowbar circuits using SCRs (e.g., MCR100) triggered by overvoltage detection. Ensure the power supply PCB traces are at least 3mm wide for 2A current paths, or use 2oz copper for higher reliability.
Calculate heat sink requirements using the thermal resistance formula: RθJA = (TJ MAX – TA) / PD. For a TO-220 regulator dissipating 5W in a 40°C ambient environment, select a heat sink with RθSA ≤ 6°C/W (e.g., Aavid 530002B00000G). Apply thermal compound (e.g., Arctic MX-6) between the device and heat sink, and secure with spring-loaded clips to maintain consistent pressure. Avoid excessive cooling, as over-dimensioned heat sinks increase mechanical stress and cost; instead, prioritize low-noise fan-assisted solutions if passive cooling is insufficient.
