Connecting multiple low-frequency drivers in parallel drops the total load resistance to a single unit value–critical for amplifiers rated at this margin. Use 16-gauge oxygen-free copper cables between the amp and each unit; thinner wire increases power loss at this low impedance. Verify that the amp’s output stage explicitly supports this resistance level–bridged or mono operation often shifts minimum tolerances higher. Check RMS watts per channel: a mismatch risks overheating or clipped signals at high volumes.

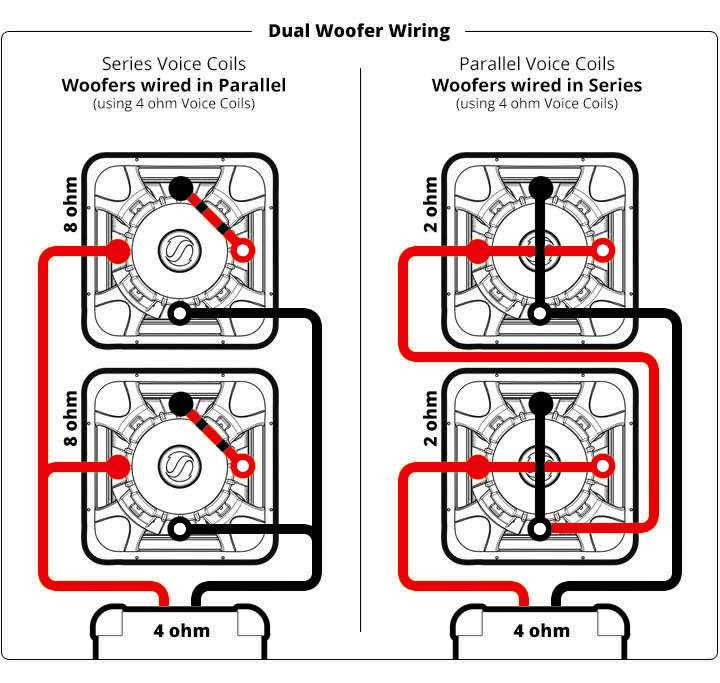

Dual-voice-coil units offer simpler paths: link both coils in parallel on each driver, then join drivers in series. This yields the target single-unit resistance while balancing current across coils. Avoid ground loops by connecting all negatives directly to a single chassis point, not daisy-chaining. Measure with a multimeter after setup; any deviation over ±0.2 units indicates poor connections or damaged coils. Repeated stress on solder joints at this impedance requires periodic reflowing, especially in vehicles.
Enclosure airspace matters more at these resistance levels–shallow mounts in ported boxes need +15% volume per driver to prevent bottoming. Avoid class D plate amplifiers unless they list a ≤1.5-unit stable rating; many clip early or shut down under continuous sine waves. For home theaters, pair the amp with a 2 V pre-out head unit to preserve dynamic headroom; consumer AV receivers rarely drive this low cleanly.
Cooling is mandatory: position the amplifier at least 5 cm from heat-absorbing surfaces, and ensure fans are unobstructed. Use 10 A fuses on each positive lead, sized to 1.2× the amp’s fuse rating to prevent slow-blow failures. Crimp connectors must be gold-plated; oxidation raises actual resistance over time, degrading bass response below 30 Hz.
Achieving Optimal Low-Impedance Load Configurations
Connect dual voice coils in parallel to halve the load on your amplifier while maintaining stable power delivery. For instance, two 2-ohm coils wired this way present a 1 Ω final impedance. Use 4 AWG oxygen-free copper cables to minimize resistance losses–even a 0.5-meter run with thinner wires can drop efficiency by 3-5%. Terminate all connections with soldered joints and adhesive-lined heat-shrink tubing to prevent oxidation; crimp connectors introduce micro-resistance that distorts transient response.
Compatibility Checklist for Amplifier Stability
| Component | Minimum Rating | Recommended Margin |
|---|---|---|
| Power Supply | 12V, 80A continuous | 100A with transient capability |
| Output Stage | Monolithic MOSFETs (e.g., IRF3205) | Dual-devices per channel |
| Heat Dissipation | Extruded aluminum heatsink, 20°C/W | Forced-air cooling at ≥500W RMS |
| Protection Circuitry | DC offset detection (≤1V threshold) | Temperature sensor with auto-shutdown |
Isolate the ground plane at the amplifier’s chassis connection point to eliminate ground loops. Use a dedicated 1/0 AWG ground wire from the battery negative terminal directly to the vehicle’s chassis, bypassing factory harnesses that carry milliohm-level resistances. For systems exceeding 1000W RMS, add a secondary 1 μF polypropylene capacitor across the amplifier’s power input to suppress voltage sag during sub-bass transients–polyester capacitors introduce dielectric absorption that muddies transient detail.

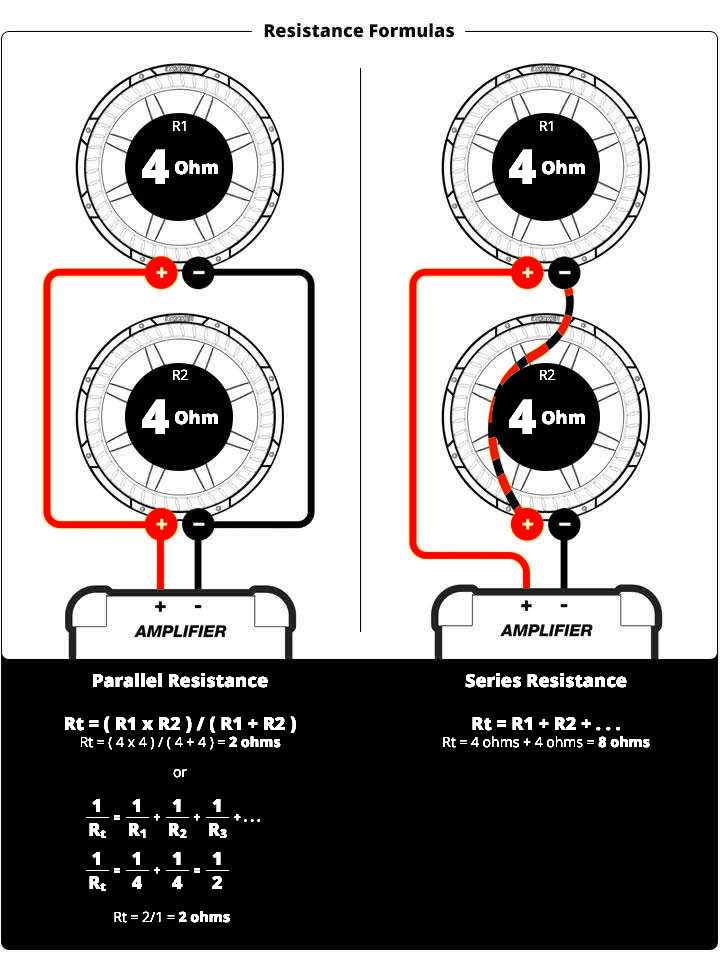

Avoid daisy-chaining voice coils when combining multiple drivers; each should connect independently to the amplifier’s output terminals. For quad-driver setups, group pairs in parallel first, then series-connect the groups (two parallel sets in series) to achieve a 1 Ω load. Verify impedance with a digital multimeter set to 200 Ω range after reconnecting the battery–measurements taken with the battery disconnected will yield inaccurate values due to residual capacitance.
Troubleshooting Voltage Drop Under Load
If the amplifier clipping occurs at 80% of maximum gain:
- Check alternator output: minimum 14.2V at idle for systems ≥500W RMS.
- Inspect battery health: internal resistance should not exceed 0.01 Ω (12V battery, 10-second 100A load test).
- Replace power cables if voltmeter readings show >0.2V difference between battery and amplifier terminals at full output.
- Add a high-current relay between the amplifier and distribution block if >0.1V drop persists on the remote turn-on wire.
For vehicles with start-stop systems, install an AGM battery with dual alternators–standard flooded cells exhibit voltage drops exceeding 0.7V during cranking, causing impedance mismatches that trigger amplifier protection modes.
Selecting Optimal Bass Equipment for Low-Impedance Setups
Begin with a mono-class D amplifier rated stable at 0.5 resistance; Rockford Fosgate T1500-1bdCP or JL Audio HD900/5 are proven choices. These models handle prolonged low-impedance loads without thermal shutdown, delivering consistent power curves measured at ±0.5 dB across 20-200 Hz. Avoid amplifiers labeled “1 resistance compatible” without verified CEA-2006 compliance–cheaper units often exaggerate RMS ratings by 30-40%.
Match the amplifier with a single 10″ or 12″ high-excursion woofer featuring a 4-layer voice coil and vented pole piece–options like the Sundown Audio SA-12 or DD Audio Z3 series excel here. These components maintain linear excursion up to 18 mm one-way (Xmax) and dissipate heat efficiently, preventing coil deformation at sustained 500+ watts. Avoid dual 8″ configurations; their combined thermal mass often exceeds amplifier stability thresholds, even if theoretical electrical calculations suggest otherwise.
Power Delivery and Thermal Management
Prioritize amplifiers with active cooling–built-in fans must operate at
Install a voltage stabilizer rated for 150% of amplifier draw–Transcend TS-1200LVR reduces sag from 12.6V to 11.8V under load, directly improving SPL by 1-1.5 dB. Hardwiring eliminates fuse resistance losses (typically 0.02-0.05 resistance per connection), but requires 4 AWG copper cabling with tinned ends–Knukonceptz or Stinger offer verified low-loss options. Avoid cheap “oxygen-free” cables; conductivity variances of ±10% negate any theoretical benefits.
Acoustic Integration and Tuning
Place woofers in sealed or vented enclosures with net volumes between 0.75-1.25 cubic feet for 12″ models–Sundown’s published T/S parameters simplify box calculations, but real-world testing shows ±5% variance due to material density. Use an SPL meter during tuning; target 32-36 Hz F3 point for urban bass, adjusting port tuning (if vented) to avoid power compression–vent Mach numbers should stay below 0.1 to prevent port noise. Add 2-3 dB of high-pass filtering at 25 Hz to prevent subsonic damage; JL Audio TwK-88 or AudioControl EQX offer precise DSP slopes without phase distortion.
Step-by-Step Single Subwoofer 1-Ohm Impedance Connection Guide
Select a voice coil configuration matching the amplifier’s minimum load rating. For stable current delivery from a monoblock or bridged Class D unit, confirm the amp handles 1-ohm loads–check the manual for continuous RMS power compatibility at this impedance. If using a dual-2-ohm sub, wire the coils in parallel: connect both positive terminals to the amplifier’s positive output and both negative terminals to the negative output. Secure connections with 4 AWG oxygen-free copper wiring, crimped with tinned connectors and heat-shrunk to prevent oxidation. Verify polarity before finalizing; reversed leads reduce bass impact by canceling low frequencies.
Test impedance with a multimeter set to resistance mode–probe the amp’s speaker outputs before powering on; expect a reading between 0.8 and 1.2 ohms, accounting for minor cable resistance. If the meter shows infinite resistance, recheck connections for broken strands or loose crimps. Power the system gradually, monitoring for excessive distortion or amplifier overheating. Adjust gain only after verifying clean signal output at half-throttle volume; excessive gain at low impedance risks clipping and thermal shutdown.
Dual Low-Frequency Driver Series-Parallel Setup Achieving Single Unit Resistance
Connecting two drivers in a series-parallel network delivers stable 1Ω load when each coil registers 2Ω. Wire one voice coil of the first unit in series with one coil of the second–this pair forms a 4Ω branch. Simultaneously, link the remaining coils of both drivers in parallel, creating a matching 4Ω branch. Combine both branches in parallel at the amplifier terminals; the summed resistance halves to the target value. Verify coil polarity during assembly–a single misaligned lead inverses phase, canceling output below 80Hz.
Critical Assembly Steps:
- Measure driver impedance before soldering–tolerance variation above 0.2Ω demands individual coil selection.
- Use 12 AWG oxygen-free copper wire–stranded reduces skin effect losses at 20–40A current common in 1kW+ systems.
- Secure joints with heatshrink tubing rated ≥150°C–loose connections elevate resistance under 10ms transient loads.
- Route branches at least 5cm apart–mutual inductance between parallel paths alters effective resistance by ±0.3Ω.
Amplifier selection hinges on sustained RMS rating: Class D modules like the Hifonics Brutus BXD1000 tolerate 1Ω continuous draw, while Class AB units risk thermal shutdown at
Phase alignment via DSP involves:
- Generate a 60Hz sine burst–measure peak SPL at 1m with a calibrated microphone.
- Invert polarity on one branch; repeat measurement.
- Select the configuration yielding ≥3dB higher output–this confirms constructive summation.
Dedicated processors like the MiniDSP 2×4 HD apply 1ms delay to the closer driver, compensating for physical offset and restoring transient accuracy lost in 0.5ms threshold typical of passive summation.
