Single-Impedance Connection: Hands-On Setup
Begin by pairing each subwoofer terminal to its dedicated amplifier channel using 8-gauge copper wire. Ensure the wire length from the amplifier output to the speaker input does not exceed 1.8 meters–longer runs introduce resistance that skews performance. For dual-coil setups, connect both coils in parallel: link the positive terminals together and the negatives together, then run a single twisted pair to the amplifier. Verify connections with a multimeter set to continuity mode to rule out short circuits or breaks.
| Configuration | Minimum Wire Gauge | Maximum Run Length | Expected Power Delivery (Watts) |
|---|---|---|---|
| Single 4-ohm coil, one channel | 10 AWG | 3.0 m | 500 W RMS |
| Dual 2-ohm coils in parallel | 8 AWG | 1.8 m | 800 W RMS |
| Dual 4-ohm coils in series | 12 AWG | 4.5 m | 400 W RMS |
Secure terminal connections with tinned copper spade lugs crimped and soldered–avoid bare wire twists as they oxidize and loosen under vibration. Apply dielectric grease to the crimped joints and bolt each lug to the binding post using a #2 Phillips driver, tightened to 3 Nm. Position the amplifier within 30 cm of the enclosure to minimize inductance; mounting the amp directly to the box sidewall reduces interference from external signals.
Match amplifier impedance precisely: if the setup presents 1 Ω, the amp must be stable at that rating. Check manufacturer specs for continuous power output at 1 Ω–many class-D monoblocks deliver 60–70% of peak power in this range. Cooling is critical: install a 12V 120 mm fan over the amplifier heatsink, oriented to exhaust hot air away from the speaker magnet. Run temperature checks during prolonged tests–any reading above 70°C indicates inadequate airflow.
Route power cables away from signal paths; cross RCA interconnects at 90-degree angles if unavoidable to cut interference. Ground the amplifier to the chassis at a single point using a star topology–avoid daisy-chaining grounds to prevent ground loops. For testing, feed a 50 Hz sine wave at 2/3 rated power for 60 seconds; monitor voltage drop across the terminals–any sag beyond 0.2 V suggests high resistance in connections or undersized wire.
For final tuning, adjust gain structure so that clipping occurs simultaneously on the amplifier and head unit. Use an oscilloscope or distortion meter set to 1 kHz; target less than 0.5% THD before compression. Double-check all connections after the first drive–vibration loosens lugs even when torqued correctly. Keep a torque wrench in the toolkit for quarterly maintenance checks.
How to Determine the Right Conductor Size for a Single Unit Resistance Setup
Start with the maximum current the circuit will carry. For a 1A system, use at least 18 AWG copper wire if the run is under 3 meters. Double the cross-section for every 3A increment: 15 AWG for 3A, 12 AWG for 6A. Keep ambient temperature below 30°C; derate by 10% per 5°C increase above this threshold.
Measure voltage drop tolerances. A 1V drop across 5 meters of 18 AWG at 1A equates to 20 mV per meter. If the setup requires less than 5% total drop, use 14 AWG for runs over 2 meters or 12 AWG for 4 meters. Online calculators like WireSizeCalculator.net provide exact values for aluminum, copper-clad, and stranded variants.
Account for skin effect in high-frequency applications. At 1 kHz, the effective resistance of 16 AWG copper increases by 12% compared to DC. For pulsed signals, ensure the wire’s diameter exceeds three times the skin depth, which at 10 kHz is 0.66 mm for copper. Litz wire with individually insulated strands mitigates this for currents above 5A.
Select insulation based on environment. PVC-rated 60°C suffices for dry, indoor setups, but silicone-rated 200°C is mandatory for engine bays or high-heat zones. Check derating curves: 10 AWG THHN wire rated 40A drops to 32A in conduit with three or more conductors. Always verify local codes–NEC Table 310.16 lists ampacities for 60°C, 75°C, and 90°C insulations.
Factor in connectivity. Soldered joints add 0.5 mΩ per point; crimped terminals vary by type–closed-barrel adds 0.2 mΩ, open-barrel 0.8 mΩ. For a 5-meter run with two splices and four terminals, total resistance rises by 3 mΩ, potentially altering performance. Use gold-plated connectors for signals below 100 mA to prevent oxidation-induced noise.
Stranded wire improves flexibility but requires 20% larger diameter than solid core for the same current capacity. A 10 AWG stranded conductor rated for 30A at 75°C needs 8.3 mm² copper; equivalent solid core requires 5.26 mm². Twist ratio matters: 10 twists per 30 cm reduces inductance by 15% compared to 5 twists per 30 cm.
Verify calculations with a multimeter. Measure the actual resistance of the installed path; discrepancies often stem from overlooked joint resistance, incorrect gauge, or underestimated temperature effects. For transient loads, oscilloscope readings ensure peak current doesn’t exceed the wire’s fuse rating–most automotive 14 AWG is fuse-protected at 15A, regardless of theoretical capacity.

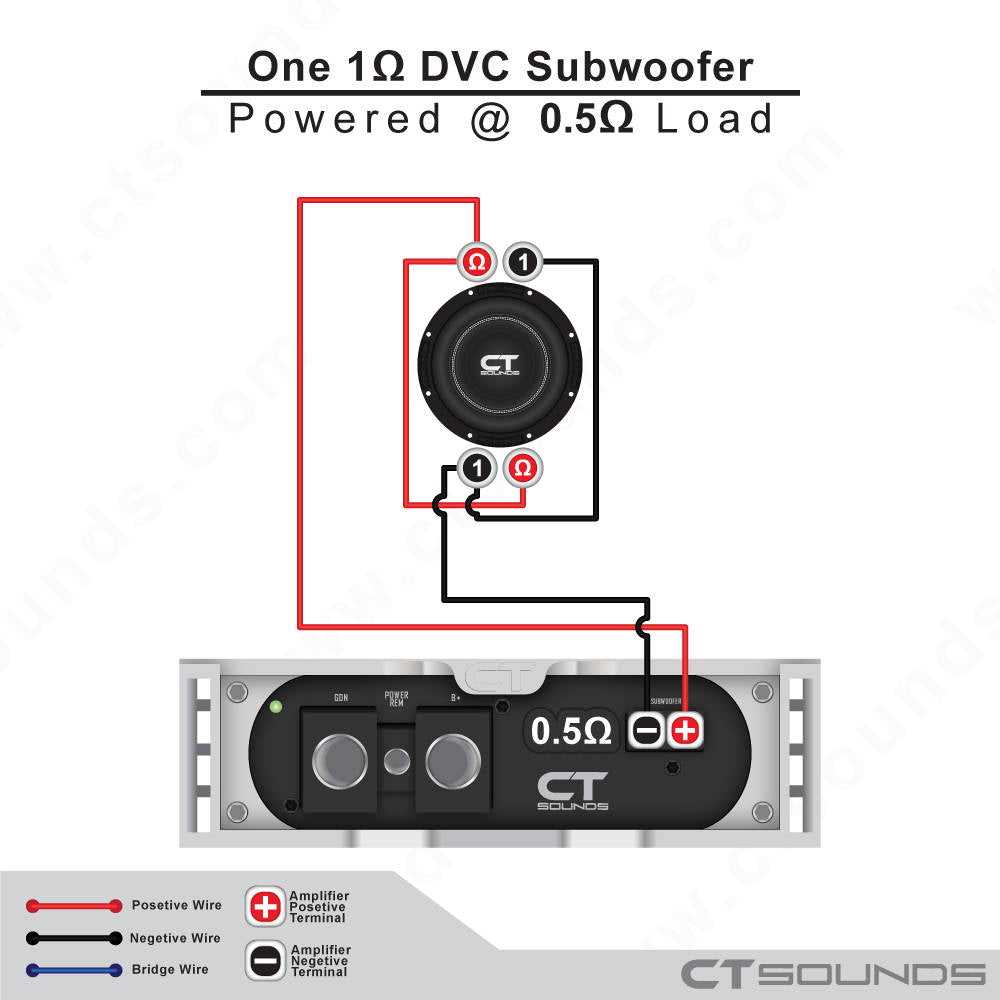

Step-by-Step Dual Voice Coil Subwoofer Connection for Ultra-Low Resistance
Begin by verifying the subwoofer’s specifications: each coil must handle half the target resistance when paralleled. For instance, if the goal is 1-ohm stability, each coil should be rated at 2 ohms. Confirm this with a multimeter before proceeding to avoid overheating or amplifier shutdown.
Gather these tools: 8-gauge oxygen-free copper cables, heat-shrink tubing, a soldering iron (40W minimum), and crimp connectors. Ensure all connections are secured with dielectric grease to prevent oxidation, especially in high-current setups where corrosion accelerates power loss.
- Strip and tin the wires: Remove 0.5 inches of insulation from each cable end. Apply solder to the exposed strands to prevent fraying, which can increase resistance by up to 15% in poor splices.
- Connect coils in parallel: Join the positive terminal of Coil A to the positive terminal of Coil B. Repeat for the negative terminals. Use a voltmeter to confirm zero resistance between the parallel points–any reading above 0.1V indicates a faulty splice.
- Route cables to the amplifier: Attach the combined coil terminals to the amplifier’s mono output. Use star grounding: run a single ground cable from the subwoofer basket to the vehicle’s chassis, avoiding daisy-chaining to prevent ground loops.
Test the setup with a 50Hz test tone at 50% amplifier gain. Monitor the subwoofer’s cone movement–symmetrical excursion confirms balanced coil performance. If distortion occurs, recheck parallel connections; even a 0.5Ω mismatch can cause uneven coil loading.
For long-term reliability, encase all splices in adhesive-lined heat-shrink tubing. Avoid electrical tape, which degrades under heat and vibration. Secure cables every 12 inches with nylon ties to prevent fatigue-induced breaks, a common failure point in high-power systems.
Adjust amplifier settings: set the low-pass filter to 80Hz (24dB/octave slope) and disable bass boost. High-pass filters on midrange speakers should start at 100Hz to prevent phase cancellation. Verify stability by gradually increasing volume–clipping typically occurs beyond 90% of rated power in low-resistance setups.
- Troubleshooting:
- Overheating coils: Reduce cabin temperature; even a 5°C increase lowers power handling by 8%.
- Intermittent signal: Check for loose crimps by tugging each connection with 10 lbs of force.
- Distorted bass: Measure amplifier voltage at idle–drop below 12.6V indicates insufficient alternator output.
Document the final configuration: photograph cable routes, amplifier settings, and ground points. This reference aids future diagnostics, such as diagnosing a blown coil (evidenced by infinite resistance on one channel). Replace faulty components immediately–driving with asymmetric resistance risks amplifier failure.
Common Mistakes When Connecting Amplifiers to a Single Resistance Setup
Avoid parallel hookups for amplifiers not rated for twice the power draw at half the impedance. Most Class AB units handle 2Ω bridged safely but degrade performance or overheat at 1 Ω when wired in parallel. Check the spec sheet: if the stable minimum is listed as 2 Ω, never combine channels to reach lower values–even transient dips during bass peaks trigger protection circuits.
Using undersized cables between the amp and speakers accelerates voltage drop. Copper wires thinner than 4 AWG for 800W+ setups lose efficiency; at 1 Ω, resistance rises exponentially. A 20-foot run with 8 AWG loses ~0.2V at full power, distorting transients. Replace with 2 AWG or thicken conductor cross-section if runs exceed 12 feet.
Skipping inline fuses invites catastrophic failure. A single 1 Ω path flows ~60A at 600W. Without a fuse near the battery, short circuits melt insulation before circuit breakers trip. Use ANL fuses sized at 150% of amplifier RMS rating–no “just for testing” bypasses.
Ground loops form when chassis grounds share paths with signal return. Connect all grounds to a single point on the battery terminal, not the body. Paint, rust, or thin factory chassis straps increase impedance; sand contact surfaces and use star washers to ensure
Equalizing capacitor placement before power distribution causes transient spikes. Mount capacitors directly across amplifier power terminals, not at the distribution block. A 1 Farad capacitor 6 feet from the amp reacts slower than cable inductance at 1 Ω, delaying voltage stabilization by ~50 ms.
Mixing voice coil configurations–series-parallel hybrids–unbalances current draw. A dual 2 Ω coil wired to 1 Ω pulls twice the amperage through one voice coil if improperly matched. Verify coil ratings before wiring; solder connections to avoid oxidation increasing resistance over time.
Ignoring thermal derating leads to clipping. Amplifiers rated at 1 Ω often reduce power output above 40°C; factory specs assume 25°C ambient. If mounting on fiberglass or under seats, add active cooling or reduce power by 30%–a 1000W amp outputs 700W sustainably in 60°C conditions.
