For the 2008 sedan model, the head unit harness uses a 12-pin white connector at the rear. Pin assignments follow a standardized layout: pins 1–4 handle constant 12V power and ground, while pins 7–10 carry speaker outputs–left front positive, right front positive, right rear positive, and left rear positive respectively. Verify continuity with a multimeter before attaching any aftermarket components to avoid short circuits.
If replacing the factory stereo, note that the gray 8-pin connector adjacent to the main harness provides antenna control and illumination signals. Disconnect the negative battery terminal first; failure to do so risks triggering fault codes in the vehicle’s computer module. Label each wire during disassembly–color codes may differ slightly between base and premium audio packages (e.g., gray/violet for rear left speaker vs. gray/black in some trims).
Aftermarket adapters exist for seamless integration, but manual splicing ensures reliability. Use 18-gauge copper wire for extensions and crimp connectors with heat shrink tubing for corrosion resistance. Test each connection with the ignition in ACC mode before reassembling the dash; intermittent power often traces to improper ground connections at the chassis mount point beneath the driver’s side kick panel.
Store original wiring diagrams alongside your work–factory service manuals specify resistance values (typically 4 ohms per speaker) and acceptable voltage drops across connections. Deviations beyond ±0.2V suggest faulty wiring or faulty speakers. Keep documentation for future diagnostics; this saves hours when troubleshooting issues like dimmed displays or failed amplifier engagement.
2008 Model Year Sedan Audio Harness Connection Guide
Locate the factory wiring harness behind the dashboard’s center stack–it’s a 12-pin white plug with clipped corners. The ground wire is always black with a white stripe; attach it first to the chassis bolt near the climate controls to prevent humming before powering up. Verify wire gauge: power feeds should be 14 AWG, speaker leads 18 AWG.
Match colors precisely:
- Red (constant 12V) – fuse #22 (10A) in the under-dash fuse block
- Yellow (switched 12V) – fuse #34 (15A) behind glove box
- Orange/white (illumination) – taps into dimmer circuit, max 3A draw
Connect these in the listed order to avoid back-feeding the accessory circuit.
Speaker polarity runs as follows–front doors: gray (+), gray/black (−); rear deck: violet (+), violet/black (−). Cross-check resistance with a multimeter: each coil should measure 4 ohms impedance. If readings jump above 5 ohms, inspect door jamb plugs for corrosion.

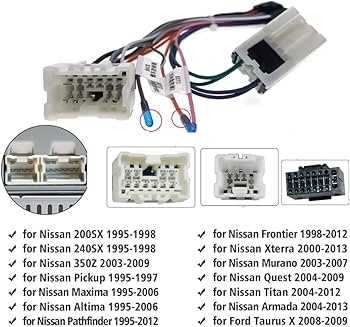

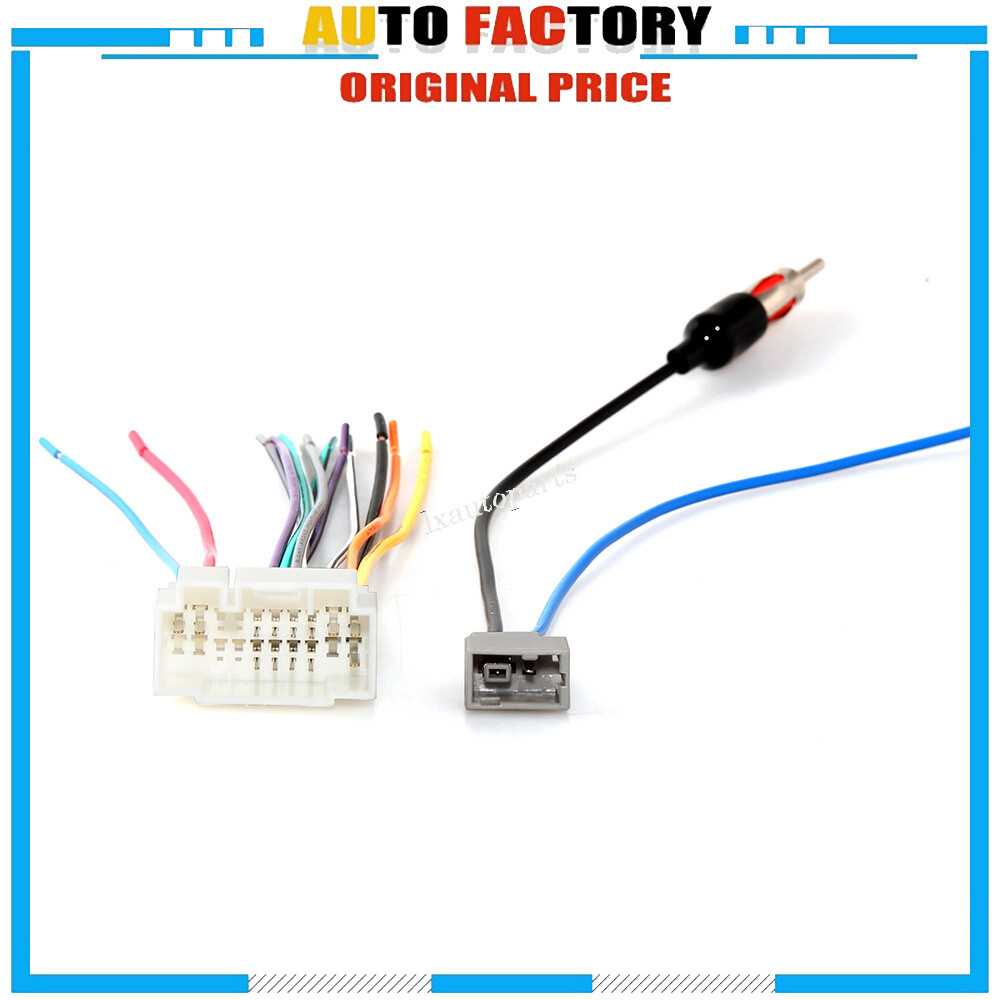

Aftermarket adapters labeled “Metra 70-1761” include a blue connector that slides directly onto the OEM harness without cutting. Skip this step only if retrofitting a higher-power amplifier; in that case splice the remote turn-on (solid blue) to the amplifier’s trigger with 16 AWG silicone wire, keeping runs under 18 inches.
Isolate the pink/black (vehicle speed sensor) line if integrating a GPS-capable head unit. Wrap it with electrical tape and tuck it into the loom–never splice here, as wrong connections disable traction control warnings. Double-check fuse values after installation: a blown 15A switched fuse indicates reversed polarity at the yellow lead.
For steering-wheel control retention, procure an ASWC-1 module. The module’s purple harness plugs into the vehicle-side 20-pin connector next to the OBD-II port; pairing takes under 3 minutes using the vehicle’s VIN on the Scosche app. If buttons behave erratically, recalibrate the module at 80 mph cruise–this resets the CAN bus signal threshold.
Secure all splices with heat-shrink tubing and solder; crimp connectors introduce resistance over time. Route harnesses away from HVAC ducts and sharp edges behind the instrument panel. Final step: reconnect the negative battery terminal while seated inside the cockpit to confirm startup chirps and no dashboard warnings.
Finding the OEM Audio Interface Plug in a 2008 Sedan
Start by removing the center dashboard trim panel. Slide a trim removal tool between the panel and the console, beginning at the bottom edge near the climate controls. Apply gentle pressure to release the clips–five are positioned along the perimeter, two on each side and one at the top center. Avoid forcing the panel; damaged clips require replacement.
The factory audio system’s harness connector hides behind the climate control unit. After detaching the trim, unbolt the climate module (two 10mm screws) and carefully pull it forward just enough to expose the wiring bundle. The connector you need is a 16-pin rectangular plug, typically white or gray, secured with a single locking tab on the upper edge.
Identifying the Correct Connector
Locate the wiring cluster near the lower left side of the audio head unit cavity. The target plug will have two distinct ridges on the housing–one on the left side and one at the bottom–matching the shape of the aftermarket harness adapter. Other connectors in the area, such as the HVAC plug or power distribution block, lack these ridges and have different pin counts.
Disconnect the plug by pressing the release tab upward while pulling the connector straight out. Avoid twisting or angling the removal motion, as this can bend the pins. If resistance is felt, check for hidden retaining clips or debris obstructing the path. The pins are delicate; excessive force risks breaking them, requiring a full harness replacement.
Verifying Harness Integrity
Inspect the connector for signs of corrosion or melted plastic, especially if the sedan has experienced electrical issues. Pins should appear clean, straight, and uniformly spaced. Any discoloration or misalignment suggests prior overheating–test the plug with a multimeter before connecting aftermarket components. Continuity should read near 0 ohms across all 12 speaker and power terminals.
Reassembly requires aligning the climate control module’s mounting tabs with the dashboard frame before securing the screws. Ensure the audio system’s harness plug is fully seated before reattaching the trim panel. Snapping the clips back in place without gaps confirms proper alignment, preventing rattles or loose fitment during operation.
Decoding Cable Hues and Roles for Custom Audio Unit Setup
Begin by locating the 12V constant power lead–typically a thick yellow or orange strand. This conductor must connect directly to the battery with an inline fuse (15-20A) within 18 inches to prevent voltage drop. Avoid pairing it with switched power sources to maintain memory for presets and settings when the ignition is off.
Switched power (accessory circuit) uses a red or pink wire in most factory harnesses. Verify its function with a multimeter: voltage should appear only when the key is in the “ACC” or “ON” position. For dual-zone systems, some vehicles split this into separate illumination (dimmer) wires–gray or light green–which adjusts display brightness in sync with dashboard lights. Connect these to the aftermarket harness’s corresponding leads using heat-shrink tubing for corrosion resistance.
Ground and Speaker Connections
Secure the ground–always black or brown–via a dedicated bolt near the unit’s mounting location. Scrape paint or finish to expose bare metal for optimal conductivity. Poor grounding causes alternator whine, static, or intermittent shutdowns. For speaker outputs, match the following:
- Front left: White (+), white/black (-) or white w/ tracer
- Front right: Gray (+), gray/black (-) or gray w/ tracer
- Rear left: Green (+), green/black (-) or green w/ tracer
- Rear right: Purple (+), purple/black (-) or purple w/ tracer
Polarity matters–reversing (+) and (-) degrades sound quality, especially in systems with bass management. Use a 4-channel amplifier’s high-level inputs if retaining factory speakers without RCA outputs.
Antenna and Data Protocols
Automatic antenna triggers (blue or blue/white) require a 12V pulse to extend the motorized mast. If upgrading to a powered antenna or signal booster, splice this lead into the aftermarket harness’s remote turn-on wire. For vehicles with satellite or navigation prep, locate the teal or tan data bus wire–disconnecting it may disable theft-deterrent features or require a bypass module. Check manufacturer-specific pinouts for:
- CAN bus high/low: Usually orange and gray
- Steering wheel control interface: Pink or violet
- USB/iPod integration: Green or purple (varies by model year)
Failure to isolate these properly risks draining the battery or triggering error codes. Use a load resistor (3-6 ohms) if replacing a factory amp to prevent “speaker pop” during power cycles.
For vehicles with parking sensors or backup cameras, the reverse signal wire (light purple or pink) must route to the aftermarket unit’s “reverse input” to auto-switch displays when engaging reverse gear. Test all connections with the ignition off first, then start the engine to confirm no dash warnings appear. Label every wire with tape or a label maker–future diagnostics rely on clear documentation of custom splices.
Step-by-Step Audio System Installation for 2008 Sedan Models
Disconnect the negative terminal of the vehicle’s battery first–this prevents short circuits during handling of the electrical harness. Locate the factory stereo unit and remove the trim panel using a plastic pry tool to avoid scratching the dash. Four release clips typically secure the unit; press gently inward on each side while pulling the panel outward.
Identify the harness adapter matching the aftermarket head unit’s color codes–pin assignments differ by brand. Connect the yellow 12V constant wire to the vehicle’s memory circuit to preserve preset stations. Attach the red switched lead to an ignition source for power when the key is turned. Ground the black wire to the chassis using a self-tapping screw, ensuring no paint interferes with conductivity.
For amplified systems, splice the blue/white remote turn-on lead to the factory amp trigger if retaining the OEM amplifier. Route RCA cables away from power wires to minimize interference–zip ties secure routing along existing wire looms. Reconnect the battery and test all functions before reassembling dash components. Volume, treble, and balance adjustments should respond without distortion.
Reinstall the trim bezel by aligning tabs before pressing firmly until clips audibly engage. Verify climate controls and instrument illumination remain operational, as improper harness connections may disrupt shared circuits. Retain the original stereo’s mounting brackets if the replacement unit requires adapter plates for proper fitment.
