For direct access to the harness connections behind the dash unit in the 2006 model year vehicle, locate the 18-pin connector (C110) on the back of the factory-installed entertainment module. Pin assignments follow this sequence: power input (yellow, 12V constant) at terminal 12, ignition-switched lead (red, 10A fuse) at terminal 6, illumination wire (orange/black stripe, dimmer-controlled) at terminal 15, and chassis ground (black) at terminal 2. Ensure all crimp connections are soldered and heat-shrunk–vibration resistance is critical behind the instrument panel.
Retrofitting aftermarket components requires bypassing the factory amplifier, housed beneath the driver-side kick panel. The amplifier interface is a 24-pin bundle (C290); key outputs include front left (white/green stripe, terminal 13), front right (gray/blue stripe, terminal 15), rear left (green/purple stripe, terminal 17), and rear right (purple/green stripe, terminal 19). Disconnect the factory harness only after physically verifying speaker impedance (4 ohms nominal) to prevent amplifier overload. Use a multimeter to confirm signal continuity before powering up the new head unit.
For vehicles equipped with satellite tuner integration, the auxiliary harness (C491) includes a dedicated data bus (light green/orange stripe, terminal 7). This line must be terminated with a 120-ohm resistor if retaining the existing antenna module but removing the tuner. Ignoring this step can trigger OEM system faults, locking the climate control display into diagnostic mode. Always cross-reference actual wire colors against the label on the existing harness–reproduction schematics occasionally mislabel the purple stripe as violet.
Installation of a bypass harness to eliminate chime module interference demands cutting the chime feed (light blue/orange stripe) at connector C110, terminal 3. Splice in a diode (1N4007) with the cathode directed toward the instrument cluster to maintain theft-deterrent functionality while silencing false alerts during audio playback. Secure all splices with adhesive-lined heat shrink–standard electrical tape deteriorates within three years in this environment due to temperature fluctuations between -20°C and 85°C.
Understanding the 2006 Mid-Size Sedan Audio System Connection Guide
Begin by locating the harness behind the factory-installed audio unit, typically secured with a 4-pin rectangular connector colored yellow for constant 12V power and red for switched power. The black wire serves as ground, while the orange harness delivers illumination control. Verify connections with a multimeter–constant power should read 12V regardless of ignition state, while switched power must drop to 0V when the key is off.
The aftermarket integration requires matching impedance levels to prevent speaker damage. The front door speakers use an 8-ohm, 20-watt configuration, while the rear deck-mounted units operate at 4 ohms with 30-watt handling. Use a wiring adapter with color-coded leads: gray (front left positive), gray/black (front left negative), white (front right positive), white/black (front right negative). Reverse polarity testing ensures correct phase alignment before finalizing connections.
Anticipate variations in trim levels–SE models include a factory amplifier, distinguishable by an additional 8-pin harness near the feet of the rear passengers. Bypass this by tapping into the pre-amp outputs at the head unit or disabling the amplifier entirely using the blue/white remote turn-on wire. For non-amplified systems, connect directly to the speaker wires, ensuring proper crimping or soldering to avoid signal degradation.
Security systems or premium audio packages may introduce data buses requiring specialized tools. The gray/light blue wire carries serial data for steering wheel controls–interrupting this line disables hands-free functions. If retaining OEM controls, procure an interface module designed for J1850 VPW protocol common in this model year. Without it, manual button mapping via resistors becomes necessary, with resistance values ranging from 680 ohms to 2.2k ohms depending on the function.
Grounding issues manifest as engine noise through the audio system. Route all ground wires to a single chassis point near the unit’s mounting location, avoiding shared grounds with high-draw components like cooling fans. For persistent interference, install a noise filter inline with the power supply, rated at 10 amps minimum. Verify alternate ground paths by temporarily connecting a secondary ground–if noise diminishes, relocate the primary ground away from potential induction sources.

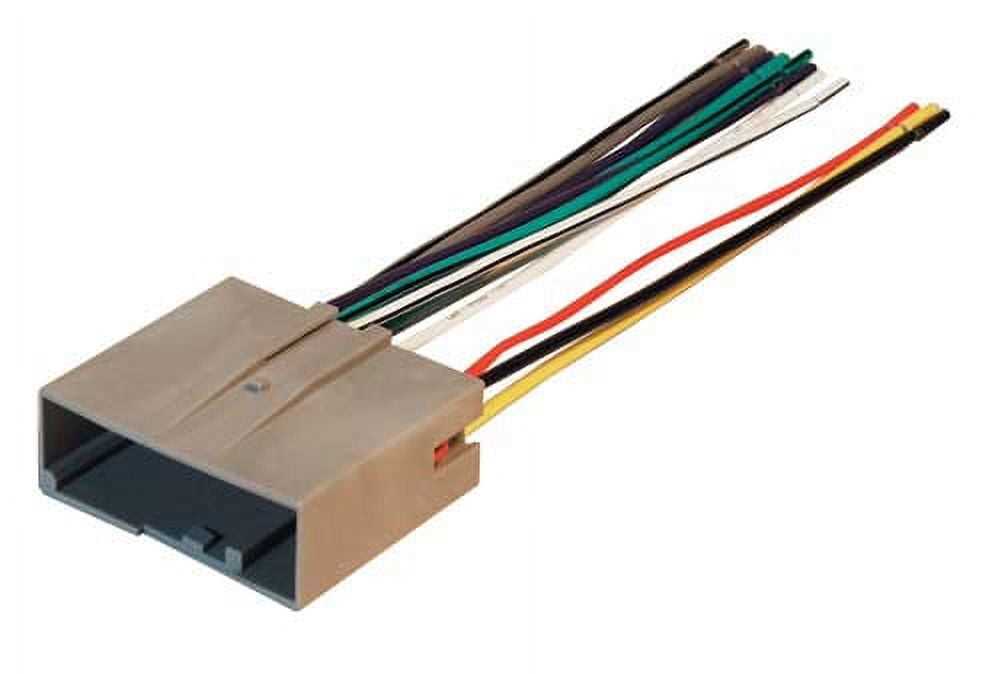

Document all modifications with labeled photographs or schematic notes. Note deviations like spliced wires or relocated components for future diagnostics. Keep spare connectors from the original harness–20-pin Metra 70-1776 or equivalent adapters simplify installation but may require manual adjustments for non-standard pinouts. Test each connection systematically: power first, then ground, followed by speakers and accessories to isolate faults efficiently.
Locating Power and Ground Wire Colors in Your Vehicle’s Audio System
Begin by locating the constant 12V power lead–typically a yellow or orange wire–ensure it maintains voltage regardless of ignition status. Verify with a multimeter: probe the wire while the key is off; if voltage drops below 12V, it’s not the correct lead. The switched (accessory) power wire–often red or pink–should only show voltage when the ignition is on; test both positions of the key to confirm.
Ground connections usually terminate in black, brown, or occasionally dark green. Trace these to their termination point–typically the chassis or a dedicated grounding block. If corrosion is present, scrape the contact surface clean with sandpaper and apply dielectric grease to prevent future oxidation. A faulty ground can cause intermittent audio cutouts or system resets.
Critical Wire Functions and Common Color Patterns
| Function | Standard Colors | Alternative Colors | Testing Notes |
|---|---|---|---|
| Constant Power | Yellow | Orange, Light Green | Must hold 12V with ignition off |
| Switched Power | Red | Pink, Purple | Only active with ignition on |
| Ground | Black | Brown, Dark Green | Zero volts to chassis |
| Illumination | Gray | White, Light Blue | Brightness varies with dash lights |
| Antenna Trigger | Blue/White | Blue, White/Black | Activates power antenna or amp |
Dimmed illumination wires (gray or white) often integrate with the vehicle’s lighting circuit. Test by toggling headlights; voltage should drop slightly when dimmed. Mismatching this can result in non-functional display backlighting. If the wire shows no voltage change, inspect the vehicle’s lighting control module.
Speaker leads follow a consistent pattern: front left positive is usually white, front right positive gray, rear left positive green, and rear right positive purple. Their negative counterparts add a stripe–white/black, gray/black, green/black, or purple/black. Cross-verifying with a 9V battery briefly touching positive and negative leads should produce a faint pop from the speaker; no response indicates a broken connection or misidentification.
Fuse ratings for the constant power line typically range between 10–20 amps. Use an inline fuse holder if splicing; never connect directly to the battery without protection. For aftermarket installations, match the original system’s wire gauge–typically 18–14 AWG–to avoid voltage drop or overheating. Undersized wires can melt insulation or cause fires.
Troubleshooting Mismatched Colors
If factory color codes don’t align, refer to the harness adapter’s documentation–third-party harnesses sometimes use non-standard colors. For OEM connectors, probe pins with a multimeter to map functions: constant power (12V), switched power (0V off, 12V on), and ground (0V). Note the pin layout before disconnecting; sketching a diagram prevents errors during reassembly. If voltage readings are inconsistent, inspect the fuse box for blown fuses or corroded terminals.
Step-by-Step Guide to Finding the Original Audio System Connector
Disconnect the vehicle’s negative battery terminal first–this prevents accidental shorts and protects onboard computers. Wait at least 5 minutes before proceeding to allow residual energy in the circuits to dissipate fully.
Remove the center dashboard trim starting from the lower passenger-side corner. Use a plastic pry tool to avoid scratching surfaces; the clips securing the panel are fragile and located at 3, 7, and 10 o’clock positions. Gently pull the trim outward once all clips are released to expose the mounting screws behind it.
Identify the 12-pin rectangular harness behind the factory audio unit–it’s typically black with color-coded wires. The connector housing measures approximately 3.5 cm wide and contains wires for power, ground, speaker outputs, and antenna signals. Trace the bundle toward the firewall; the harness branches near the driver’s left knee bolster, where it merges with the main vehicle loom.
The primary connector should include the following wire functions, verified with a multimeter set to DC voltage (key-on position):
- Yellow: 12V constant power (4-6A fuse upstream)
- Red: Switched 12V (key-dependent, 2-3A)
- Black: Chassis ground (direct continuity with vehicle frame)
- White/Blue, White/Green: Front left/right speaker (+)
- Gray/Red, Gray/Black: Rear left/right speaker (+)
Matching striped wires carry negative speaker signals; polarity must align for proper phase.
Verifying Connector Integrity Before Modification
Inspect the harness for brittle insulation or corroded terminals–replace damaged pins using a miniature terminal kit (part #1422176) if needed. Clean oxidized contacts with electrical contact cleaner and a microfiber swab; avoid using abrasive tools that can compromise plating.
Label each wire using masking tape or heat-shrink tubing before cutting. Cross-reference with the vehicle’s electrical schematic–pinouts occasionally vary between model years due to regional emission or feature differences. Secure loose strands with spiral wrap to prevent interference with climate controls during reinstallation.
