Begin by locating the underhood fuse box on the driver’s side–this is the hub for critical circuits in the 2006 heavy-duty variant. Pinout labels are often worn or obscured, so use a digital multimeter set to continuity mode to verify each terminal before making repairs. The central junction block (CJB), mounted behind the glove compartment, controls interior lighting, power windows, and mirror adjustment signals. If the window motors fail, test the orange/light blue wire (terminal 201) at the CJB for 12V during switch activation–this confirms power before suspecting motor failure.
Trace the engine bay harness to the main power distribution module, typically near the battery. The thick red cable (4 AWG) delivers voltage directly from the positive terminal; never splice this line, as resistance from poor connections can trigger overheating. For injector circuit issues, focus on the brown/violet wire (terminal 17)–a drop below 11.8V here indicates a weak fuel pump relay or corroded ground at G101, a common failure point near the driver-side fender.
Headlight failure often stems from the combination switch; check the dark green wire (terminal C2-48) for a clean 12V signal when the headlight lever is activated. If absent, replace the multifunction switch–aftermarket units frequently misalign with OEM pinouts, causing erratic behavior. For trailer lighting problems, inspect the gray connector (C3) under the tailgate; water intrusion here corrodes the yellow/black wire (terminal 7), responsible for brake light signals on hooked-up loads.
When diagnosing ABS faults, prioritize the wheel speed sensors. The front left sensor (terminal 315, white/red wire) should output 0.8–1.2V AC at 30 mph–any DC bias suggests a short-to-ground or internal sensor failure. Rear sensors attach to the differential cover; the tan wire (terminal 319) must show identical voltage characteristics. If readings are unstable, clean the magnetic reluctor ring with brake cleaner–shavings or debris will disrupt the signal.
For alternator testing, bypass the standard method of probing the battery. Connect the multimeter’s positive lead to the black/yellow wire (terminal S) on the alternator harness and negative to bare chassis metal. A reading below 13.5V at 2,000 RPM confirms a faulty voltage regulator or diode trio. Replace the alternator entirely if the diode test light illuminates in both directions–internal short circuits cannot be repaired reliably.
Electrical Blueprint for the 2006 Super Duty: Critical Insights
Locate the fuse box under the dashboard on the driver’s side–remove the trim panel by squeezing the retention clips at the top edges. Pinpoint fuse #30 (15A) controlling the instrument cluster, #14 (10A) for the curtain airbags, and #2 (20A) powering the trailer brake output. Trace the purple/yellow striped wire from the turn signal switch (C255, pin 2) to the multifunction module (C121, pin 18); resistance should not exceed 0.5 ohms over the 6-foot run. If corrosion is detected at the bulkhead connector (C303), apply dielectric grease to terminals 6 (black/light blue) and 8 (orange/light green) before reassembly to prevent voltage drop.
Test the glow plug circuit by measuring voltage at the glow plug relay (K17) terminal 86 (red/light blue) with the ignition in the “ON” position–expect 11.5–12.6V; anything lower signals a faulty alternator diode trio or loose ground at G103 behind the passenger kick panel. For the 6.0L diesel, inspect the turbocharger actuator connector (C1808) for pin push-out on wire 498 (black/yellow); if present, crimp a new 16-14 AWG terminal and seal with heat-shrink tubing rated to 125°C. Replace the fuel injection control module (FICM) harness if chafing is found near the valve cover–zip-tie the replacement harness every 4 inches along the firewall-side routing path.
Verify the 4WD solenoid circuit by backprobing the transfer case module (C120, pin 11) with a multimeter–activates at 9–11V within 2 seconds of selecting “4H.” If delayed engagement occurs, replace the front axle actuator (part #6L3Z-3084-B) and inspect the vacuum lines for cracks at the actuator nipple. For the rear window defroster, check continuity across the grid terminals–no more than 5% variance between vertical sections indicates intact buss bars.
Finding Primary Electrical Bundle Connections in a 2006 Ford Heavy-Duty Truck

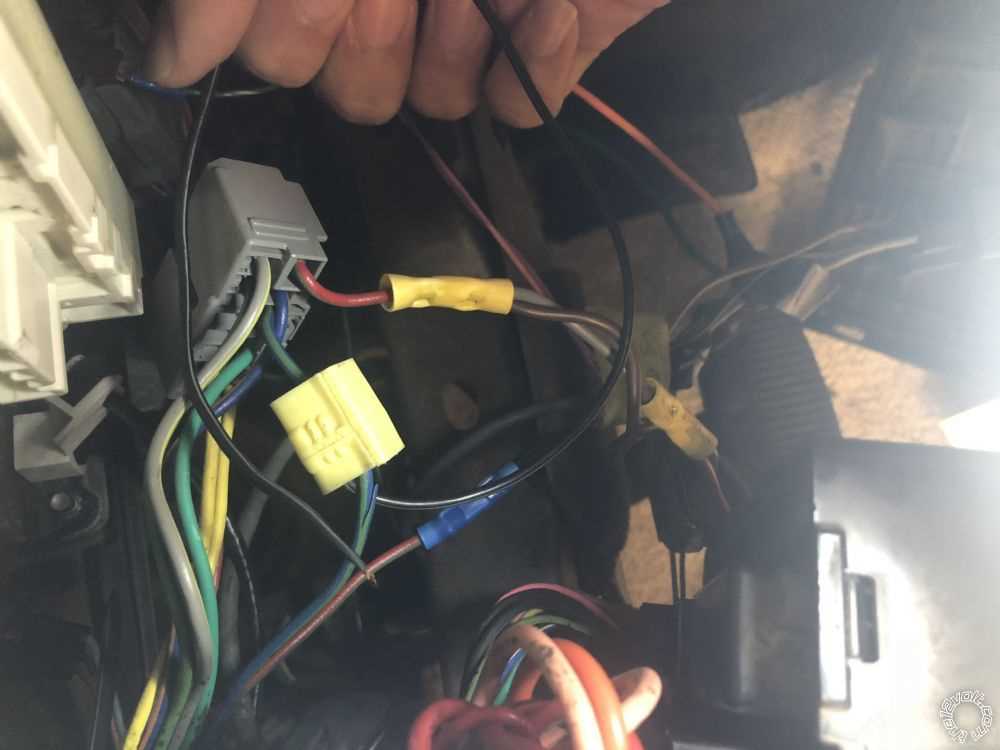

Begin under the dashboard near the steering column–here, the main harness splits into three critical connectors. The largest, a 104-pin gray plug, sits directly behind the fuse panel. A smaller 48-pin brown connector aligns vertically to its left, while the 32-pin black plug occupies the lower position, secured by a single 10mm bolt. Disconnecting the battery negative terminal before handling these prevents accidental shorts.
To access the engine compartment bundle:
- Remove the plastic cover above the brake master cylinder by releasing two 7mm screws.
- Locate the oval-shaped 72-pin connector tucked behind the coolant reservoir–this feeds the transmission control module.
- Trace the bundle toward the firewall–three inline connectors (two 16-pin, one 26-pin) link sensors and injectors. Label each before separation to ensure correct reassembly.
Key Connection Points Behind the Instrument Cluster
Remove the cluster cover by prying six plastic clips–use a trim tool to avoid breaking tabs. Behind the speedometer, a 24-pin blue connector and a separate 12-pin yellow plug interface with the gauge assembly. The 24-pin unit often develops corroded pins–clean with electrical contact cleaner and a fiberglass brush. Verify the yellow plug’s latch integrity, as a broken clip causes intermittent dashboard failures.
For rear electrical terminations, the bundle exits the cabin near the driver’s side B-pillar:
- Peel back the carpet to expose a 36-pin rectangular connector–this serves the rear door locks and trailer brake controller.
- Underneath the truck bed, a 40-pin gray connector links the tail lights and bed cargo lamps–inspect for water intrusion, indicated by white powdery residue.
- On extended-cab models, locate an additional 22-pin plug behind the rear seat release, feeding the auxiliary power outlets.
Test continuity using a multimeter set to ohms if illumination or accessory components fail to respond.
Decoding Electrical Pathways: Color Standards for Vehicle Power Networks
Begin by isolating the battery-to-starter primary link–typically a heavy-gauge red cable with a yellow stripe (R/Y) on Ford platforms, confirming a 4-gauge or thicker specification for critical engine feeds. Verify the alternator’s output lead (often orange with a light blue tracer) against factory schematics, as deviations may signal aftermarket modifications or corrosion-induced resistance. For inline fuses in engine circuits, prioritize dark green (DG) for fuel pump relay feeds and violet (V) for ignition coils, checking continuity with a multimeter set to 200Ω before suspecting component failure.
Trailer harnesses follow a universal but non-binding convention: brown for running lights, yellow (left) and green (right) for turn signals, and white as ground–though custom configurations may flip yellow/green positions. Critical brake and reverse feeds split into blue (electric brakes) and red (backup lamps), with auxiliary circuits often repurposing black (12V+) or gray (switched power). Validate each connection with a load test at 10A; voltage drop exceeding 0.2V per foot indicates undersized conductors or poor crimps.

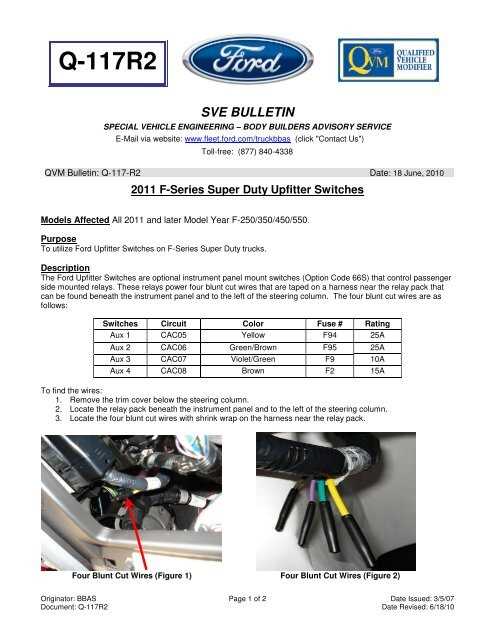

Auxiliary networks diverge into two categories: fused light blue (LB) for cabin accessories (radio, heated seats) and unfused light green/orange (LG/O) for specialty modules like winches or air compressors. High-amperage add-ons (e.g., light bars) typically tap orange/black (O/BK) fused links, but retrofit installations may splice into the pink (PK) trailer brake controller lead–double-check relay socket labeling before tapping. For switched circuits behind the fuse block, prioritize purple/white (P/W) for delay-off functions and tan/yellow (T/Y) for memory seats, using a wiring pinout to trace shorts.
Ground pathways demand scrutiny: engine blocks use black (BK) straps to chassis rails, while body grounds cluster near the driver’s firewall (black/white, BK/W). Trailer plugs ground through the white pin, but corrosion at the frame-to-hitch bond creates phantom faults–clean surfaces to bare metal, apply dielectric grease, and retorque connections to 15 lb-ft. For auxiliary lighting, dark blue/white (DB/W) often signals PWM dimming feeds, whereas pink/light blue (PK/LB) may carry CAN bus signals in newer variants.
Cross-reference color codes against the vehicle’s build date–pre-2007 models substitute dark green (DG) for later yellow (Y) in certain engine sensors, while post-2015 variants consolidate trailer feeds under a single gray (GY) fuse. Use a tone generator to trace hidden splices; probe with a non-contact tester set to inductive mode for AC noise in charging circuits, which can mask DC faults. Always confirm polarity before soldering–striped wires carry positive, solid colors (except white/green) are ground unless marked otherwise.
Mapping Fuel Pump Relay and Injector Circuit Routes in Heavy-Duty Trucks
Start by locating the central power distribution box under the hood–labelled as “PDB” on most schematics. The fuel pump relay sits in slot 302, identifiable by its square profile and four-pin connector. Use a multimeter set to continuity mode to verify pins 85 and 86; a reading below 100 ohms confirms the coil circuit is intact. If resistance is infinite, inspect the relay socket for corrosion or bent terminals–common failure points in high-current environments.
Trace the relay’s output (pin 30) to the inertia switch, typically mounted on the firewall’s passenger side. This switch acts as a safety disconnect during collisions. The wire gauge here drops from 10 AWG to 14 AWG, creating a potential voltage drop risk under load. Measure voltage at the switch input and output with the ignition in the “RUN” position; a difference exceeding 0.5V suggests excessive resistance in the splice or connector.
From the inertia switch, the circuit continues to the fuel pump via a 12 AWG orange-striped cable. At the pump connector (often a two-pin Deutsch DT series plug), probe the pins while cycling the ignition. A brief 2-second voltage pulse should register–absence indicates a relay or PCM control issue. For injector paths, focus on the gray/black wires in the engine harness; these carry pulsed 12V signals from the PCM to each injector solenoid. Use an oscilloscope to verify square-wave patterns, ensuring peak voltage reaches 11.5V or higher.
| Component | Pinout (Typical) | Expected Resistance/Reading | Failure Indicator |
|---|---|---|---|
| Fuel Pump Relay Coil | 85 (Ground), 86 (+12V Switched) | 70–120 Ω | >200 Ω or OL |
| Inertia Switch | Input/Output (Single Circuit) | >0.5V drop | |
| Injector Solenoid | PCM Side (Pulse), Ground Side | 12–16 Ω | 20 Ω |
Injector circuits often share a common ground via the engine block, but corrosion at mounting points can mimic fuel delivery issues. Remove the ground strap bolt, clean both surfaces with a wire brush, and apply dielectric grease before reinstalling. For cylinder-specific faults, swap injectors between positions; persistent misfires at the same cylinder implicate the circuit, while moving misfires indicate a faulty injector.
PCM-controlled relay activation depends on the crankshaft position sensor input. Backprobe connector C1443 (pin 47) to monitor the 5V reference signal. If absent, check the sensor’s 12V supply and ground–these are separate from the injector circuits and critical for synchronization. Voltage spikes from faulty sensors can scramble relay commands, leading to intermittent pump operation.
Avoid probing the PCM directly; instead, use scan tool PID “Fuel Pump Monitor” to confirm commanded relay state. If the PCM logs DTC P0230 (pump circuit low voltage) despite functional hardware, inspect the CAN bus integrity–chafed wires near the rear frame crossmember are frequent culprits. Replace damaged sections with equivalent gauge wire and adhesive-lined heat-shrink tubing for environmental protection.
