Start by locating the fuse box under the dashboard–right side, near the driver’s door. Remove fuse #15 (10A) to cut power before working. If the sound cuts out completely, the issue likely stems from this circuit or the integrated harness behind the head unit. Disconnect the negative battery terminal as a secondary precaution.
Use a Torx T20 screwdriver to remove the trim panel surrounding the stereo. Four screws secure it–two above the climate controls, two below the display. Pull the panel gently; plastic clips hold it in place. Label each wire with masking tape before unplugging connectors to avoid cross-wiring during reassembly.

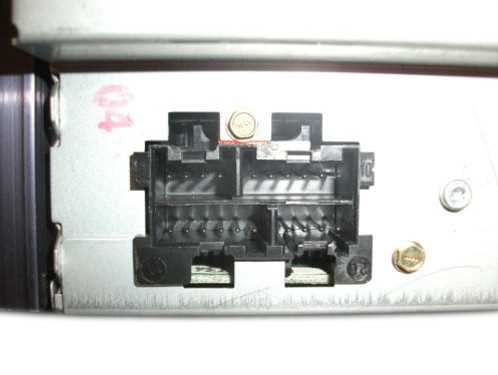

The stock 2004 model uses a 12-pin connector for power and signal distribution. Pin assignments are as follows: Pin 1 (yellow) – constant 12V; Pin 6 (red) – accessory power (switched); Pin 12 (black) – ground; Pin 4 (orange) – illumination. Test each with a multimeter set to DC 20V–readings below 11.5V indicate a faulty relay or blown fuse.
For speaker replacements, trace wires from the amplifier to the rear deck. Left rear speaker wires (gray/light blue stripe) and right rear (gray/dark blue stripe) terminate at a single connector behind the spare tire well. Front door tweeters share a harness with the window regulators–use a crimping tool for secure splices if wires fray near hinge points.
If static persists, inspect the antenna cable for corrosion. The coaxial connector threads into the back of the unit’s right side–rotate counterclockwise to detach. Replace with a Metra 40-VW5 adapter if the OEM plug is damaged. Reassemble in reverse order, ensuring all ground screws are tightened to 8 lb-in torque.
2004 Chevy Audio System Connection Guide
Start by identifying the harness colors on the factory audio unit. The 2004 model uses a 12-pin plug with distinct wires: yellow (constant 12V), red (switched 12V), black (ground), gray (left front speaker positive), gray/black (left front speaker negative), white (right front speaker positive), white/black (right front speaker negative), green (left rear speaker positive), green/black (left rear speaker negative), purple (right rear speaker positive), and purple/black (right rear speaker negative). Verify each connection with a multimeter before proceeding.

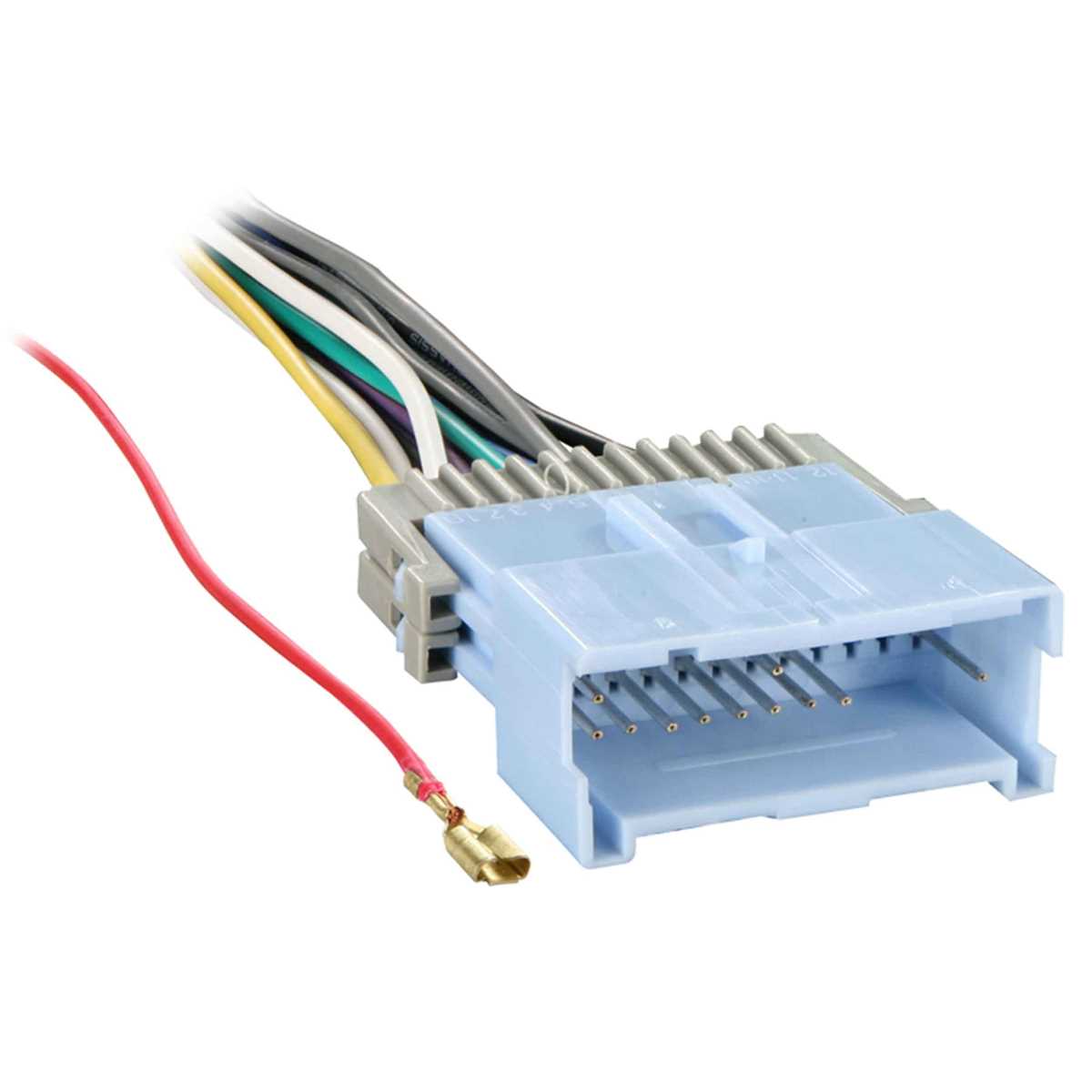

If replacing the stock receiver with an aftermarket unit, use an adapter harness (Metra 70-2002 or equivalent) to bridge the factory connectors to the new system’s wiring. Cutting into the original harness directly risks permanent damage and should only be done if no adapter is available. Match the aftermarket harness colors to the factory wires precisely–mismatches can blow fuses or damage the new unit’s amplifier.
For vehicles with premium sound systems (Monsoon or similar), the wiring includes an additional pink wire (amplifier turn-on signal) and orange/white (illumination/dimmer). These require an adapter (Metra GMOS-01) to retain steering wheel controls and chime functions. Skipping this step may disable key features or trigger dashboard warnings.
Test the connections in stages. First, confirm power delivery (yellow and red wires should show 12V with the ignition on/off as expected). Next, check speaker outputs by playing a test tone–each pair should produce sound in the corresponding speaker without distortion. If no sound is heard, recheck polarity (positive/negative wires swapped will result in phase cancellation).
Ground issues are a common failure point. The black wire must connect to a clean, bare-metal surface–paint or corrosion will cause static or intermittent operation. Sand the mounting point lightly and use a star washer to ensure a solid connection. For vehicles with a factory amp, the ground may also serve as a signal return path; poor grounding here can degrade audio quality.
Retaining OnStar or anti-theft systems requires preserving the original harness connectors. Some aftermarket units include a separate input for OnStar integration; consult the new system’s manual for pinout details. If the vehicle has a factory theft-deterrent module, removing the stock receiver without bypassing this circuit may trigger alarms or disable the starter.
Document all changes with photos before disconnecting any wires. Label each connection with masking tape to avoid confusion during reassembly. If installing a navigation unit or satellite tuner, additional wiring (e.g., GPS antenna, satellite radio harness) will need routing–plan cable paths to avoid interference with airbags or other critical components.
Matching the Right Electrical Connector for Your 2004 Chevy Compact Audio Unit
Measure the existing plug’s pin configuration before purchasing replacements–standard setups for this model year include a 12-pin rectangular harness or a 16-pin variant with female sockets. Verify the pin count against the original connector; mismatches will prevent proper installation even if colors align.
Check for corrosion on the vehicle-side plug–oxidation on terminals 1 (constant 12V), 4 (illumination), or 7 (ground) disrupts signal flow. Clean contacts with a pencil eraser or fine-grit sandpaper, then apply dielectric grease to prevent recurrence. Avoid abrasives on plastic housings.
Compare the aftermarket harness’s wire gauge–factory-spec uses 18 AWG for power leads and 22 AWG for speaker outputs. Thinner wires risk voltage drop under load, while thicker ones may not seat correctly in the head unit’s crimp connectors. Resistance-tested harnesses list this spec on packaging.
Identify the antenna lead’s position–on the 2004 layout, it’s the solitary thin coaxial cable typically paired with a single-pin bullet connector. Swapping it with audio cables (which use thicker twin-lead ribbons) can damage the tuner module’s impedance-sensitive circuitry.
Inspect the dash-side plug for factory modifications–late-model revisions sometimes include a separate data bus pin (often labeled “AUX” or “MUTE”) not present in base trims. If absent, the replacement harness must omit this pin to avoid shorting the entertainment module’s control circuits.
Test continuity between the ignition-controlled 12V wire (usually labeled “ACC”) and the fuse box’s accessory terminal before connecting. A faulty circuit from the ignition switch will leave the sound system dead even with a correctly mated plug–diagnose with a multimeter set to 20V DC range.
Secure the harness with heat-shrink tubing or silicone tape on exposed splices–zip ties alone degrade under dashboard vibrations. For vehicles with manual climate controls, ensure the new plug clears the temperature knob’s actuator arm; misrouted cables can jam the dial mechanism during operation.
Step-by-Step Color Code Breakdown for Factory Audio System Hookups
Identify the harness pinout by matching the vehicle’s default connector colors to the aftermarket unit’s adapter. The standard 12-pin harness on the 2004 model uses the following assignments:
| Connector Wire | Factory Color | Function | Aftermarket Wire |
|---|---|---|---|
| Pin 1 | Light Green | Left Front + | White |
| Pin 2 | Tan | Left Front – | Brown |
| Pin 3 | Gray | Right Front + | Gray |
| Pin 4 | Dark Green | Right Front – | Black |
| Pin 5 | Pink | Switch 12V | Yellow |
| Pin 6 | Purple | Illumination | Orange |
| Pin 7 | Dark Blue | Ground | Black |
| Pin 8 | White | Left Rear + | Green |
Strip each harness wire 5mm and insert into the corresponding crimp connector before soldering. Secure connections with heat-shrink tubing to prevent oxidation–factory grounds (dark blue) must contact bare metal without paint or corrosion. Verify continuity with a multimeter: 0.5 ohms or less between ground pin and chassis ensures proper signal return.
Attach the illumination wire (purple) to the vehicle’s dimmer circuit only; connecting it directly to constant 12V will disable dashboard lighting sync. For amplified systems, route the remote turn-on (pink) wire through a 15A fuse–skipping this risks damaging the head unit’s power circuit. Double-check all splices before powering on to avoid shorting the ignition-switched lead (pink) against ground.
Tools Required to Safely Remove and Install the Factory Head Unit
Begin by equipping yourself with a trim removal kit containing plastic pry tools–specifically, a thin wedge for dashboard panels and a hooked pick for stubborn clips. Avoid metal screwdrivers, as they can crack interior plastic or scratch surfaces. A Torx T20 driver is mandatory for the mounting screws securing the central console; confirm the bit size with a caliper if the manual is unavailable. For vehicles with integrated security tabs, a 12V test light helps verify power continuity before disconnecting connectors–probe the harness pins while the ignition is off to prevent short circuits.
- Non-contact voltage tester (for detecting live circuits behind the dash)
- Crimping tool with butt connectors (if extending or repairing harness wires)
- Wire strippers (18–22 AWG range, with insulation gauge markings)
- Heat gun or shrink tubing kit (to seal splices; avoid electrical tape)
- 90° needle-nose pliers (for accessing tight spaces behind the unit)
- Microfiber cloth (to clean dust from connectors)
- Flashlight with adjustable beam (LED preferred, 200+ lumens)
Critical Precautions During Handling
Before disconnecting the factory harness, remove the negative battery terminal using a 10mm socket–wait 10 minutes for capacitors in the system to discharge, preventing airbag module resets. Label all connectors with painter’s tape if wiring modifications are planned, noting pin positions for reinstallation. For aftermarket replacements, confirm the steering wheel control adapter compatibility–OEM harnesses often include a data bus line that third-party units may not support, requiring a bypass module. If removing the climate control cluster, document screw lengths and placements; misalignment can cause rattles or malfunctioning knobs.
- Store screws and small components in labeled zip-top bags (e.g., “upper-left dash bracket”).
- Inspect the OEM harness for brittle or frayed wires–replace damaged segments with TXL-grade automotive wire (rated for 105°C).
- Test all functions (speakers, controls, illumination) before final reassembly to avoid double-work.
