If you’re working on a 2002 model heavy-duty truck, start by locating the engine compartment fuse box schematic under the hood–typically mounted near the driver’s side firewall. Pin 30 on the connector (white wire with black stripe) carries power from the battery to the ignition switch, while pin 87 (red wire with blue stripe) distributes voltage to the fuel pump relay. Verify continuity between these points before troubleshooting other circuits; corrosion at the relay socket is a frequent failure point.
For cabin electrical systems, trace the instrument cluster harness behind the dashboard. The orange wire with a black trace (pin 12 on the C1 connector) supplies 12V for the gauges, but fluctuations often indicate a faulty alternator voltage regulator. Replace the regulator if readings exceed 14.8V under load. The heater blower motor’s high-speed circuit (dark green wire, pin 86A) draws directly from the blower relay–test this with a multimeter set to 20A to confirm amperage matches factory specs (18-22A).
Ground locations matter more than most assume. On this model, the primary chassis ground (black wire, G101) is bolted to the frame near the driver’s side front wheel well–scrub rust from this connection before reconnecting. The transmission control module shares this ground; intermittent shifting errors often resolve after cleaning it. For the rear lighting harness, the taillight ground (brown wire, connector T2) attaches to the bed support–inspect for frayed insulation where the wires pass through the frame.
When splicing wires, use heat-shrink butt connectors rated for 16-18 AWG (OEM wire gauge). Crimp connections with a ratcheting tool, then apply heat until adhesive seals the joint–avoid solder-only repairs, as vibration loosens them over time. For aftermarket stereo installs, tap into the radio feed (pink wire, pin 1 on the C2 connector) but insert a 10A fuse inline to prevent shorts from melting the factory harness. Always cross-reference color codes with the official service manual; “optional equipment” wires (like trailer brake controllers) are often mislabeled in third-party schematics.
2002 Pickup Electrical Schematic: Step-by-Step Troubleshooting
Locate the under-hood fuse box first–it sits near the battery on the driver’s side. Remove the cover to expose relay slots labeled 1 through 24. Check slots 12 (ignition feed) and 18 (fuel pump relay) for continuity with a multimeter; resistance should read below 0.5 ohms. If readings exceed 1 ohm, replace the relay immediately before moving downstream. Corrosion on pin 87 often causes intermittent failures–clean contacts with a wire brush dipped in dielectric grease.
Trace the instrument cluster harness next. The dark blue/white wire (pin C3, 16-pin connector) carries tachometer signal from the PCM. If gauges fluctuate or drop to zero, probe this wire at the firewall bulkhead with engine running–voltage should pulse between 1.5V and 3.8V at idle. Low or steady readings point to a broken wire between the PCM and cluster; splice in a temporary jumper to confirm before cutting insulation. Always route replacement wires through existing loom grommets to prevent chafing.
- Disconnect the negative battery terminal before working near airbag circuits.
- Use yellow heat-shrink tubing on repaired splices–standard electrical tape fails within 12 months.
- Store removed relays in labeled ziplock bags; oil residue on terminals can trigger false failures.

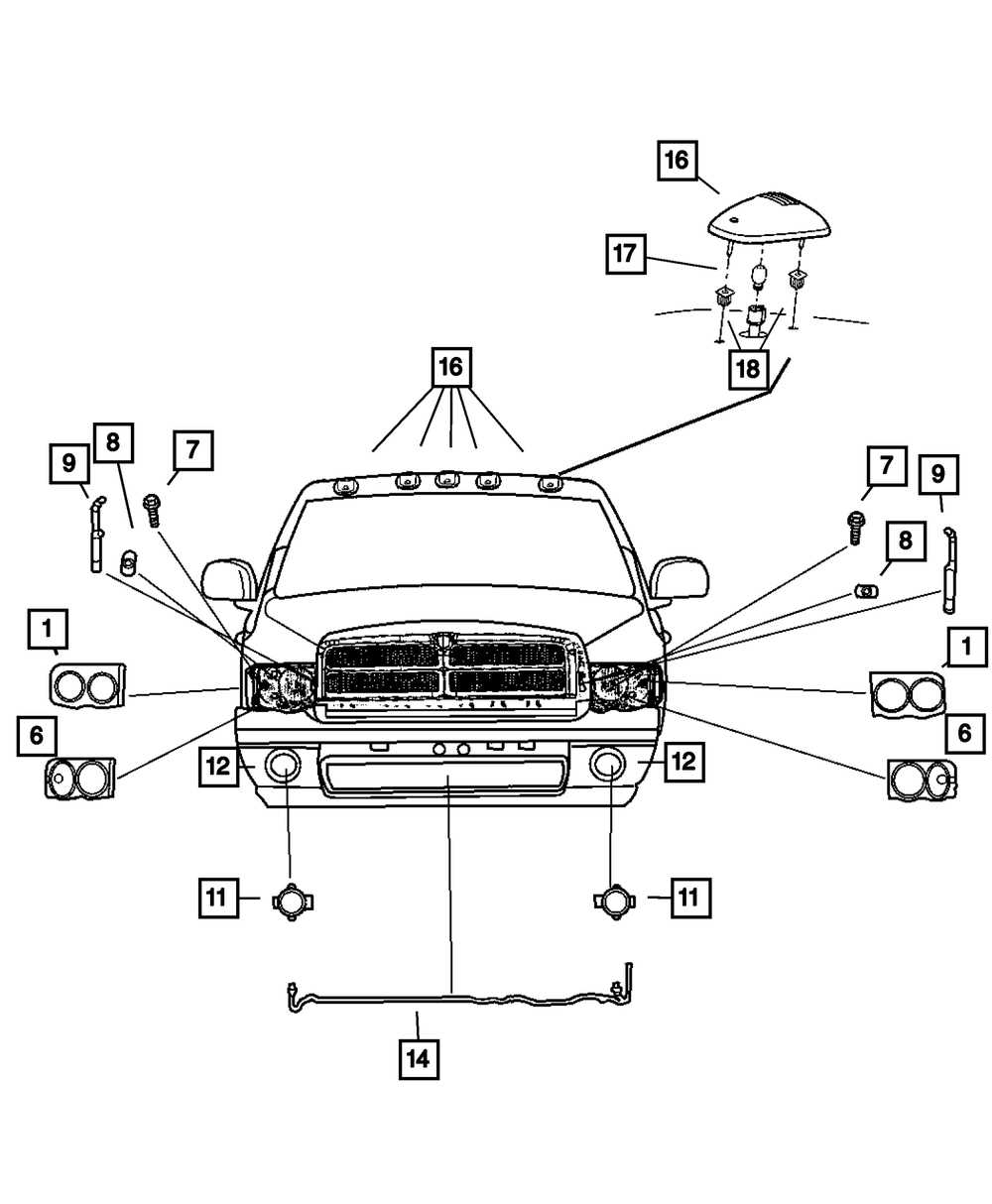

For headlight circuits, follow the violet/black wire from bulb socket back to the multi-function switch. At idle, voltage should measure 12.6V; dimming indicates resistance in the ground path. Test ground location G300 (driver’s side fender) by connecting a jumper to chassis–if lights brighten, drill a new ground hole 3 inches above the rusted one and secure with a stainless steel bolt. Factory grounds corrode first; repaint surfaces with zinc-rich primer before reassembling.
Diagnose power window motors by back-probing connector C202 (door jamb side). With switch pressed, the orange/light blue wire should show 12V; the yellow wire should drop to 0V at full window travel. If voltage sag exceeds 0.8V, clean the main door hinge connector (green two-pin) or replace the inline fusible link near the kick panel. Silicone spray on window tracks prevents future binding that mimics motor failure.
Finding the Right Electrical Schematic for Your 2002 Pickup
Start with the Vehicle Identification Number (VIN) decryption to confirm trim, engine, and transmission specifics–critical for pinpointing accurate schematics. Manuals like the Official Factory Service Guide (Part No. 81-270-02) separate diagrams by system: powertrain, lighting, instrumentation, and body control modules. For example, a 5.9L Cummins diesel requires diagrams distinct from the 5.7L Hemi, particularly for fuel pump relay circuits (labeled as Circuit #F81 in section 8W-40). Online repositories like TechAuthority offer paid access to original OEM schematics indexed by VIN–filter using the 8th digit (engine code) to bypass irrelevant variations.
| System | Manual Section | Key Circuit IDs |
|---|---|---|
| Ignition | 8W-30 | C100, C101, C150 |
| ECM | 8W-50 | F11, K132, K201 |
| HVAC | 8W-70 | X15, X102 |
Free alternatives include owner forums (CumminsForum or HemiTruckClub), where users upload scanned sections. Verify upload dates–pre-2018 posts often miss updates for recall-related rewiring, such as the 2004 TIPM (Totally Integrated Power Module) revision affecting horn and park lamp circuits. For spliced repairs, cross-reference connectors using the Connector Repair Kit Manual (#05077580AA), which details terminal types (e.g., Delphi Metri-Pack 150 vs. Weather-Pack 630).
Step-by-Step Color Coding and Wire Tracing in the Engine Compartment
Locate the primary harness bundle near the battery tray, secured by plastic clamps or loom tape–typically dark gray or black with color-stripe identifiers. Use a multimeter set to continuity mode (orange/violet (O/V) carries 12V ignition feed, while dark green/white (DG/W) grounds the throttle position sensor (TPS). Trace ground wires back to the chassis stud (driver-side fender) or engine block; corrosion here mimics open circuits.
- Match terminal IDs using a repair manual’s schematic: Bosch-style connectors (e.g., Mopar PN 68051348AA) have alphanumeric codes stamped on the housing (e.g., C1-30 for TPS output).
- For late-model engines, probe light blue/orange (LB/O) at the powertrain control module (PCM) for MIL signal validation–if absent, check fuses #19 (10A) or #31 (20A).
- Split loom sections with precision: tan/black (T/BK) routes to the IAT sensor; gray/yellow (GY/Y) links to the MAP sensor. Cross-reference resistance values: TPS should read 0.5–4.8 kΩ across its sweep.
- Inspect splice clusters behind the passenger-side kick panel–violet/yellow (V/Y) often frays here due to heat from the exhaust manifold.
Identifying and Resolving Frequent Circuit Problems with Schematic Guidance
Begin by locating fuse F23 in the under-dash panel–this 20A fuse protects the instrument cluster and crucial sensor feeds. If the tachometer or fuel gauge behaves erratically, pull the fuse and inspect its bridge for hairline fractures. Replace only with a fuse of identical amperage; higher ratings risk overheating the printed tracks on the backplane board identified as C3-17.
Trace the pink-and-black striped cable from terminal 87a of relay R4 to the transfer case control module. This trace often suffers from chafing near the transmission crossmember, where the insulation rubs against a sharp bracing flange. A temporary splice can be made with heat-shrink tubing and rosin-core solder, but verify continuity afterward with a multimeter set to 200 Ω–readings above 0.5 Ω indicate incomplete solder joints.
Quick Voltage Drop Diagnosis Without Full Disassembly
Set the ignition to RUN but leave the engine off. Connect the positive lead of a voltmeter to battery positive and the negative lead to chassis ground at the intake manifold bolts–acceptable drop is below 0.2 V. If the reading climbs, follow the heavy-gauge orange feed cable backward, checking each junction block (JP-1 through JP-4) for corroded terminals. Clean contacts using 600-grit sandpaper folded over a dowel; avoid steel wool to prevent metallic debris.
When dome lights flicker or stay dim, focus on the ground bus labeled G-103 behind the left kick panel. Loosen the mounting bolt, remove the bus, and brush both mating surfaces with a brass wire wheel. Retighten to 12 Nm; insufficient torque leaves a high-resistance path that mimics age-related bulb failure.
Examine the CAN-H and CAN-L circuits–colored yellow-and-black and green-and-black respectively–where they enter the OBD-II port connector J1962. These wires frequently break near pin 6 and pin 14 due to repeated plug insertions. Probe each pin while wiggling the harness; a momentary loss of communication on a scan tool confirms the fault. Re-terminate with crimp connectors rated for 22-20 AWG and seal the splice with adhesive-lined heat shrink.
Intermittent Sensor Signals and Reference Voltage Checks
Attach a lab scope to the reference wire (light-blue stripe) serving the manifold pressure sensor. A clean 5 V square wave should appear; noise spikes above 0.4 V suggest a failing alternator rectifier. Swap the alternator with a known-good unit and re-test before condemning the sensor or powertrain control harness.
