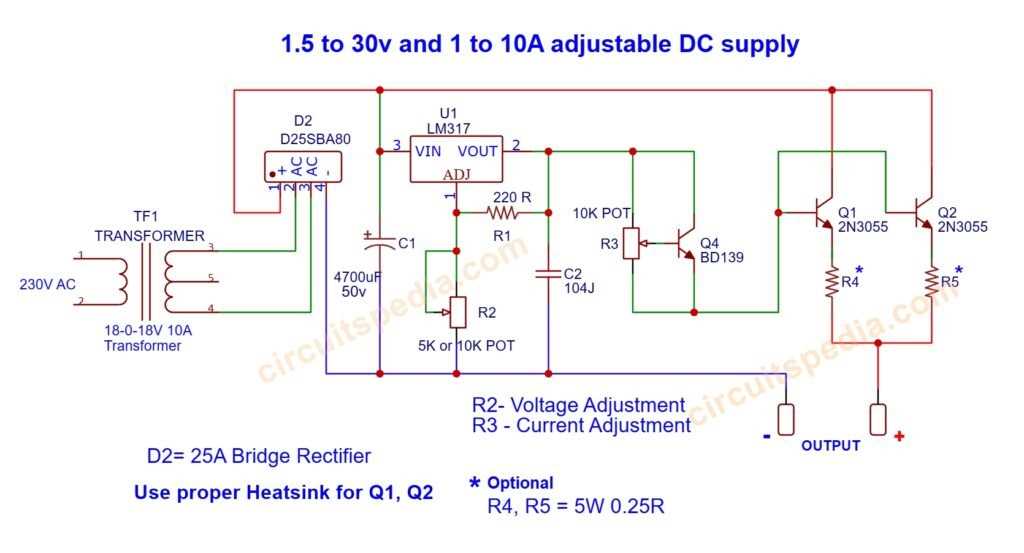

For reliable performance in lab tests, prototype development, or embedded systems, use a LM317 linear regulator as the core component. This IC supports an output range of 1.25V to 37V with a single resistor adjustment–pair it with a 2N3055 pass transistor for handling currents up to 5A. Ensure heat dissipation with a 10°C/W or better heatsink; power dissipation reaches 50W at full load. Input voltage should exceed the desired output by 3–7V to maintain regulation stability. Filter noise with a 1000µF capacitor at the input and a 470µF at the output.
A bridge rectifier (KBPC5010) paired with a 24V/10A transformer forms the primary AC-DC conversion stage. Fuse the input at 2x the expected current draw–for 5A output, use a 10A slow-blow fuse. Replace fixed resistors with a 10-turn 5kΩ potentiometer for precise voltage tuning between 0V and 40V. Monitor with a digital panel meter; accuracy drops below 200mV due to regulator dropout.
Isolate sensitive loads with a separate ground plane; high-current paths should use 2mm² wires. For extended upper limits (up to 60V), substitute the LM317 with a LM338 and adjust R1/R2 values according to Vout = 1.25*(1 + R2/R1). Test under load; verify ripple suppression () with an oscilloscope before deployment. Short-circuit protection is intrinsic but add a 5A PTC resettable fuse for redundancy.
Configurable High-Voltage Regulator Blueprint
Start with an LM317 adjustable linear regulator as the core component–its thermal stability and output precision make it ideal for bench applications requiring smooth voltage transitions from 1.25V to 48V. Pair it with a 5kΩ multi-turn potentiometer for fine-tuned adjustments, ensuring resolution better than 0.1V per full rotation. Avoid single-turn pots; their coarse control leads to erratic output swings under load.
For enhanced current capacity, incorporate a TIP3055 power transistor in a Darlington configuration. This setup allows handling up to 5A with minimal voltage drop across the pass element. Ensure the transistor’s base is driven through a 220Ω resistor from the LM317’s output, preventing thermal runaway when operating near maximum ratings. Heat dissipation is critical–mount the transistor on a finned heatsink with thermal paste; derate for continuous operation above 3A.
Input filtration dictates output quality. Use a dual-stage smoothing setup: a 4700µF electrolytic capacitor for bulk charge storage, followed by a 0.1µF ceramic capacitor to suppress high-frequency noise. Place both as close as possible to the LM317’s input pins. Omitting the ceramic leads to audible whine in sensitive audio circuits or erratic behavior in digital logic.
Recommended Component Values
| Parameter | Value | Notes |
|---|---|---|
| Input Capacitor (Cin) | 4700µF/63V | Low ESR type |
| Output Capacitor (Cout) | 22µF/63V | Tantalum for stability |
| Adjustment Resistor (R1) | 240Ω 1% | Sets 1.25V reference |
| Load Regulation | 0.01%/V typ. | Measured at 10mA–3A |
Voltage feedback must be isolated from switching noise. Route the potentiometer’s wiper directly to the LM317’s adjustment pin via a shielded twisted pair–avoid long, unshielded traces, which act as antennas for mains hum. Ground the potentiometer’s casing to the chassis to prevent stray capacitance from skewing readings.
Protection circuitry prevents catastrophic failure. Add a 1N4007 diode in reverse across the output to clamp inductive kickback from motors or relays. Include a 5A fuse on the input side; polyfuses self-reset but add resistance overhead. For overvoltage protection, use a TL431 shunt regulator set to 52V, triggering a thyristor to short the output if exceeded.
Cooling requirements scale with load. Use a 12V fan controlled by a thermistor mounted on the heatsink–activate at 60°C to maintain efficiency. Passive cooling suffices for loads under 2A, but above this threshold, forced air reduces thermal derating by 30%. Avoid PWM fan controllers; their noise couples into analog sections.
For calibration, set the output to 30V using a bench meter with 0.05% accuracy. Adjust the potentiometer while monitoring with a 10-bit ADC (e.g., Arduino) to verify linearity–deviations above 1% indicate faulty components or poor PCB layout. Store the schematic with measured reference points; factory trimming potentiometers lose calibration over thermal cycles.
Common Pitfalls & Solutions
Symptom: Output sags under load.
Diagnosis: Insufficient input capacitance or high ESR in Cout.
Fix: Replace Cout with low-ESR tantalum or add a 1µF polymer capacitor.
Symptom: Audible noise at high voltages.
Diagnosis: Lack of differential feedback shielding.
Fix: Braid the potentiometer leads with ground wire.

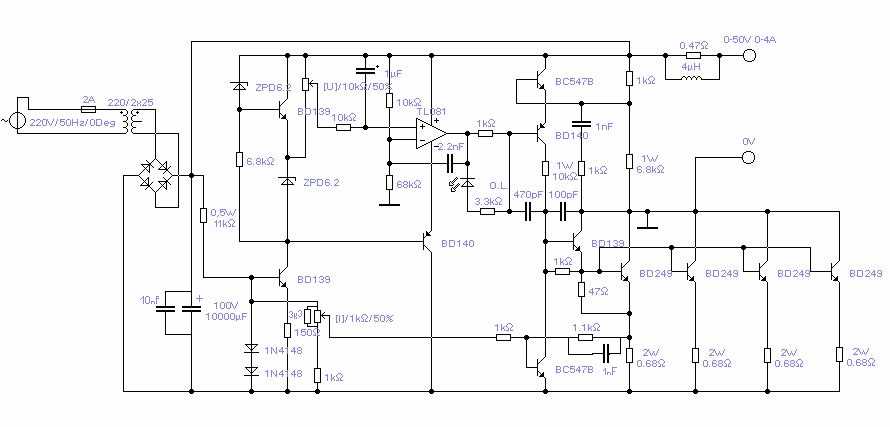

Critical Parts for an Adjustable 50V Bench Source
Select a linear regulator like LM338 or LT1083 for stable output up to 50V. These components handle 5A continuous current with minimal ripple, essential for sensitive electronics. Pair them with a heatsink rated for at least 20W dissipation–aluminum extrusions (e.g., Fischer Elektronik SK129) outperform smaller alternatives. Avoid PWM-based regulators unless switching noise is acceptable in your application.
Input smoothing relies on capacitors: use a 4700µF electrolytic for bulk storage and a 0.1µF ceramic for high-frequency filtering. Place the electrolytic within 2cm of the regulator’s input to prevent voltage spikes. For output stabilization, add a 22µF tantalum capacitor near the load–this reduces transient response issues during sudden current draws. Avoid cheap electrolytics with high ESR; brands like Nichicon or Kemet offer lower leakage.
Precision adjustment requires a 5kΩ multiturn potentiometer (Bourns 3590S) for fine control. Pair it with a 1kΩ fixed resistor in series to limit minimum output to ~1.2V–a failsafe against accidental short circuits. For voltage scaling, use a 1% tolerance 10kΩ resistor divider; this ensures
Protection is non-negotiable: install a 6A fast-blow fuse on the primary side, and add a 5A Schottky diode (1N5822) across the output to clamp reverse-voltage spikes. For adjustable current limiting, incorporate a 0.1Ω shunt resistor (5W) with an op-amp comparator (LM358)–this triggers at 5A, cutting output before damage occurs. Never omit grounding: star-connect the chassis to the transformer’s center tap to eliminate loop noise.

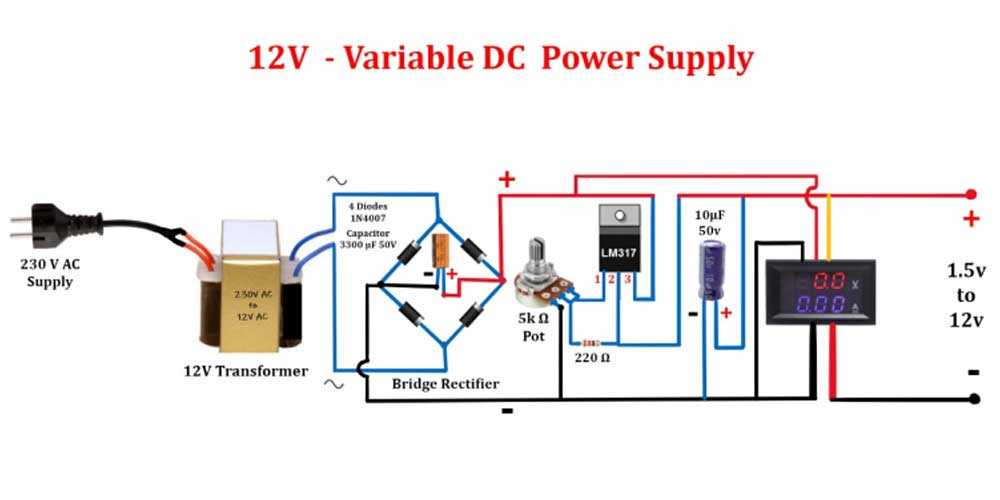

Step-by-Step Wiring Guide for the LM317-Based Regulator Build
Begin by mounting the LM317 onto a heatsink large enough to handle at least 20W dissipation. Use thermal compound between the regulator and heatsink to prevent air gaps–even a 0.1mm gap increases thermal resistance by 2°C/W. Secure with a screw torque of 0.5 Nm; overtightening risks cracking the ceramic package.
Connect the input capacitor directly to the LM317’s Vin pin, no farther than 15mm from the regulator. Use a 1000μF electrolytic capacitor with a voltage rating 10V above your unregulated input–50V is ideal for a 36V raw feed. Add a 0.1μF ceramic capacitor in parallel to filter high-frequency noise; place it on the same PCB trace as the electrolytic, not branching off.
- Vin pin → 1000μF (electrolytic) + 0.1μF (ceramic)
- Adj pin → Current-limiting resistor (R1 = 240Ω, ¼W)
- Vout pin → Adjustable resistor divider (R2 = 5kΩ potentiometer)
Solder R1 between the Adj pin and ground; a 240Ω resistor sets the reference current to 5mA, ensuring stable regulation. Keep lead lengths under 5mm to minimize inductance. Ground the Adj pin through R1 before connecting any other components–floating this pin risks output oscillations exceeding 50Hz.
Potentiometer Configuration
Wire the 5kΩ potentiometer as a rheostat: connect one outer terminal to ground, the other to Vout via R2 (set to 2kΩ for initial testing). The wiper goes to the Adj pin. Twist the potentiometer’s leads around each other to reduce noise pickup; use shielded cable if the run exceeds 10cm. Calibrate by turning the wiper clockwise–output voltage rises as the wiper moves toward R2.
Add a protection diode (1N4007) across the input and output pins, cathode to Vin, anode to Vout. This prevents backflow if the output voltage exceeds the input–for example, when powering down a charged 1000μF capacitor. For higher currents, replace the diode with a Schottky (1N5822) to reduce voltage drop by 0.3V.
- Verify unregulated input voltage with a multimeter (e.g., 36V).
- Measure output at the 2kΩ R2 setting–should read ~1.25V.
- Turn potentiometer slowly; voltage should rise linearly to ~32V.
- Load test: Connect a 10Ω, 25W resistor. Output should dip ≤0.2V.
Enclose the regulator in a metal chassis, grounding the heatsink to the chassis via a star washer. Leave 5mm clearance between the heatsink and any flammable materials; LM317 failure modes can reach 150°C. Wire the output through a 2A fuse holder–torque screw terminals to 0.8 Nm. Test for short circuits before final power-up by probing continuity across the fuse.
Calculating Resistor Values for Precise Voltage Regulation
Start by determining the reference voltage of your adjustment component–typically 1.25V for common linear regulators like the LM317. Use the formula R1 = (Vref * R2) / (Vout - Vref) where R2 is a fixed value (e.g., 240Ω for standard configurations). For a target output of 12V with a 1.25V reference, R1 calculates to (1.25 * 240) / (12 - 1.25) ≈ 26.7Ω. Round to the nearest standard value (27Ω) and verify tolerance impact–±1% resistors ensure ±0.1V deviation at 12V output.
- Temperature drift: Use metal film resistors (TC ≤ 50 ppm/°C) for
R1andR2to minimize voltage shifts under load changes. For instance, a 10°C rise with 100 ppm resistors could alter output by 0.05V–critical for sensitive applications. - Load regulation: Calculate maximum dropout:
Vin(min) = Vout + Vdropout + 2V. A 317 regulator needs 3V overhead; for 24V output, input must exceed 27V. AdjustR1proportionally if input margins are tight. - Power dissipation: Derate resistors to 2x calculated wattage. For 100mA at 36V (
R1= 360Ω),P = I²R = 0.01 * 360 = 3.6W–select a 7W resistor to avoid thermal runaway.
For dual-tracking designs (e.g., positive/negative rails), match resistor pairs within 0.1%. A 10kΩ potentiometer for voltage fine-tuning requires a 10-turn trimpot (±0.05% resolution) when paired with 1% fixed resistors. Logarithmic potentiometers distort linearity–use linear taper for proportional control. Validate calculations with an LTSpice transient analysis: simulate step loads (10%→90%) to confirm settling time (
