Begin by selecting 16-gauge oxygen-free copper cable for amplifier-to-subwoofer links to maintain signal integrity under high current. Crimp ring terminals onto stripped ends, then secure them with a torque wrench set to 12 inch-pounds–over-tightening risks terminal damage while loose connections cause impedance spikes. For dual-voice-coil subwoofers, wire coils in parallel: connect both positive terminals to the amplifier’s positive output and both negatives to the negative terminal. This configuration halves effective load while preserving power handling.
Ground the amplifier directly to the vehicle chassis using a dedicated 8-gauge cable connected to a bare metal point within 18 inches. Avoid daisy-chaining grounds through factory harnesses–corrosion or paint at connection points skews resistance readings. Install a fused distribution block between the battery and amplifier with a 150-amp ANL fuse no farther than 7 inches from the battery post. During testing, verify voltage drop across all connections with a multimeter: values above 0.2 volts indicate insufficient contact surface.
Use twisted-pair cables for signal paths to minimize electromagnetic interference. Route RCA interconnects on the opposite side of main power cables and maintain a minimum 6-inch separation to prevent induction hum. For tuned systems, add a 50-microfarad cap inline with the amplifier’s power input to stabilize voltage during transient demands. Seal all connections with adhesive-lined heat shrink tubing to prevent moisture ingress–oxidation at terminals increases resistance unpredictably.
Avoid solid-core wiring for mobile applications–vibration degrades connections over time. Instead, use finely stranded cable (minimum 133 strands per conductor) for flexibility. Test each component with a dummy load before final installation; erratic impedance behavior signals loose crimps or incorrect coil wiring. Monitor temperature during operation: amplifiers exceeding 160°F (71°C) risk thermal shutdown or premature failure, requiring improved airflow or derated power settings.
Subwoofer Resistance Schematics: A Field-Tested Approach
Connect dual 1-ohm dual voice coil (DVC) subwoofers in parallel to achieve the target 0.25Ω load if your amplifier’s RMS rating supports 250W at this impedance. Use 4-gauge oxygen-free copper (OFC) cable for lengths under 3 meters to minimize voltage drop–anything longer demands 2-gauge. Verify the amplifier’s fuse rating matches the wire gauge: 120A for 4-gauge, 200A for 2-gauge.
Mark each wire’s polarity at both ends before termination to avoid phase cancellation, especially in series-parallel setups. Label the positive lead with red heat-shrink tubing and the negative with black. For enclosures exceeding 2 cubic feet, reinforce ground connections with star washers to prevent resistance creep from vibration.
Test each connection with a multimeter before finalizing–probe the amplifier’s input terminals while the subwoofers are disconnected. A 0.1Ω variance between measured and expected load indicates poor crimping or corroded terminals. Replace ring terminals showing green oxidation; solder tarnished ends for long-term stability.
Distribute current evenly across components by splitting power feeds into separate runs for left and right channels if running two amplifiers. Route signal RCA cables perpendicular to power wires to avoid interference, maintaining 10cm minimum separation. Secure loose cables with adhesive-backed loom to prevent abrasion against metal chassis edges.
Adjust gain settings using a sine wave generator at 50Hz–start at 50% volume and increase until distortion appears on the oscilloscope, then back off 3dB. For ported enclosures, seal port edges with rubber gaskets to eliminate air leaks that degrade response below tuning frequency. Avoid carpet-lined box walls thicker than 1/2 inch; it dampens transient response.
Use a dedicated distribution block for ground wires rather than daisy-chaining to the battery. Mount the block within 18 inches of the amplifier, securing it to unpainted metal for optimal conductivity. If the system draws more than 100A continuously, upgrade the alternator to a 220A model with a voltage regulator set to 14.4V.
Recheck all connections after 24 hours of operation–thermal cycling can loosen terminals. Tighten every bolt to 7 Nm using a torque wrench, particularly on battery terminals. For marine installations, apply dielectric grease to all exposed connections to repel moisture; inspect corrosion annually.
How to Select the Optimal Cable Thickness for Low-Impedance Speaker Configurations
For a 2-ohm load configuration, use 4 AWG copper cable as the minimum standard for subwoofer installations handling 500W RMS or higher. Larger amplifiers (1000W+ RMS) require 2 AWG or thicker to prevent power loss and overheating. Aluminum wire demands a size jump–3 AWG for 500W, 1 AWG for 1000W–to match copper performance due to higher resistance per meter.
Calculate total current draw using the formula: I = √(P / R), where P is continuous power in watts and R is the speaker’s impedance value. For example, a 600W amplifier driving a 2-ohm load pulls roughly 17.3 amps. Cross-reference this current with wire gauge charts–4 AWG copper handles 20 amps continuously at 3% voltage drop over 5 meters, while 6 AWG drops to 15 amps under the same conditions.
- Under 3 meters: 6 AWG copper suffices for 500W; step up to 4 AWG for 700W+.
- 3–6 meters: 4 AWG minimum; 2 AWG for 1000W+.
- Over 6 meters: 2 AWG (or 1/0 AWG aluminum) mandatory to maintain efficiency.
Oxygen-free copper (OFC) wire reduces signal degradation compared to standard copper, especially in runs exceeding 4 meters. CCA (copper-clad aluminum) wire must be upsized by at least two gauges to compensate for its 60% conductivity. For instance, 4 AWG CCA performs closer to 6 AWG OFC, making it unsuitable for high-current applications unless re-sized accordingly.
Voltage drop becomes critical at low impedances. A 0.5V drop at 12V (4.17%) translates to 20W lost power in a 500W setup. Use a voltage drop calculator with these parameters:
- Source voltage: 14.4V (charging system)
- Acceptable drop: ≤3%
- Wire material: Copper or aluminum
Fuse the wire within 7 inches of the battery terminal using an ANL or MIDI fuse rated 20–30% above the maximum continuous current. For a 17-amp draw, a 20-amp fuse provides adequate protection without nuisance blowing. Avoid glass fuses–they’re unreliable for high-current automotive applications. Always solder and heat-shrink connections or use crimp terminals with adhesive-lined shrink tubing.
For dual-sub configurations wired in parallel, double the total current draw. A pair of 2-ohm subs on a 600W amplifier pulls 34.6 amps. Switch to 2 AWG copper (or 1 AWG aluminum) and use a 40-amp fuse. Split the power cable into two 4 AWG branches at the distribution block, ensuring symmetrical resistance on both subwoofer runs to prevent imbalance.
Step-by-Step Soldering Guide for Parallel Low-Resistance Coils
Start by selecting stranded copper wire with a minimum gauge of 20 AWG for optimal current handling. Pre-tin both coil legs and connection points using a 60/40 rosin-core solder–avoid acid-based flux to prevent corrosion. Apply heat with a 60W-80W temperature-controlled iron set between 350°C and 375°C; excessive heat degrades conductivity and weakens joints.
Trim leads to 5mm before soldering to minimize excess material that could bridge adjacent terminals. Position the coils side by side with a 2mm gap to prevent short circuits. Secure the setup with heat-resistant Kapton tape or a temporary clamp before applying solder–movement during cooling creates weak joints with high resistance.
Joint Preparation and Heat Management
Use a precision tip (chisel or conical) for focused heat application. Preheat the joint for 2-3 seconds before touching solder to the wire–this ensures even wetting and prevents cold joints. Apply solder to the opposite side of the iron tip to draw the alloy into the connection through capillary action. Aim for a shiny, concave fillet; dull or convex surfaces indicate insufficient wetting or flux residue.
After soldering, cool the joint rapidly with compressed air to solidify the alloy quickly. Inspect each connection with a multimeter in continuity mode–readings above 0.02Ω suggest a defective joint requiring rework. Isolate adjacent conductors with liquid electrical tape or silicone sleeves; standard heat shrink tubing may soften under repeated use.
For dual-coil setups, stagger soldering to prevent thermal damage. Begin with the outermost connections, then move inward to maintain consistent heat distribution. Final resistance should match calculated values within a ±0.01Ω tolerance; deviations exceeding this threshold necessitate disassembly and verification of component integrity.

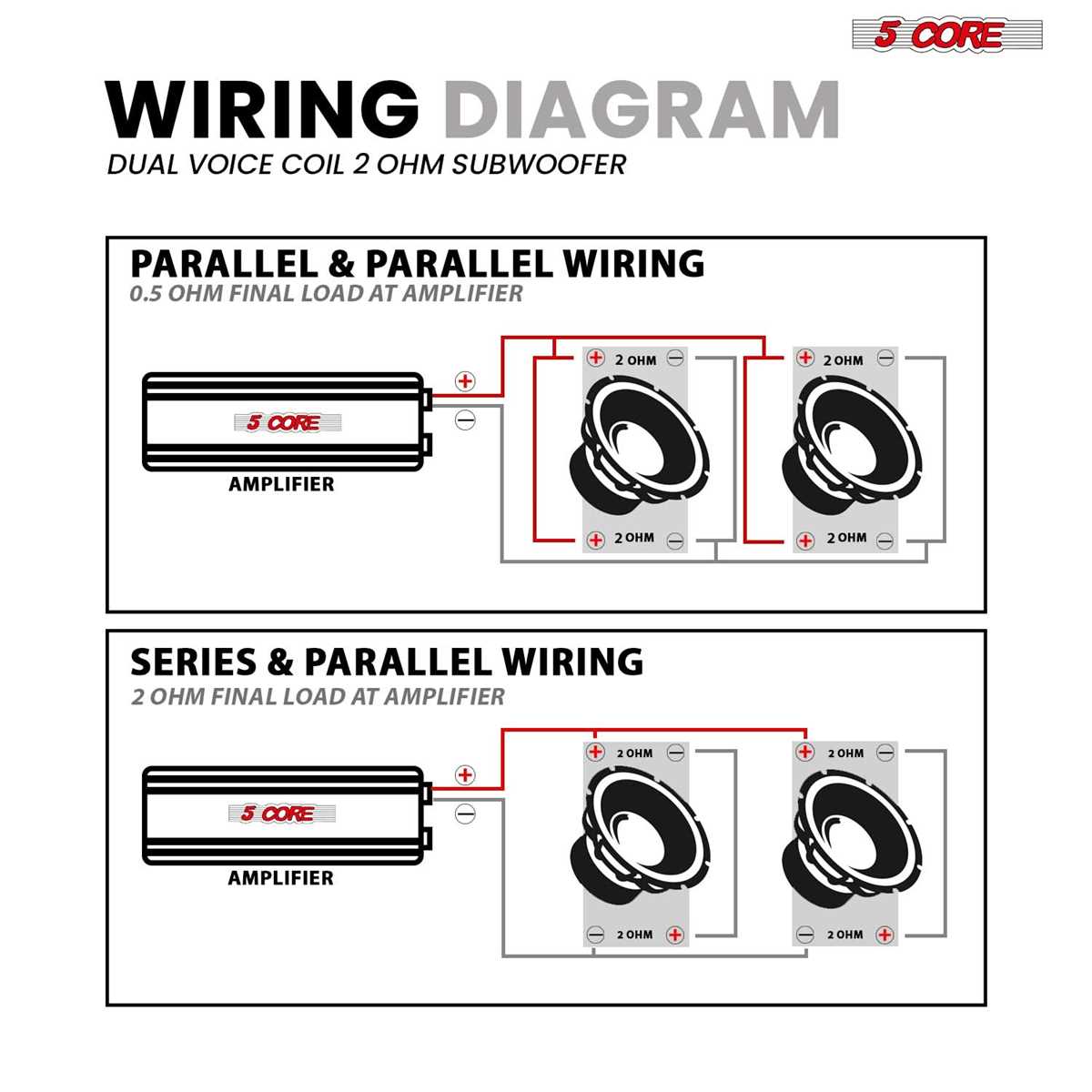

Critical Errors in Configuring 2-Ohm DVC Subs for Half-Ohm Loads
Misidentifying coil terminals as parallel-ready kills amplifiers faster than any other misstep. Dual voice coil drivers list impedance per winding, not system totals–confusing bridged connections as safe doubles the strain. Verify manufacturer specs: a 2-ohm DVC sub often requires both coils wired in series-tandem to hit target resistances, not parallel splits.
Overloading amplifiers by mixing 1-ohm stable units with half-ohm demands guarantees thermal shutdown. Check RMS current draw against amp headroom; a 1000-watt mono block rated at 1-ohm may fry when pushed to half-ohm loads. Calculate real wattage: amperage spikes at lower resistances mandate oversized power supplies.
Ignoring OFC gauge mismatches introduces resistance creep that ruins efficiency. Using 4 AWG copper wiring on 800-watt continuous draw systems invites voltage sag–upgrade to 1/0 gauge for sub-half-ohm builds. Crimp connections improperly and oxidation adds another 0.2 ohms of waste, robbing subwoofers of excursion.
Solderless connectors fail under current surges–invest in tinned ring terminals for half-ohm stability. Twist-lock RCA interconnects prevent signal loss during excursions; cheap patch cables corrode inside 6 months under sub conditions. Always ground directly to chassis, never rely on seat-rail anchors or factory welds.
Skipping Polk audio phase checks causes destructive cancellation below 50 Hz–reverse polarity on one coil and response drops 12 dB instantly. Use an SPL meter during setup; any reading below 90 dB at 30 Hz indicates wiring flaws. Phase alignment tools reveal impedance dips invisible to standard multi-meters.
Neglecting enclosure tuning ratios spells disaster for subs at half-ohm boundaries. A 1.5 cubic-foot ported box tuned to 35 Hz becomes a resistance nightmare at 0.3 ohms; vent length calculations must account for driver BL²/Re² ratios. Test impedance sweep pre-installation–dips below 0.8 ohms on dual 2-ohm coils signal pending coil overheating.
